Jenn-Air JBZFL18IGX10 freezer, upright or vertical Parts

Here are the diagrams and repair parts for Jenn-Air JBZFL18IGX10 freezer, upright or vertical, as well as links to manuals and error code tables, if available.

Jenn-Air JBZFL18IGX10 freezer, upright or vertical
By Schematic
By Part

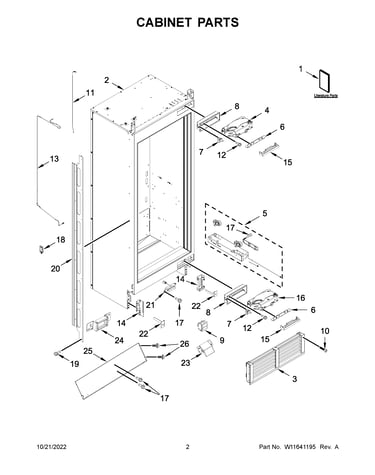

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forJBZFL18IGX10 Freestanding Freezers

  • Fan for Jenn-Air JBZFL18IGX10 - Part W11233380

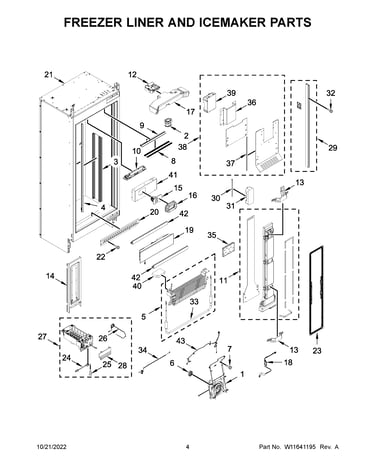

    Freezer liner and icemaker parts diagram

    Fan-assy,rad

    Part #W10769486

    Replaced by #W11233380

    Info Icon
    Manufacturer substitution
    This part replaces W10769486. Substitute parts can look different from the original.
    In Stock
    $193.88
    Minus Item
    Qty
    Plus Item
  • Support for Jenn-Air JBZFL18IGX10 - Part W11690161

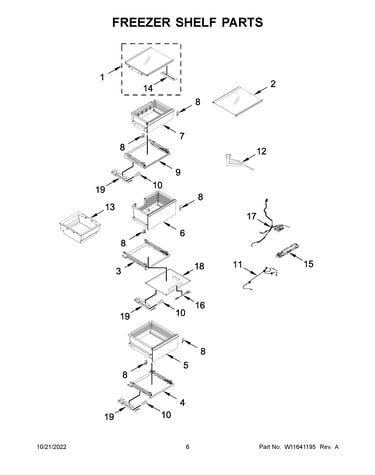

    Freezer shelf parts diagram

    Refrigerator Shelf Support Arm

    Part #W10605575

    Replaced by #W11690161

    Info Icon
    Manufacturer substitution
    This part replaces W10605575. Substitute parts can look different from the original.
    In Stock
    $54.01
    Minus Item
    Qty
    Plus Item
  • Plate for Jenn-Air JBZFL18IGX10 - Part W11299626

    Freezer shelf parts diagram

    Plate, Crisper Led Support

    Part #W10902247

    Replaced by #W11299626

    Info Icon
    Manufacturer substitution
    This part replaces W10902247. Substitute parts can look different from the original.
    In Stock
    $113.76
    Minus Item
    Qty
    Plus Item
  • Bin-cntlvr for Jenn-Air JBZFL18IGX10 - Part W11247632

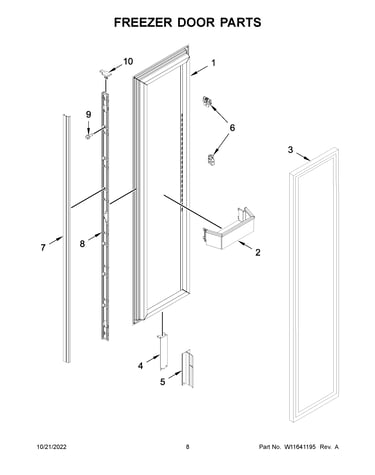

    Freezer door parts diagram

    Door Bin Assembly

    Part #W10824621

    Replaced by #W11247632

    Info Icon
    Manufacturer substitution
    This part replaces W10824621. Substitute parts can look different from the original.
    In Stock
    $283.41
    Minus Item
    Qty
    Plus Item
  • Housing for Jenn-Air JBZFL18IGX10 - Part W11247540

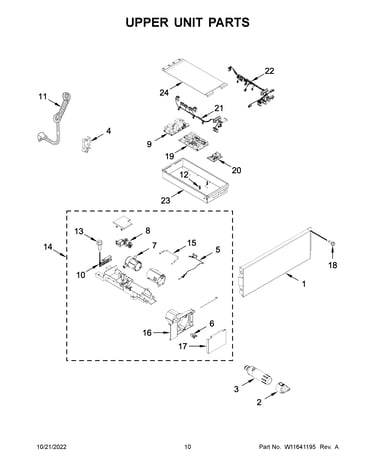

    Upper unit parts diagram

    Filter Mount

    Part #W10826558

    Replaced by #W11247540

    Info Icon
    Manufacturer substitution
    This part replaces W10826558. Substitute parts can look different from the original.
    In Stock
    $163.26
    Minus Item
    Qty
    Plus Item
  • Cover for Jenn-Air JBZFL18IGX10 - Part W11307199

    Freezer liner and icemaker parts diagram

    Cover, Led Top

    Part #W10816889

    Replaced by #W11307199

    Info Icon
    Manufacturer substitution
    This part replaces W10816889. Substitute parts can look different from the original.
    In Stock
    $111.61
    Minus Item
    Qty
    Plus Item
  • Evaporator Tray for Jenn-Air JBZFL18IGX10 - Part W11234855

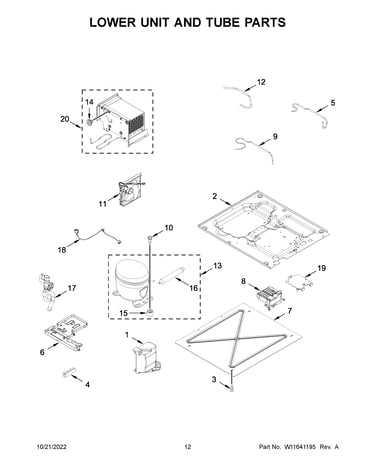

    Lower unit and tube parts diagram

    Tray-evap,wa

    Part #W10801047

    Replaced by #W11234855

    Info Icon
    Manufacturer substitution
    This part replaces W10801047. Substitute parts can look different from the original.
    In Stock
    $127.10
    Minus Item
    Qty
    Plus Item
  • Cover for Jenn-Air JBZFL18IGX10 - Part W11299623

    Freezer liner and icemaker parts diagram

    Cover, Evaporator Panel U Shape

    Part #W10895218

    Replaced by #W11299623

    Info Icon
    Manufacturer substitution
    This part replaces W10895218. Substitute parts can look different from the original.
    In Stock
    $104.76
    Minus Item
    Qty
    Plus Item
  • Retainer for Jenn-Air JBZFL18IGX10 - Part W11235126

    Freezer shelf parts diagram

    Clip, Retainer (left Hand)

    Part #W10856559

    Replaced by #W11235126

    Info Icon
    Manufacturer substitution
    This part replaces W10856559. Substitute parts can look different from the original.
    In Stock
    $102.23
    Minus Item
    Qty
    Plus Item
  • Electronic Control for Jenn-Air JBZFL18IGX10 - Part W11233638

    Upper unit parts diagram

    Cntl-elek, N

    Part #W10909108

    Replaced by #W11233638

    Info Icon
    Manufacturer substitution
    This part replaces W10909108. Substitute parts can look different from the original.
    In Stock
    $316.57
    Minus Item
    Qty
    Plus Item

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
