Model # 831215010 Official Proform xp 70 exercise cycle

Here are the diagrams and repair parts for Official Proform 831215010 xp 70 exercise cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Exercise Cycle Pedal, Left 134368
#22

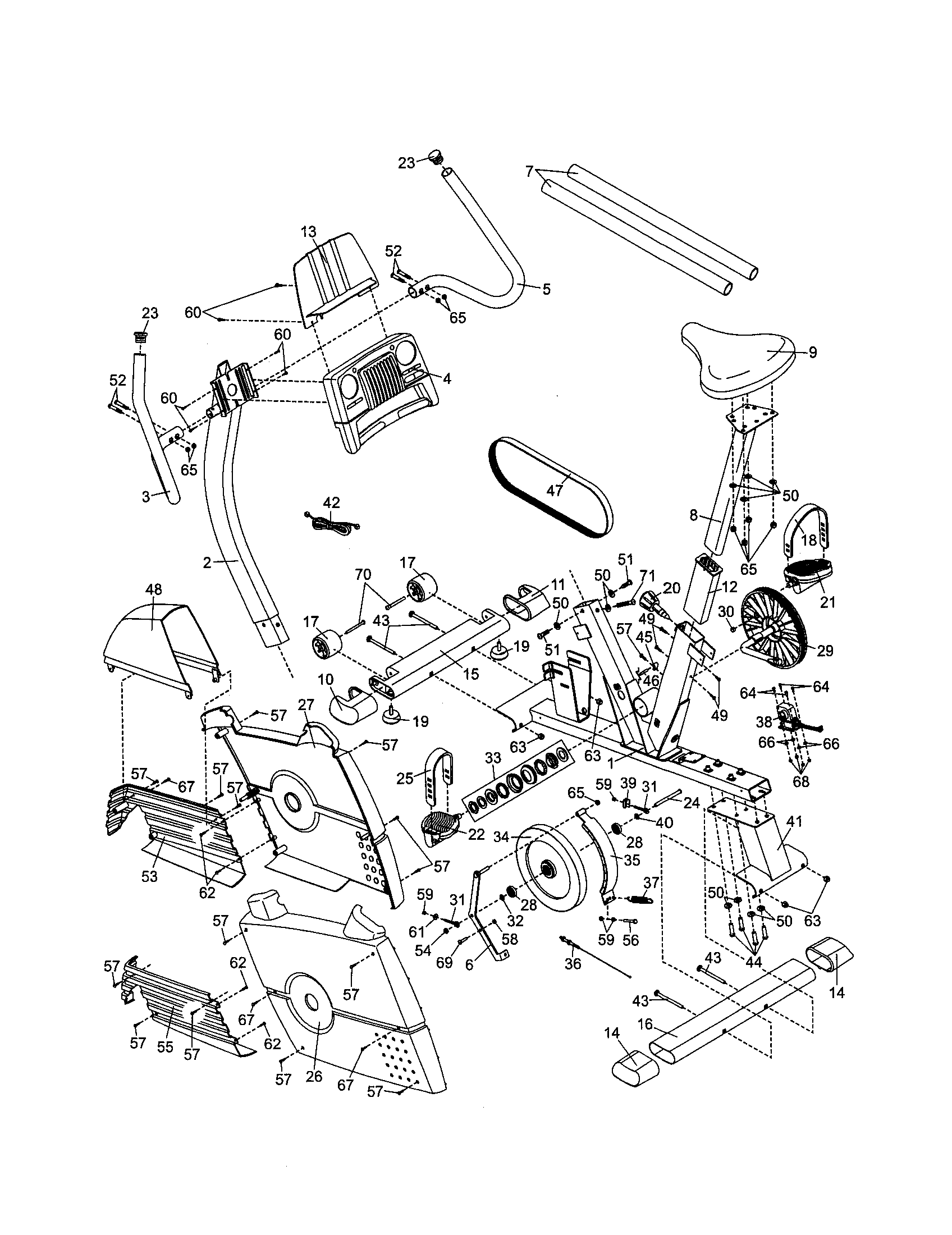

Console/seat/sideshields diagram

Exercise cycle pedal, left

Part #134368

Replaced by #374670

?
Manufacturer substitution
This part replaces 134368. Substitute parts can look different from the original.
This item is not returnable
$17.09 |
10% OFF Phone Price : $19.09
In Stock
Exercise Cycle Pedal, Right 134367
#21

Console/seat/sideshields diagram

Exercise cycle pedal, right

Part #134367

Replaced by #374671

?
Manufacturer substitution
This part replaces 134367. Substitute parts can look different from the original.
This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
In Stock
Elliptical Nut 148710
#63

Console/seat/sideshields diagram

Elliptical nut

Part #148710

This item is not returnable
$2.16
In Stock
Exercise Equipment Magnet 113842
#30

Console/seat/sideshields diagram

Exercise equipment magnet

Part #113842

This item is not returnable
$2.16
In Stock
Elliptical Nut 012042
#65

Console/seat/sideshields diagram

Elliptical nut

Part #012042

This item is not returnable
$2.16
In Stock
Handlebar End Cap 186477
#23

Console/seat/sideshields diagram

Handlebar end cap

Part #186477

This item is not returnable
$2.16
In Stock
Exercise Cycle Pedal Strap, Right 134259
#18

Console/seat/sideshields diagram

Exercise cycle pedal strap, right

Part #134259

This item is not returnable
$8.99
In Stock
Exercise Equipment Screw 208527
#56

Console/seat/sideshields diagram

Exercise equipment screw

Part #208527

This item is not returnable
$2.16
In Stock
Stblzr,rear, 219161
#16

Console/seat/sideshields diagram

Stblzr,rear,

Part #219161

$52.99
In Stock
Screw,sbhs,b 222788
#71

Console/seat/sideshields diagram

Screw,sbhs,b

Part #222788

This item is not returnable
$2.16
In Stock
