Electric Cooktop

Model # 00462053A Official Ikea electric cooktop

Here are the diagrams and repair parts for Official Ikea 00462053A electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

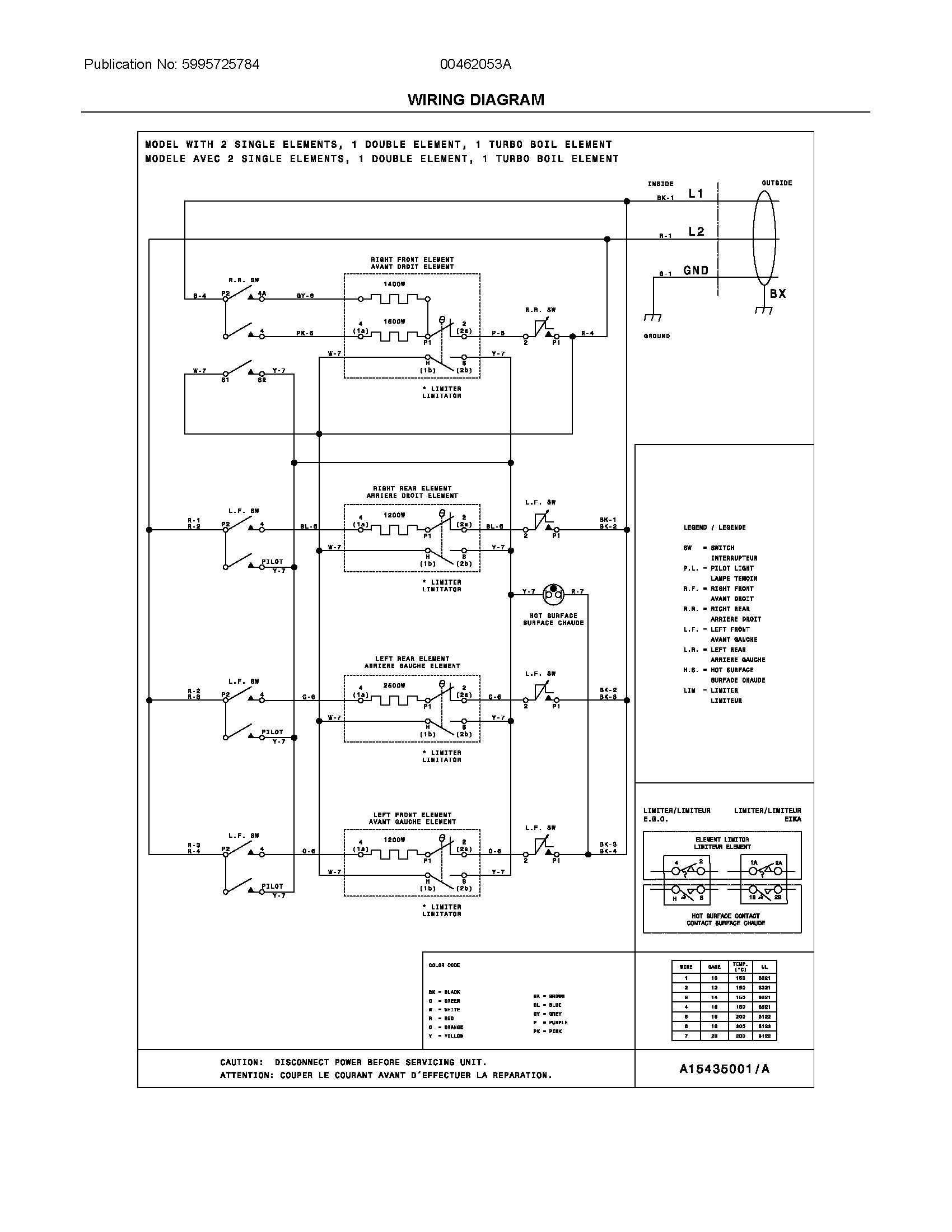

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
*infinite 318191001
#54A

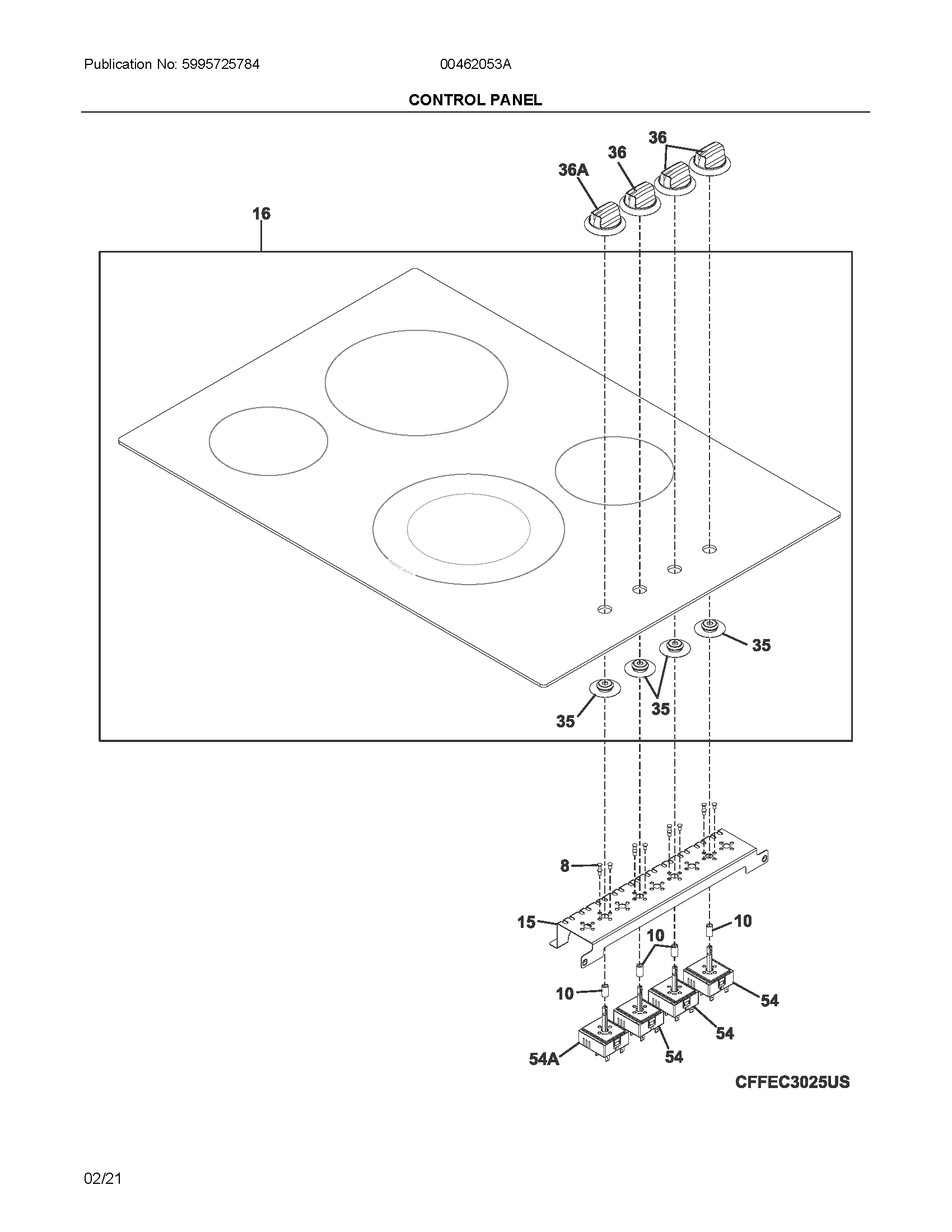

Controls/induction unit diagram

*infinite

Part #318191001

Replaced by #903097-9040

?
Manufacturer substitution
This part replaces 318191001. Substitute parts can look different from the original.
$62.55 |
7% OFF Phone Price : $67.55
In Stock
Screw 305376101
#NI

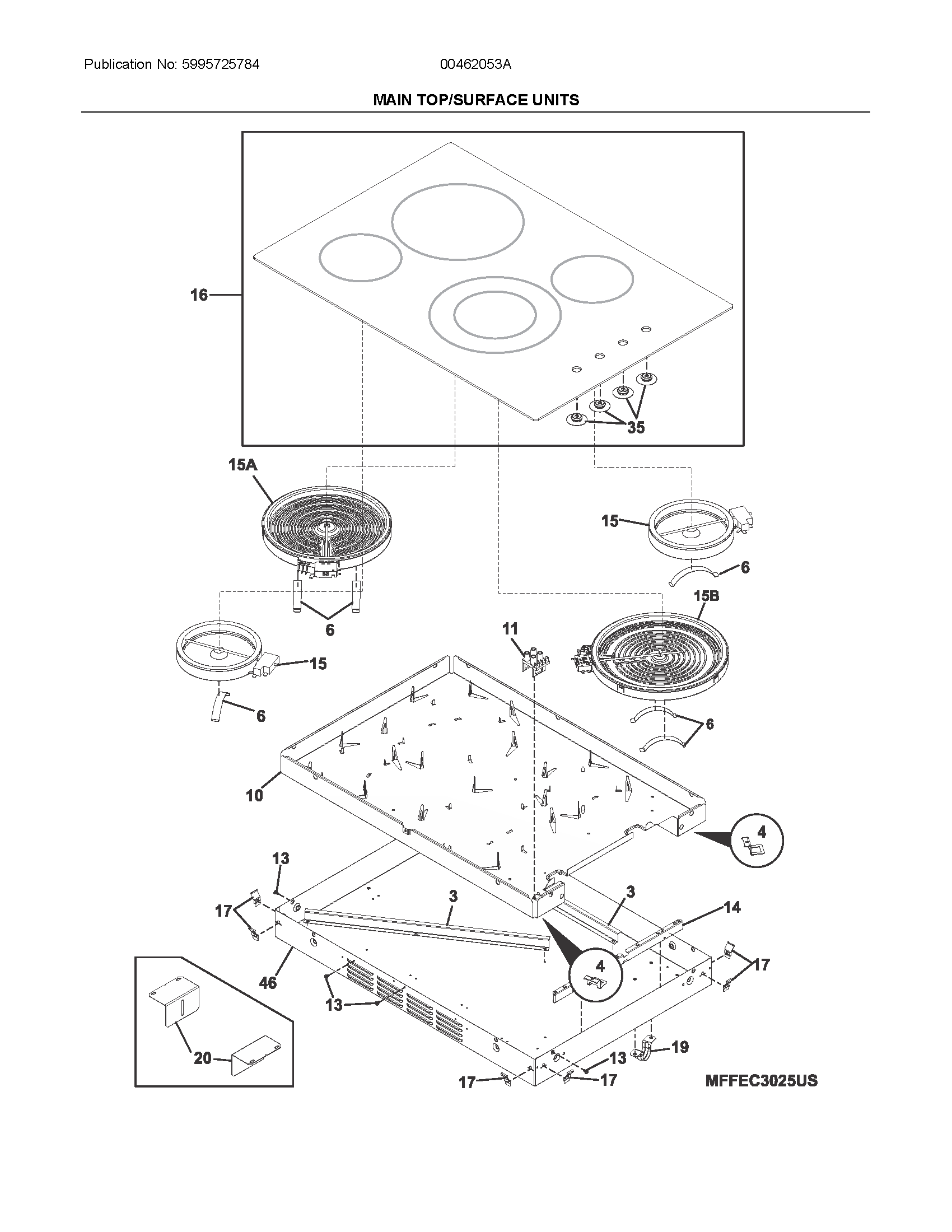

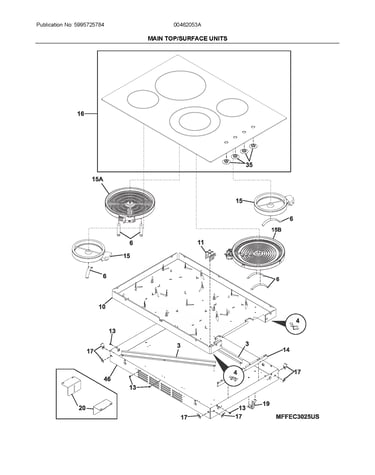

Main top/surface units diagram

Screw

Part #305376101

Replaced by #5308014215

?
Manufacturer substitution
This part replaces 305376101. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Knob,control ,black ,dual Element 5304518269
#36A

Controls/induction unit diagram

Knob,control ,black ,dual element

Part #5304518269

$18.20
In Stock
Screw 330447900
#13

Main top/surface units diagram

Screw

Part #330447900

This item is not returnable
$11.17
In Stock
Rivet 305351200
#NI

Main top/surface units diagram

Rivet

Part #305351200

This item is not returnable
$2.76
In Stock
Knob,control ,black ,single Element 5304518268
#36

Controls/induction unit diagram

Knob,control ,black ,single element

Part #5304518268

$18.20
In Stock
Cooktop Centering Spring 387174602
#17

Main top/surface units diagram

Cooktop centering spring

Part #387174602

This item is not returnable
$4.36
In Stock
Screw 305309606
#NI

Main top/surface units diagram

Screw

Part #305309606

$11.17
In Stock
Support 387683500
#3

Main top/surface units diagram

Support

Part #387683500

$22.37
In Stock
Support,beam 5304518260
#14

Main top/surface units diagram

Support,beam

Part #5304518260

$16.44
In Stock
