Craftsman
Water Pump

Model # 3902508 Official Craftsman jet pump

Here are the diagrams and repair parts for Official Craftsman 3902508 jet pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Pump Shaft Seal U109-6A
#6

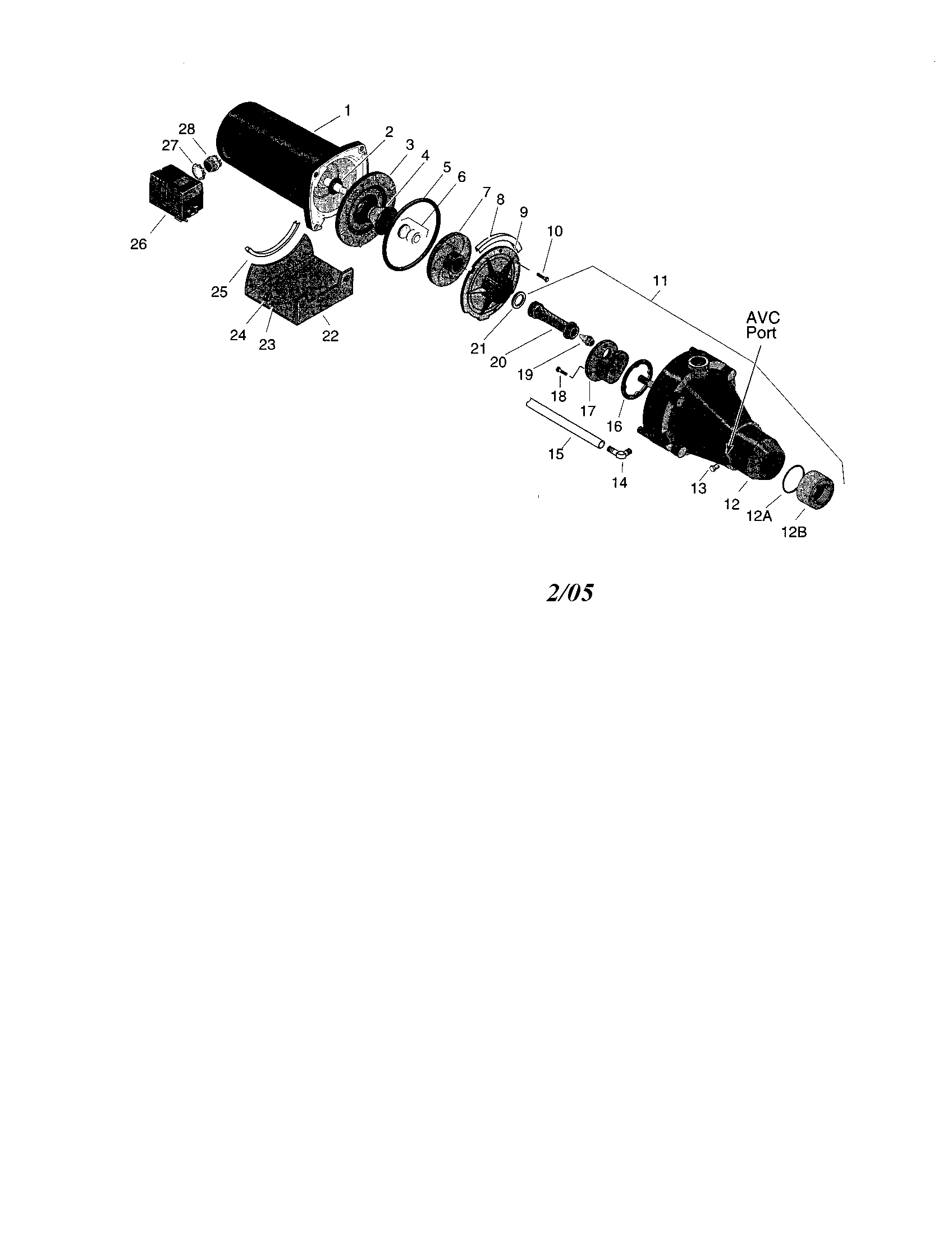

Jet pump assembly diagram

Pump shaft seal

Part #U109-6A

Replaced by #U109-6B

?
Manufacturer substitution
This part replaces U109-6A. Substitute parts can look different from the original.
$106.69 |
9% OFF Phone Price : $116.69
In Stock
Pump Shaft Seal 17351-0009
#2

Jet pump assembly diagram

Pump shaft seal

Part #17351-0009

This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Pump Hose Fitting, 90-degree U111-212T
#14

Jet pump assembly diagram

Pump hose fitting, 90-degree

Part #U111-212T

This item is not returnable
$27.69 |
15% OFF Phone Price : $32.69
In Stock
Base J104-9F
#22

Jet pump assembly diagram

Base

Part #J104-9F

$77.81
In Stock
Pump Body Jet Insert N76-29P
#17

Jet pump assembly diagram

Pump body jet insert

Part #N76-29P

$71.79 |
7% OFF Phone Price : $76.79
In Stock
Pump Body N76-35PE
#12

Jet pump assembly diagram

Pump body

Part #N76-35PE

$137.89 |
7% OFF Phone Price : $147.89
In Stock
Pump Nozzle N34P-19
#19

Jet pump assembly diagram

Pump nozzle

Part #N34P-19

$22.73
In Stock
Connector L43-5C
#28

Jet pump assembly diagram

Connector

Part #L43-5C

$19.77
In Stock
0-ring U9-226
#12A

Jet pump assembly diagram

0-ring

Part #U9-226

$10.71
In Stock
Pump Tube Switch U37-669P
#15

Jet pump assembly diagram

Pump tube switch

Part #U37-669P

$14.91
In Stock
