KitchenAid KGCV566MMT02 gas counter unit Parts

Name: KitchenAid KGCV566MMT02 Parts | Diagrams | Sears PartsDirect
Brand: KitchenAid
SKU: KGCV566MMT02
Availability: InStock

Here are the diagrams and repair parts for KitchenAid KGCV566MMT02 gas counter unit, as well as links to manuals and error code tables, if available.

Error Codes

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for KGCV566MMT02 Cooktops

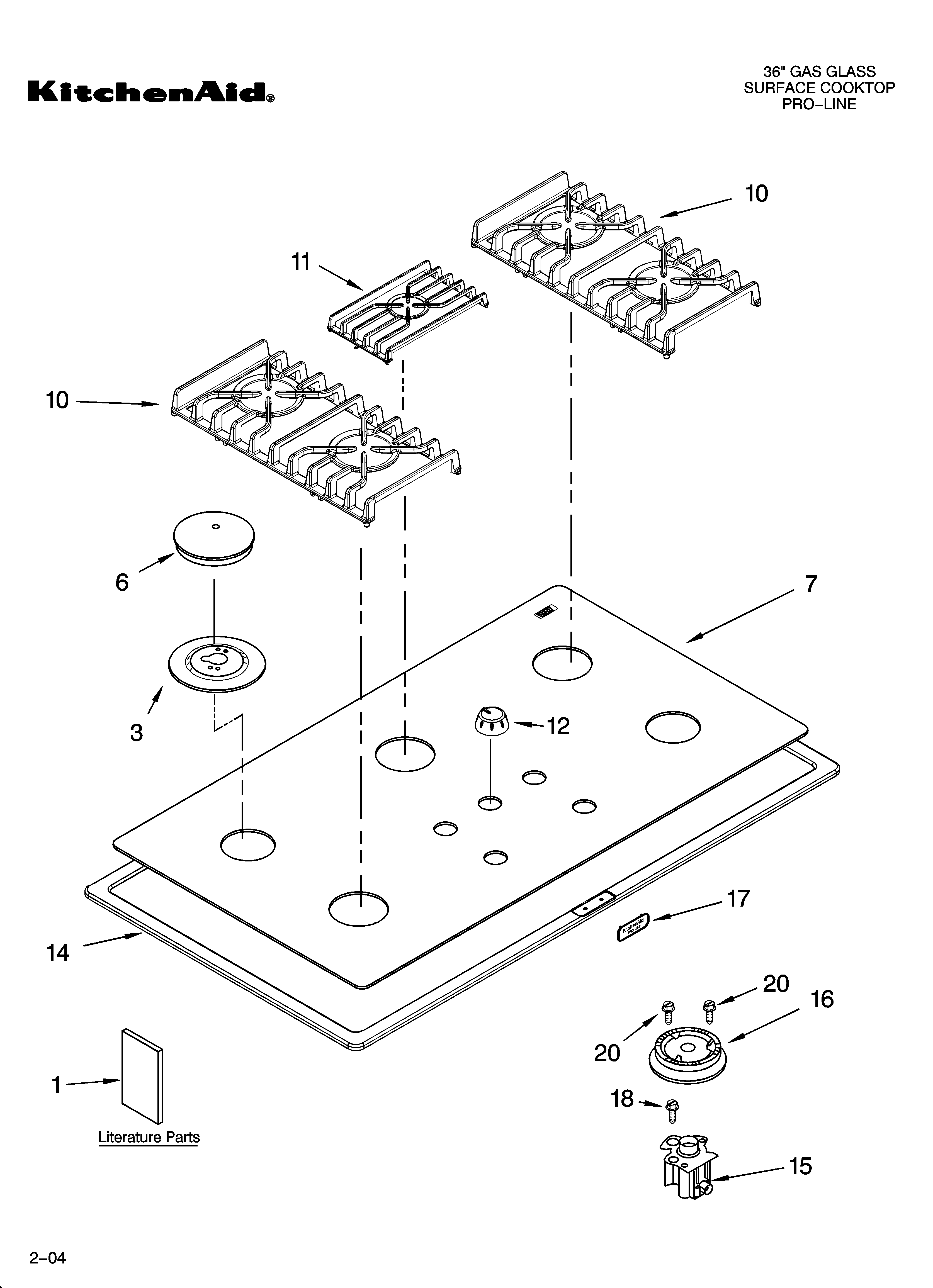

Cooktop, burner and grate parts diagram
Range Screw
Part #3368921
Replaced by #WP3368921
Manufacturer substitution
This part replaces 3368921. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.10
24% OFF Phone Price : $4.10
Qty

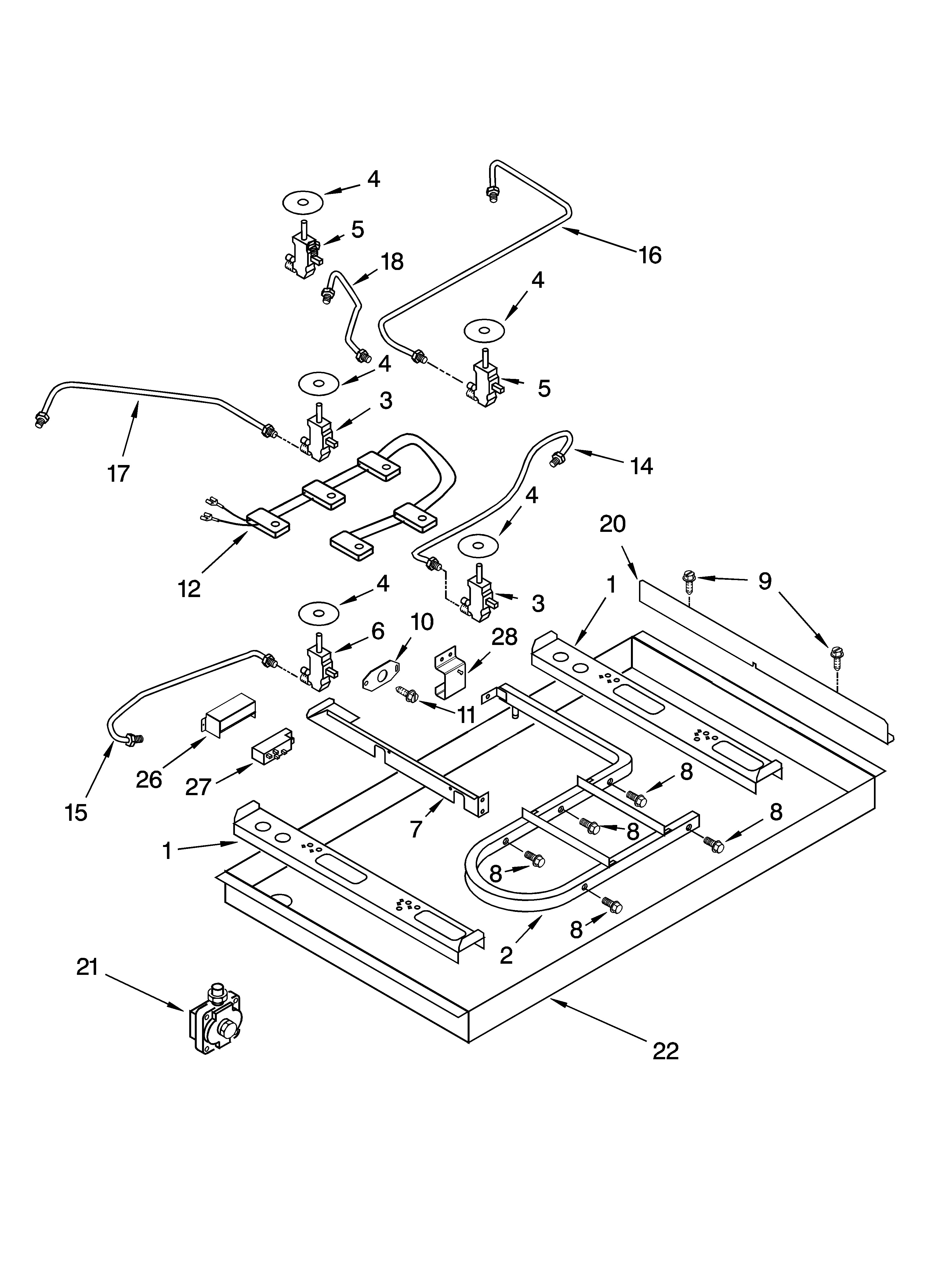

Burner box, gas valves, and switches diagram
Range Screw
Part #3196160
Replaced by #W10491985
Manufacturer substitution
This part replaces 3196160. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.91
17% OFF Phone Price : $5.91
Qty

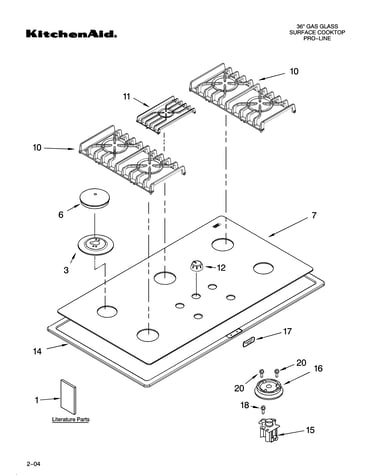

Cooktop, burner and grate parts diagram
Holder Orifice
Part #4456621
Replaced by #WPW10128448
Manufacturer substitution
This part replaces 4456621. Substitute parts can look different from the original.
In Stock
$86.91
6% OFF Phone Price : $92.91
Qty

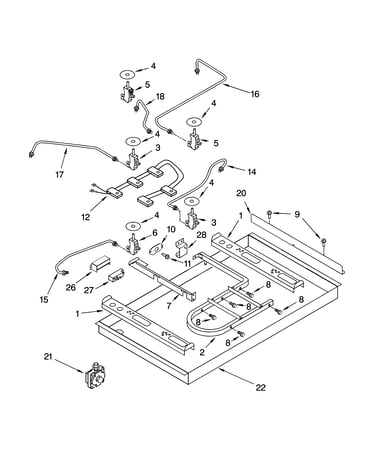

Burner box, gas valves, and switches diagram
Cooktop Igniter Switch And Harness Assembly
Part #4456901
Replaced by #WP4456901
Manufacturer substitution
This part replaces 4456901. Substitute parts can look different from the original.
In Stock
$137.70
8% OFF Phone Price : $149.70
Qty
Cooktop, burner and grate parts diagram
Range Burner Head
Part #4455981
Replaced by #WP4455981
Manufacturer substitution
This part replaces 4455981. Substitute parts can look different from the original.
In Stock
$78.23
7% OFF Phone Price : $84.23
Qty
Burner box, gas valves, and switches diagram
Spark Module
Part #8522424
Replaced by #WPW10110486
Manufacturer substitution
This part replaces 8522424. Substitute parts can look different from the original.
In Stock
$169.44
7% OFF Phone Price : $181.44
Qty
Cooktop, burner and grate parts diagram
Holder Orifice
Part #4456619
Replaced by #WPW10155785
Manufacturer substitution
This part replaces 4456619. Substitute parts can look different from the original.
In Stock
$113.83
Qty
Burner box, gas valves, and switches diagram
Cooktop Igniter Wire Harness, 15-in
Part #4456626
In Stock
$43.99
12% OFF Phone Price : $49.99
Qty
Range Screw
Part #3177991
Replaced by #WP3177991
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.88
17% OFF Phone Price : $5.88
Qty
Burner box, gas valves, and switches diagram
Range Wire Harness
Part #4456627
In Stock
$118.21
Qty
