Craftsman
Hedge Trimmer

Model # 31581330 Official Craftsman 16" hedge trimmer

Here are the diagrams and repair parts for Official Craftsman 31581330 16" hedge trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

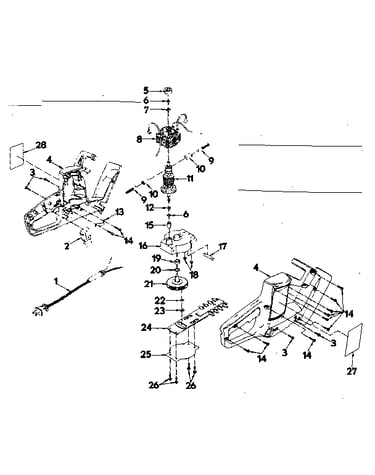

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Data Plate 990258-001
#27

Replacement parts diagram

Data plate

Part #990258-001

The manufacturer no longer makes this part, and there's no substitute part

Grease Cover 990460-001
#25

Replacement parts diagram

Grease cover

Part #990460-001

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 622347-004
#22

Replacement parts diagram

Spring washer

Part #622347-004

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 622347-005
#12

Replacement parts diagram

Spring washer

Part #622347-005

The manufacturer no longer makes this part, and there's no substitute part

Guide 607502-002
#18

Replacement parts diagram

Guide

Part #607502-002

The manufacturer no longer makes this part, and there's no substitute part

Bearing Strp 606808-002
#13

Replacement parts diagram

Bearing strp

Part #606808-002

The manufacturer no longer makes this part, and there's no substitute part

Armature 989933-007
#11

Replacement parts diagram

Armature

Part #989933-007

The manufacturer no longer makes this part, and there's no substitute part

Blade Assembly 612628-001
#24

Replacement parts diagram

Blade assembly

Part #612628-001

The manufacturer no longer makes this part, and there's no substitute part

Brush Tube 612255-001
#10

Replacement parts diagram

Brush tube

Part #612255-001

The manufacturer no longer makes this part, and there's no substitute part

Data Plate (canadian Users) 990877-001
#27A

Replacement parts diagram

Data plate (canadian users)

Part #990877-001

The manufacturer no longer makes this part, and there's no substitute part
