Model #875199460 Craftsman 3/8" pneumatic impact wrench

Here are the diagrams and repair parts for Craftsman 875199460 3/8" pneumatic impact wrench, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 10 of 50 parts

    Valve Pin

    #5

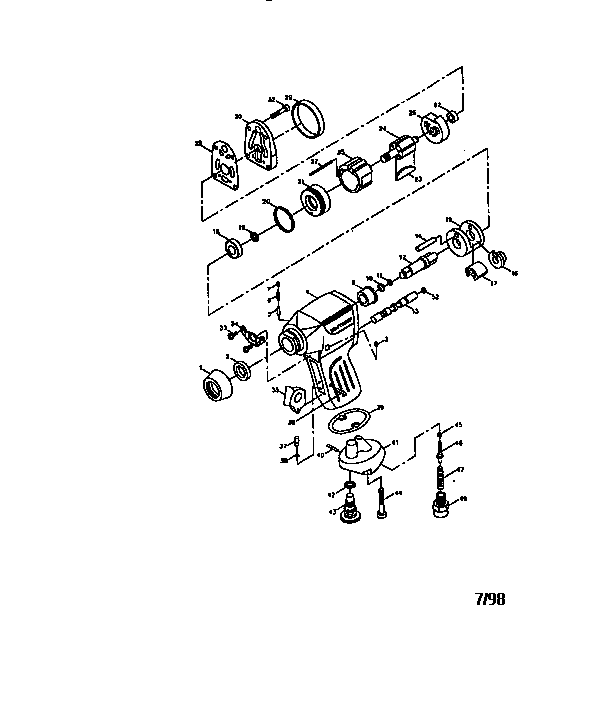

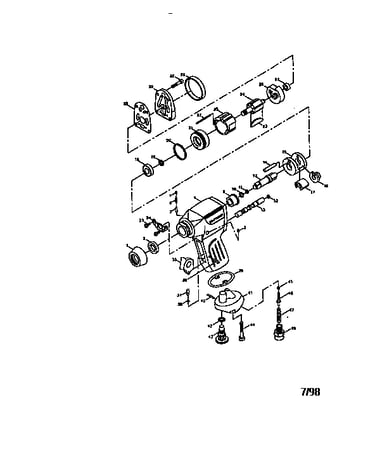

    Pneumatic 3/8" impact wrench Diagram

    Valve pin

    Part #9135805

    The manufacturer no longer makes this part, and there's no substitute part

    Valve

    #13

    Pneumatic 3/8" impact wrench Diagram

    Valve

    Part #9135813

    The manufacturer no longer makes this part, and there's no substitute part

    Oil Seal

    #19

    Pneumatic 3/8" impact wrench Diagram

    Oil seal

    Part #9135819

    The manufacturer no longer makes this part, and there's no substitute part

    Impact Wrench Back Plate

    #30

    Pneumatic 3/8" impact wrench Diagram

    Impact wrench back plate

    Part #9135830

    The manufacturer no longer makes this part, and there's no substitute part

    Impact Wrench Screw

    #32

    Pneumatic 3/8" impact wrench Diagram

    Impact wrench screw

    Part #9135832

    The manufacturer no longer makes this part, and there's no substitute part

    Cover

    #34

    Pneumatic 3/8" impact wrench Diagram

    Cover

    Part #9135834

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #44

    Pneumatic 3/8" impact wrench Diagram

    Screw

    Part #9135845

    The manufacturer no longer makes this part, and there's no substitute part

    Adapter

    #49

    Pneumatic 3/8" impact wrench Diagram

    Adapter

    Part #9135850

    The manufacturer no longer makes this part, and there's no substitute part

    Impact Wrench Socket Retainer Ring

    #10

    Pneumatic 3/8" impact wrench Diagram

    Impact wrench socket retainer ring

    Part #9135810
    This item is not returnable
    $2.54

    In Stock

    Oil Seal

    #2

    Pneumatic 3/8" impact wrench Diagram

    Oil seal

    Part #9135802

    The manufacturer no longer makes this part, and there's no substitute part
