Model # AEQ12ASW1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AEQ12ASW1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

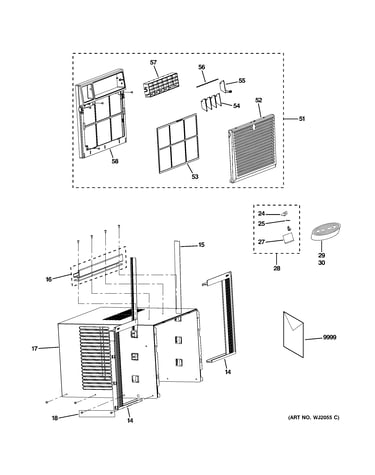

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Room Sensor WJ27X10103
#47

Control parts diagram

Room sensor

Part #WJ27X10103

Replaced by #WJ27X10122

?
Manufacturer substitution
This part replaces WJ27X10103. Substitute parts can look different from the original.
This item is not returnable
$16.70 |
11% OFF Phone Price : $18.70
In Stock
Room Air Conditioner Condenser Fan WJ73X10220
#22

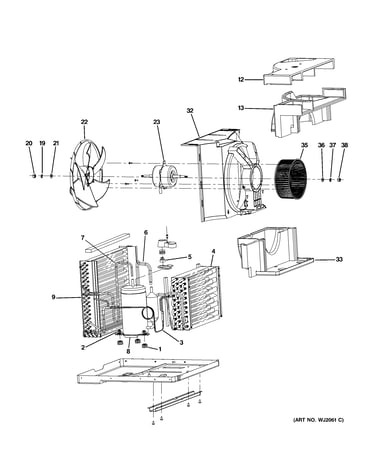

Base pan & unit parts diagram

Room air conditioner condenser fan

Part #WJ73X10220

$36.33 |
12% OFF Phone Price : $41.33
In Stock
Air Conditioner Compressor Capacitor WJ23X10134
#5

Base pan & unit parts diagram

Air conditioner compressor capacitor

Part #WJ23X10134

$64.85
In Stock
Propeller Hood WJ76X10333
#33

Base pan & unit parts diagram

Propeller hood

Part #WJ76X10333

$48.19
In Stock
Power Cord WJ35X10169
#42

Control parts diagram

Power cord

Part #WJ35X10169

$173.99 |
5% OFF Phone Price : $183.99
In Stock
Cable Clamp WJ03X10077
#43

Control parts diagram

Cable clamp

Part #WJ03X10077

This item is not returnable
$7.14
In Stock
Washer(dia 6 WJ01X10347
#36

Base pan & unit parts diagram

Washer(dia 6

Part #WJ01X10347

This item is not returnable
$5.00
In Stock
Capacitor WJ20X10189
#41

Control parts diagram

Capacitor

Part #WJ20X10189

$74.49 |
6% OFF Phone Price : $79.49
In Stock
Nut With Was WJ01X10335
#2

Base pan & unit parts diagram

Nut with was

Part #WJ01X10335

This item is not returnable
$4.35
In Stock
Evaporator Assembly WJ87X10266
#4

Base pan & unit parts diagram

Evaporator assembly

Part #WJ87X10266

$196.99
In Stock
