LG
Microwave/Hood Combo

Model #LMV2053ST/01 LG microwave

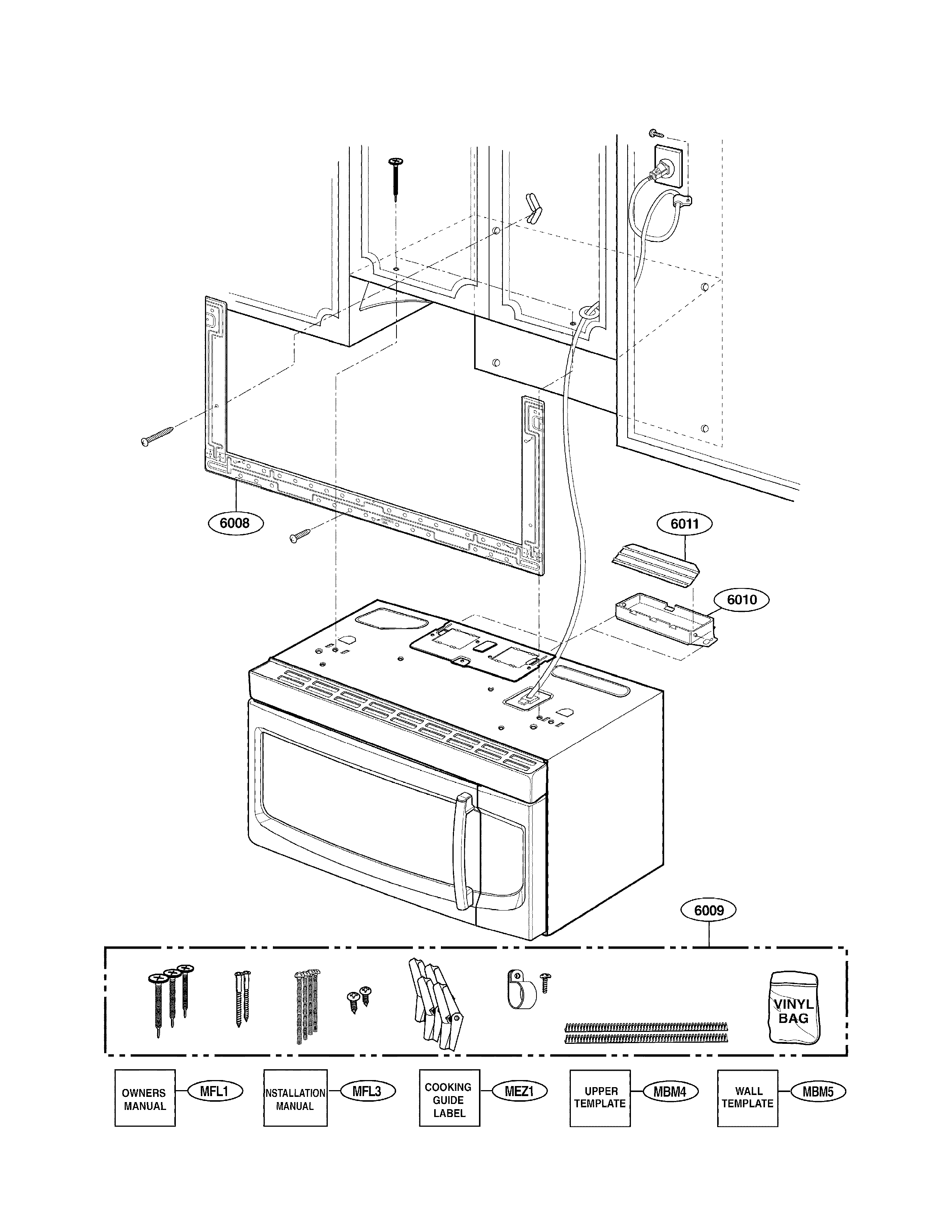

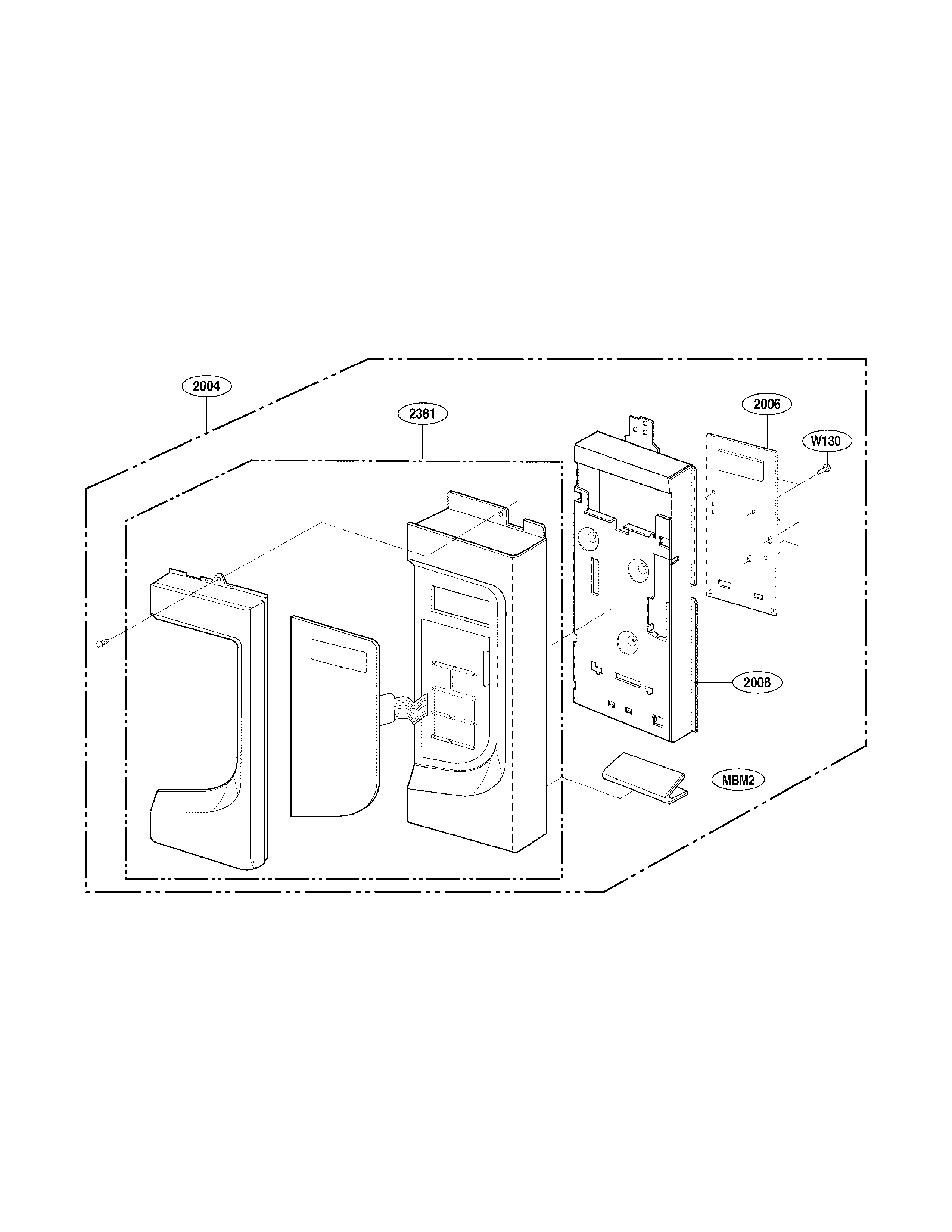

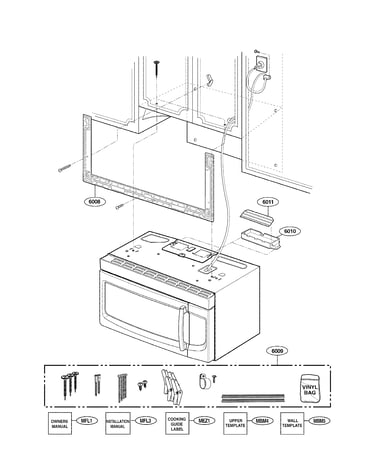

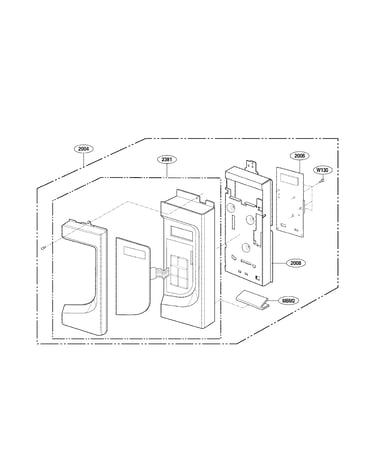

Here are the diagrams and repair parts for LG LMV2053ST-01 microwave, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 114 parts

Microwave Charcoal Filter

#5037

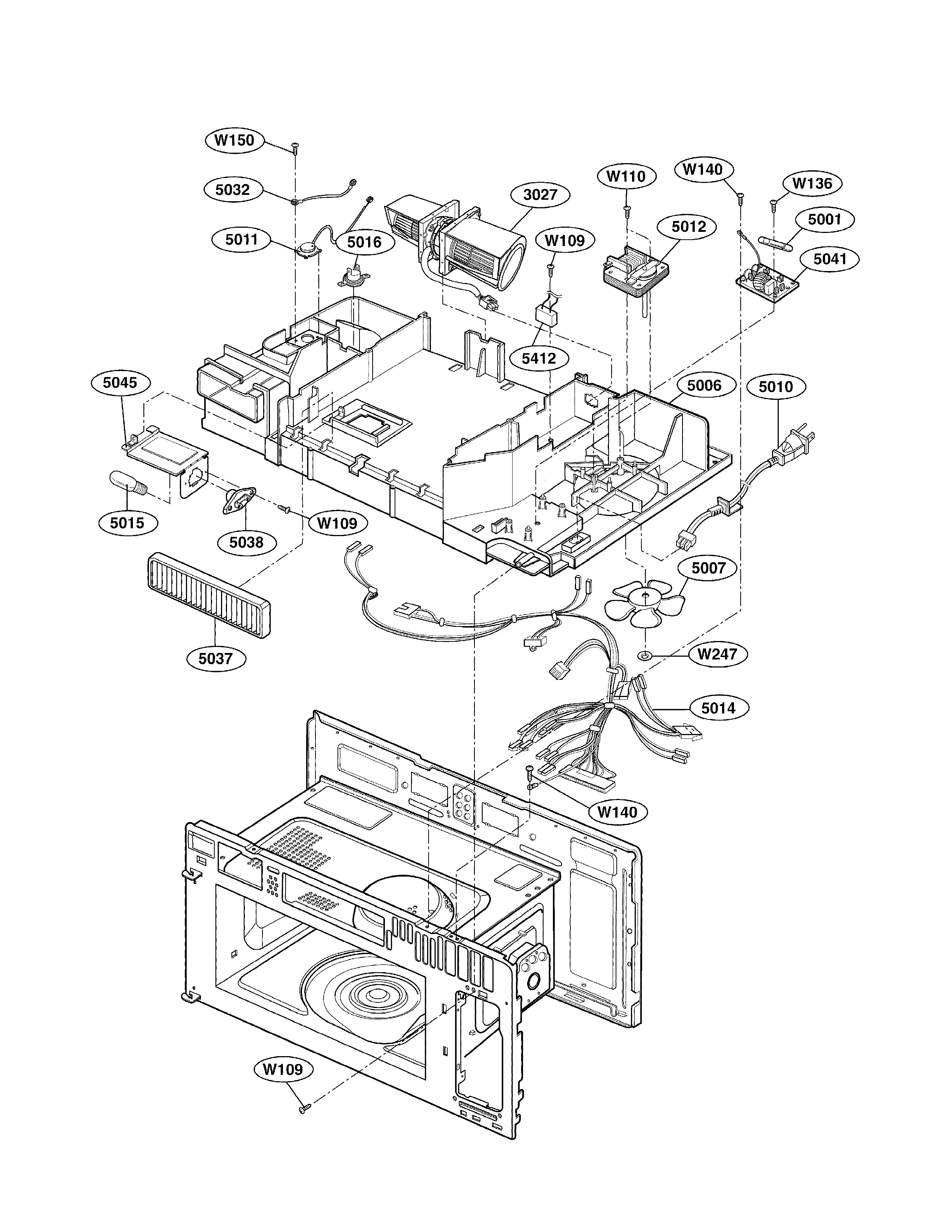

Interior parts(ii) Diagram

Microwave charcoal filter

Part #5230W1A003A
$26.34

In Stock

Microwave Micro-Switch

#4002

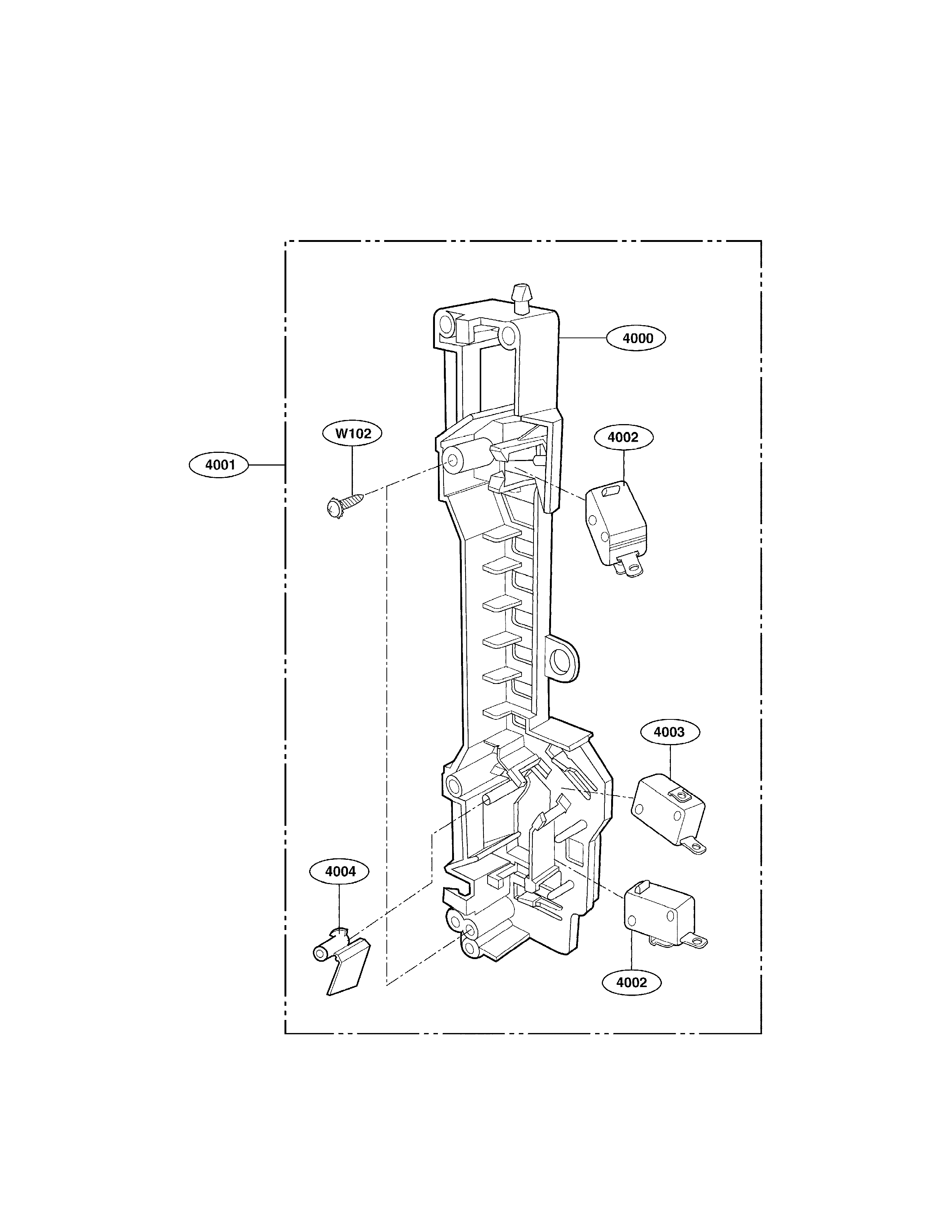

Latch board parts Diagram

Microwave micro-switch

Part #3B73362F
This item is not returnable
$7.07

In Stock

Microwave Grease Filter

#3026A

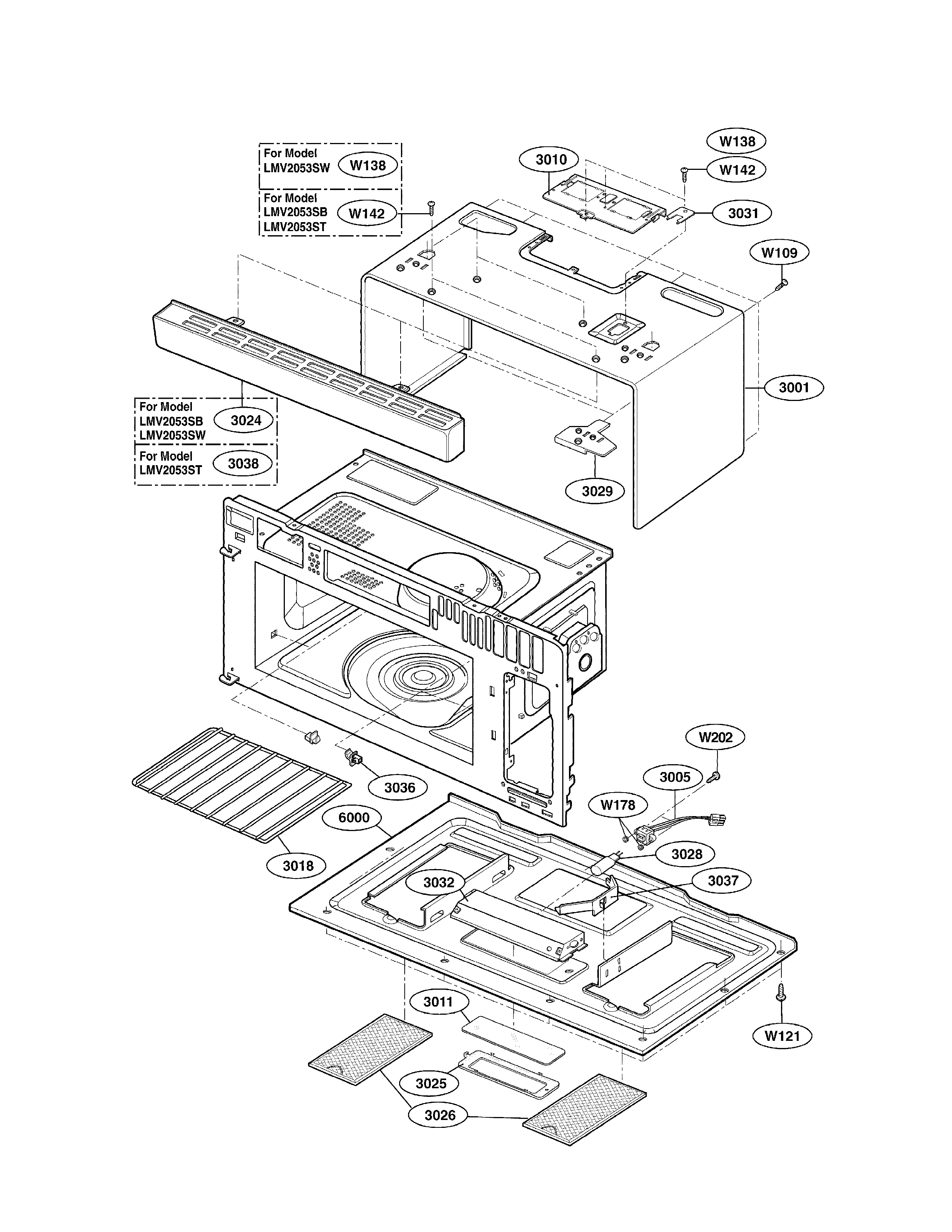

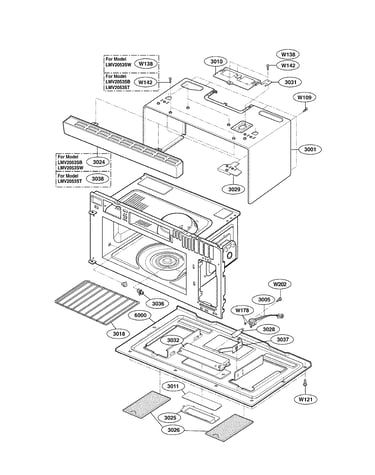

Oven cavity parts Diagram

$10.61

In Stock

Microwave Door Latch Spring

#1007

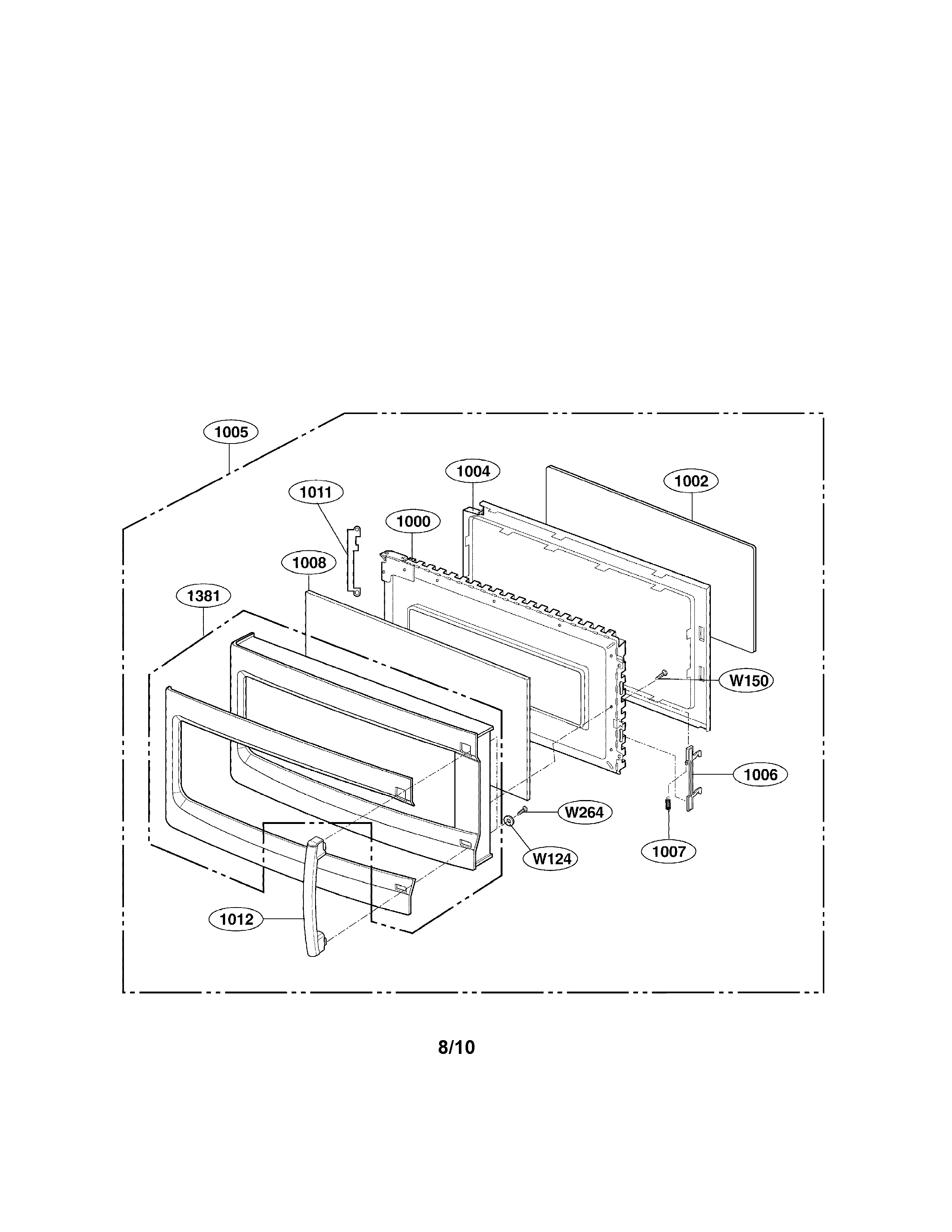

Door parts(ii) Diagram

Microwave door latch spring

Part #4970WRA001G
This item is not returnable
$4.02

In Stock

Microwave High-Voltage Capacitor

#5000A

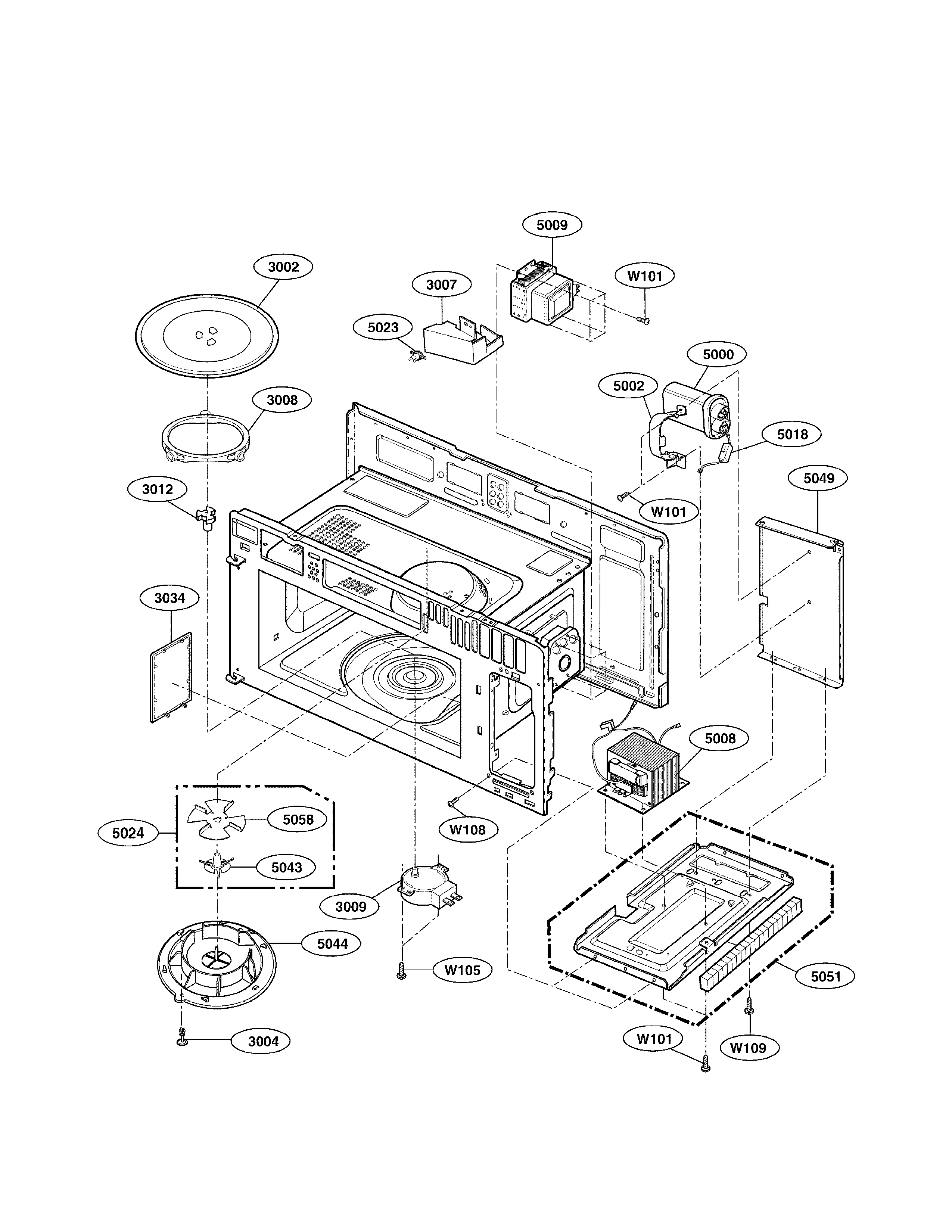

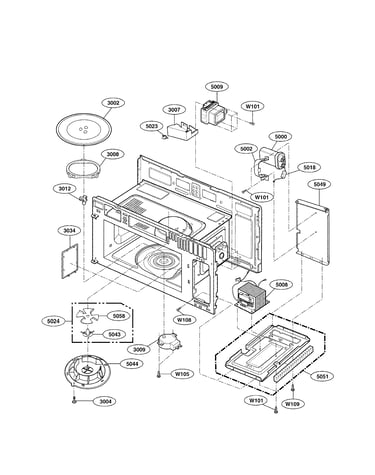

Interior parts(i) Diagram

$16.53

In Stock

Microwave Turntable Tray Support

#3008

Interior parts(i) Diagram

$12.21

In Stock

Microwave Thermostat

#5016

Interior parts(ii) Diagram

Microwave thermostat

Part #6930W1A003J
This item is not returnable
$5.50

In Stock

Microwave Fuse

#5001

Interior parts(ii) Diagram

Microwave fuse

Part #3B74133H
This item is not returnable
$4.71

In Stock

Microwave Screw, M4 x 12-mm

#W142

Oven cavity parts Diagram

Microwave screw, m4 x 12-mm

Part #1TTL0402816
This item is not returnable
$3.81

In Stock

Microwave Screw

#W109

Interior parts(ii) Diagram

Microwave screw

Part #1TTL0402818
This item is not returnable
$3.82

In Stock
