Craftsman 536816501 18" battery-powered reel mower Parts
Here are the diagrams and repair parts for Craftsman 536816501 18" battery-powered reel mower, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM

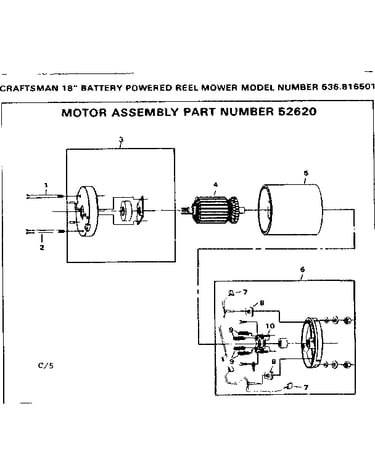

Browse Parts for 536816501 18" Battery-Powered Reel Mower

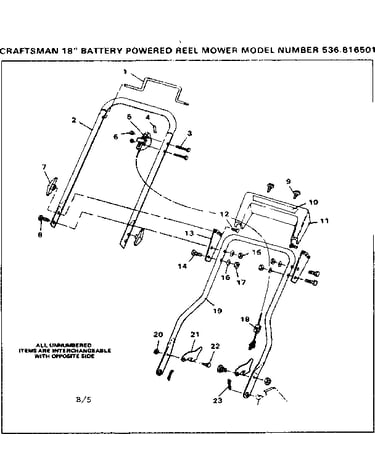

Handle assembly diagram
Lock Nut
Part #9424215Replaced by #703251
Manufacturer substitutionThis part replaces 9424215. Substitute parts can look different from the original.In Stock$9.54
Qty

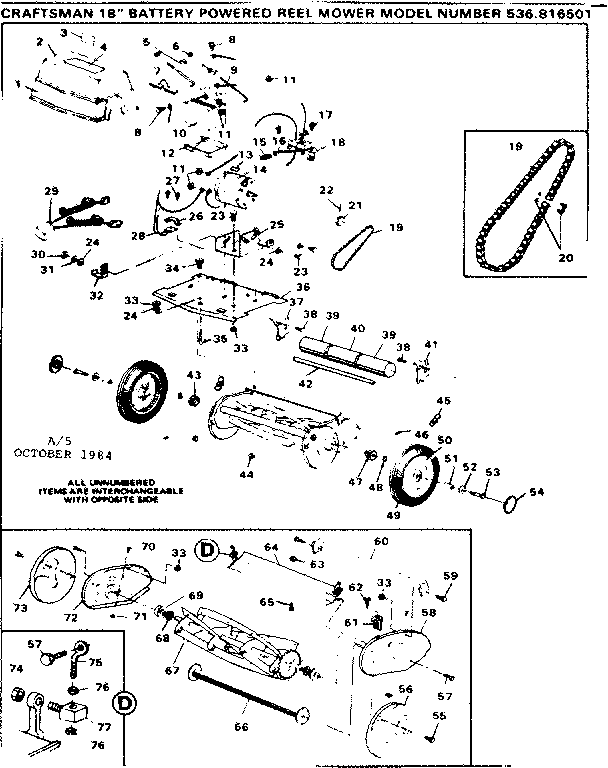

Reel assembly diagram
Screw
Part #35498Replaced by #782967MA
Manufacturer substitutionThis part replaces 35498. Substitute parts can look different from the original.In Stock$8.26QtyReel assembly diagram
Hex Head Screw
Part #120834Replaced by #180073MA
Manufacturer substitutionThis part replaces 120834. Substitute parts can look different from the original.This item is not returnableIn Stock$6.40QtyHandle assembly diagram
Washer
Part #8728Replaced by #783000MA
Manufacturer substitutionThis part replaces 8728. Substitute parts can look different from the original.In Stock$9.91QtyReel assembly diagram
Lock Nut
Part #9413534
The manufacturer no longer makes this part, and there's no substitute part

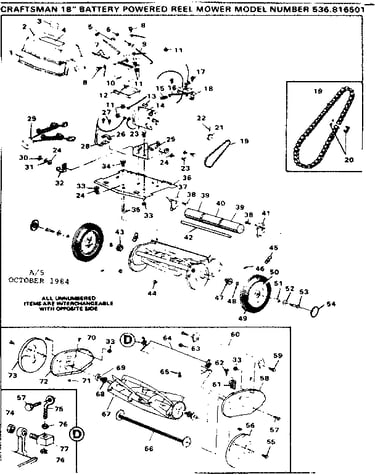

Reel assembly diagram
Chain Assembly
Part #35973
The manufacturer no longer makes this part, and there's no substitute part
Reel assembly diagram
Shield
Part #23623
The manufacturer no longer makes this part, and there's no substitute part
Handle assembly diagram
Screw
Part #121954
The manufacturer no longer makes this part, and there's no substitute part
Reel assembly diagram
Axle Bushing
Part #25198
The manufacturer no longer makes this part, and there's no substitute part
Reel assembly diagram
Decal
Part #69183
The manufacturer no longer makes this part, and there's no substitute part
