Kenmore
Gas Cooktop

Model # 12301 Official Kenmore gas cooktop

Here are the diagrams and repair parts for Official Kenmore 12301 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Screw 708733
#31

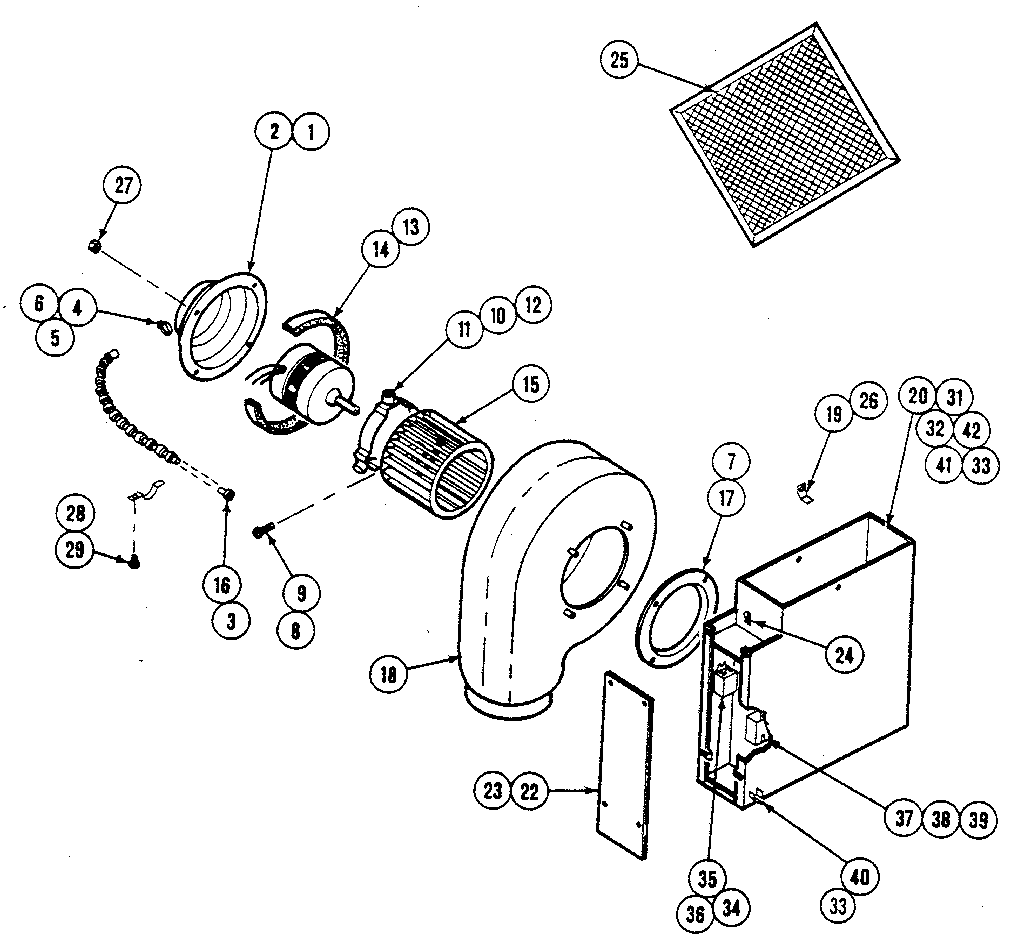

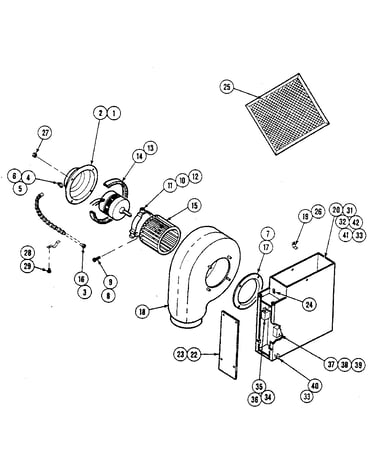

Blower plenum diagram

Screw

Part #708733

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 708733. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Wheel 707985
#15

Blower plenum diagram

Wheel

Part #707985

Replaced by #WPY707985

?
Manufacturer substitution
This part replaces 707985. Substitute parts can look different from the original.
$71.68 |
7% OFF Phone Price : $76.68
In Stock
Igniter 704535
#15

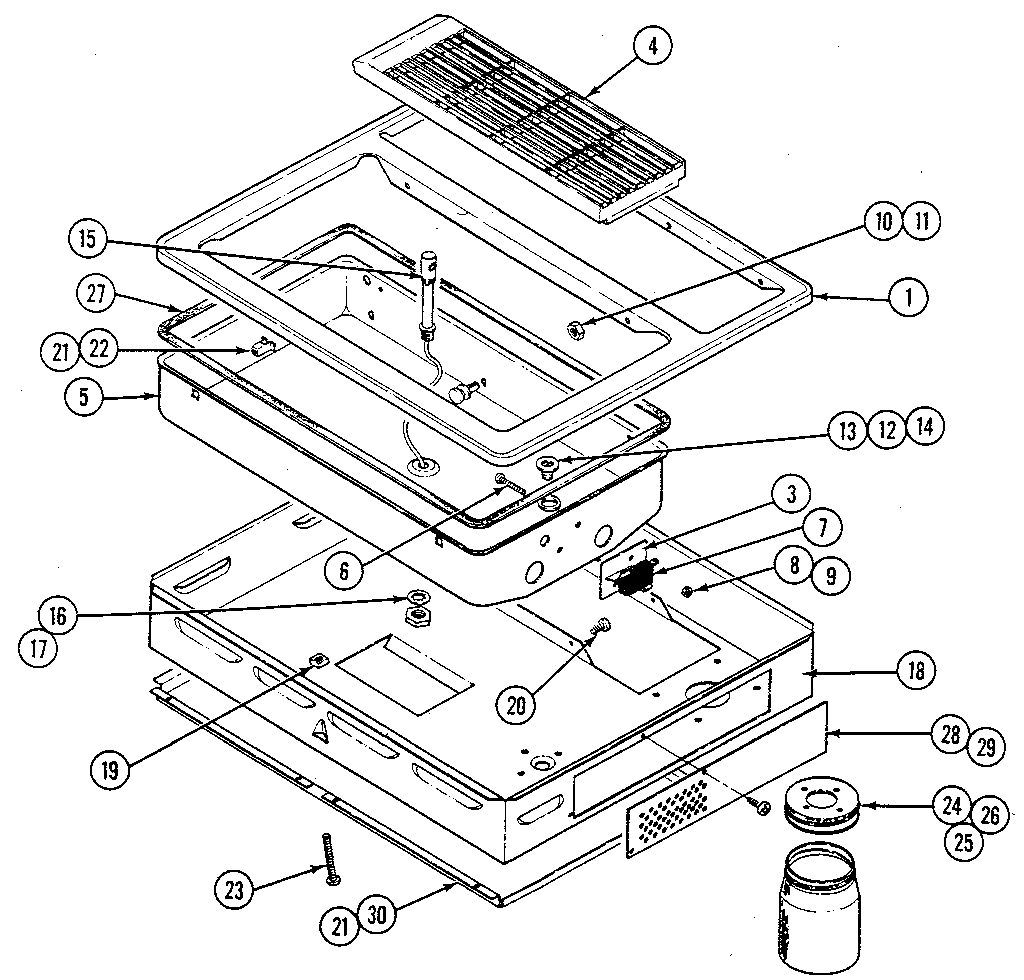

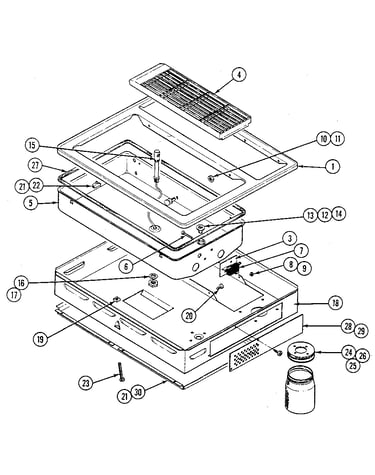

Top/burner box assembly diagram

Igniter

Part #704535

Replaced by #WP71002179

?
Manufacturer substitution
This part replaces 704535. Substitute parts can look different from the original.
$111.14 |
35% OFF MSRP : $170.00
In Stock
Motor 707704
#13

Blower plenum diagram

Motor

Part #707704

Replaced by #707704K

?
Manufacturer substitution
This part replaces 707704. Substitute parts can look different from the original.
$301.50 |
10% OFF Was : $335.00
In Stock
Screw 707113
#20

Top/burner box assembly diagram

Screw

Part #707113

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707113. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 707172
Screw

Part #707172

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707172. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Drain Jar 707869
#25

Top/burner box assembly diagram

Drain jar

Part #707869

Replaced by #WPY707869

?
Manufacturer substitution
This part replaces 707869. Substitute parts can look different from the original.
$36.29 |
12% OFF Phone Price : $41.29
In Stock
Sw Valve Lh 704513
#7

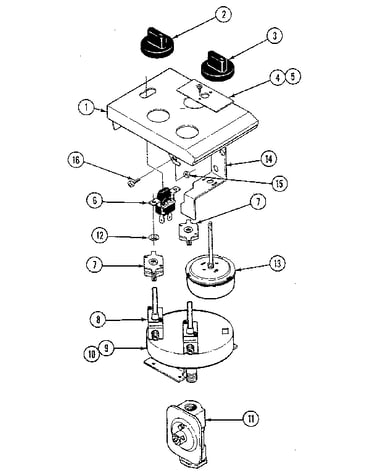

Control assembly diagram

Sw valve lh

Part #704513

Replaced by #WPY704513

?
Manufacturer substitution
This part replaces 704513. Substitute parts can look different from the original.
$93.45 |
5% OFF Phone Price : $98.45
In Stock
Burner Grill 712301
#1

Burner assembly diagram

Burner grill

Part #712301

Replaced by #Y712601

?
Manufacturer substitution
This part replaces 712301. Substitute parts can look different from the original.
$257.63 |
10% OFF Was : $286.25
In Stock
Regulator 704545
#11

Control assembly diagram

Regulator

Part #704545

Replaced by #W11106948

?
Manufacturer substitution
This part replaces 704545. Substitute parts can look different from the original.
$104.54 |
13% OFF MSRP : $120.00
In Stock
