Model # 217585932 Official Craftsman outboard motor

Here are the diagrams and repair parts for Official Craftsman 217585932 outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

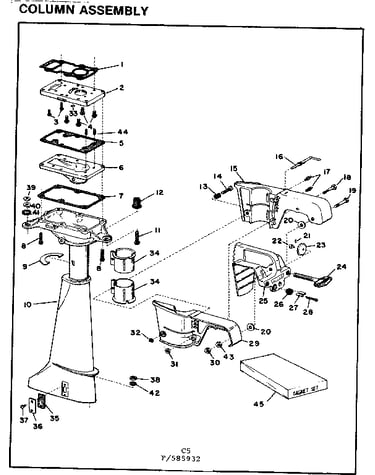

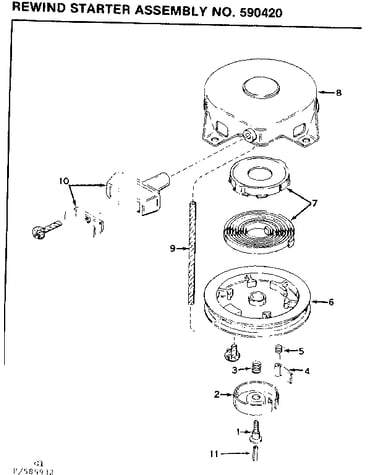

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 283 parts  |

Gasket 631028
#25

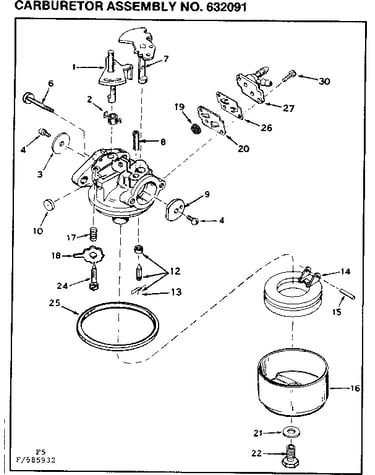

Carburetor assembly diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

Cover 610118
#43

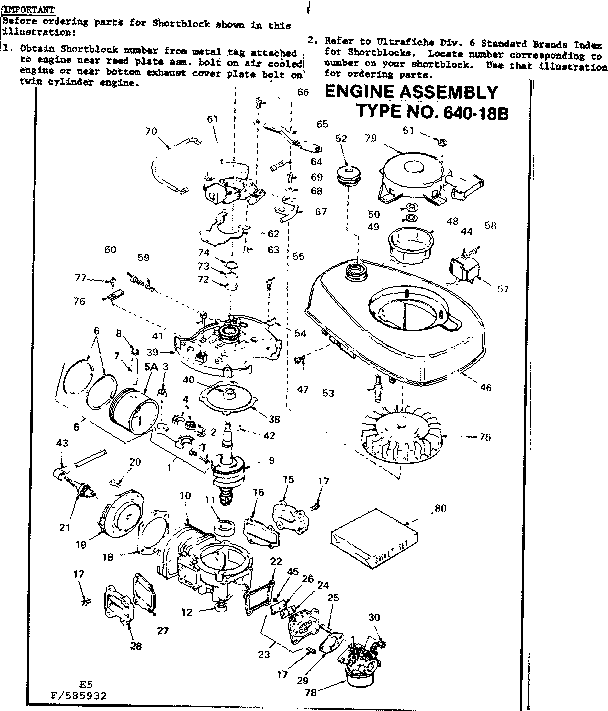

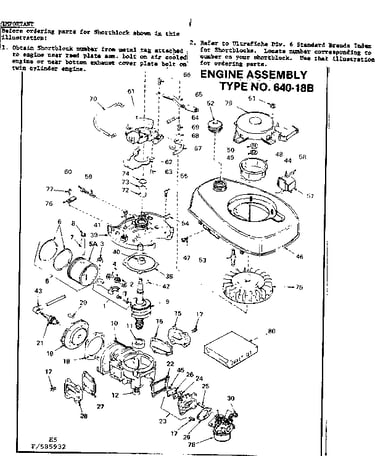

Engine assembly diagram

Cover

Part #610118

The manufacturer no longer makes this part, and there's no substitute part

Spring 630735
#8

Carburetor assembly diagram

Spring

Part #630735

The manufacturer no longer makes this part, and there's no substitute part

Seal 510242
#72

Engine assembly diagram

Seal

Part #510242

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Oil Seal 96009
#17

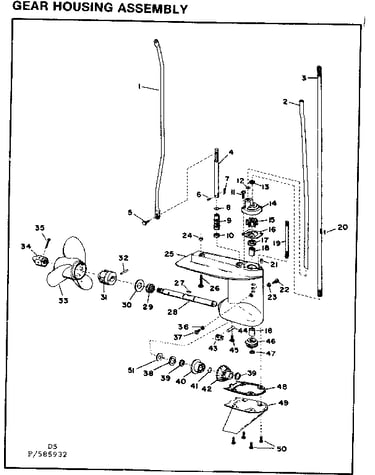

Gear housing assembly diagram

Boat motor oil seal

Part #96009

The manufacturer no longer makes this part, and there's no substitute part

Dog Clutch 26866
#40

Gear housing assembly diagram

Dog clutch

Part #26866

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin 6417
Cotter pin

Part #6417

The manufacturer no longer makes this part, and there's no substitute part

Cushion Hub 110603
#31

Gear housing assembly diagram

Cushion hub

Part #110603

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Screw 538
#10

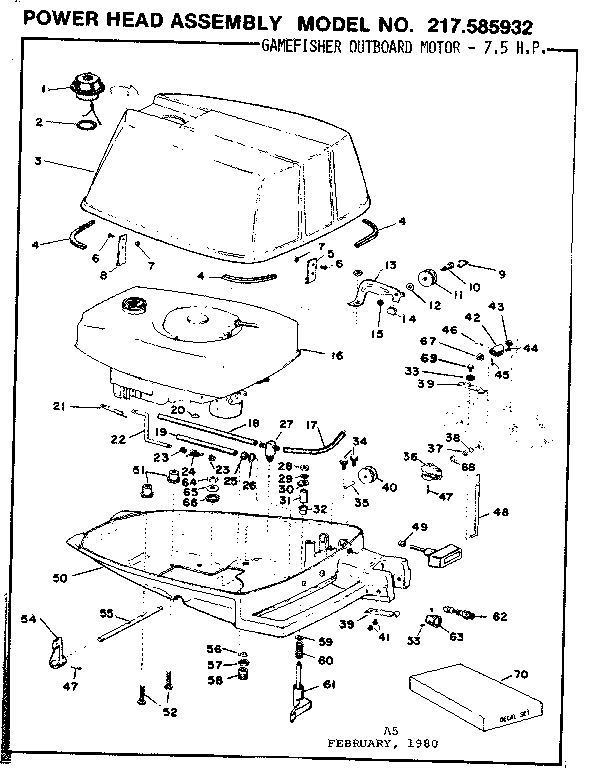

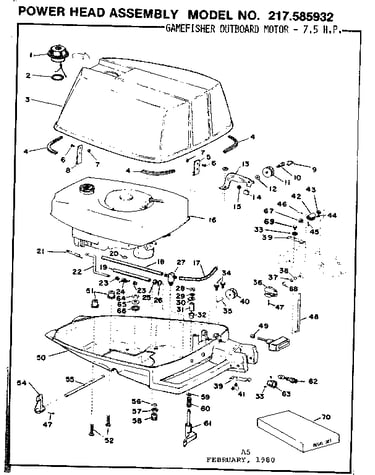

Power head assembly diagram

Boat motor screw

Part #538

The manufacturer no longer makes this part, and there's no substitute part

Screw 699
#17

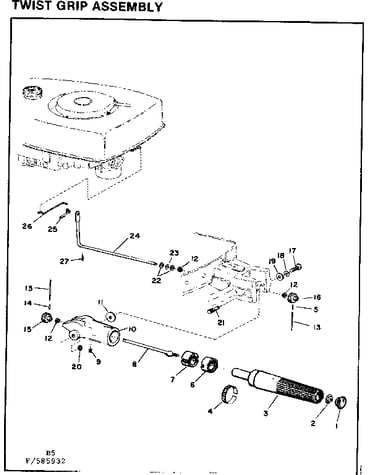

Twist grip assembly diagram

Screw

Part #699

The manufacturer no longer makes this part, and there's no substitute part
