Heating & Cooling Combined Unit

Model #LP126HD3A LG air conditioner

Here are the diagrams and repair parts for LG LP126HD3A air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 59 parts

    Room Air Conditioner Control Panel Overlay

    #8310

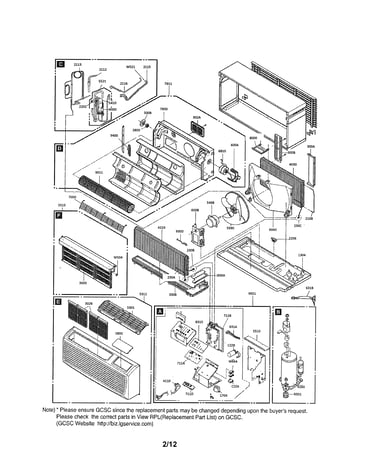

    Exploded view parts Diagram

    $25.99

    In Stock

    Room Air Conditioner Display Board

    #711A

    Exploded view parts Diagram

    $48.51

    In Stock

    Room Air Conditioner Control Panel Door

    #5800

    Exploded view parts Diagram

    $13.95

    In Stock

    Room Air Conditioner Thermistor

    #230C

    Exploded view parts Diagram

    $20.52

    In Stock

    Room Air Conditioner Fan Bracket

    #600B

    Exploded view parts Diagram

    $9.96

    In Stock

    Cover

    #500B

    Exploded view parts Diagram

    Cover

    Part #3550A30111A
    This item is not returnable
    $3.99

    In Stock

    Room Air Conditioner Compressor Grommet

    #5501

    Exploded view parts Diagram

    Room air conditioner compressor grommet

    Part #4H00982E
    This item is not returnable
    $3.76

    In Stock

    Room Air Conditioner Fan Motor Capacitor

    #CZZA

    Exploded view parts Diagram

    $12.34

    In Stock

    Grille

    #300A

    Exploded view parts Diagram

    Grille

    Part #3530A30015A
    $11.99

    In Stock

    Holder Sensor

    #9300

    Exploded view parts Diagram

    Holder sensor

    Part #4930A20053B
    This item is not returnable
    $3.99

    In Stock
