Model # 17550125 Official Kenmore garbage disposal

Here are the diagrams and repair parts for Official Kenmore 17550125 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Garbage Disposal Shredder Blade 71022
#27

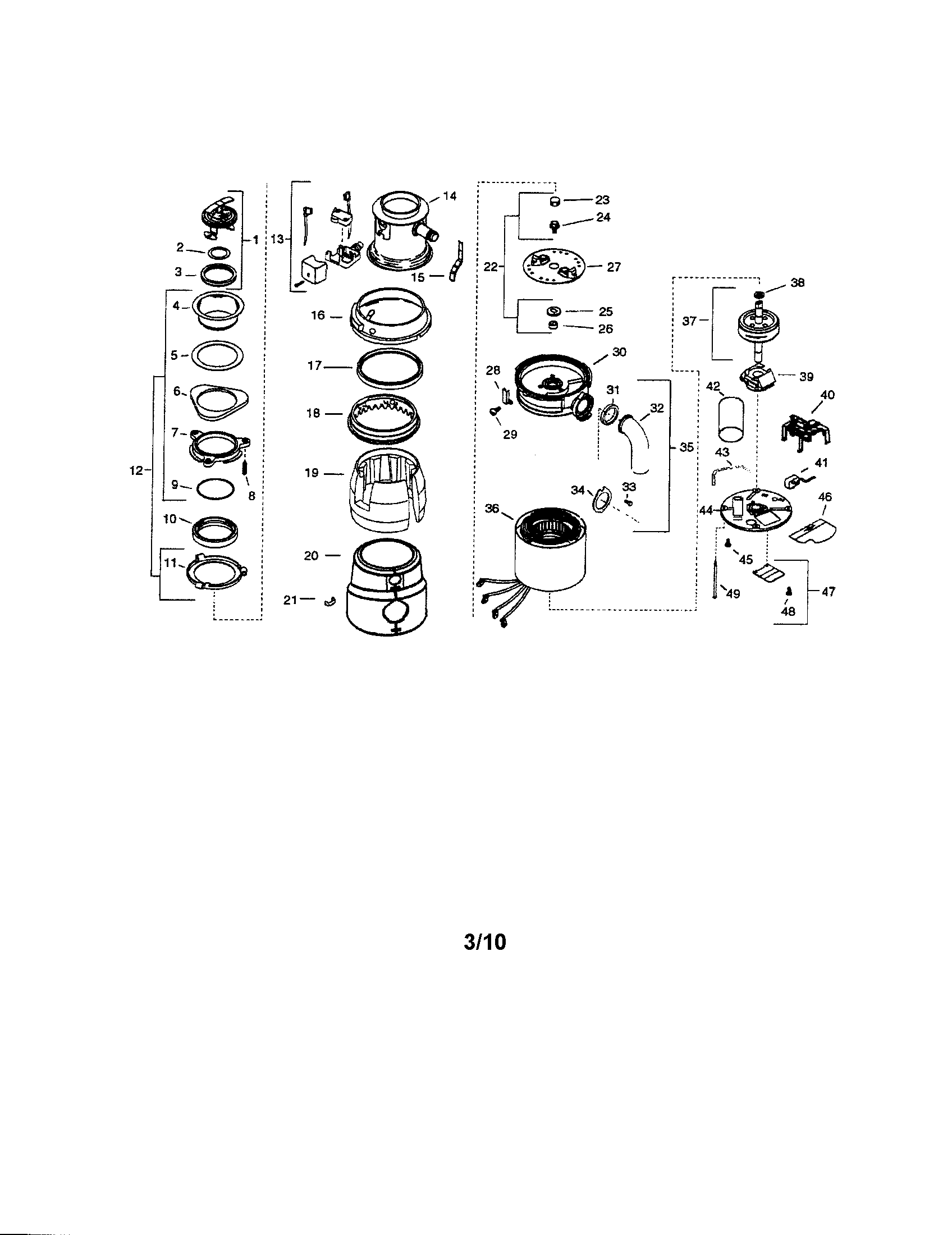

Garbage disposal diagram

Garbage disposal shredder blade

Part #71022

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Stator End Cap Bolt 2486A
#49

Garbage disposal diagram

Garbage disposal stator end cap bolt

Part #2486A

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Drain Stopper Gasket, Inner 1144
#2

Garbage disposal diagram

Garbage disposal drain stopper gasket, inner

Part #1144

The manufacturer no longer makes this part, and there's no substitute part

Clip, Trim Shell 2037
#21

Garbage disposal diagram

Clip, trim shell

Part #2037

The manufacturer no longer makes this part, and there's no substitute part

Gasket 4395
#17

Garbage disposal diagram

Gasket

Part #4395

The manufacturer no longer makes this part, and there's no substitute part

Bracket 1252A
#15

Garbage disposal diagram

Bracket

Part #1252A

The manufacturer no longer makes this part, and there's no substitute part

Screw 70734
#29

Garbage disposal diagram

Screw

Part #70734

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Stationary Shredder 70814ZZ
#18

Garbage disposal diagram

Garbage disposal stationary shredder

Part #70814ZZ

The manufacturer no longer makes this part, and there's no substitute part

Clip 71425
#43

Garbage disposal diagram

Clip

Part #71425

The manufacturer no longer makes this part, and there's no substitute part

Garbage Disposal Shredder Blade Seal Kit 70647
#22

Garbage disposal diagram

Garbage disposal shredder blade seal kit

Part #70647

The manufacturer no longer makes this part, and there's no substitute part
