KitchenAid KHHC2090SWH3 microwave/hood combo

KitchenAid KHHC2090SWH3 microwave/hood combo Parts

Here are the diagrams and repair parts for KitchenAid KHHC2090SWH3 microwave/hood combo, as well as links to manuals and error code tables, if available.

By Schematic

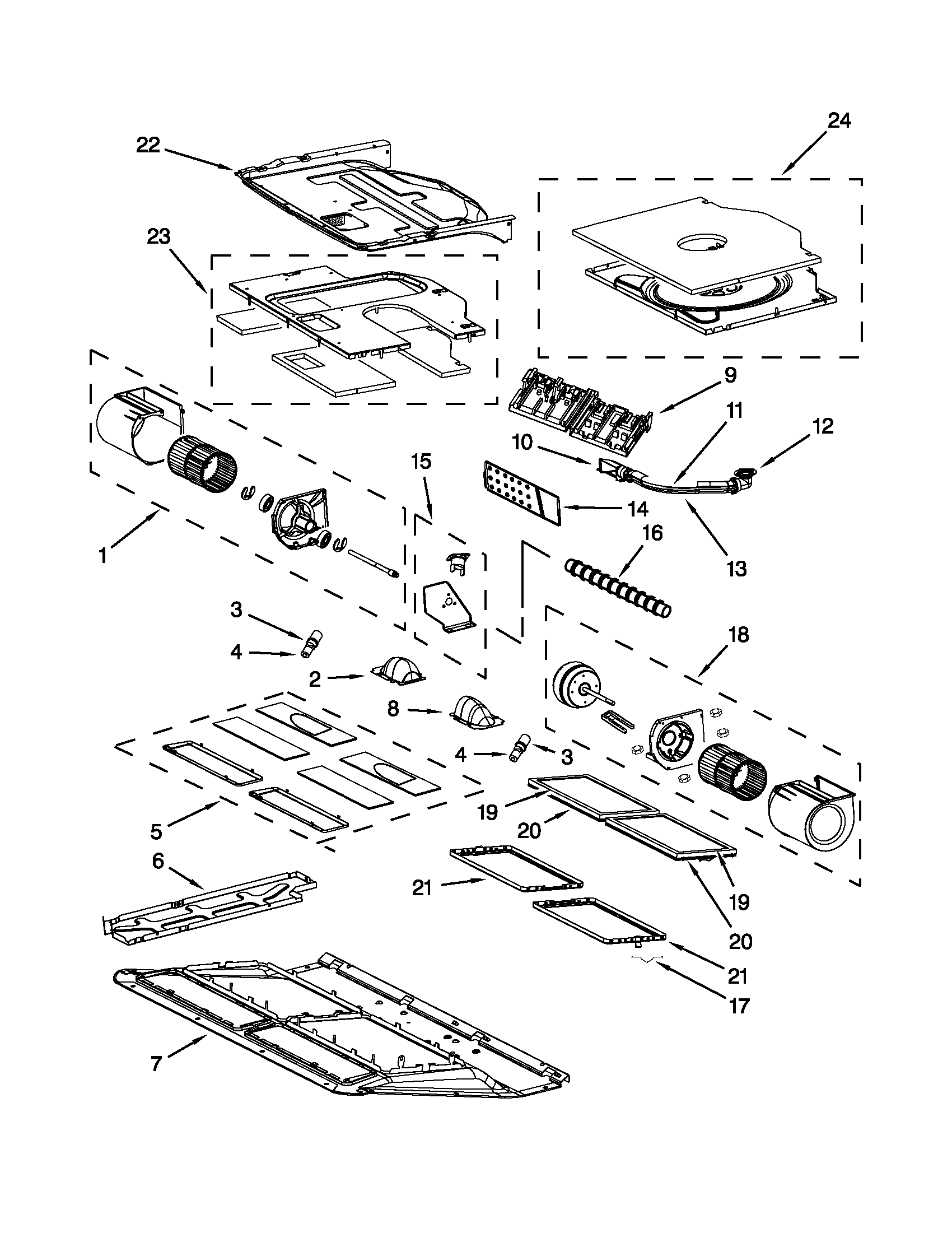

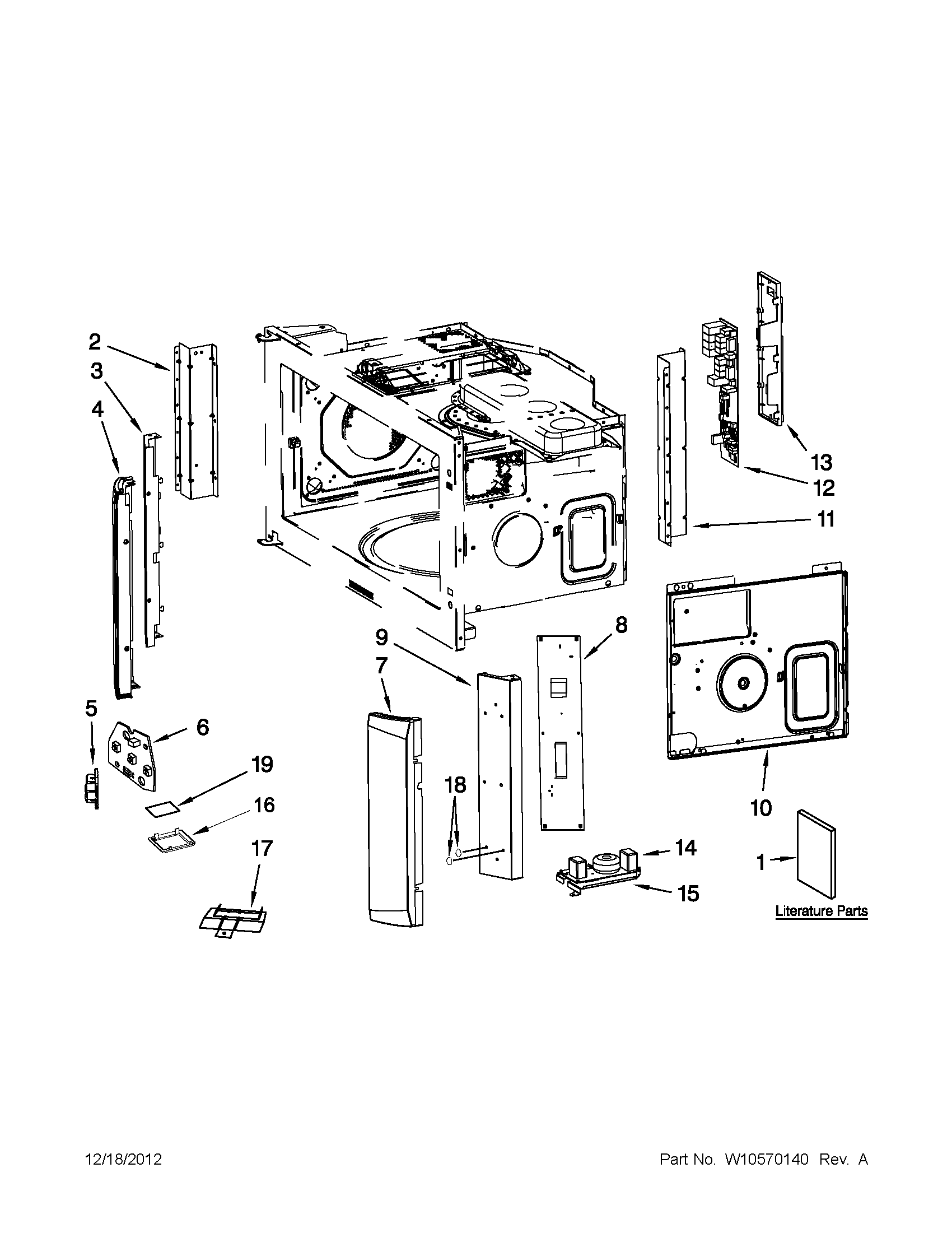

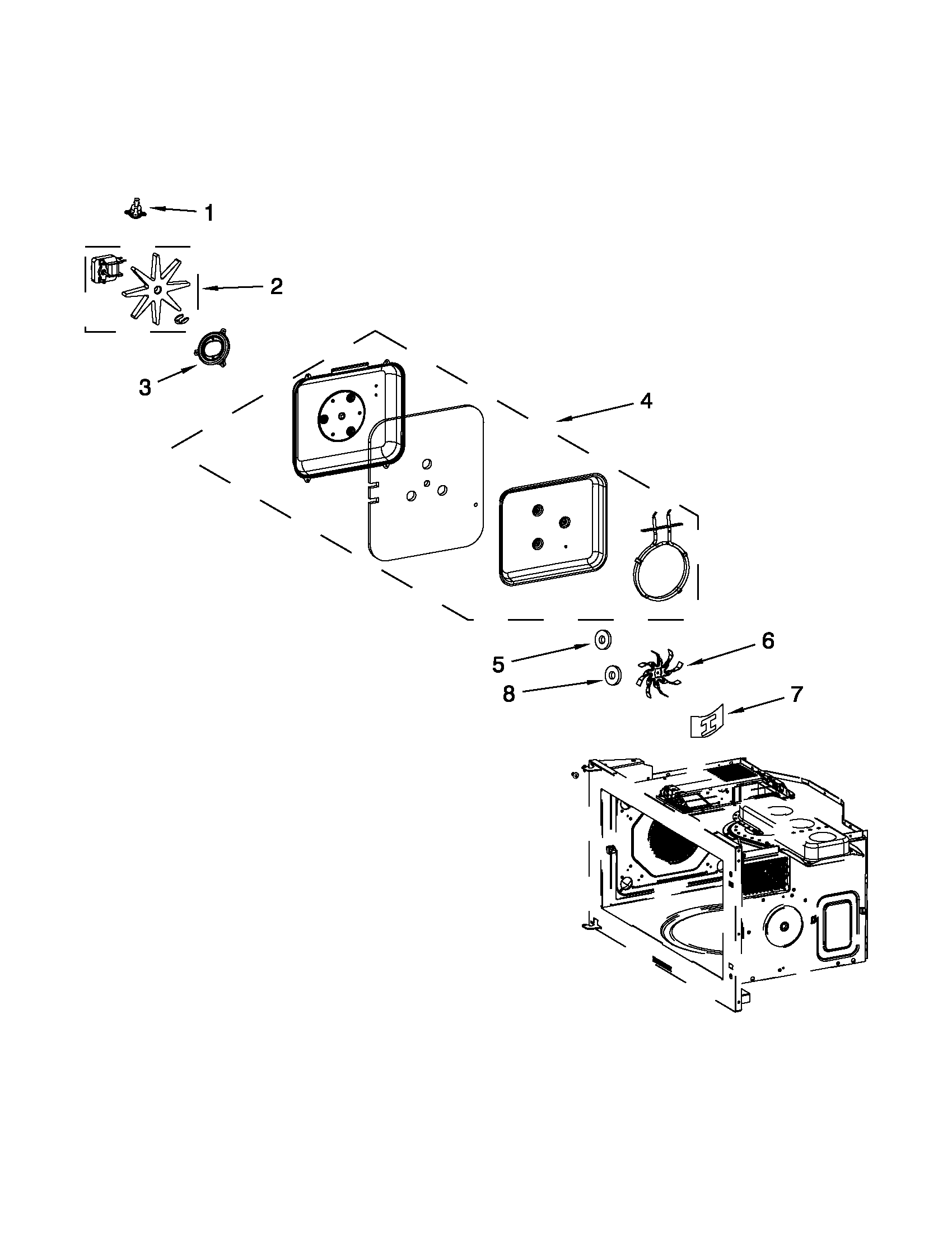

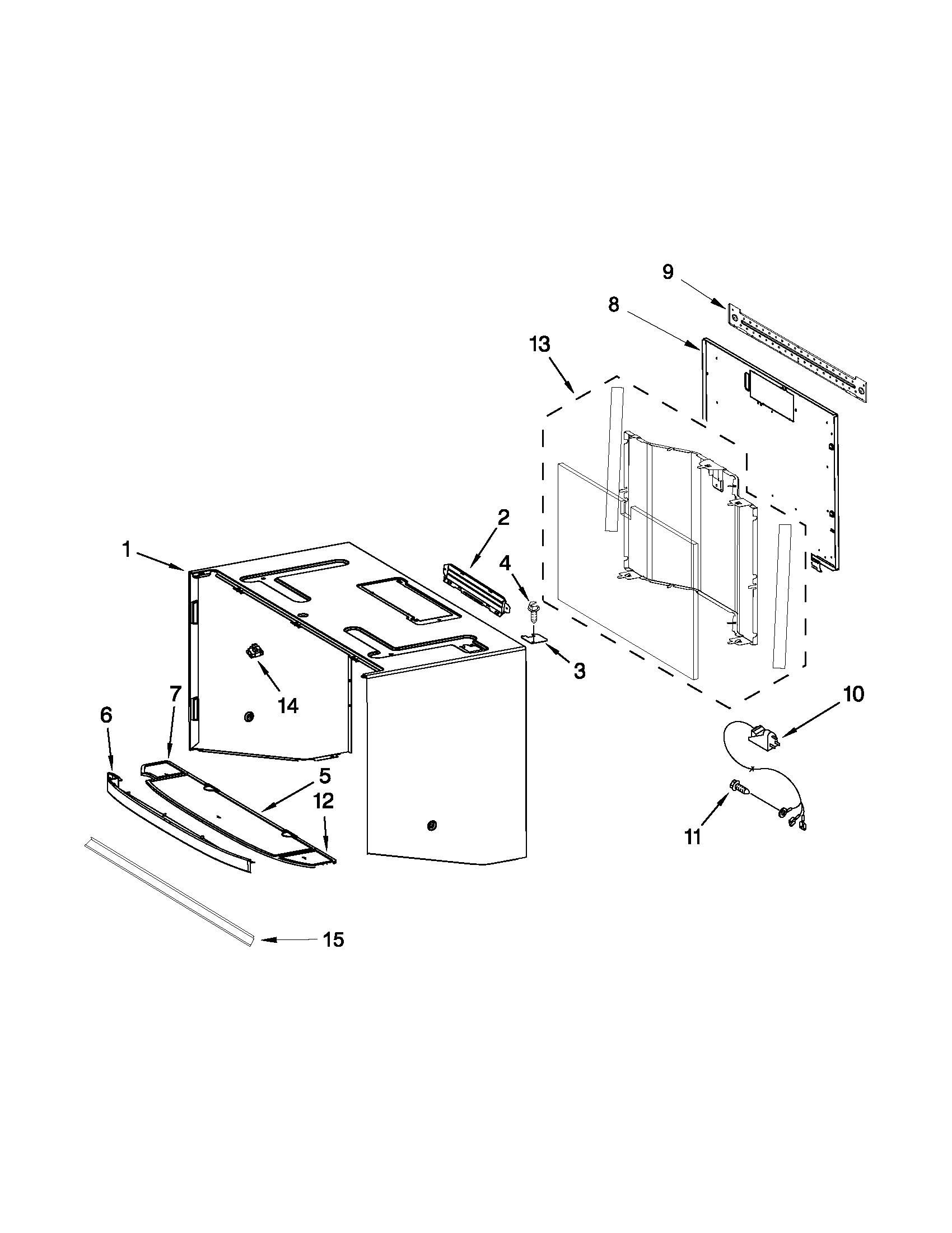

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KHHC2090SWH3 Microwave/Hood Combo

  • Microwave Door Interlock Switch for KitchenAid KHHC2090SWH3 - Part W10269458

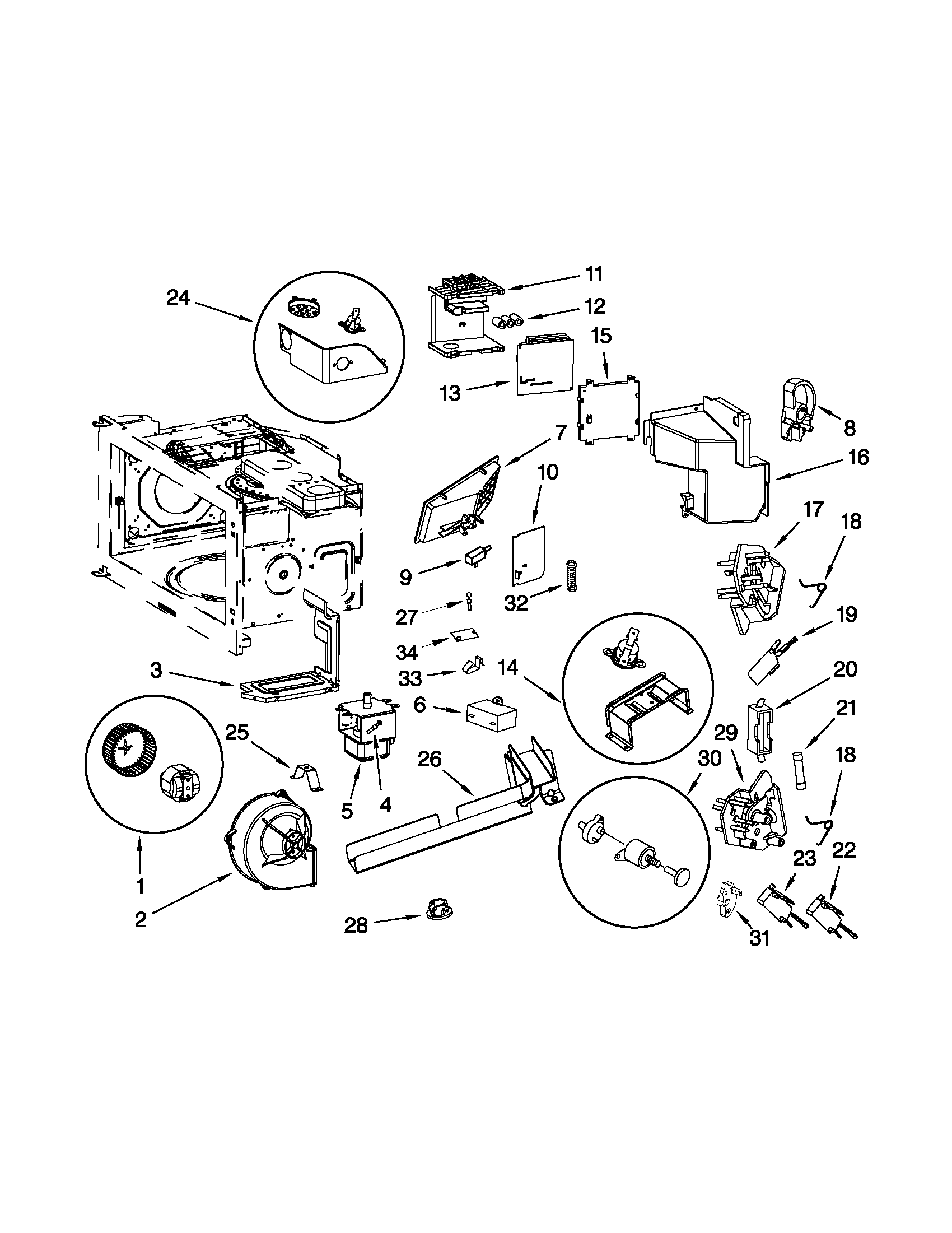

    Interior & airflow parts diagram

    Microwave Door Interlock Switch

    Part #W10211973

    Replaced by #W10269458

    Info Icon
    Manufacturer substitution
    This part replaces W10211973. Substitute parts can look different from the original.
    In Stock
    $26.38
    19% OFF Phone Price : $32.38Info Icon
    Minus Item
    Qty
    Plus Item
  • R Ceramic Fu for KitchenAid KHHC2090SWH3 - Part W11707984

    Interior & airflow parts diagram

    Microwave Fuse

    Part #W10138793

    Replaced by #W11707984

    Info Icon
    Manufacturer substitution
    This part replaces W10138793. Substitute parts can look different from the original.
    In Stock
    $73.63
    8% OFF Phone Price : $79.63Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch for KitchenAid KHHC2090SWH3 - Part W10211972

    Interior & airflow parts diagram

    Microwave Door Interlock Switch

    Part #W10211972
    In Stock
    $36.30
    14% OFF Phone Price : $42.30Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Microwave Inverter Board for KitchenAid KHHC2090SWH3 - Part W10217711

    Interior & airflow parts diagram

    Inverter

    Part #W10468206

    Replaced by #W10217711

    Info Icon
    Manufacturer substitution
    This part replaces W10468206. Substitute parts can look different from the original.
    In Stock
    $208.46
    10% OFF Was : $230.60Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Steamer Cookware for KitchenAid KHHC2090SWH3 - Part W10660052

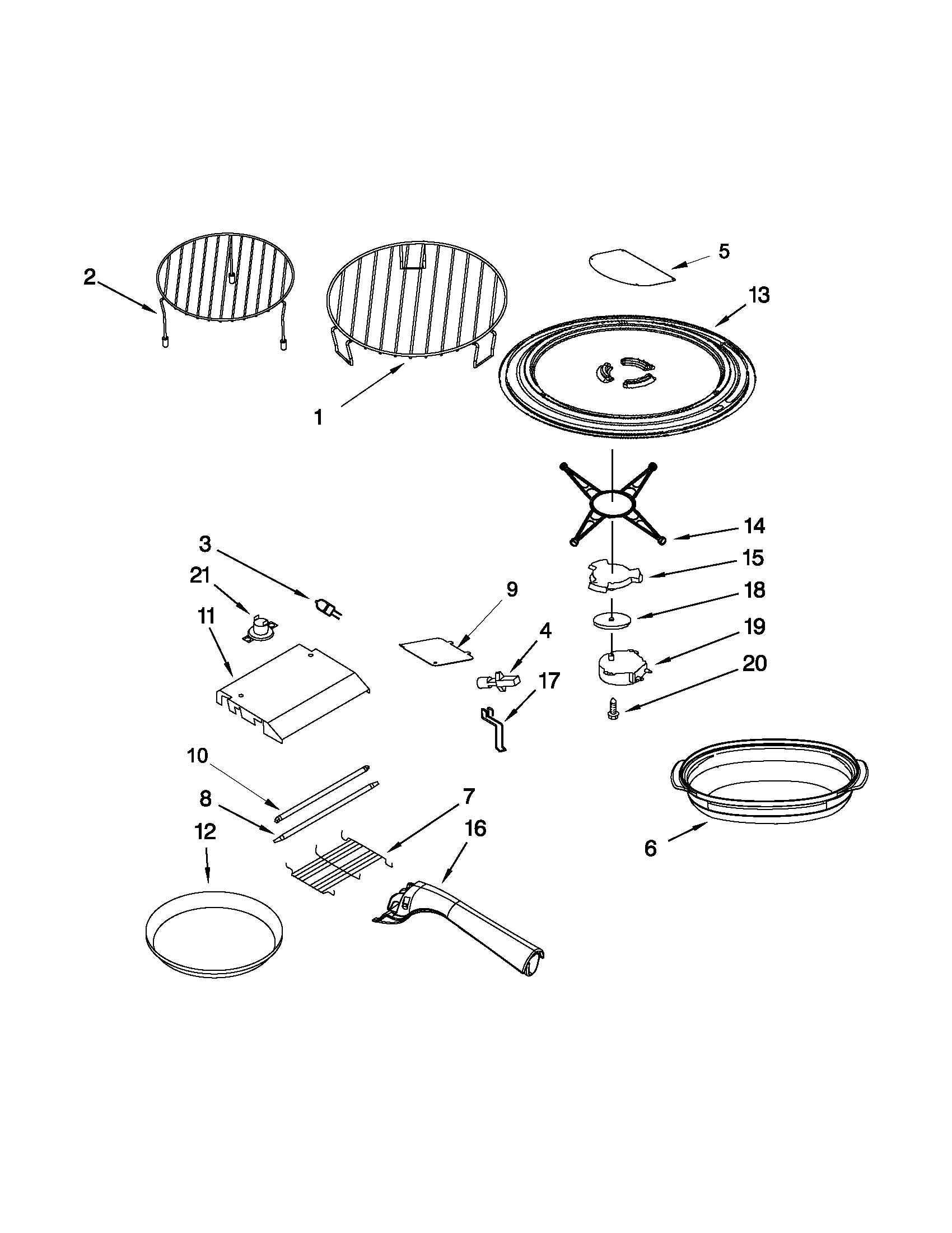

    Rack and turntable parts diagram

    Cookware

    Part #8206451

    Replaced by #W10660052

    Info Icon
    Manufacturer substitution
    This part replaces 8206451. Substitute parts can look different from the original.
    In Stock
    $20.26
    23% OFF Phone Price : $26.26Info Icon
    Minus Item
    Qty
    Plus Item
  • Ikea Microwave Magnetron for KitchenAid KHHC2090SWH3 - Part 8206079

    Interior & airflow parts diagram

    Ikea Microwave Magnetron

    Part #8206079
    In Stock
    $139.96
    31% OFF Was : $201.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Turntable Motor Spacer for KitchenAid KHHC2090SWH3 - Part 8184109

    Rack and turntable parts diagram

    Spacer

    Part #8206101

    Replaced by #8184109

    Info Icon
    Manufacturer substitution
    This part replaces 8206101. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $6.99
    13% OFF Phone Price : $7.99Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Support for KitchenAid KHHC2090SWH3 - Part 8206209

    Interior & airflow parts diagram

    Microwave Door Interlock Support

    Part #8206209
    This item is not returnable
    In Stock
    $7.21
    12% OFF Phone Price : $8.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Handle (black) for KitchenAid KHHC2090SWH3 - Part W10110267

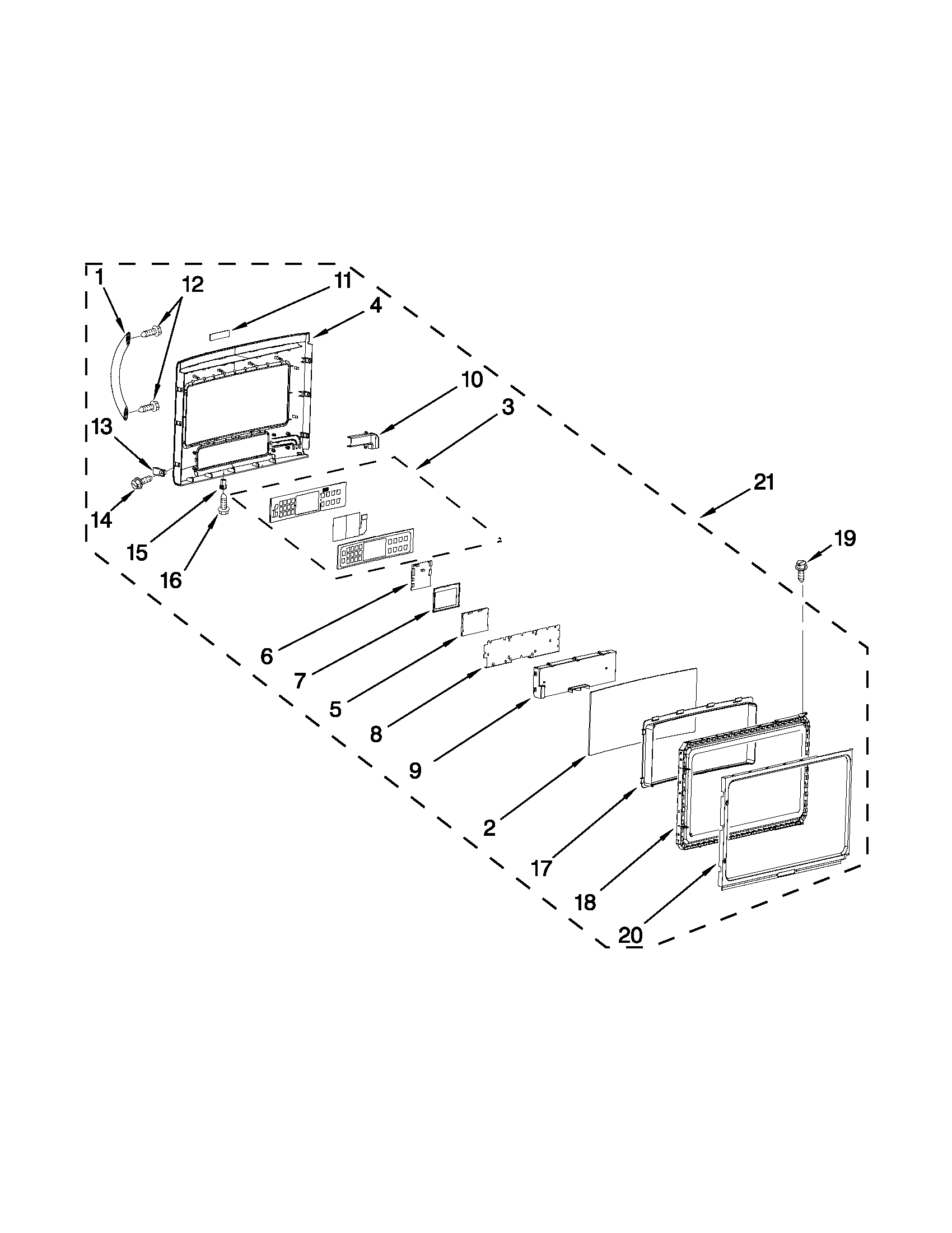

    Door parts diagram

    Microwave Door Handle (black)

    Part #W10110267
    In Stock
    $144.68
    8% OFF Phone Price : $156.68Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Crisping Tray for KitchenAid KHHC2090SWH3 - Part W10748097

    Rack and turntable parts diagram

    Crisper Pan

    Part #8205996

    Replaced by #W10748097

    Info Icon
    Manufacturer substitution
    This part replaces 8205996. Substitute parts can look different from the original.
    In Stock
    $48.42
    11% OFF Phone Price : $54.42Info Icon
    Minus Item
    Qty
    Plus Item
