Model # HT-NT3 Official Sony audio speaker

Here are the diagrams and repair parts for Official Sony HT-NT3 audio speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Remote Control 149293911
#NI

Main asy diagram

Remote control

Part #149293911

The manufacturer no longer makes this part, and there's no substitute part

Spkr 6.5cm 185908012
#61

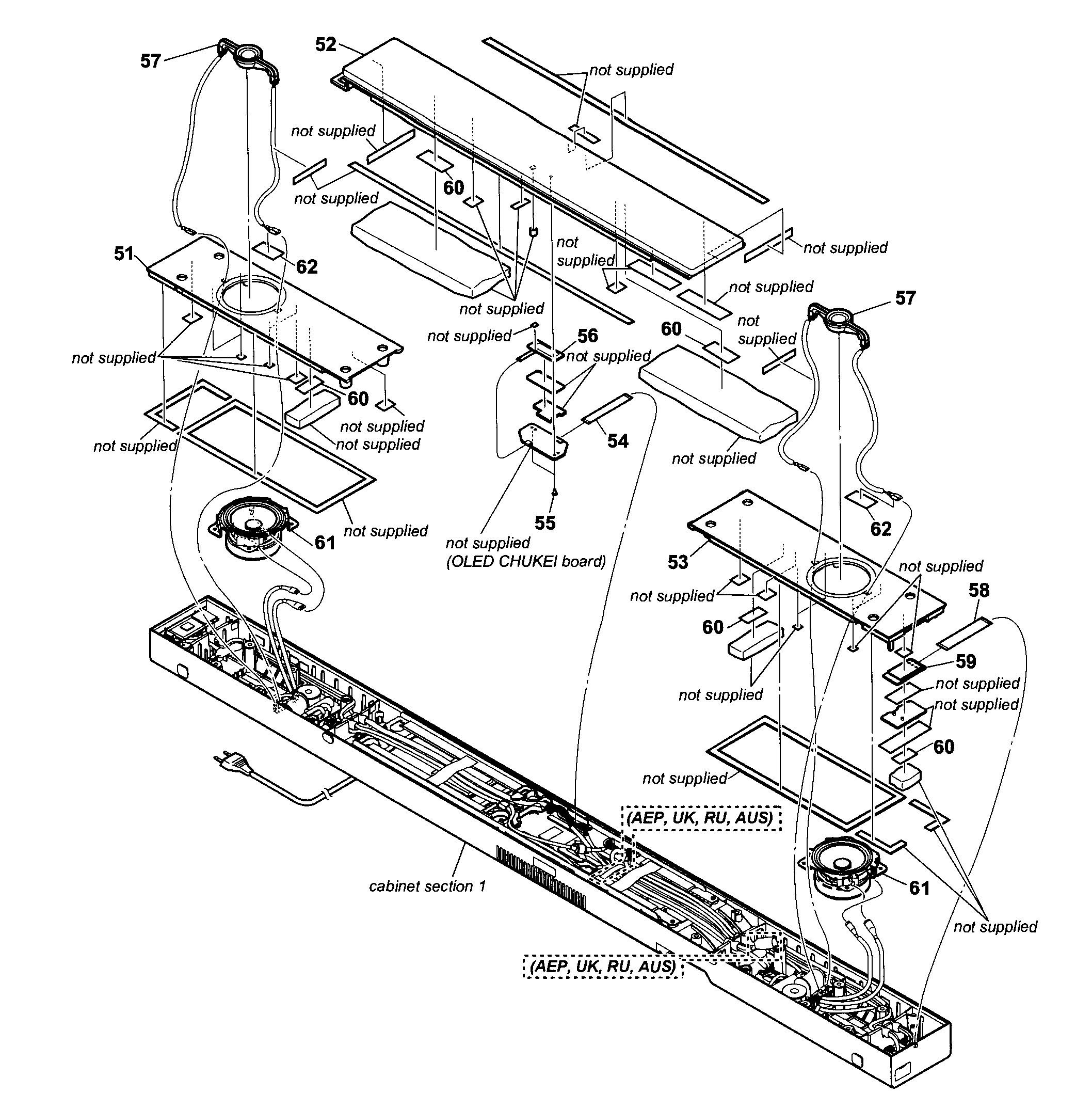

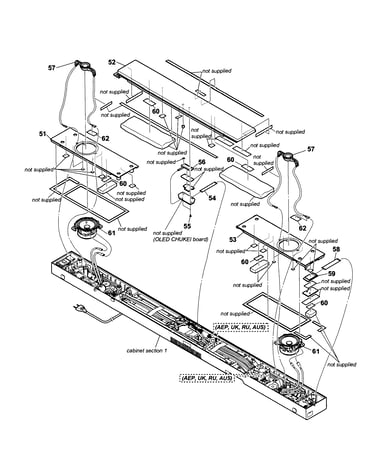

Front panel diagram

Spkr 6.5cm

Part #185908012

The manufacturer no longer makes this part, and there's no substitute part

Card Wlan/ 145876521
#101

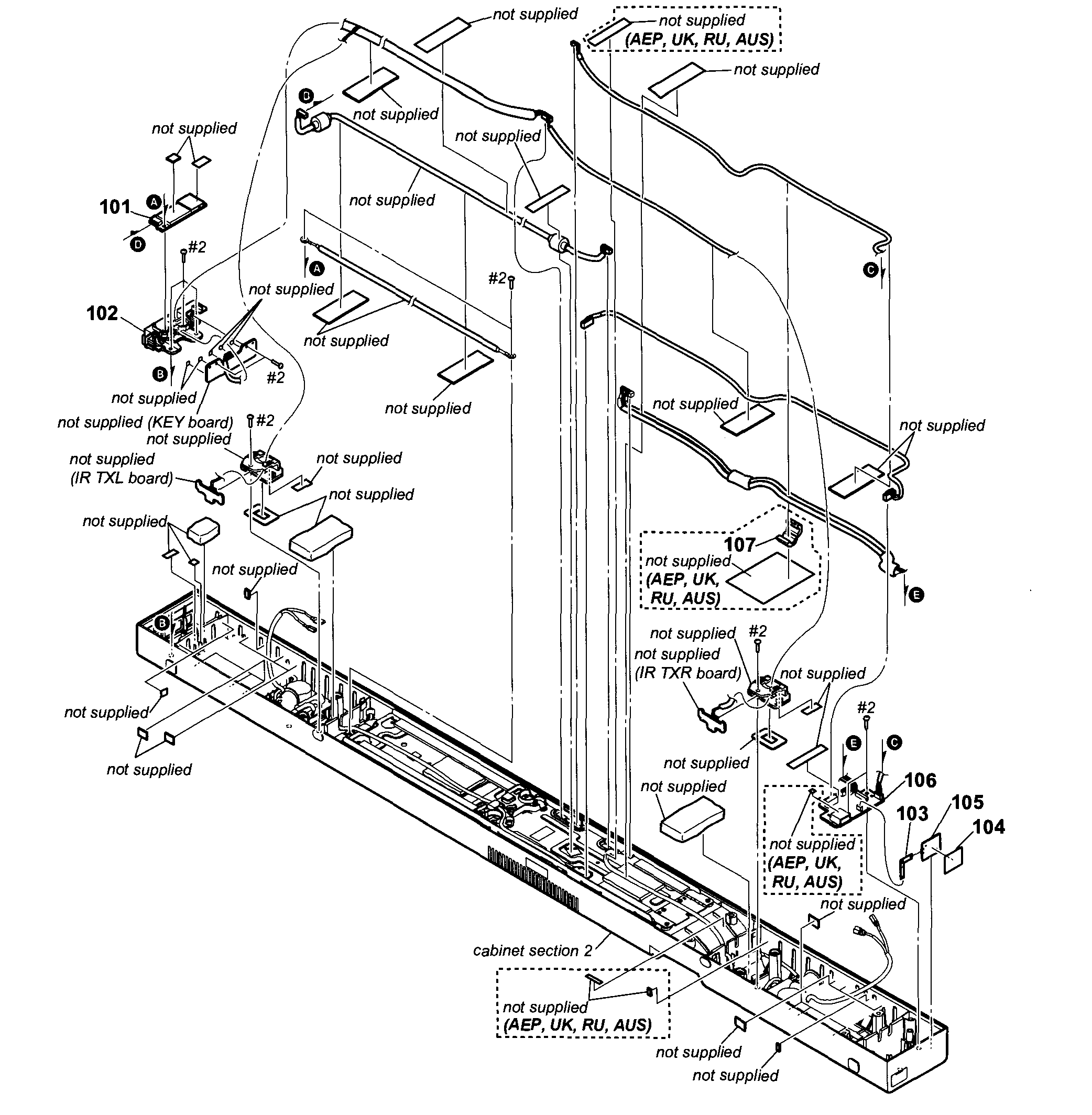

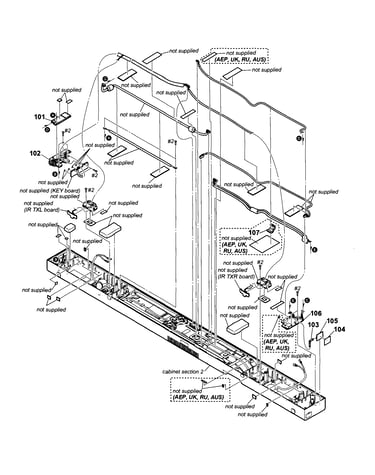

Cabinet 1 diagram

Card wlan/

Part #145876521

The manufacturer no longer makes this part, and there's no substitute part

Cabinet X25906431
#155

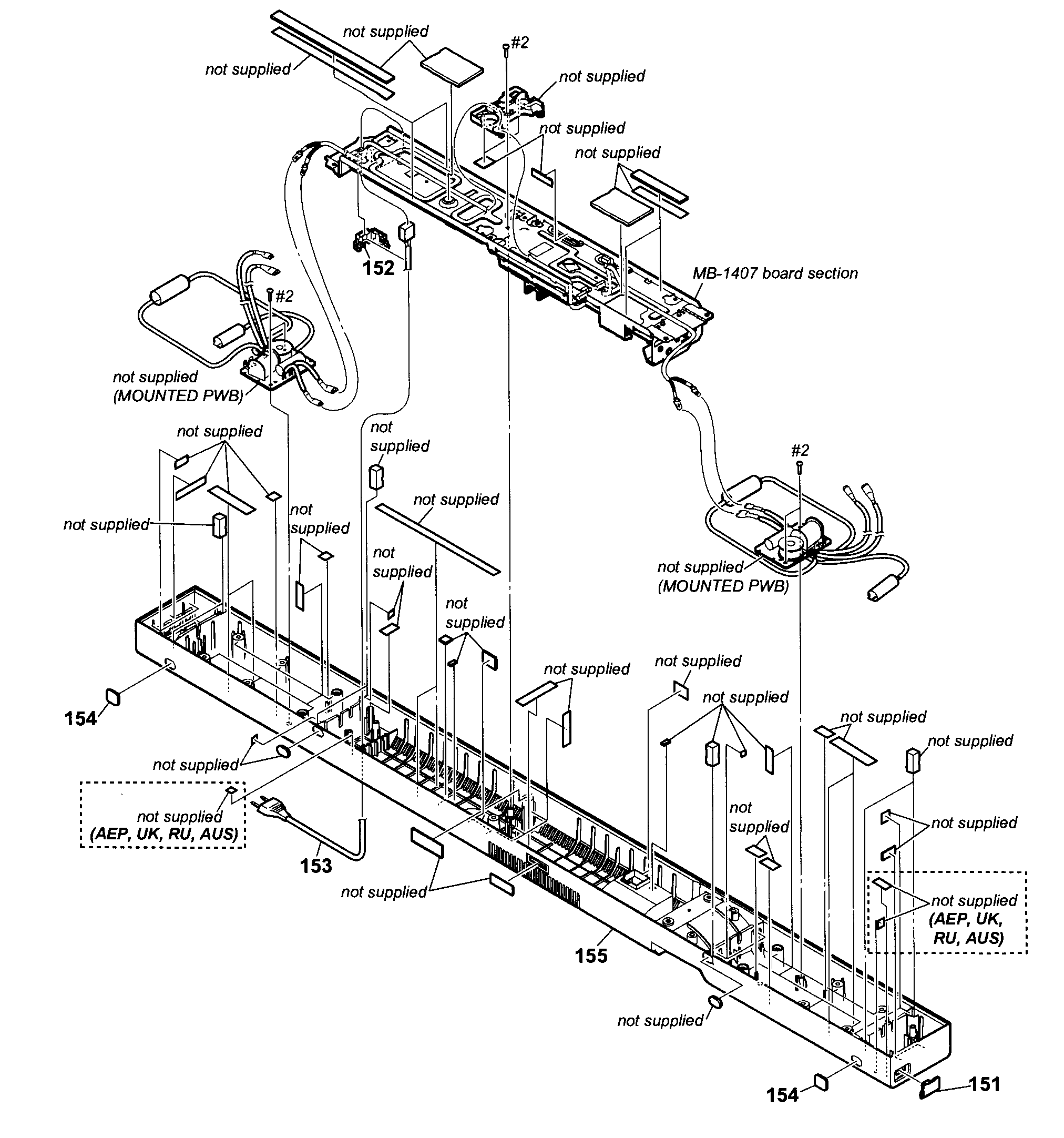

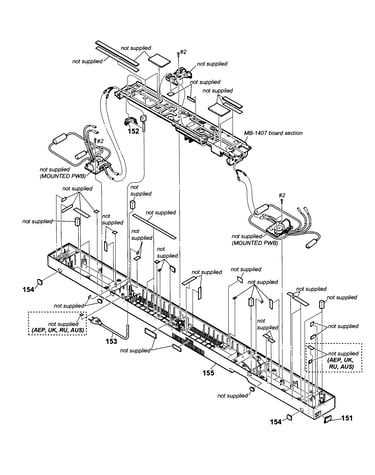

Cabinet 2 diagram

Cabinet

Part #X25906431

The manufacturer no longer makes this part, and there's no substitute part

Wire 24cor 182824551
#206

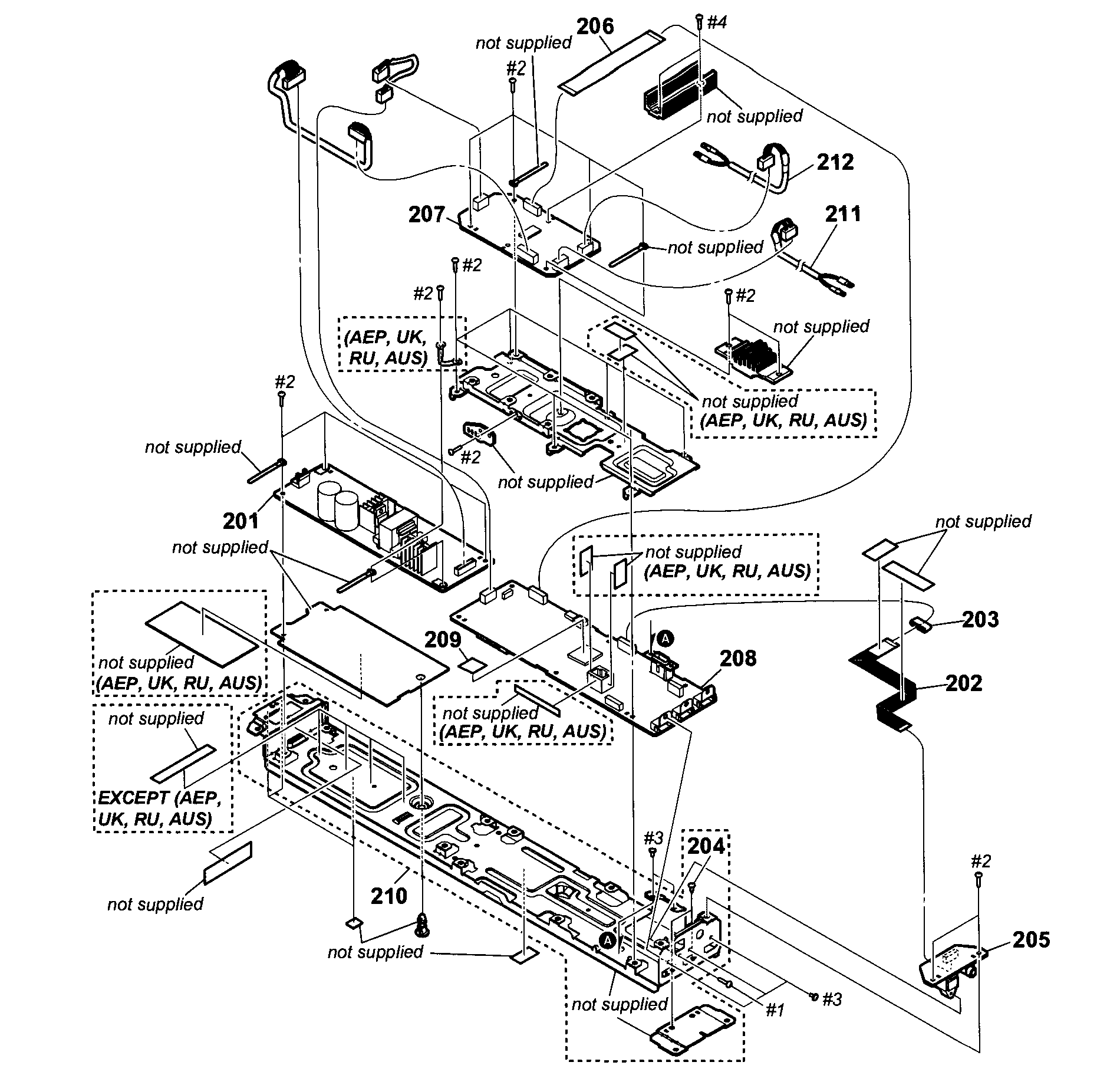

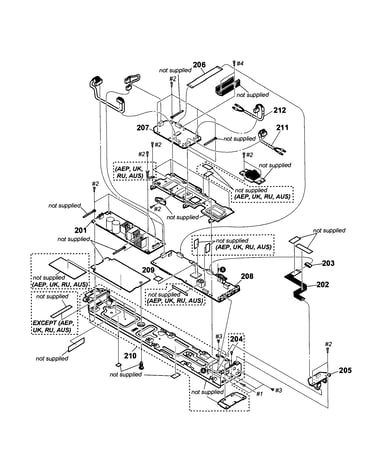

Main board diagram

Wire 24cor

Part #182824551

The manufacturer no longer makes this part, and there's no substitute part

Stand Assembly X25911991
#NI

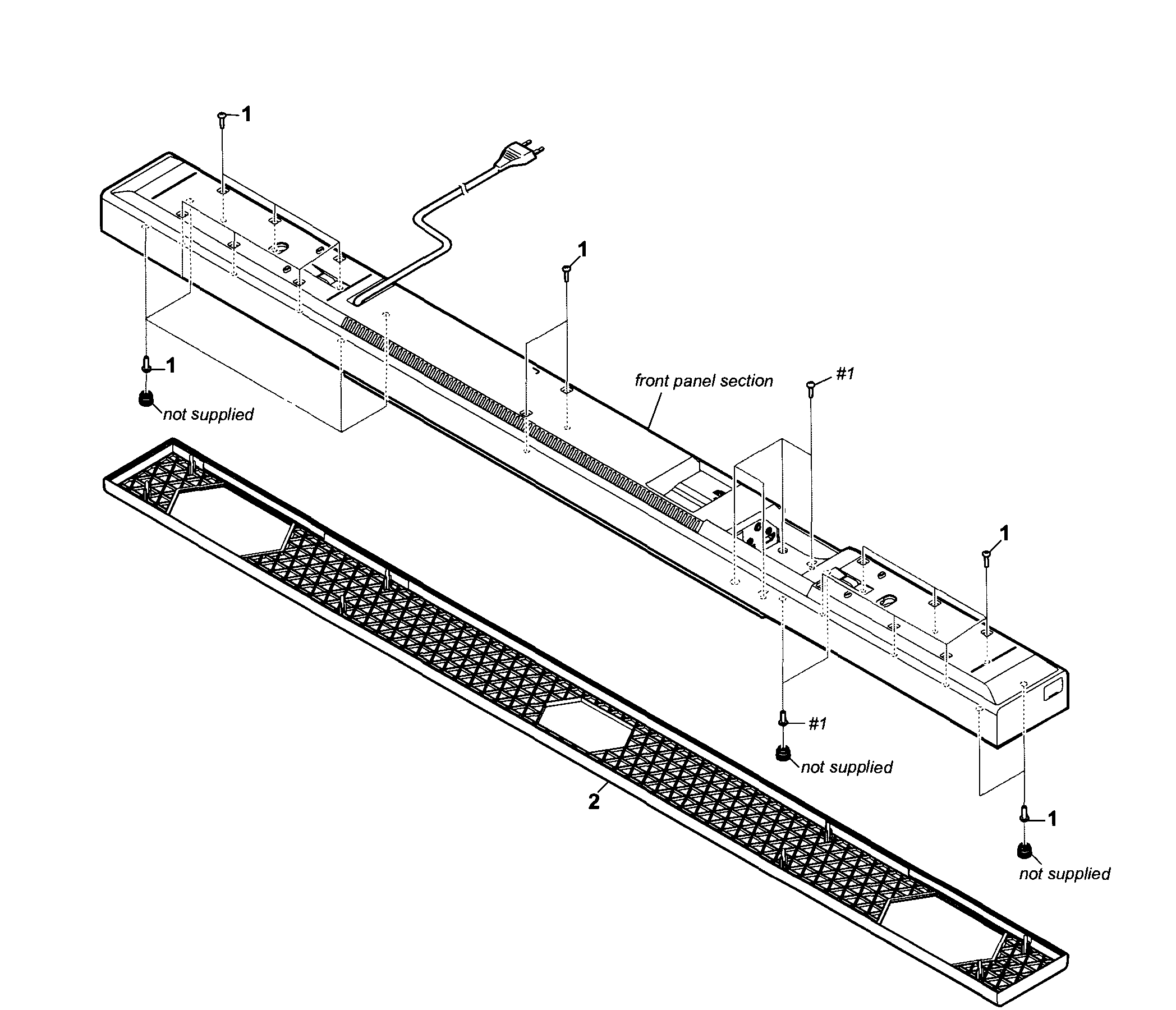

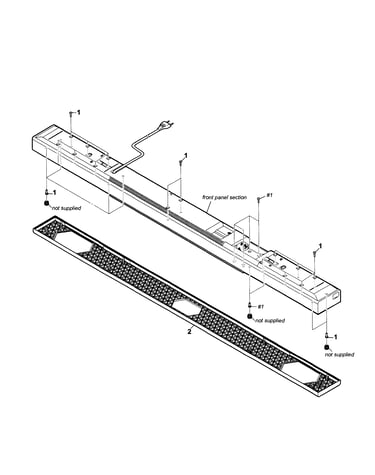

Main asy diagram

Stand assembly

Part #X25911991

The manufacturer no longer makes this part, and there's no substitute part

Pcb Ms1407 A2065400A
#208

Main board diagram

Pcb ms1407

Part #A2065400A

The manufacturer no longer makes this part, and there's no substitute part

Modulator 149270061
#59

Front panel diagram

Modulator

Part #149270061

The manufacturer no longer makes this part, and there's no substitute part

Regulator 147460212
#201

Main board diagram

Regulator

Part #147460212

The manufacturer no longer makes this part, and there's no substitute part

Pcm Amp A2060205A
#207

Main board diagram

Pcm amp

Part #A2060205A

The manufacturer no longer makes this part, and there's no substitute part
