Kenmore 72161109100 microwave

Kenmore 72161109100 microwave Parts

Here are the diagrams and repair parts for Kenmore 72161109100 microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part

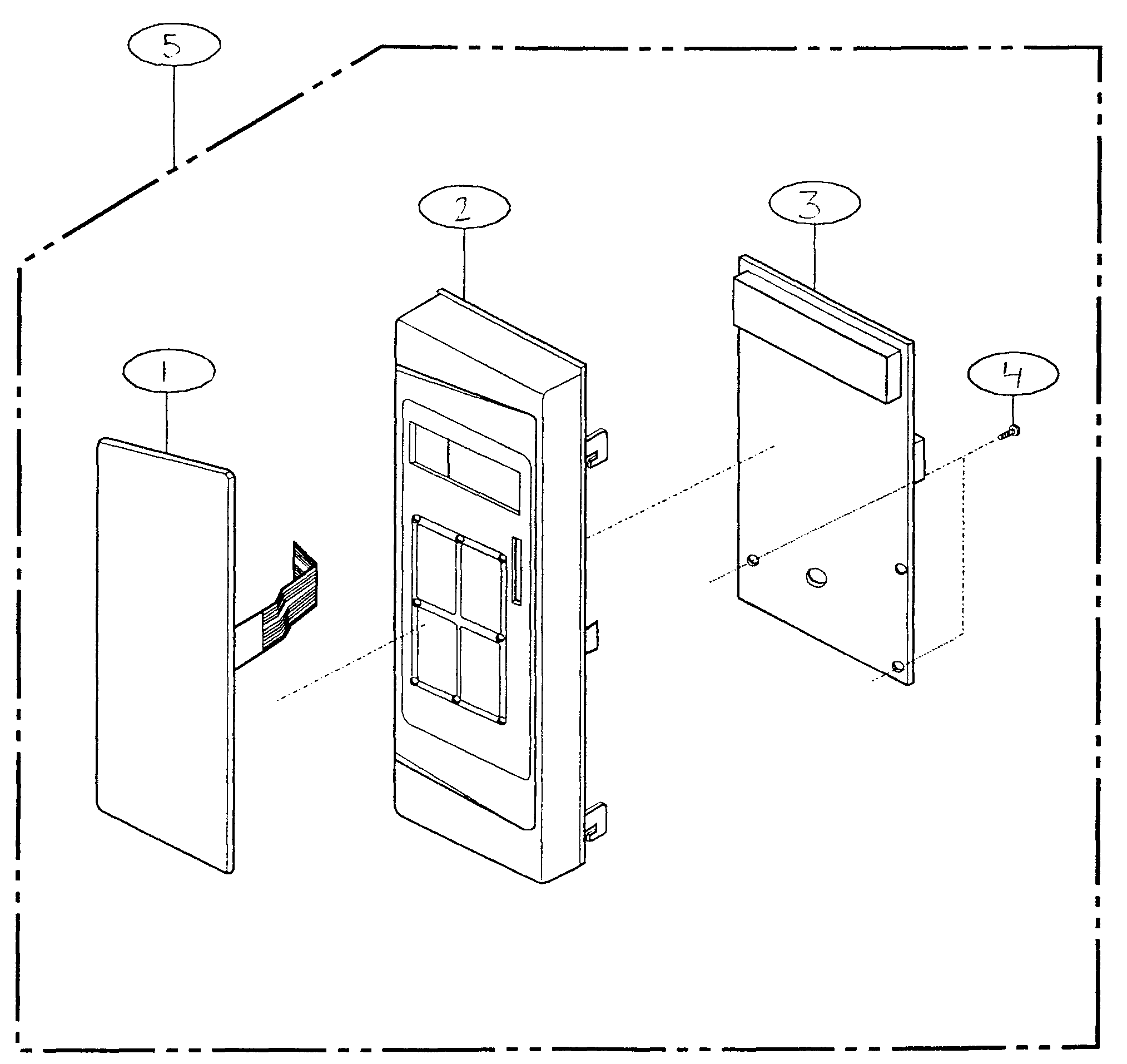

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 72161109100 Microwaves

  • Microwave Fuse for Kenmore 72161109100 - Part 3B74133P

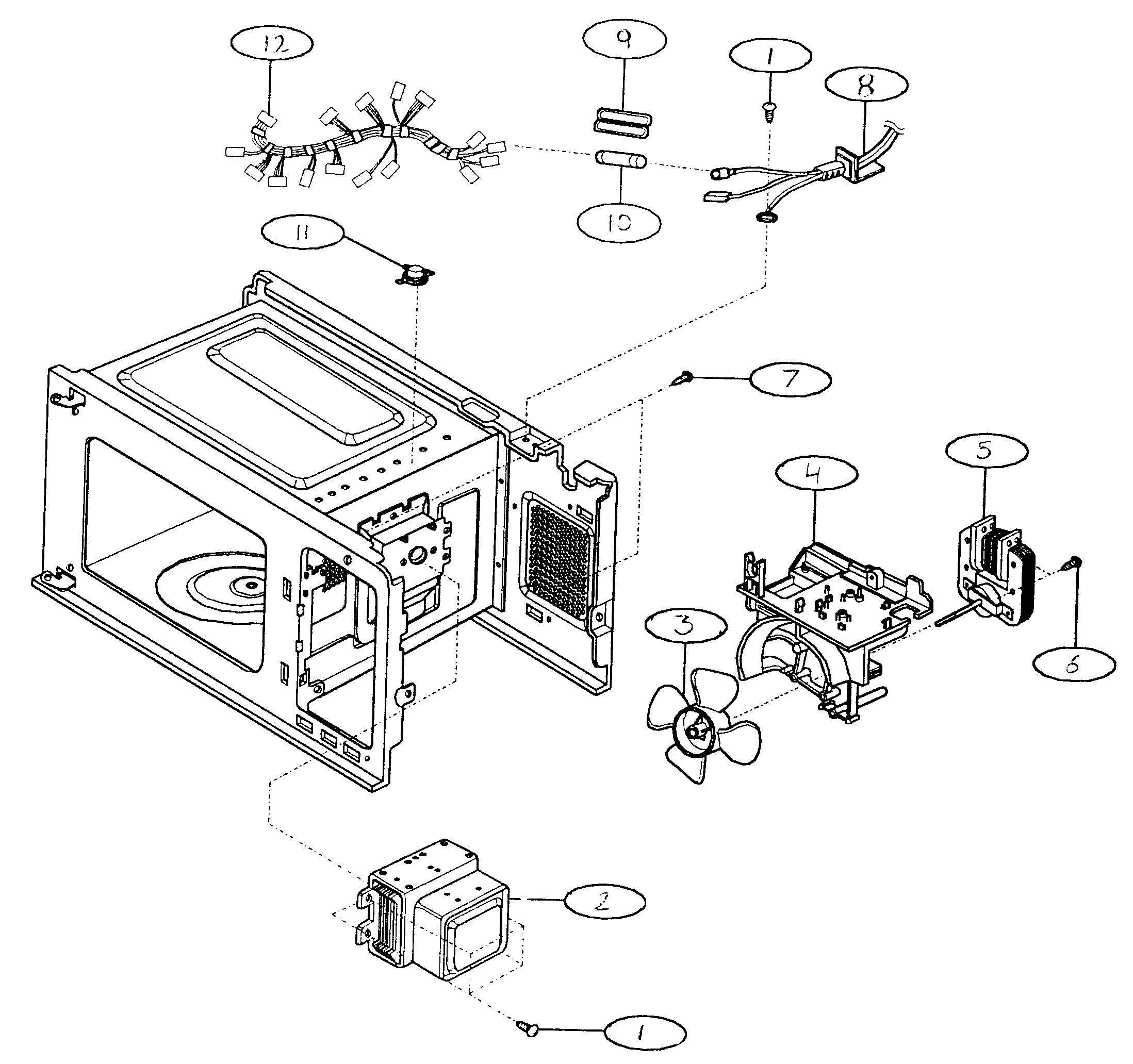

    Oven interior diagram

    Fuse 15a

    Part #3B70856G

    Replaced by #3B74133P

    Info Icon
    Manufacturer substitution
    This part replaces 3B70856G. Substitute parts can look different from the original.
    In Stock
    $33.72
    Minus Item
    Qty
    Plus Item
  • Microwave Cooling Fan Blade for Kenmore 72161109100 - Part 5900W1A004A

    Oven interior diagram

    Fan

    Part #2B72125A

    Replaced by #5900W1A004A

    Info Icon
    Manufacturer substitution
    This part replaces 2B72125A. Substitute parts can look different from the original.
    In Stock
    $33.72
    Minus Item
    Qty
    Plus Item
  • Seal Tape for Kenmore 72161109100 - Part 3536W1A010A

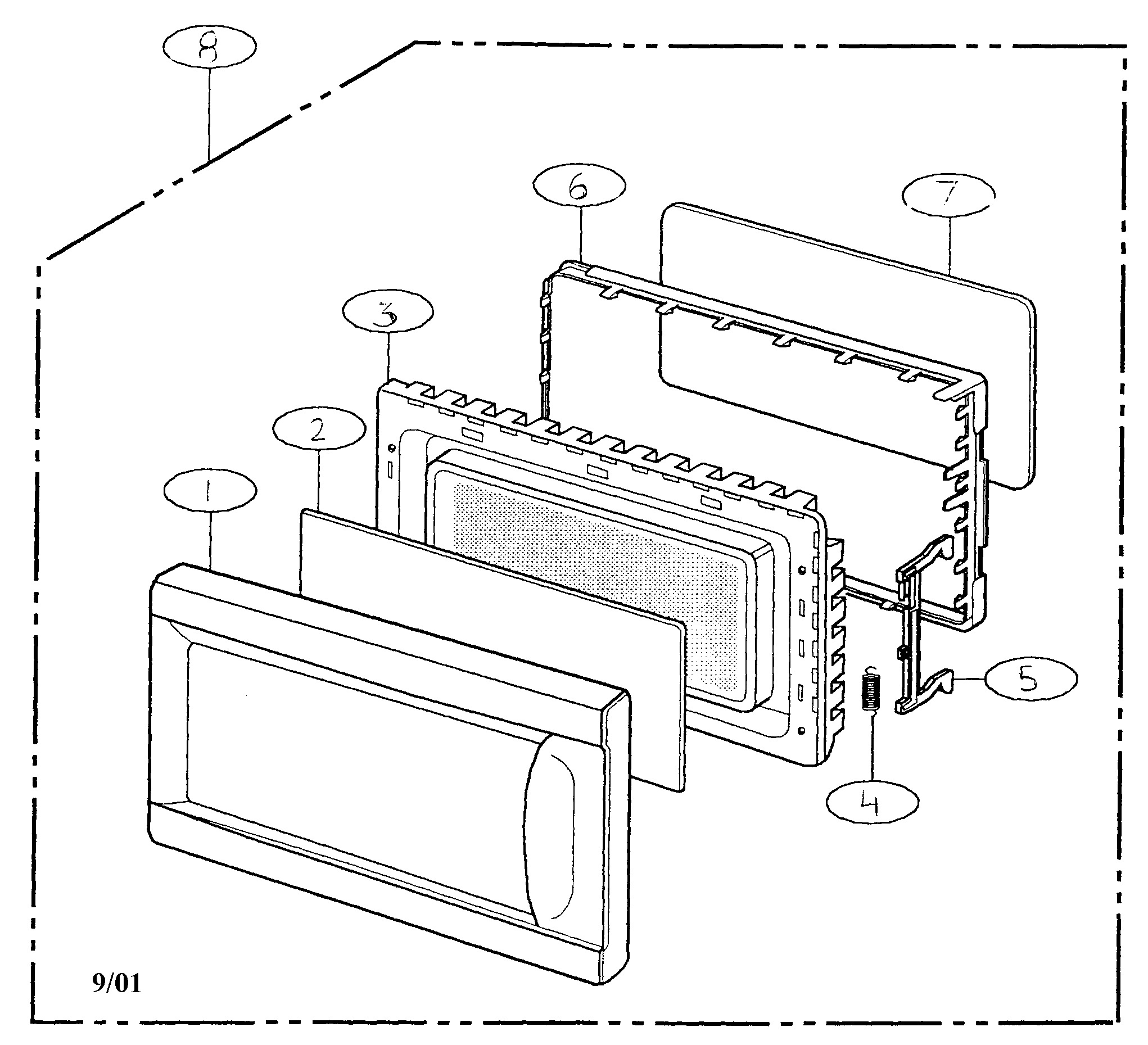

    Door diagram

    Seal Tape

    Part #3536WRA001J

    Replaced by #3536W1A010A

    Info Icon
    Manufacturer substitution
    This part replaces 3536WRA001J. Substitute parts can look different from the original.
    In Stock
    $33.72
    Minus Item
    Qty
    Plus Item
  • Switch,micro for Kenmore 72161109100 - Part 6600W1K001D

    Suction guide diagram

    Ge Microwave Micro-switch

    Part #3B73362F

    Replaced by #6600W1K001D

    Info Icon
    Manufacturer substitution
    This part replaces 3B73362F. Substitute parts can look different from the original.
    In Stock
    $11.84
    Minus Item
    Qty
    Plus Item
  • Microwave Magnetron for Kenmore 72161109100 - Part 6324ZAAE22B

    Oven interior diagram

    Magnetron

    Part #3B71077B

    Replaced by #6324ZAAE22B

    Info Icon
    Manufacturer substitution
    This part replaces 3B71077B. Substitute parts can look different from the original.
    In Stock
    $191.46
    Minus Item
    Qty
    Plus Item
  • Base Plate for Kenmore 72161109100 - Part 3302W0A018C

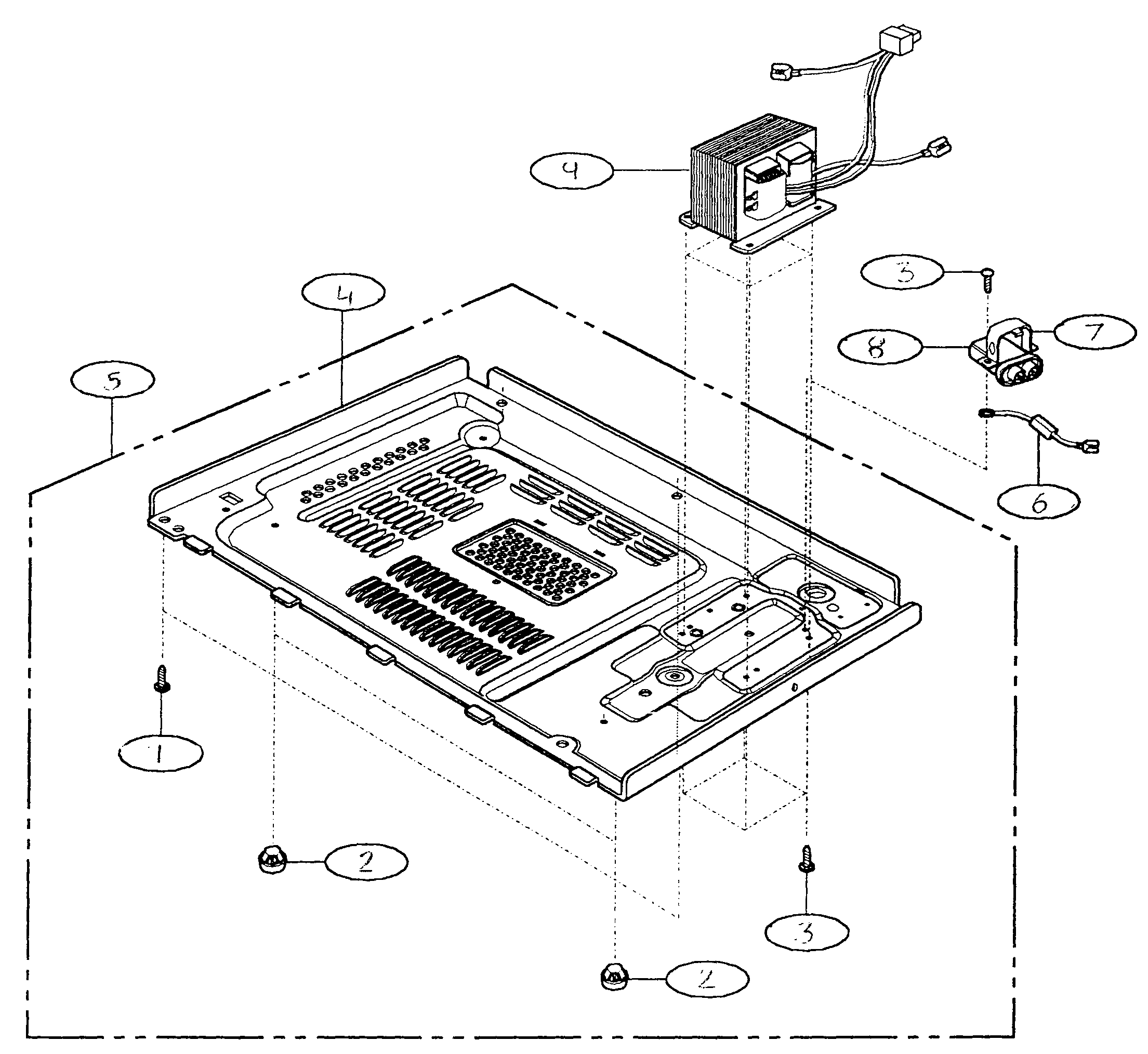

    Base plate diagram

    Base Plate

    Part #3302W0A018C

    The manufacturer no longer makes this part, and there's no substitute part

  • Lead Wire Assembly for Kenmore 72161109100 - Part 6877W1A190C

    Oven interior diagram

    Lead Wire Assembly

    Part #6877W1A190C

    The manufacturer no longer makes this part, and there's no substitute part

  • Board for Kenmore 72161109100 - Part 3500W1A002A

    Suction guide diagram

    Board

    Part #3500W1A002A

    The manufacturer no longer makes this part, and there's no substitute part

  • Door Assembly for Kenmore 72161109100 - Part 3581W1A273A

    Door diagram

    Door Assembly

    Part #3581W1A273A

    The manufacturer no longer makes this part, and there's no substitute part

  • Water Seal for Kenmore 72161109100 - Part 4036W3W001A

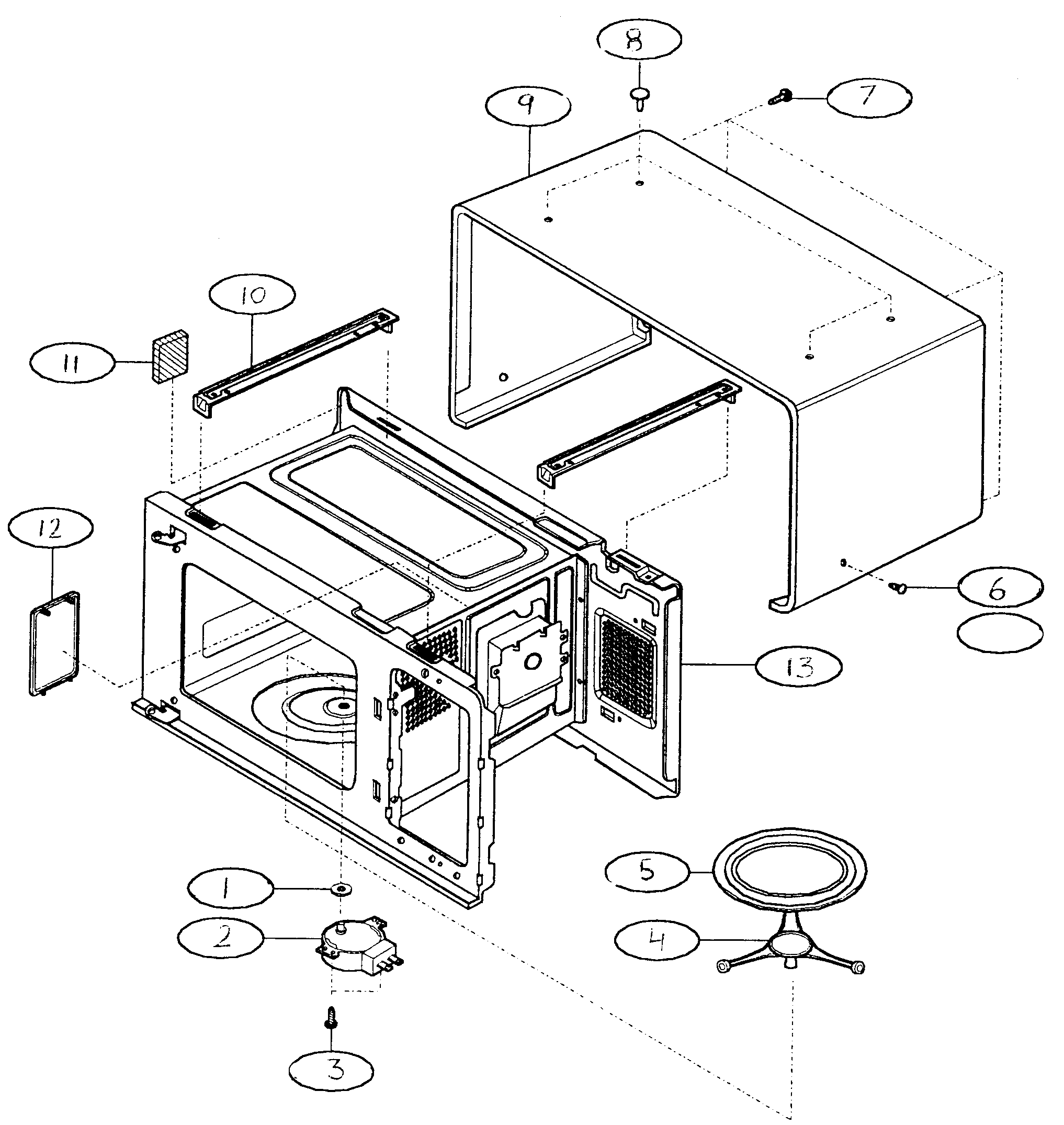

    Oven cavity diagram

    Water Seal

    Part #4036W3W001A

    The manufacturer no longer makes this part, and there's no substitute part
