Admiral
Electric Cooktop

Model # A88FK-1 Official Admiral electric counter unit cooktop

Here are the diagrams and repair parts for Official Admiral A88FK-1 electric counter unit cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Grounding Screw 7101P027-60
#13

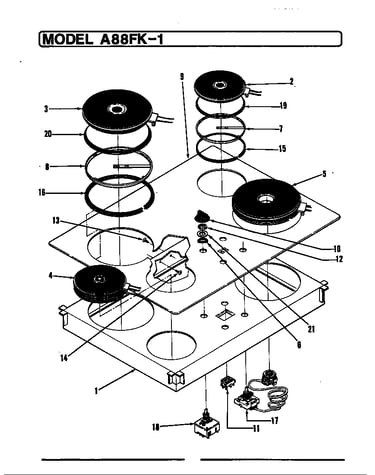

Top assy. diagram

Grounding screw

Part #7101P027-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P027-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Surface Knob 7737P013-60
#10

Top assy. diagram

Surface knob

Part #7737P013-60

Replaced by #WP74003143

?
Manufacturer substitution
This part replaces 7737P013-60. Substitute parts can look different from the original.
$27.40
In Stock
Screw 0S11005199
#9

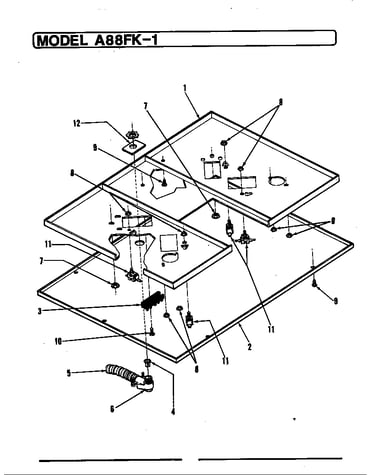

Burner box assy. diagram

Screw

Part #0S11005199

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 0S11005199. Substitute parts can look different from the original.
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Switch, 6-he 0S03008699
Switch, 6-he

Part #0S03008699

Replaced by #Y0S03008699

?
Manufacturer substitution
This part replaces 0S03008699. Substitute parts can look different from the original.
$35.82
In Stock
Auto Switch 0S03008799
#17

Top assy. diagram

Auto switch

Part #0S03008799

Replaced by #Y0S03008799

?
Manufacturer substitution
This part replaces 0S03008799. Substitute parts can look different from the original.
$98.33
In Stock
Screw 7101P057-60
#14

Top assy. diagram

Screw

Part #7101P057-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P057-60. Substitute parts can look different from the original.
This item is not returnable
$4.03 |
20% OFF Phone Price : $5.03
In Stock
Element, Aut 0E00802399
#5

Top assy. diagram

Element, aut

Part #0E00802399

The manufacturer no longer makes this part, and there's no substitute part

Trim Ring 4E08801343
#19

Top assy. diagram

Trim ring

Part #4E08801343

The manufacturer no longer makes this part, and there's no substitute part

Nut 0N03600599
#12

Top assy. diagram

Nut

Part #0N03600599

The manufacturer no longer makes this part, and there's no substitute part

Gasket Ring 0G01302311
#8

Top assy. diagram

Gasket ring

Part #0G01302311

The manufacturer no longer makes this part, and there's no substitute part
