Model # FGC30S4ASC Official Frigidaire gas cooktop

Here are the diagrams and repair parts for Official Frigidaire FGC30S4ASC gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

Range Pressure Regulator 5308007974
#14

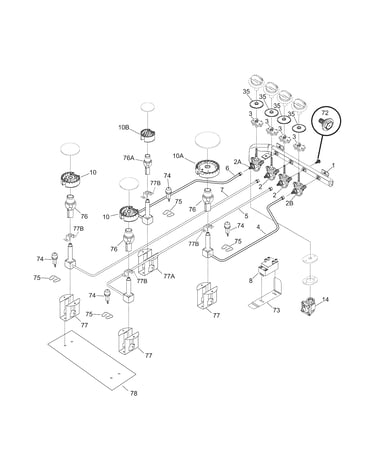

Burner diagram

Range pressure regulator

Part #5308007974

In Stock
Cooktop Medium And Large Burner Venturi Nozzle 318167801
#76

Burner diagram

Cooktop medium and large burner venturi nozzle

Part #318167801

$74.99
6% OFF Phone Price : $79.99
In Stock
Bushing 318146300
#35

Burner diagram

Bushing

Part #318146300

Replaced by #318146301

?
Manufacturer substitution
This part replaces 318146300. Substitute parts can look different from the original.
$35.29
12% OFF Phone Price : $40.29
In Stock
Cooktop Drip Pan 318167911
#19B

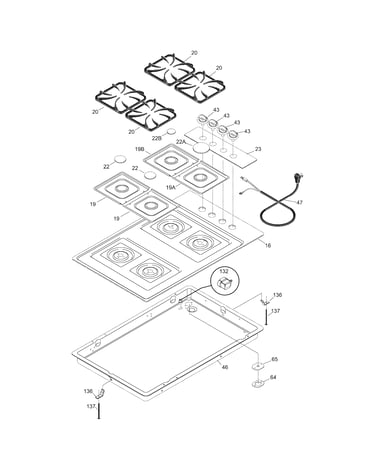

Maintop diagram

Cooktop drip pan

Part #318167911

In Stock
Burner Tube 318167701
#7

Burner diagram

Burner tube

Part #318167701

$152.89
6% OFF Phone Price : $162.89
In Stock
Range Surface Burner Knob (white) 318196140
#43

Maintop diagram

Range surface burner knob (white)

Part #318196140

In Stock
Range Screw 5303323140
#NI

Maintop diagram

Range screw

Part #5303323140

In Stock
Cooktop Installation Bracket Kit (replaces 5303283686, 5303283687, 5303302432) 5303935029
#136

Maintop diagram

Cooktop installation bracket kit (replaces 5303283686, 5303283687, 5303302432)

Part #5303935029

$49.83
9% OFF Phone Price : $54.83
In Stock
Range Screw, #10-24 X 0.375-in 08011955
#NI

Burner diagram

Range screw, #10-24 x 0.375-in

Part #08011955

This item is not returnable
$7.16
12% OFF Phone Price : $8.16
In Stock
Cooktop Burner 318148000
#10B

Burner diagram

Cooktop burner

Part #318148000

$186.69
5% OFF Phone Price : $196.69
In Stock
