Maytag
Chest Freezer

Model #MFC1005BEW Maytag chest freezer

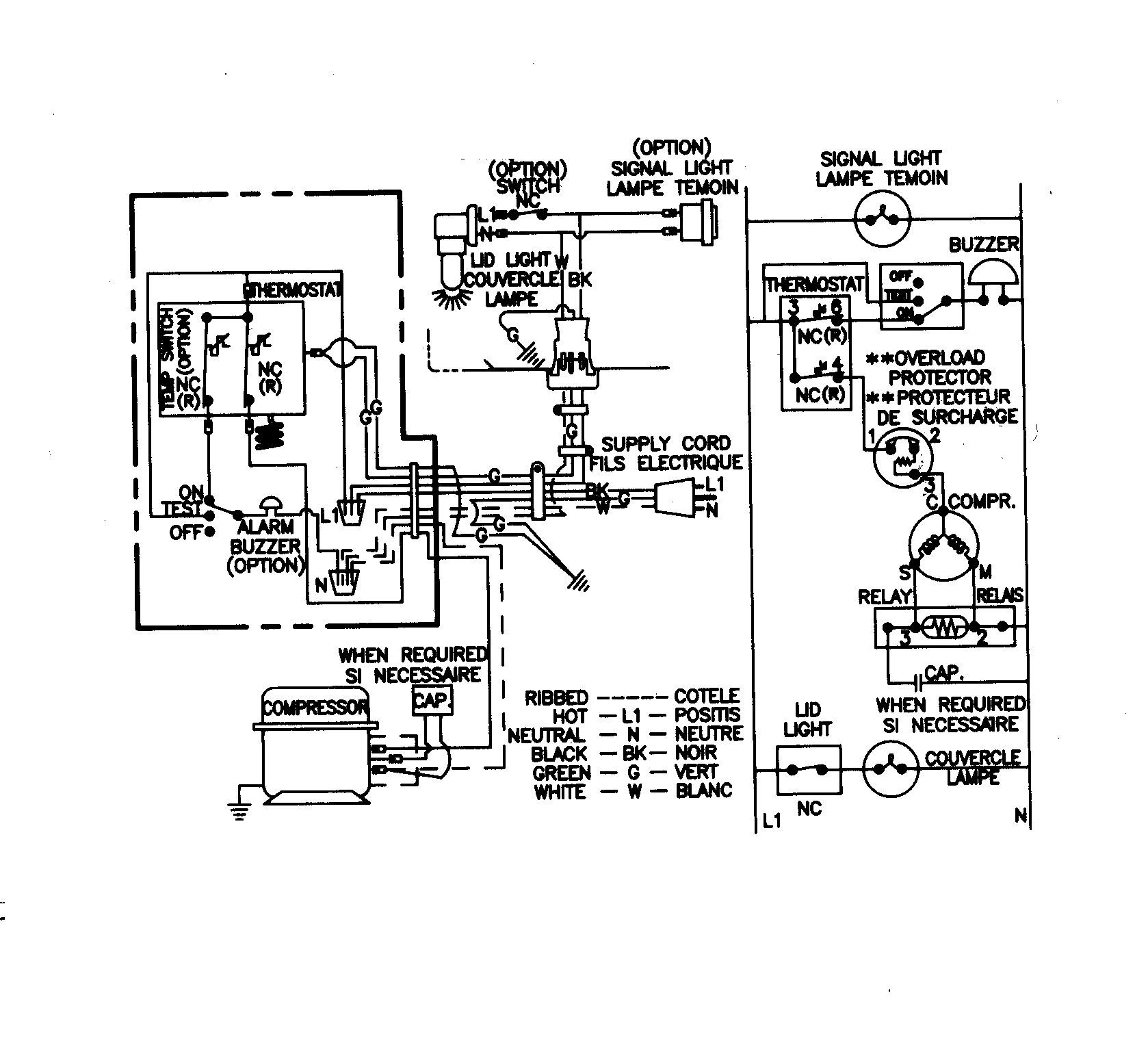

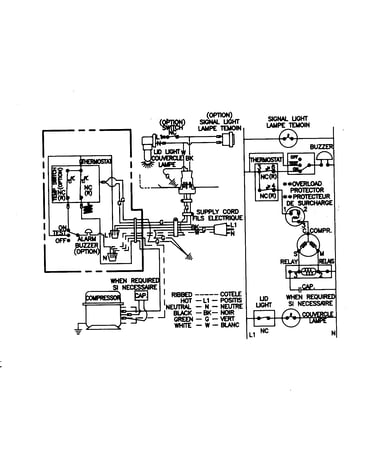

Here are the diagrams and repair parts for Maytag MFC1005BEW chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 47 parts

    Freezer Drain Cap

    See All Related Diagrams

    Drain cap

    Part #68001312
    Replaced by #3-33211-001
    ?
    Manufacturer substitution
    This part replaces 68001312. Substitute parts can look different from the original.
    In Stock
    $9.49
    Nameplate (m#4A

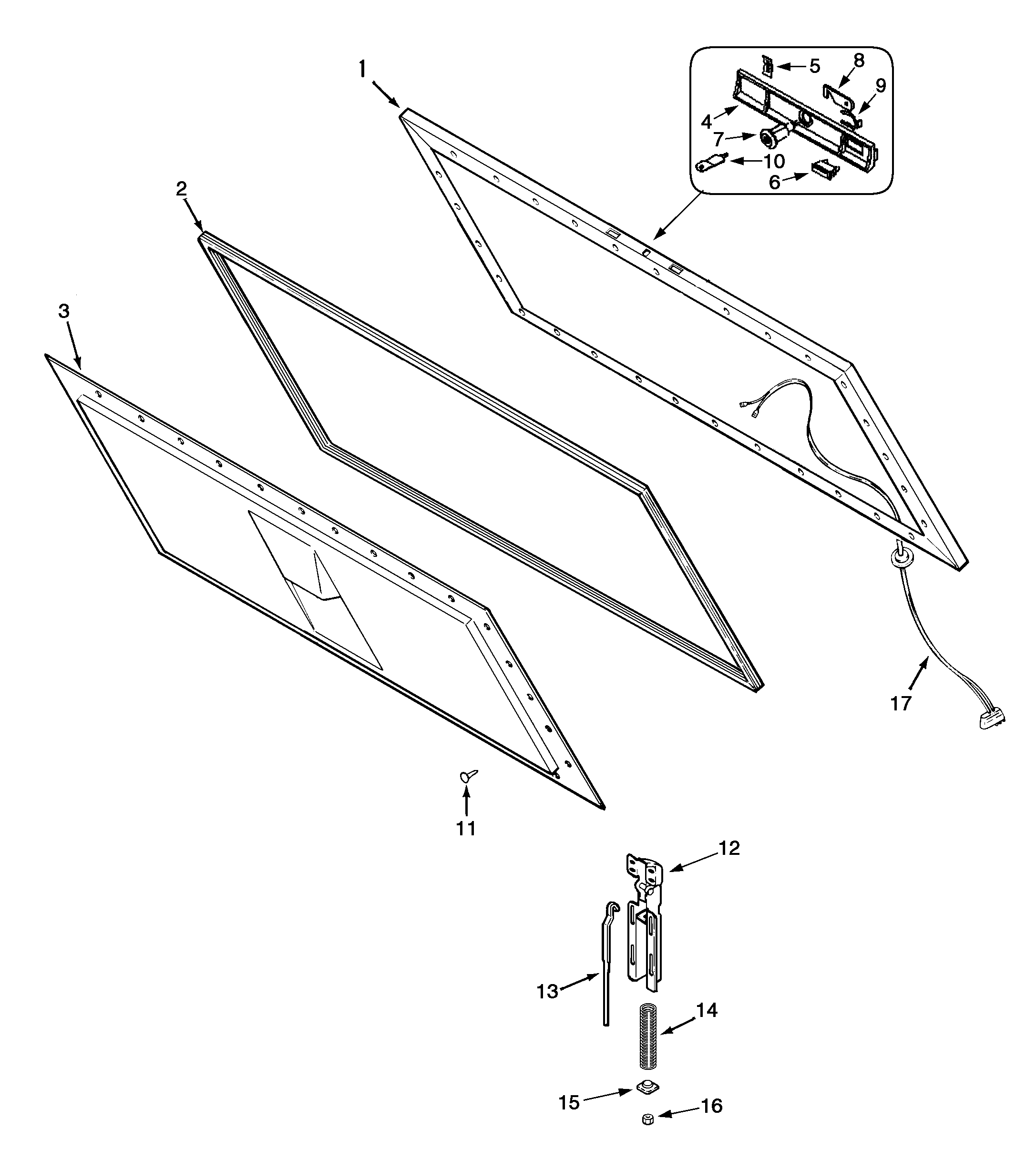

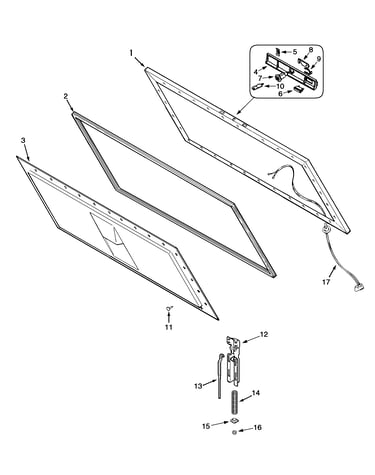

    Lid Diagram

    Nameplate (m

    Part #68001606
    In Stock
    $20.96
    Lock Clip#7A

    Lid Diagram

    Lock clip

    Part #68001012
    Replaced by #1-26359
    ?
    Manufacturer substitution
    This part replaces 68001012. Substitute parts can look different from the original.
    In Stock
    $36.58
    Refrigerator UV Filter Dryer#6

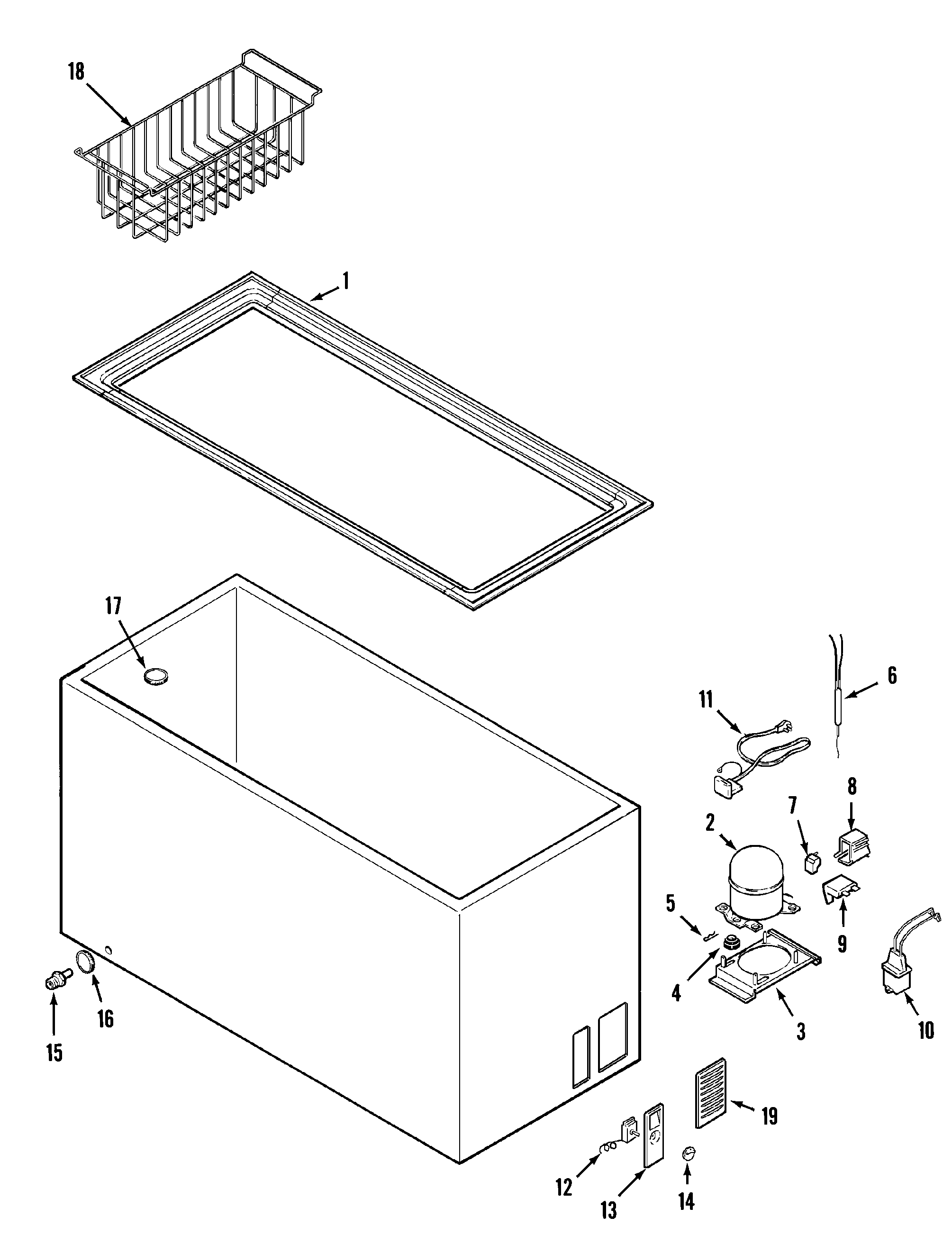

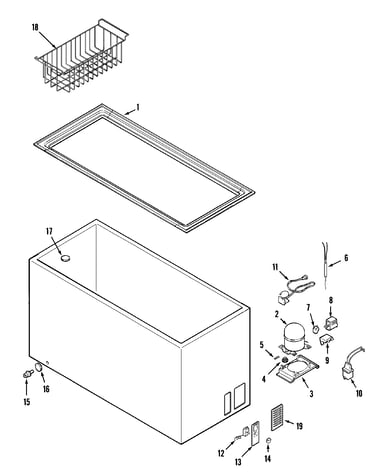

    Cabinet Diagram

    Refrigerator uv dye dryer

    Part #13900-1
    Replaced by #WPW10143759
    ?
    Manufacturer substitution
    This part replaces 13900-1. Substitute parts can look different from the original.
    In Stock
    $18.59 |
    20% OFF
    Was: $23.19
    Refrigerator Compressor Overload and Start Relay Cover#8

    Cabinet Diagram

    Terminal cover

    Part #68001213
    Replaced by #WP2162358
    ?
    Manufacturer substitution
    This part replaces 68001213. Substitute parts can look different from the original.
    In Stock
    $37.19
    Tube Clamp#11A

    Cabinet Diagram

    Clip

    Part #68001450
    Replaced by #488946
    ?
    Manufacturer substitution
    This part replaces 68001450. Substitute parts can look different from the original.
    In Stock
    $14.00
    Freezer Run Capacitor#10

    Cabinet Diagram

    Run capacitor

    Part #68001701
    Replaced by #8210284
    ?
    Manufacturer substitution
    This part replaces 68001701. Substitute parts can look different from the original.
    In Stock
    $65.80
    Screw#12A

    Lid Diagram

    Screw

    Part #09100105
    Replaced by #4356491
    ?
    Manufacturer substitution
    This part replaces 09100105. Substitute parts can look different from the original.
    In Stock
    $11.59
    Brace#3A

    Cabinet Diagram

    Base bracket

    Part #68001631
    Replaced by #3-81556-001
    ?
    Manufacturer substitution
    This part replaces 68001631. Substitute parts can look different from the original.
    In Stock
    $10.80
    Freezer Basket#18

    Cabinet Diagram

    Wire basket

    Part #09100065
    Replaced by #8210434A
    ?
    Manufacturer substitution
    This part replaces 09100065. Substitute parts can look different from the original.
    Back Order
    $34.39

    Symptoms common to all freestanding freezers

    Choose a symptom to see related freezer repairs.

    Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failure
    Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser coils, control failure
    Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, faulty compressor
    Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-metal thermostat
    Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, compressor problems
    Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, bad defrost timer
    Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor motor failure
    Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket

    Repair guides for chest freezers
