Model # BS1001SV Official Ryobi 10" band saw

Here are the diagrams and repair parts for Official Ryobi BS1001SV 10" band saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

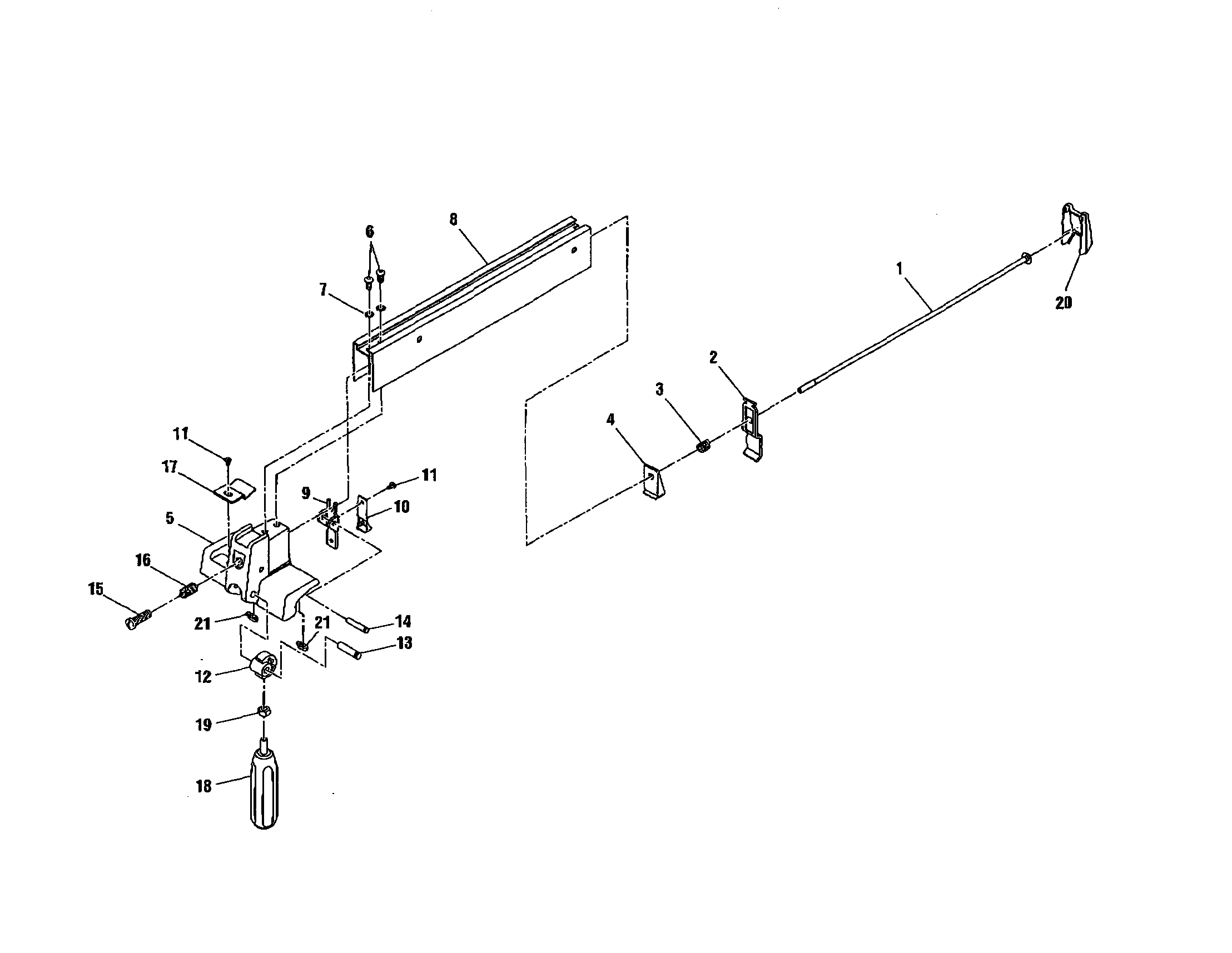

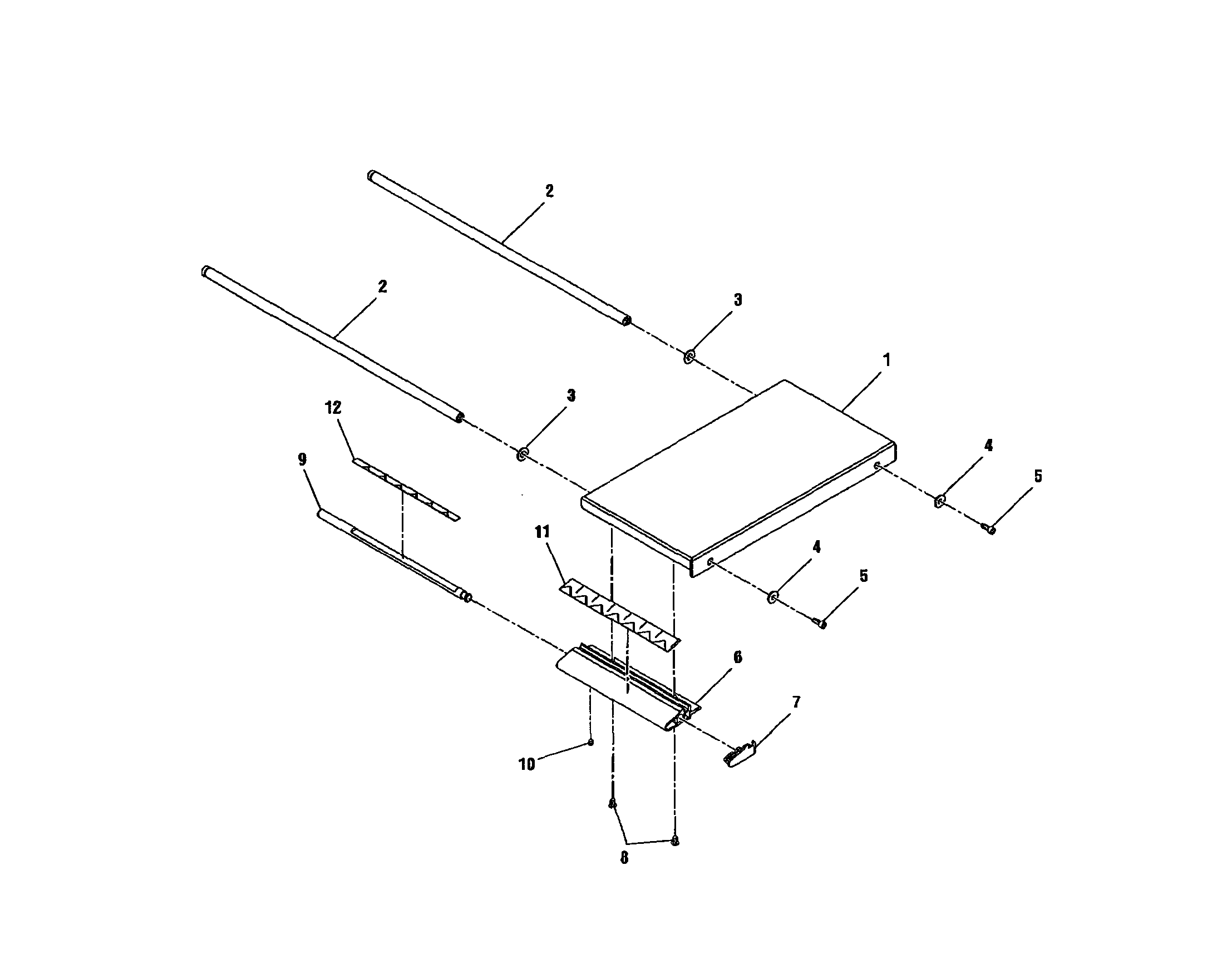

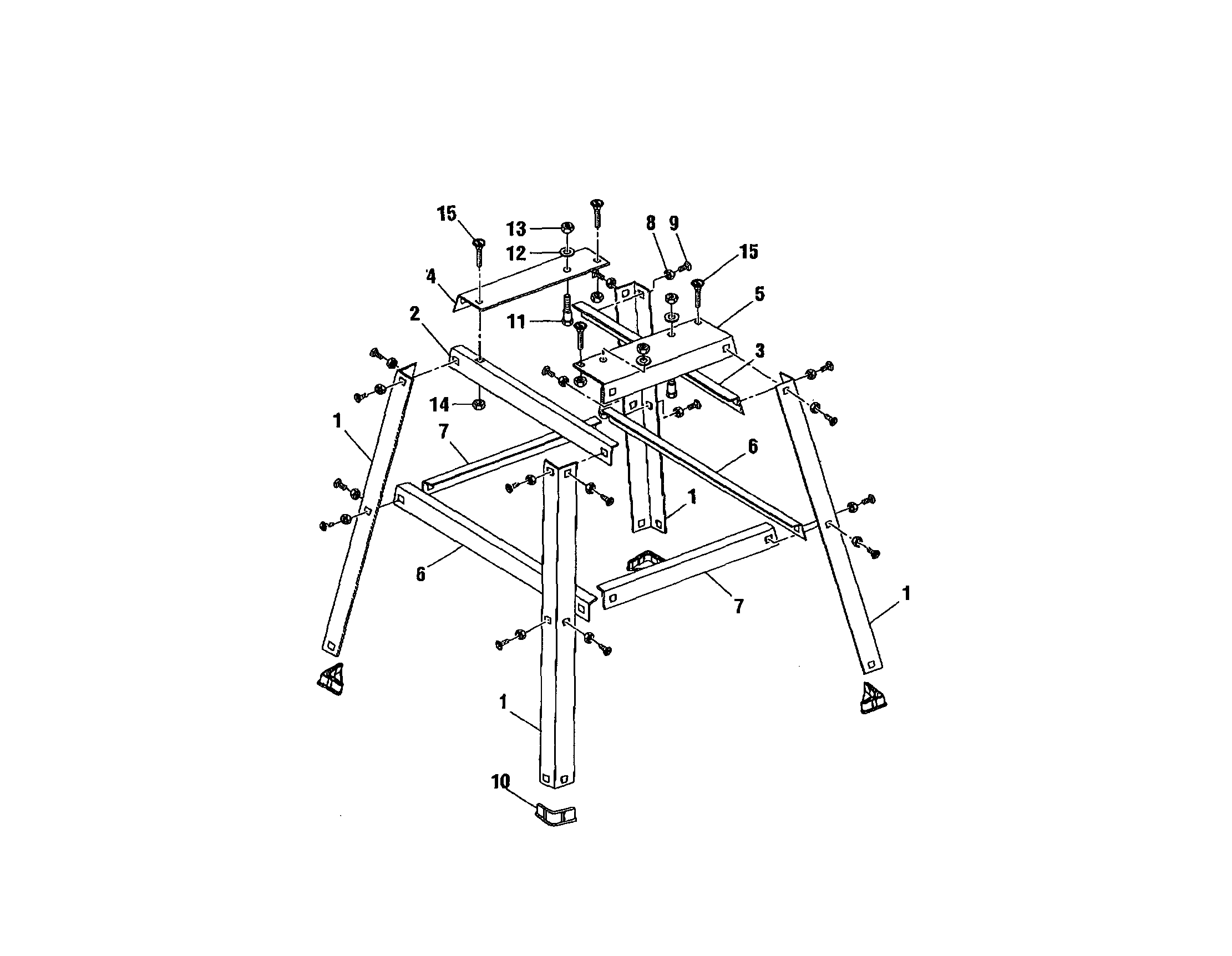

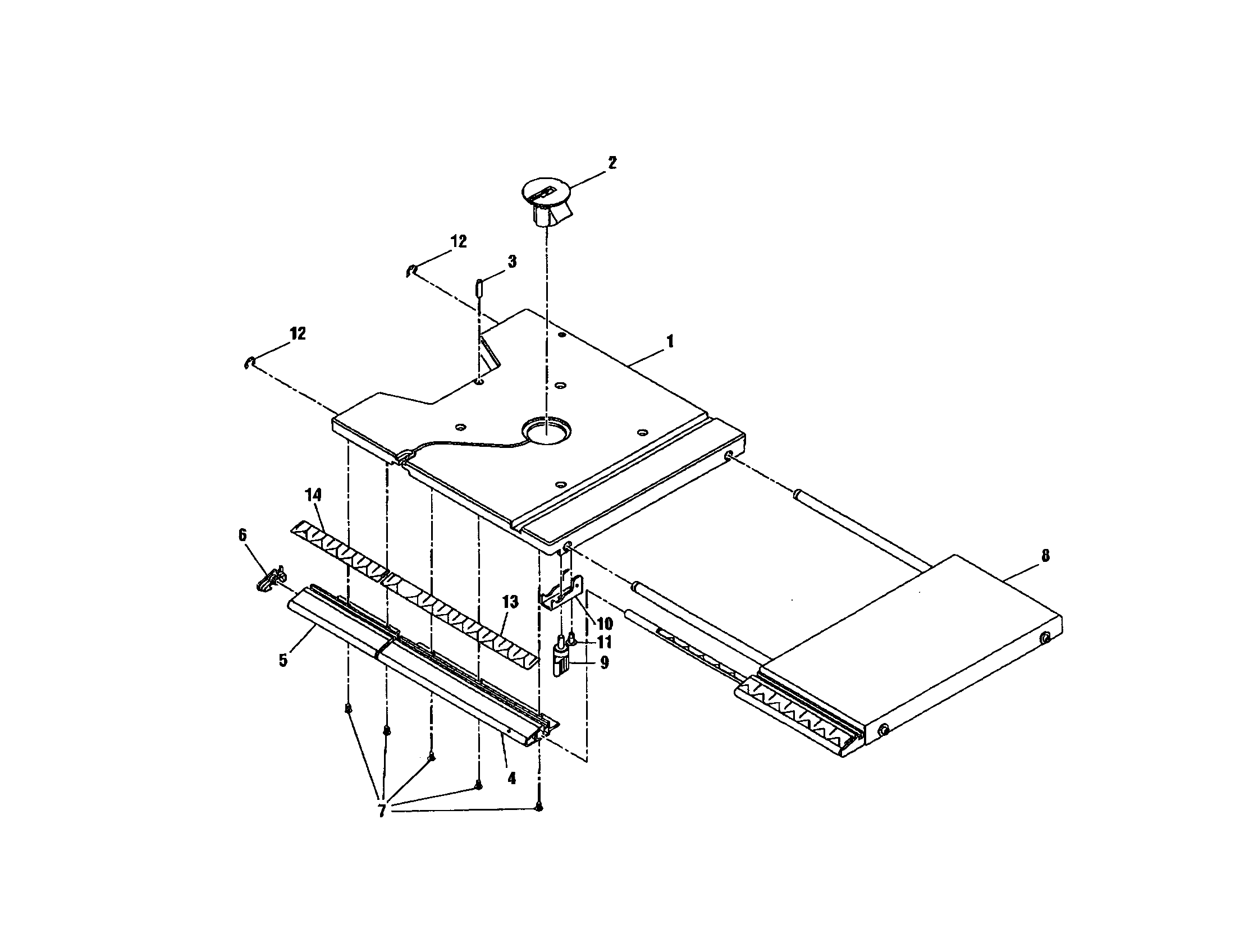

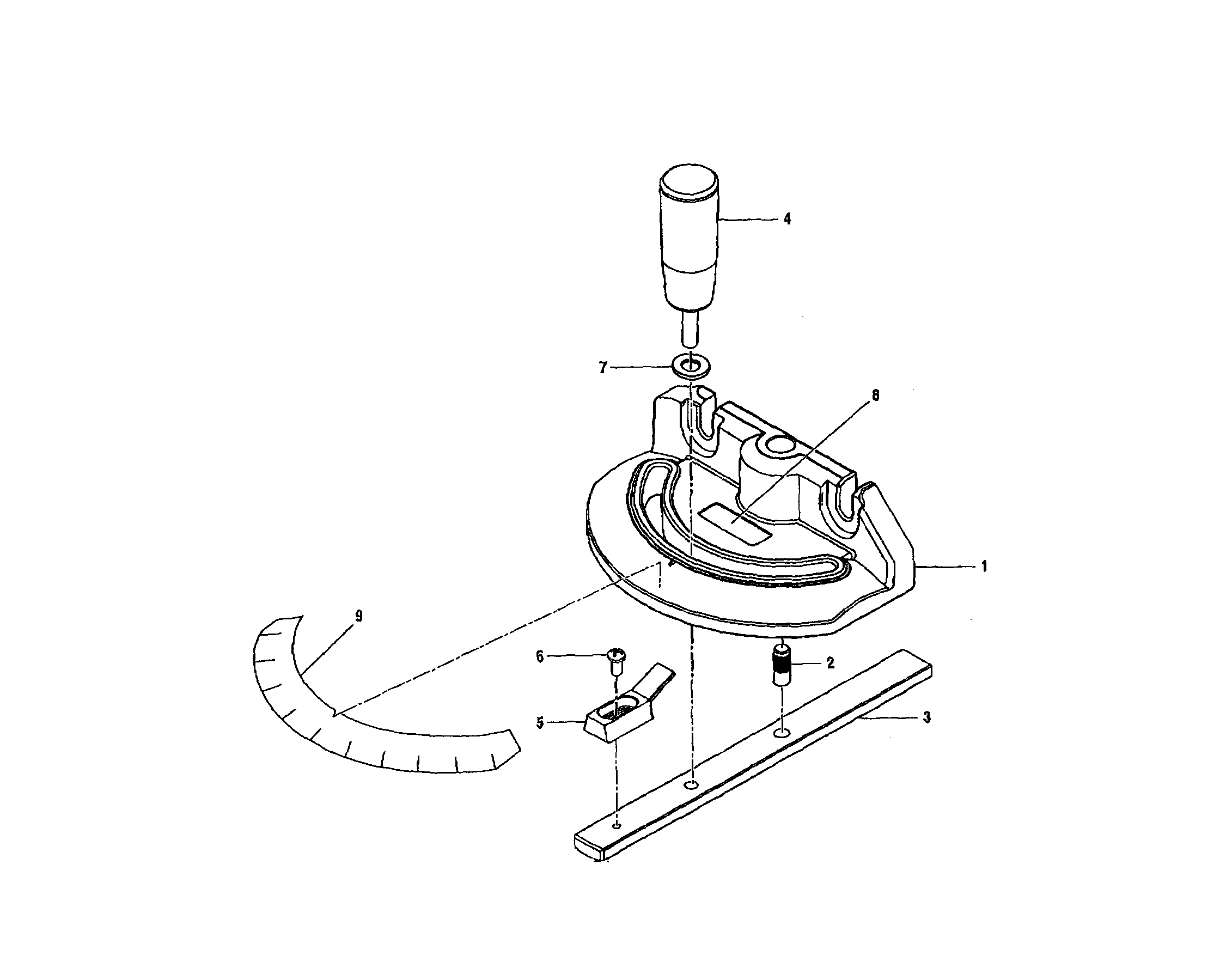

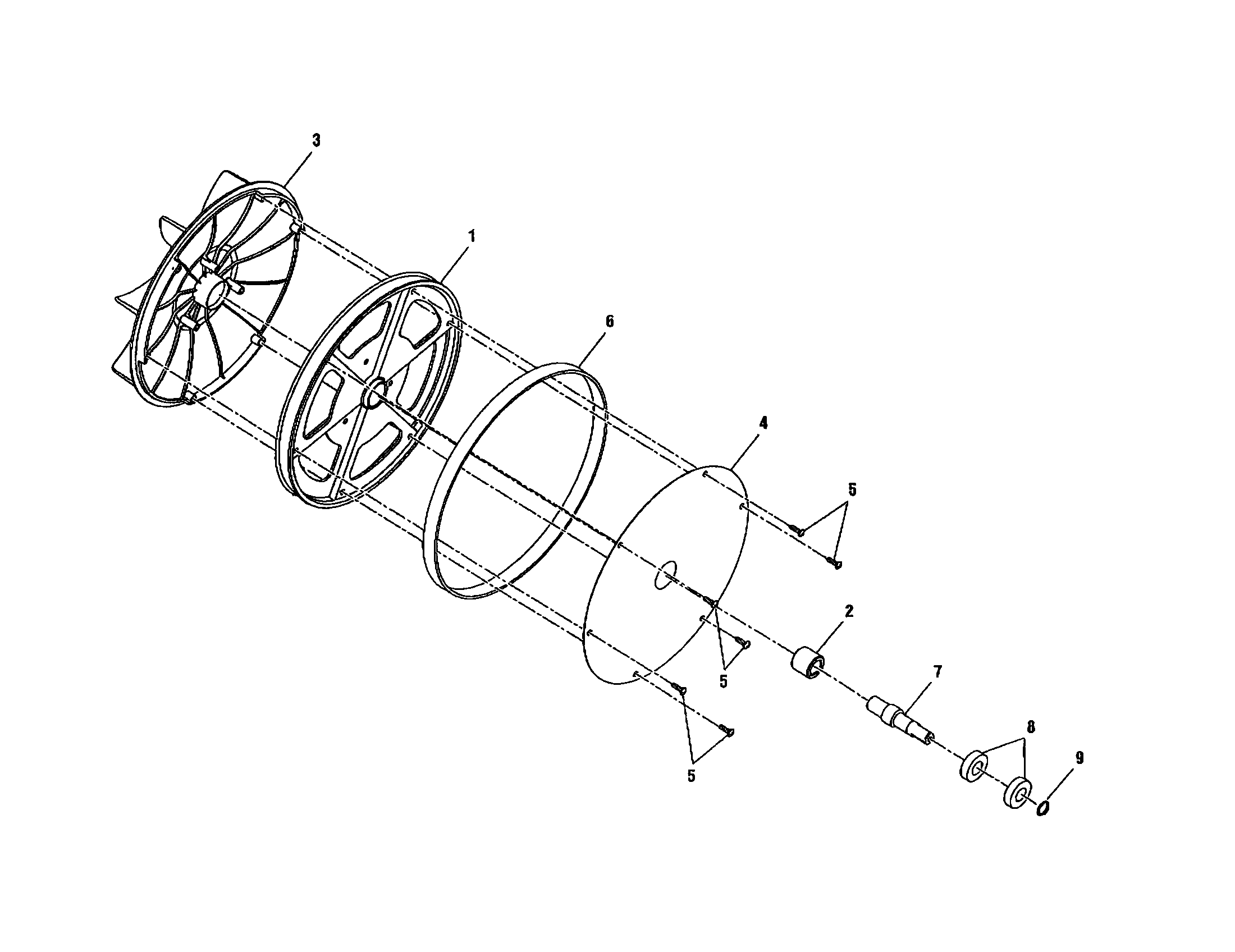

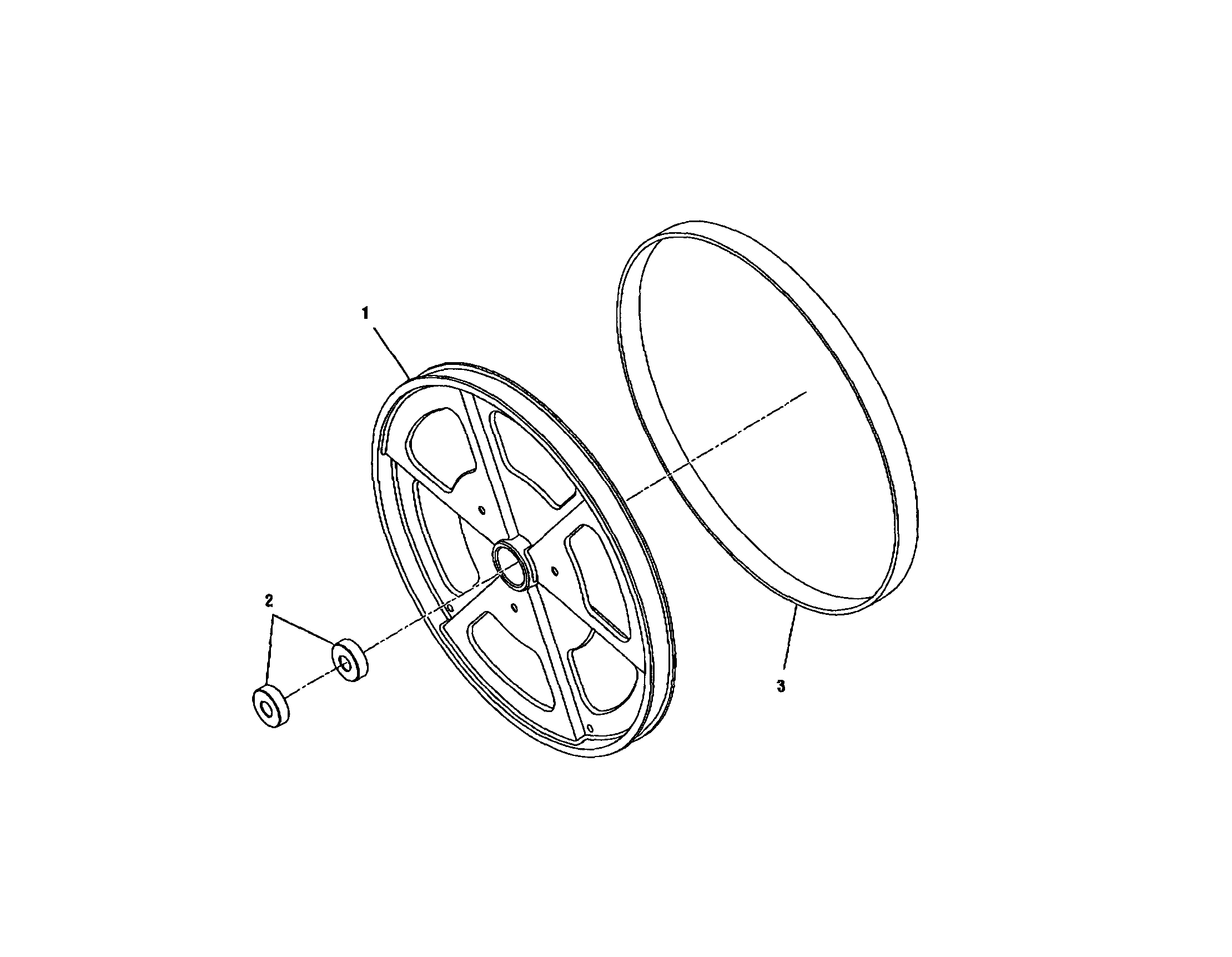

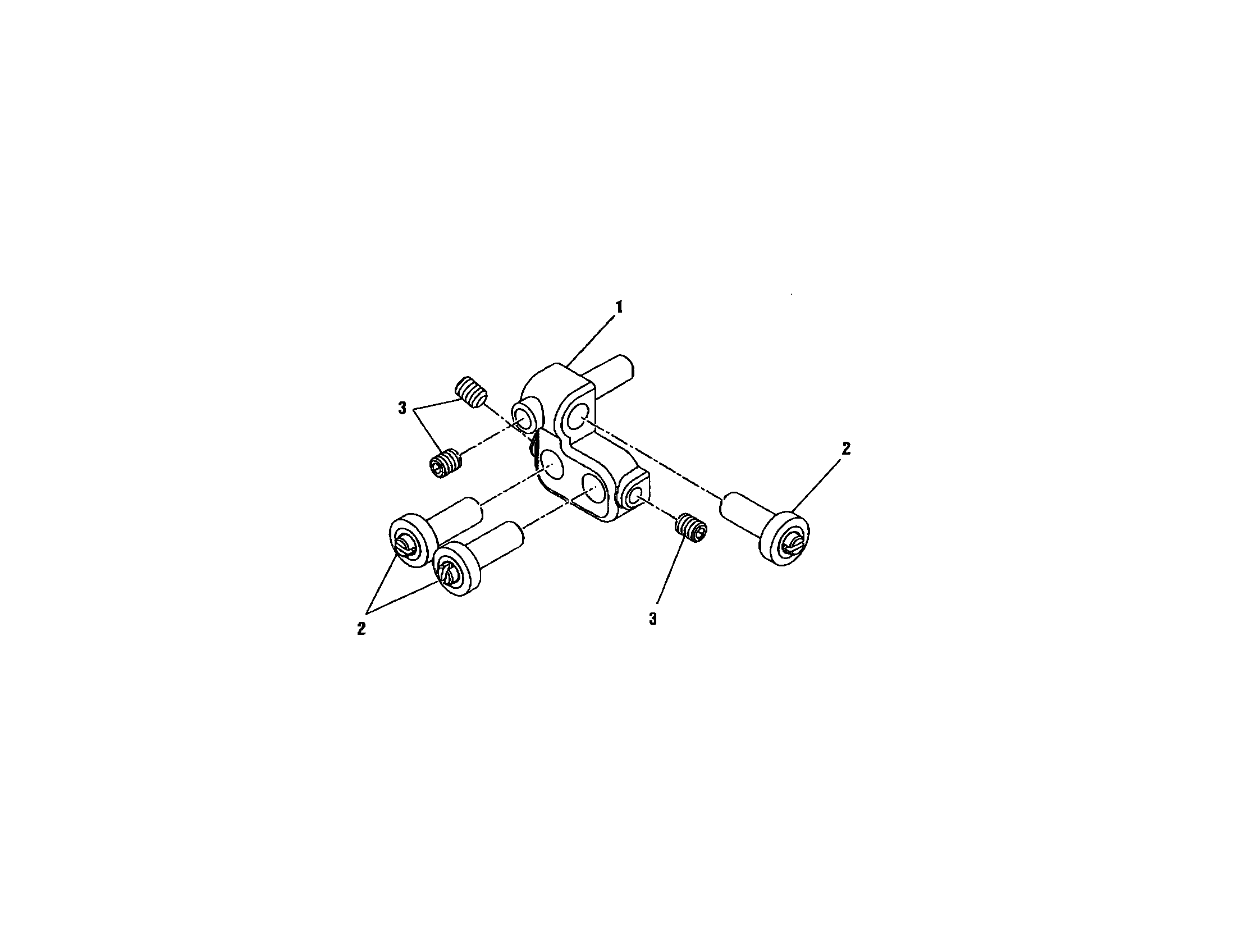

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 220 parts  |
Lock Washer (m4) (standard Hardware Item-may Be Purchased Locally) 021201-003
#61

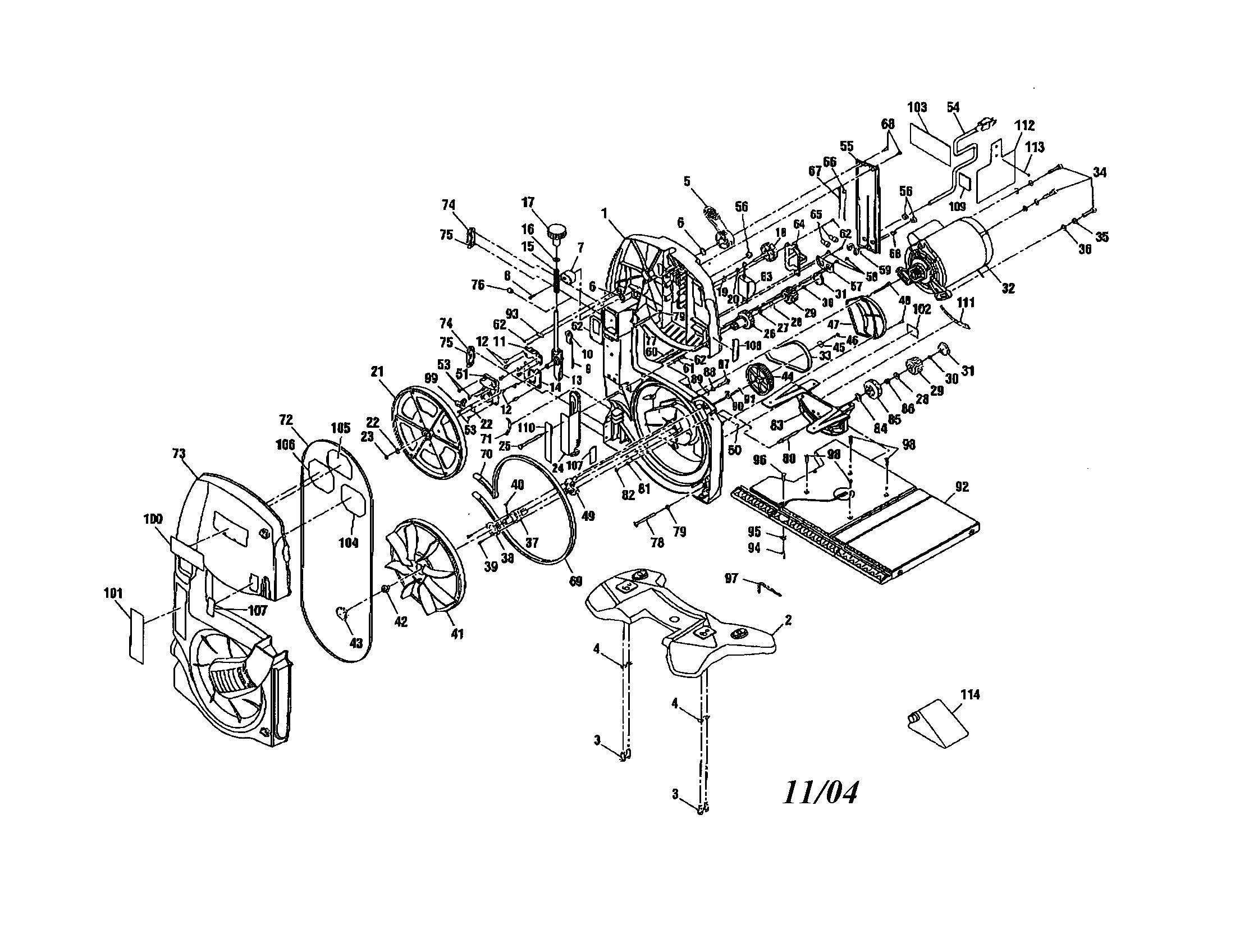

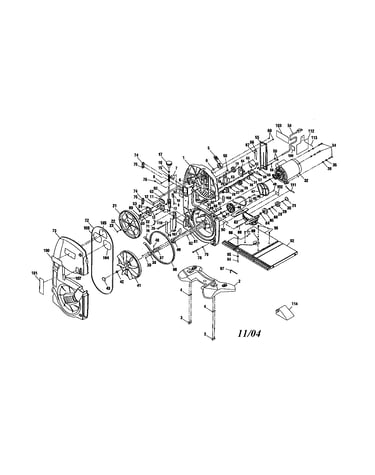

Frame/base/wheel/motor diagram

Lock washer (m4) (standard hardware item-may be purchased locally)

Part #021201-003

The manufacturer no longer makes this part, and there's no substitute part

Upper Slide 225311-100
#1

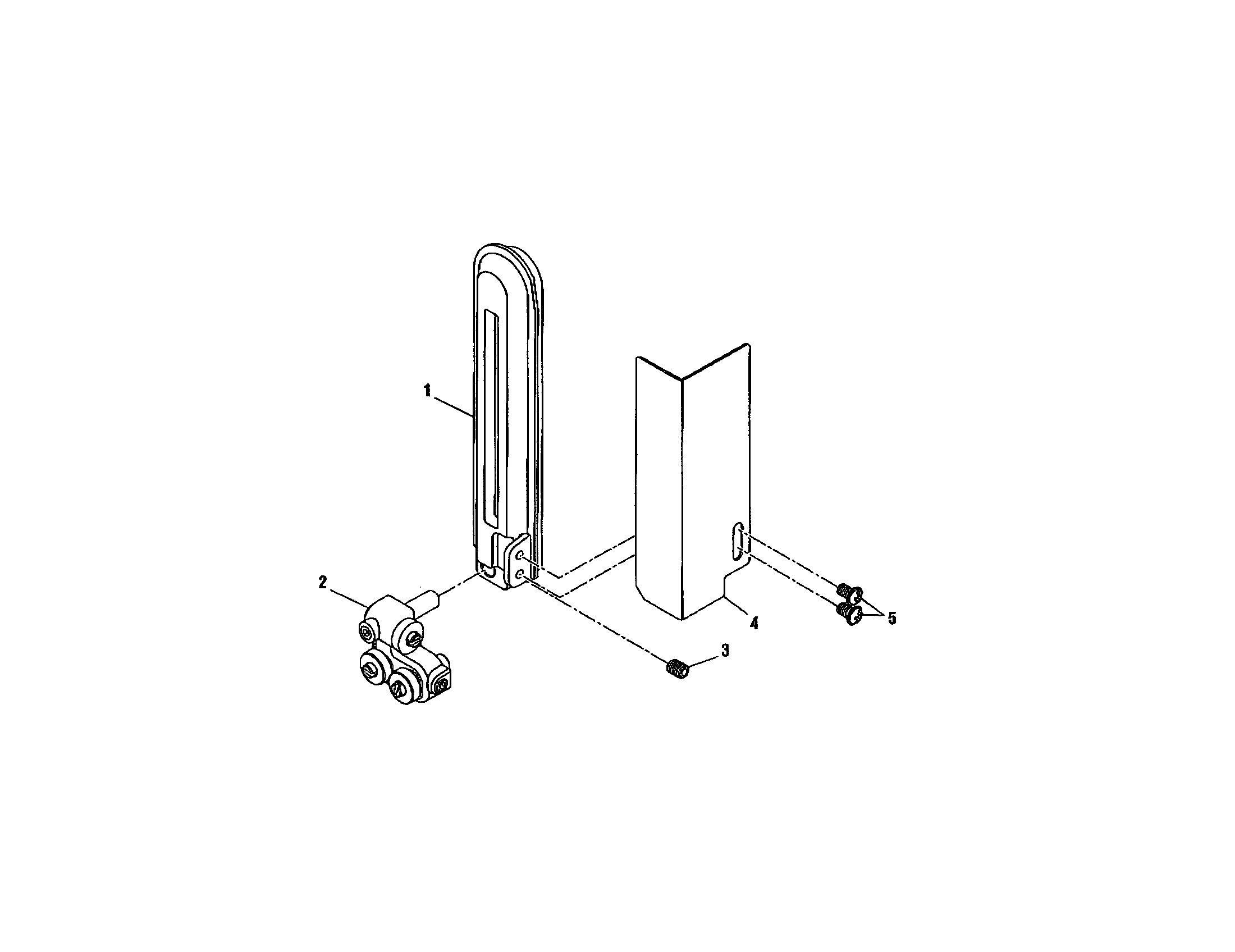

Blade guard/upper slide diagram

Upper slide

Part #225311-100

The manufacturer no longer makes this part, and there's no substitute part

Lock Plate 270218-000
#14

Frame/base/wheel/motor diagram

Lock plate

Part #270218-000

The manufacturer no longer makes this part, and there's no substitute part

Transformer Lock 303762-000
#64

Frame/base/wheel/motor diagram

Transformer lock

Part #303762-000

The manufacturer no longer makes this part, and there's no substitute part

Rating Label 871059-000
#102

Frame/base/wheel/motor diagram

Rating label

Part #871059-000

The manufacturer no longer makes this part, and there's no substitute part

Blade (3/8 In.) 351009-003
#72A

Frame/base/wheel/motor diagram

Blade (3/8 in.)

Part #351009-003

The manufacturer no longer makes this part, and there's no substitute part

Switch Key 984406003
#99

Frame/base/wheel/motor diagram

Switch key

Part #984406003

The manufacturer no longer makes this part, and there's no substitute part

Screw (m5 X 10 Mm)(5)(standard Hardware Item-may Be Purchased Locally.) 020716-007
Screw (m5 x 10 mm)(5)(standard hardware item-may be purchased locally.)

Part #020716-007

The manufacturer no longer makes this part, and there's no substitute part

Self-tapping Screw (m4 X 20 Mm)(standard Hardware Item-may Be Purchased Locally.) 020200-001
#14

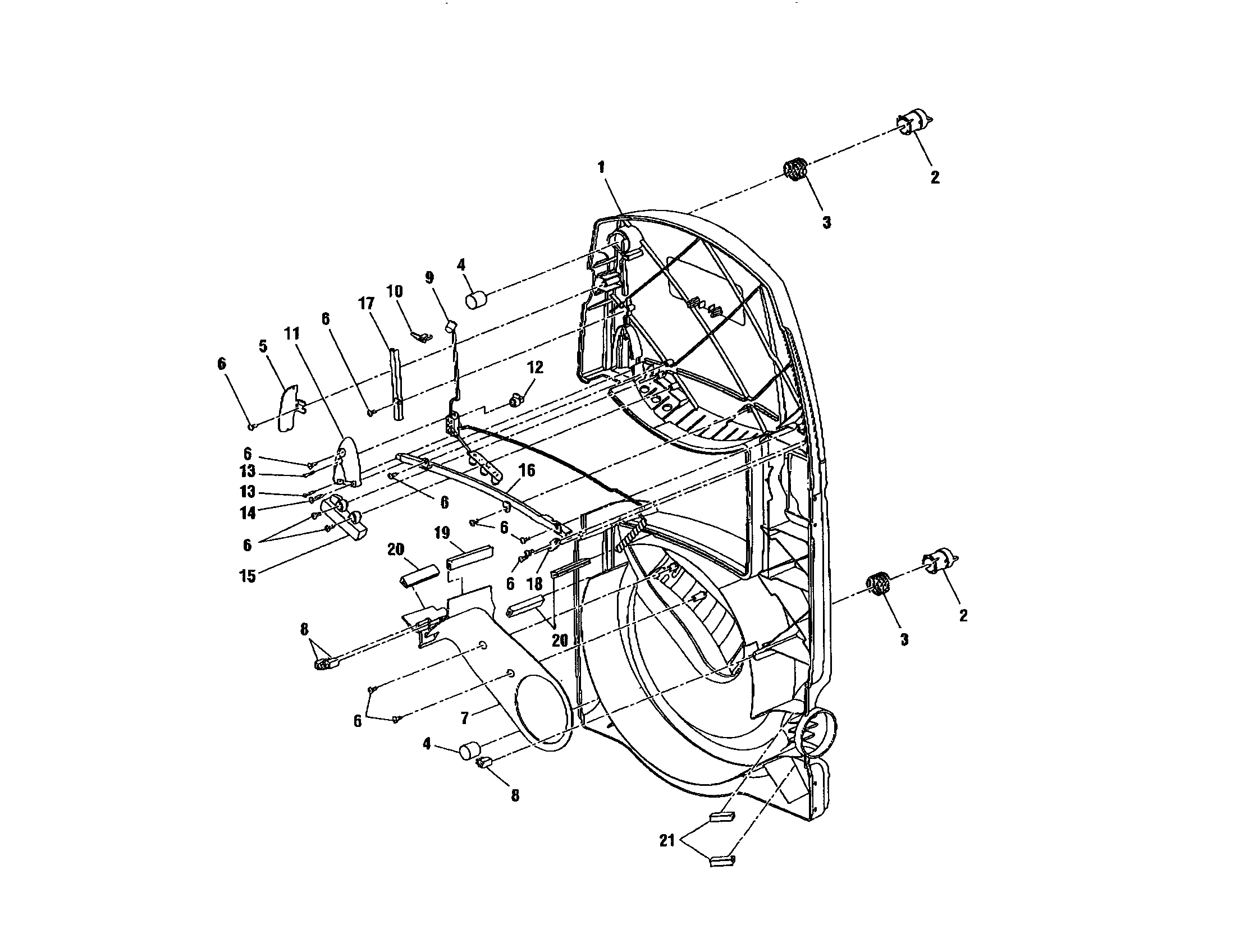

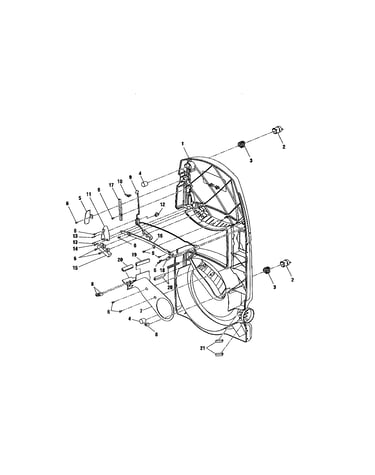

Cover/support cover diagram

Self-tapping screw (m4 x 20 mm)(standard hardware item-may be purchased locally.)

Part #020200-001

The manufacturer no longer makes this part, and there's no substitute part

Bevel Scale 870037-001
#111

Frame/base/wheel/motor diagram

Bevel scale

Part #870037-001

The manufacturer no longer makes this part, and there's no substitute part
