Model # 25GV-5 LPG Official Williams wall furnace

Here are the diagrams and repair parts for Official Williams 25GV-5-LPG wall furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

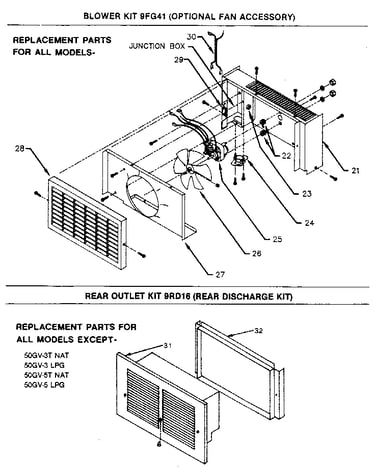

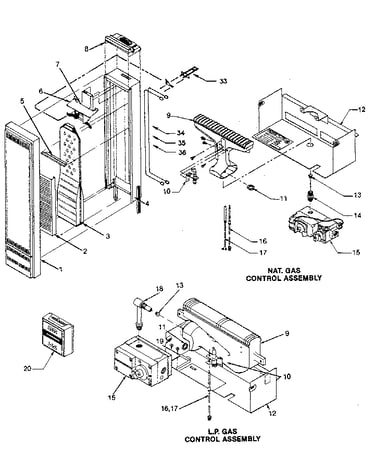

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Thermostat P251000

#20

All parts diagram

Thermostat

Part #P251000

The manufacturer no longer makes this part, and there's no substitute part

Furnace Pilot Burner P179900

#10

All parts diagram

Furnace pilot burner

Part #P179900

The manufacturer no longer makes this part, and there's no substitute part

Furnace 2-speed Fan Switch P320911A

#29

All parts diagram

Furnace 2-speed fan switch

Part #P320911A

The manufacturer no longer makes this part, and there's no substitute part

Wire Bridle P320912

#30

All parts diagram

Wire bridle

Part #P320912

The manufacturer no longer makes this part, and there's no substitute part

Motor P320905

#25

All parts diagram

Motor

Part #P320905

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade P320907

#26

All parts diagram

Fan blade

Part #P320907

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut P026200

#11

All parts diagram

Lock nut

Part #P026200

The manufacturer no longer makes this part, and there's no substitute part

Valve P172200

#15E

All parts diagram

Valve

Part #P172200

The manufacturer no longer makes this part, and there's no substitute part

Wire P321519

#35

All parts diagram

Wire

Part #P321519

The manufacturer no longer makes this part, and there's no substitute part

Manifold P182400

#18

All parts diagram

Manifold

Part #P182400

The manufacturer no longer makes this part, and there's no substitute part
