Model # 50PN6500UAAUSLLJR Official LG television

Here are the diagrams and repair parts for Official LG 50PN6500UAAUSLLJR television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |

Hand Insert EBR75799701
#205

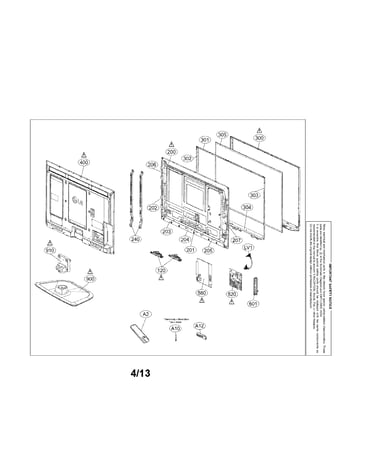

Exploded view parts diagram

Hand insert

Part #EBR75799701

In Stock
Bracket Assembly ABA74310104
#601

Exploded view parts diagram

Bracket assembly

Part #ABA74310104

This item is not returnable
In Stock
Hand Insert EBR75762501
#204

Exploded view parts diagram

Hand insert

Part #EBR75762501

In Stock
Switched-mode Power Supply Board EAY62812601
#580

Exploded view parts diagram

Switched-mode power supply board

Part #EAY62812601

In Stock
Hand Insert EBR75779401
#207

Exploded view parts diagram

Hand insert

Part #EBR75779401

In Stock
Hand Insert Pcb Assembly EBR75799301
#203

Exploded view parts diagram

Hand insert pcb assembly

Part #EBR75799301

In Stock
Base Assembly AAN74140004
#900

Exploded view parts diagram

Base assembly

Part #AAN74140004

In Stock
Pdp Module EAJ61908648
#200

Exploded view parts diagram

Pdp module

Part #EAJ61908648

In Stock
Television Screw FAB30016603
#A10

Exploded view parts diagram

Television screw

Part #FAB30016603

This item is not returnable
In Stock
Television Power Cord EAD60817901
Television power cord

Part #EAD60817901

In Stock
