Model # ZGU486NDP8SS Official GE gas cooktop

Here are the diagrams and repair parts for Official GE ZGU486NDP8SS gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Range Surface Burner Base WB28T10114
#60

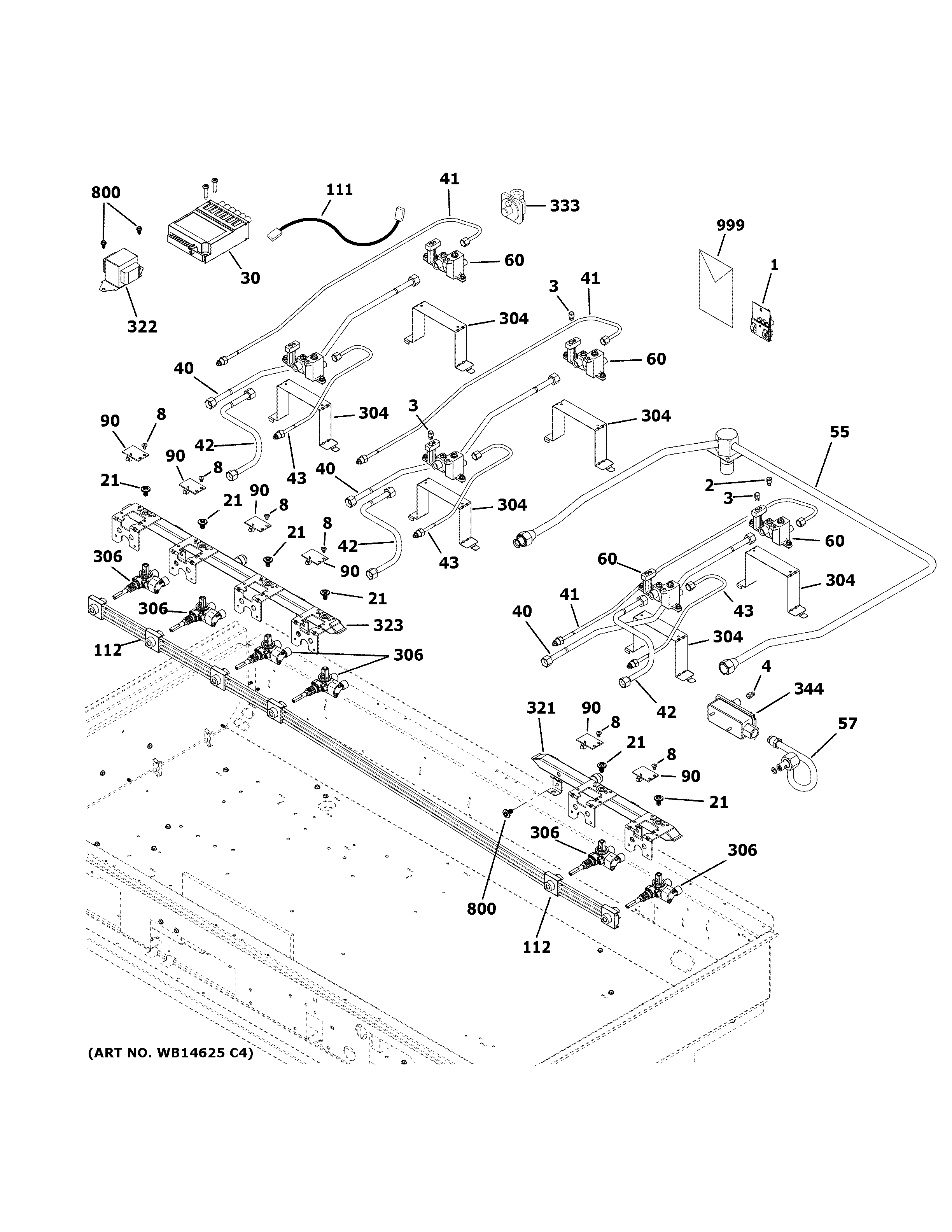

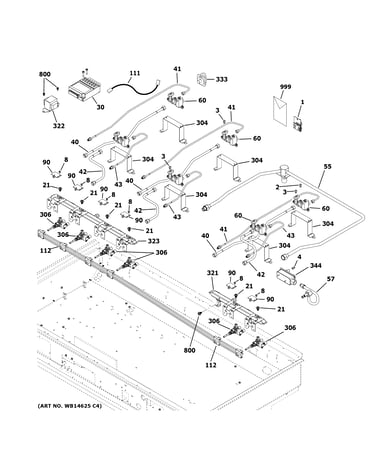

Gas & burner parts diagram

Range surface burner base

Part #WB28T10114

$69.69 |
7% OFF Phone Price : $74.69
In Stock
Range Screw WB01T10104
Range screw

Part #WB01T10104

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Range Surface Burner Base Screw WB01T10092
#20

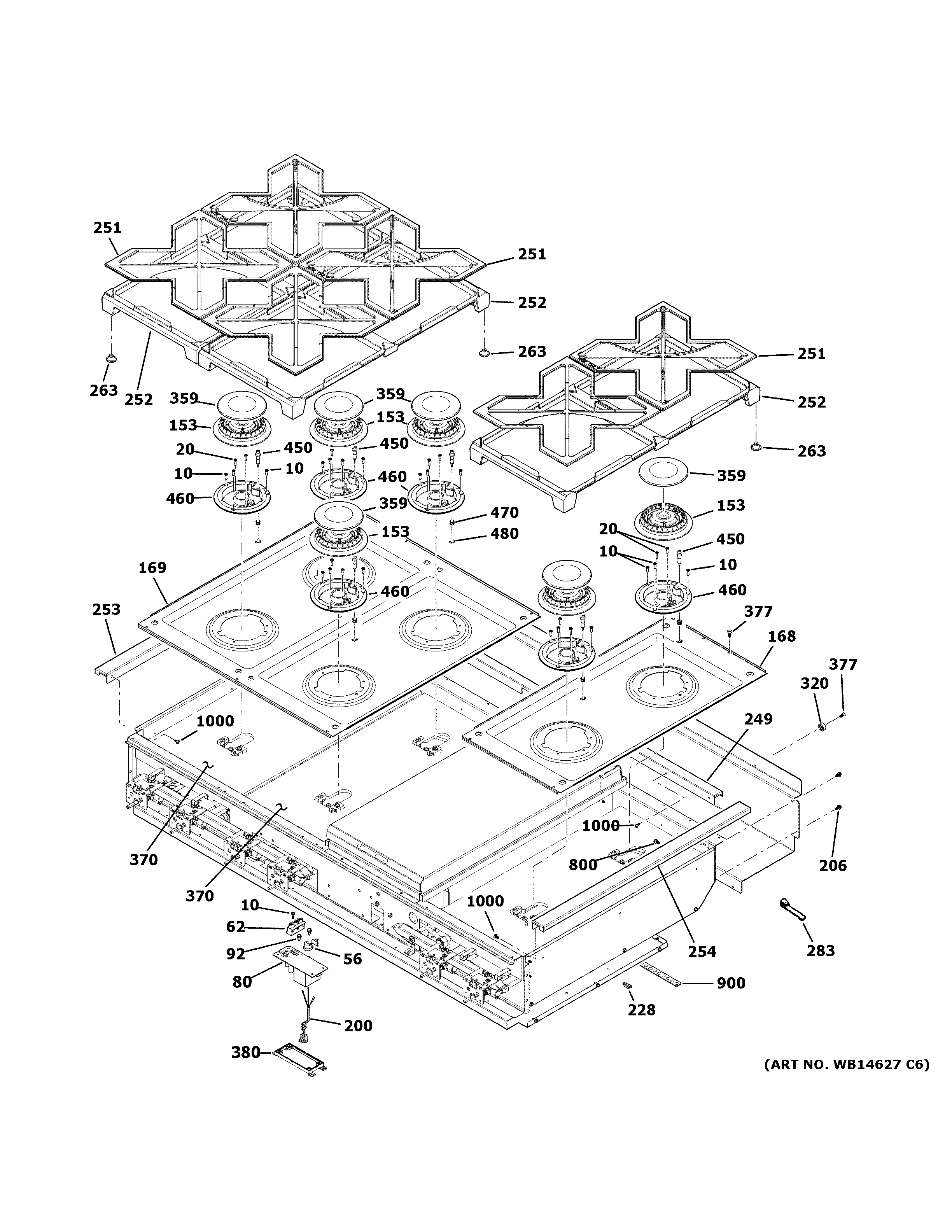

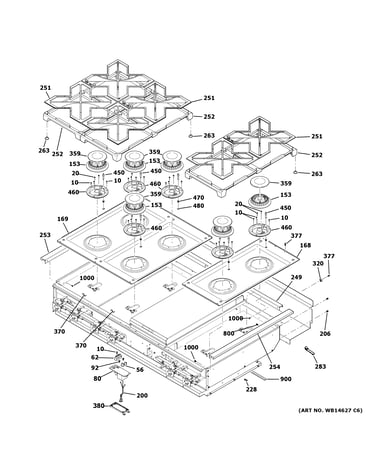

Cooktop diagram

Range surface burner base screw

Part #WB01T10092

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Foot Grate WB02K10223
#263

Cooktop diagram

Foot grate

Part #WB02K10223

Replaced by #WB02K10364

?
Manufacturer substitution
This part replaces WB02K10223. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Grate Frame WB31K10225
#252

Cooktop diagram

Grate frame

Part #WB31K10225

Replaced by #WB31K10253

?
Manufacturer substitution
This part replaces WB31K10225. Substitute parts can look different from the original.
$209.10 |
5% OFF Phone Price : $219.10
In Stock
Range Griddle Butcher Block Cover WB31K10223
#781

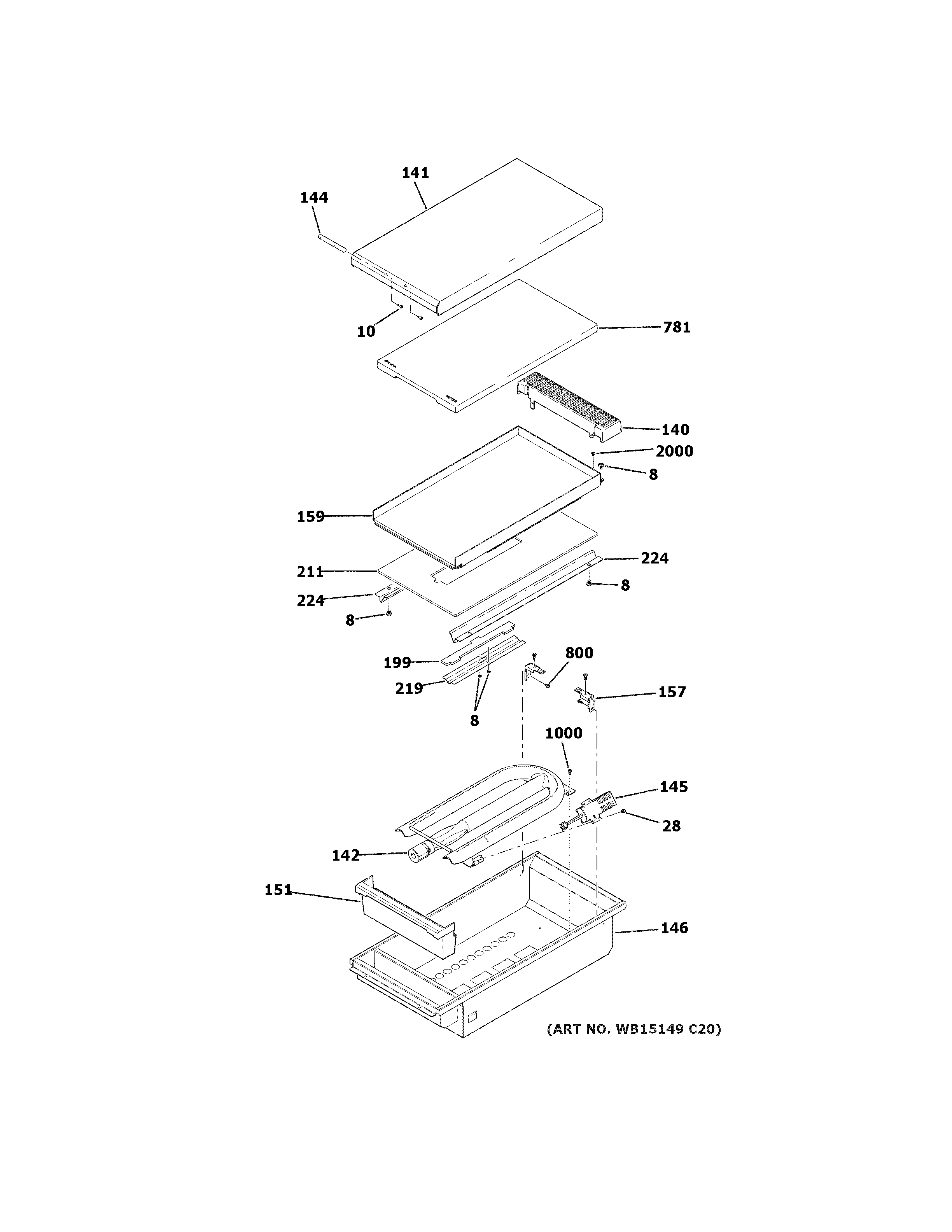

Griddle assembly diagram

Range griddle butcher block cover

Part #WB31K10223

$216.37 |
$10.00 OFF Phone Price : $226.37
In Stock
Harness WB18K10085
#7

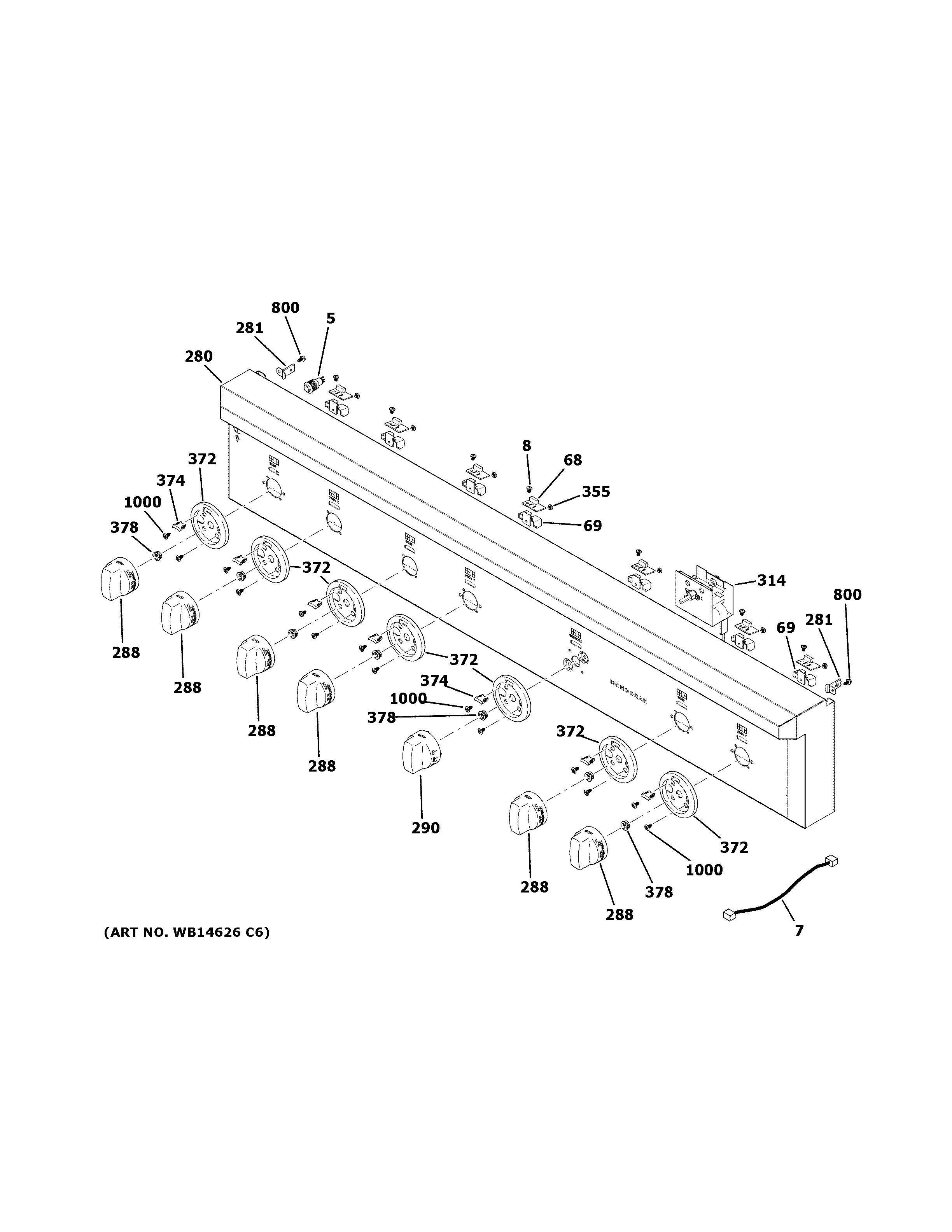

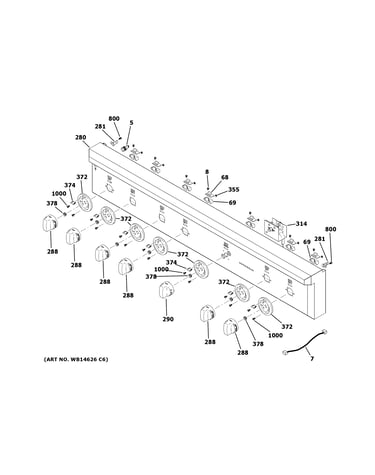

Control panel diagram

Harness

Part #WB18K10085

$8.11
In Stock
Range Griddle Cover WB07K10431
#141

Griddle assembly diagram

Range griddle cover

Part #WB07K10431

$163.58 |
6% OFF Phone Price : $173.58
In Stock
Range Surface Burner Orifice WB28T10155
#2

Gas & burner parts diagram

Range surface burner orifice

Part #WB28T10155

This item is not returnable
$7.90 |
11% OFF Phone Price : $8.90
Back Order
Switch Led WB24X26719
#5

Control panel diagram

Switch led

Part #WB24X26719

$133.56
In Stock
