Yamaha RX-V480 audio receiver

Yamaha RX-V480 audio receiver Parts

Here are the diagrams and repair parts for Yamaha RX-V480 audio receiver, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RX-V480 Audio Equipment

  • Leg for Yamaha RX-V480 - Part VQ780300

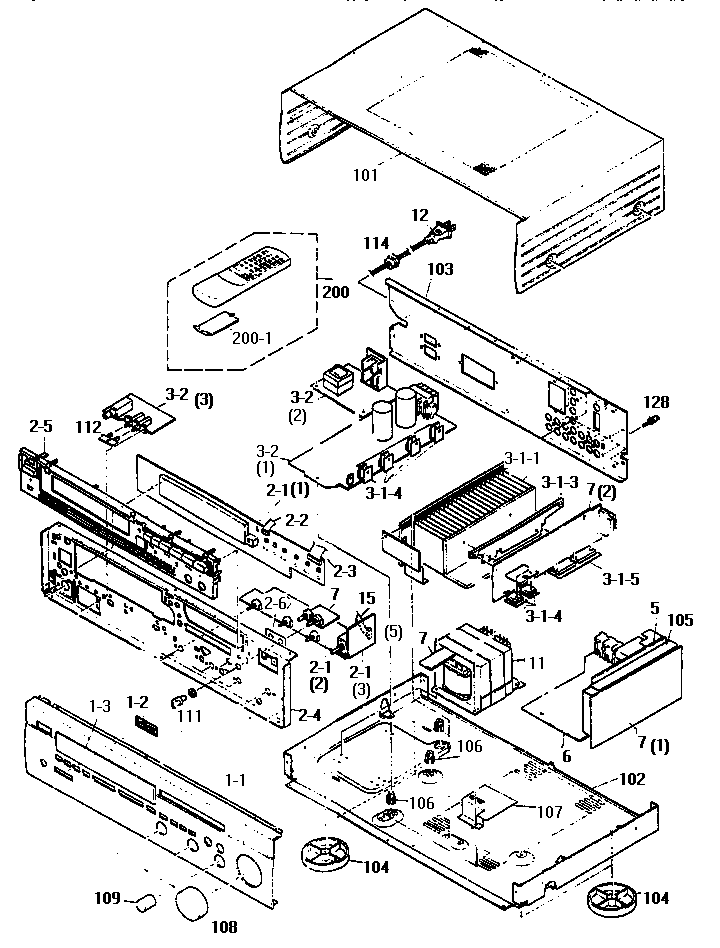

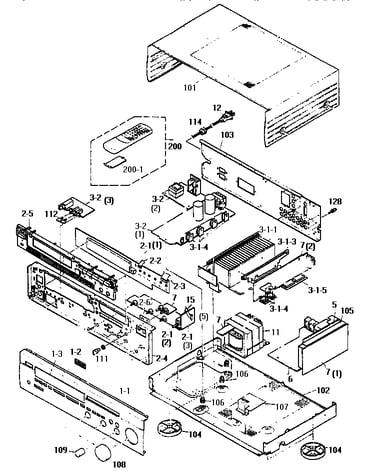

    Front panel & cabinet diagram

    Leg

    Part #VQ780300

    The manufacturer no longer makes this part, and there's no substitute part

  • Yamaha Pcb Assembly for Yamaha RX-V480 - Part VR341000

    Front panel & cabinet diagram

    Yamaha Pcb Assembly

    Part #VR341000

    The manufacturer no longer makes this part, and there's no substitute part

  • Case for Yamaha RX-V480 - Part VQ794900

    Front panel & cabinet diagram

    Case

    Part #VQ794900

    The manufacturer no longer makes this part, and there's no substitute part

  • Remote for Yamaha RX-V480 - Part VR094100

    Front panel & cabinet diagram

    Remote

    Part #VR094100

    The manufacturer no longer makes this part, and there's no substitute part

  • Sheet for Yamaha RX-V480 - Part VK195900

    Front panel & cabinet diagram

    Sheet

    Part #VK195900

    The manufacturer no longer makes this part, and there's no substitute part

  • Yamaha Sheet for Yamaha RX-V480 - Part VR760300

    Front panel & cabinet diagram

    Yamaha Sheet

    Part #VR760300

    The manufacturer no longer makes this part, and there's no substitute part

  • Knob for Yamaha RX-V480 - Part VQ779200

    Front panel & cabinet diagram

    Knob

    Part #VQ779200

    The manufacturer no longer makes this part, and there's no substitute part

  • Loc-2-4:sub Chassis for Yamaha RX-V480 - Part VQ864300

    Front panel & cabinet diagram

    Loc-2-4:sub Chassis

    Part #VQ864300

    The manufacturer no longer makes this part, and there's no substitute part

  • Yamaha Pcb Assembly for Yamaha RX-V480 - Part VR342200

    Front panel & cabinet diagram

    Yamaha Pcb Assembly

    Part #VR342200

    The manufacturer no longer makes this part, and there's no substitute part

  • Owner's Manual for Yamaha RX-V480 - Part SM-RXV480

    #NI

    All parts diagram

    Owner's Manual

    Part #SM-RXV480

    The manufacturer no longer makes this part, and there's no substitute part
