Model # FFGC3613LBA Official Frigidaire gas cooktop

Here are the diagrams and repair parts for Official Frigidaire FFGC3613LBA gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |

Range Surface Burner Orifice (replaces 7316527500) 316527500
#44B

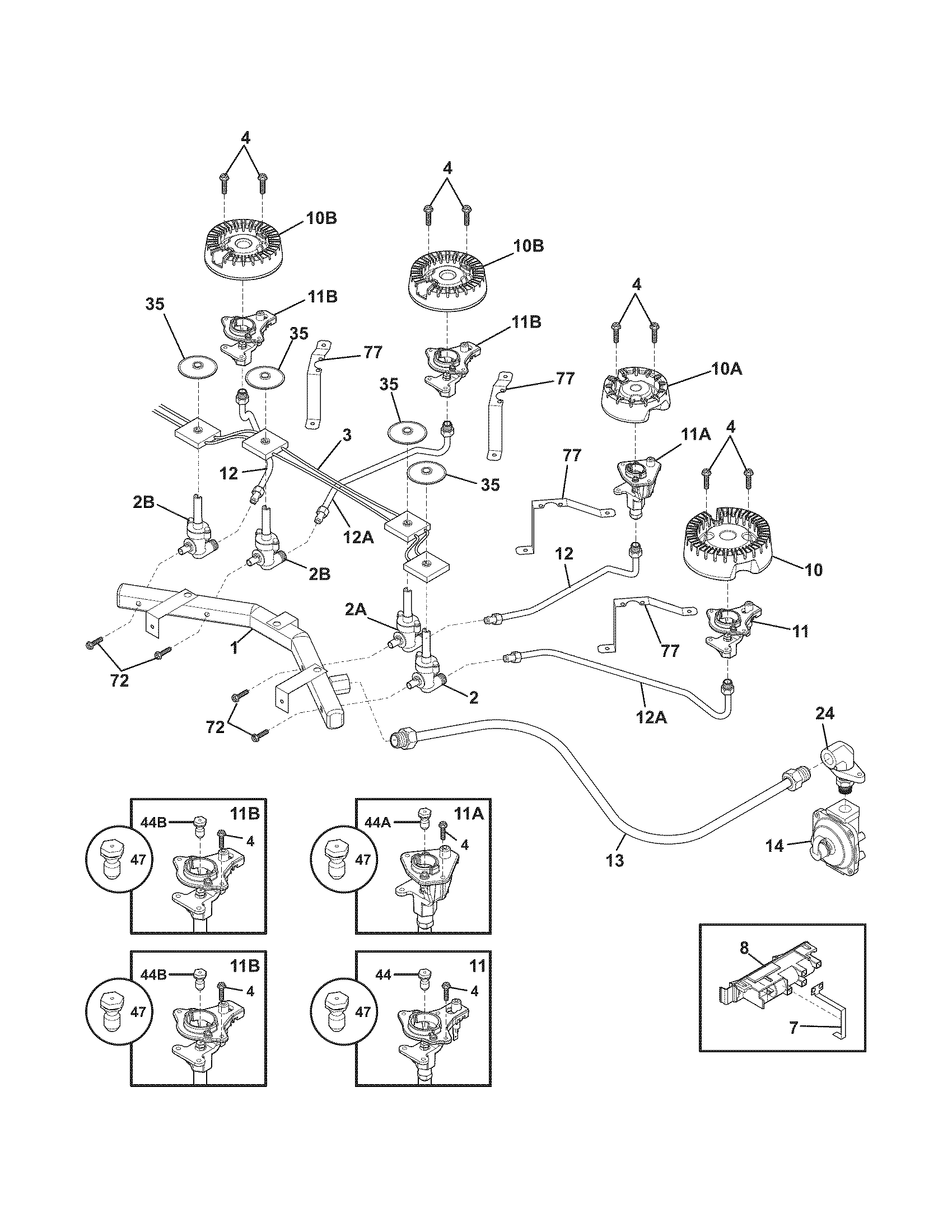

Burner diagram

Range surface burner orifice (replaces 7316527500)

Part #316527500

BEST SELLER
$17.89
10% OFF Phone Price : $19.89
In Stock
Range Surface Burner Head (replaces 316527400, 7316558300) 316558300
#10B

Burner diagram

Range surface burner head (replaces 316527400, 7316558300)

Part #316558300

BEST SELLER
$40.61
11% OFF Phone Price : $45.61
In Stock
Range Surface Burner Orifice 316527502
#44

Burner diagram

Range surface burner orifice

Part #316527502

BEST SELLER
This item is not returnable
$23.41
18% OFF Phone Price : $28.41
Back Order
Cooktop Burner Cap (black) 316438104
#22A

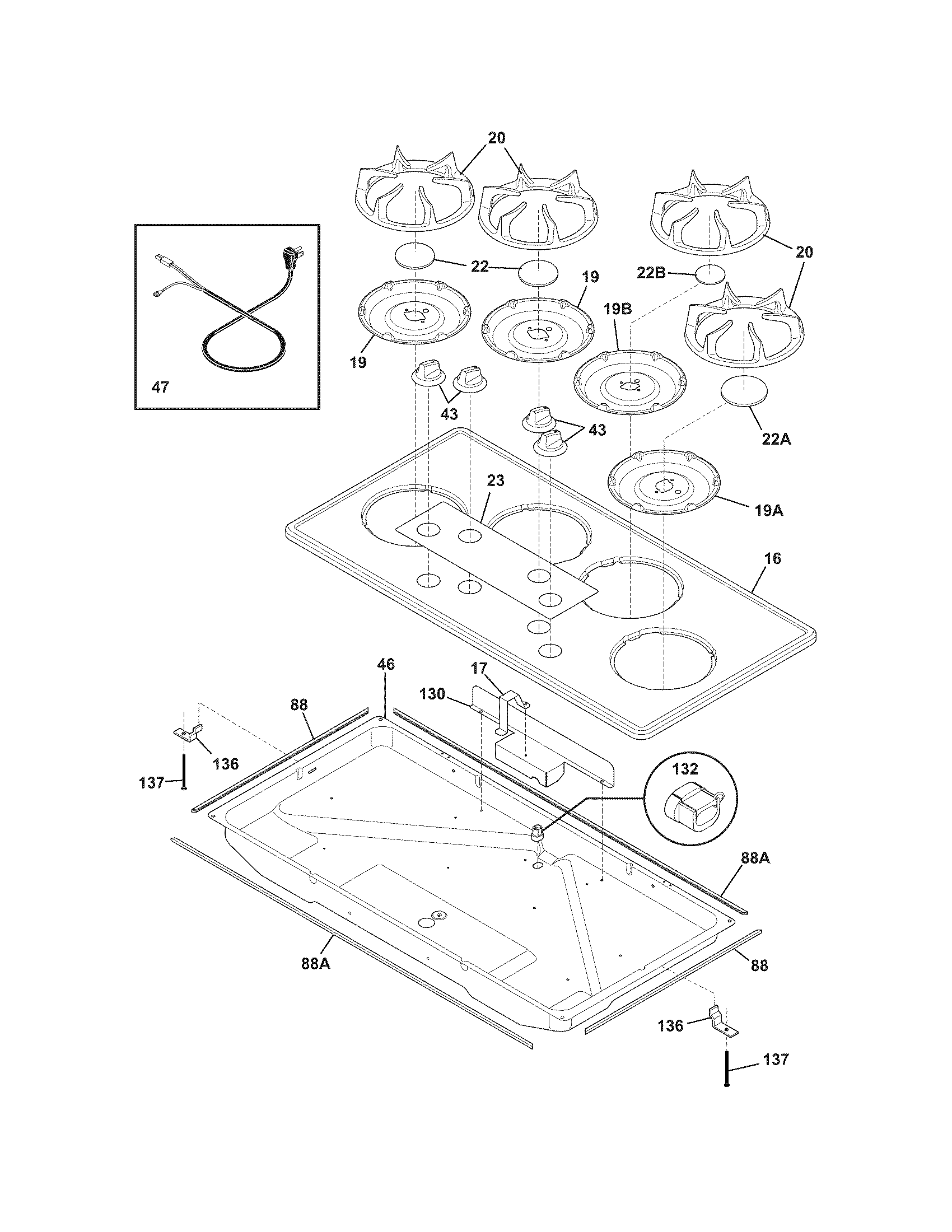

Maintop diagram

Cooktop burner cap (black)

Part #316438104

Replaced by #5304508510

?
Manufacturer substitution
This part replaces 316438104. Substitute parts can look different from the original.
BEST SELLER
$29.39
15% OFF Phone Price : $34.39
Back Order
Range Surface Burner Head 316438000
#10

Burner diagram

Range surface burner head

Part #316438000

$54.79
8% OFF Phone Price : $59.79
In Stock
Range Surface Burner Igniter And Orifice Holder (replaces 7316540700) 316540700
#11B

Burner diagram

Range surface burner igniter and orifice holder (replaces 7316540700)

Part #316540700

$78.91
6% OFF Phone Price : $83.91
In Stock
Range Surface Burner Igniter And Orifice Holder (replaces 7316540800) 316540800
#11A

Burner diagram

Range surface burner igniter and orifice holder (replaces 7316540800)

Part #316540800

$66.17
7% OFF Phone Price : $71.17
In Stock
Range Bushing 318146301
#35

Burner diagram

Range bushing

Part #318146301

$35.29
12% OFF Phone Price : $40.29
In Stock
Screw 5303305528
Screw

Part #5303305528

Replaced by #5303323137

?
Manufacturer substitution
This part replaces 5303305528. Substitute parts can look different from the original.
In Stock
Cooktop Main Top (black) 318065903
#16

Maintop diagram

Cooktop main top (black)

Part #318065903

$138.69
32% OFF MSRP : $203.75
In Stock
