Craftsman
Drill/Driver

Model # 315115390 Official Craftsman drill

Here are the diagrams and repair parts for Official Craftsman 315115390 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

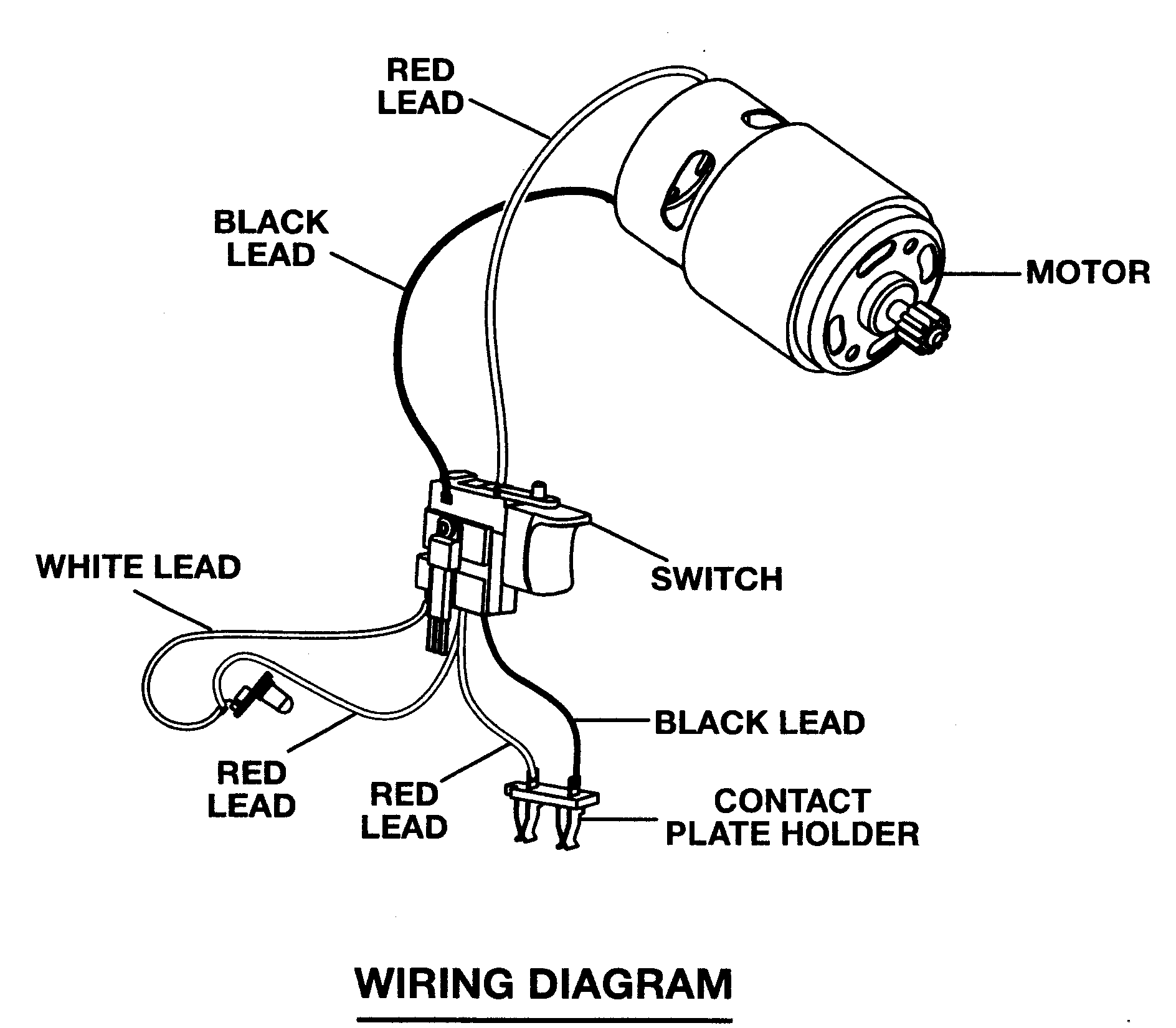

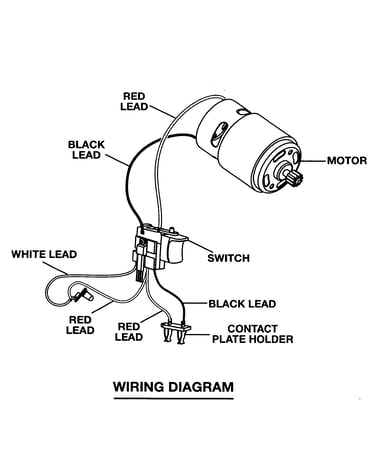

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Switch Assembly 270023104
#19

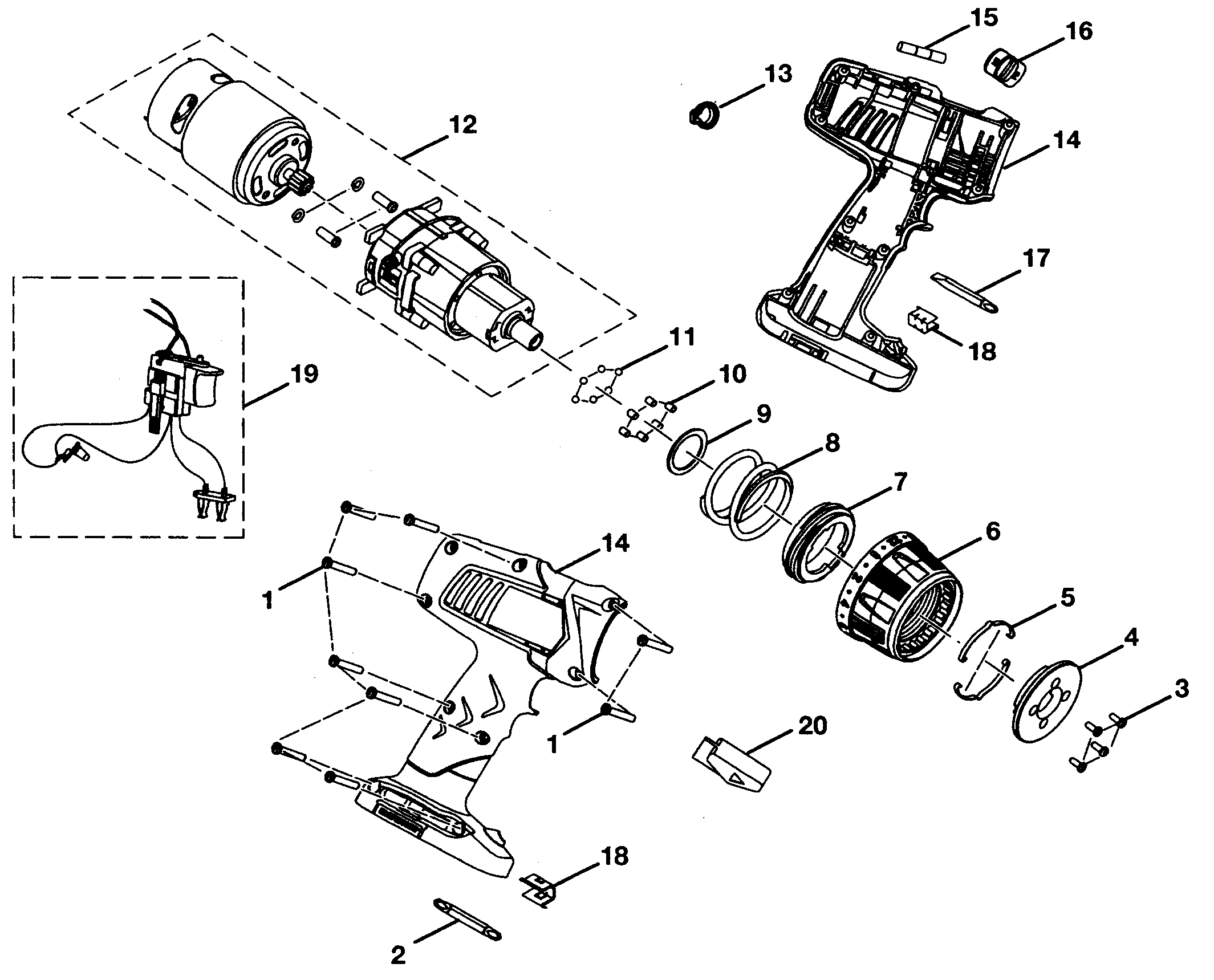

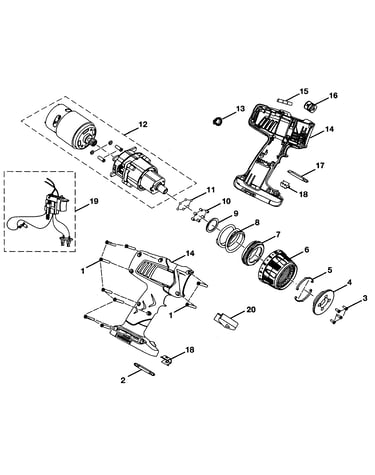

Motor assy diagram

Switch assembly

Part #270023104

The manufacturer no longer makes this part, and there's no substitute part

Bit 670824003
#2

Motor assy diagram

Bit

Part #670824003

The manufacturer no longer makes this part, and there's no substitute part

Clutch Pin 6833804
#10

Motor assy diagram

Clutch pin

Part #6833804

The manufacturer no longer makes this part, and there's no substitute part

Selector 343502001
#20

Motor assy diagram

Selector

Part #343502001

The manufacturer no longer makes this part, and there's no substitute part

Drill Level 3000909
#15

Motor assy diagram

Drill level

Part #3000909

The manufacturer no longer makes this part, and there's no substitute part

Clip 6320601
#18

Motor assy diagram

Clip

Part #6320601

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 511333001
#7

Motor assy diagram

Sleeve

Part #511333001

The manufacturer no longer makes this part, and there's no substitute part

Logo Label 940114128
#6

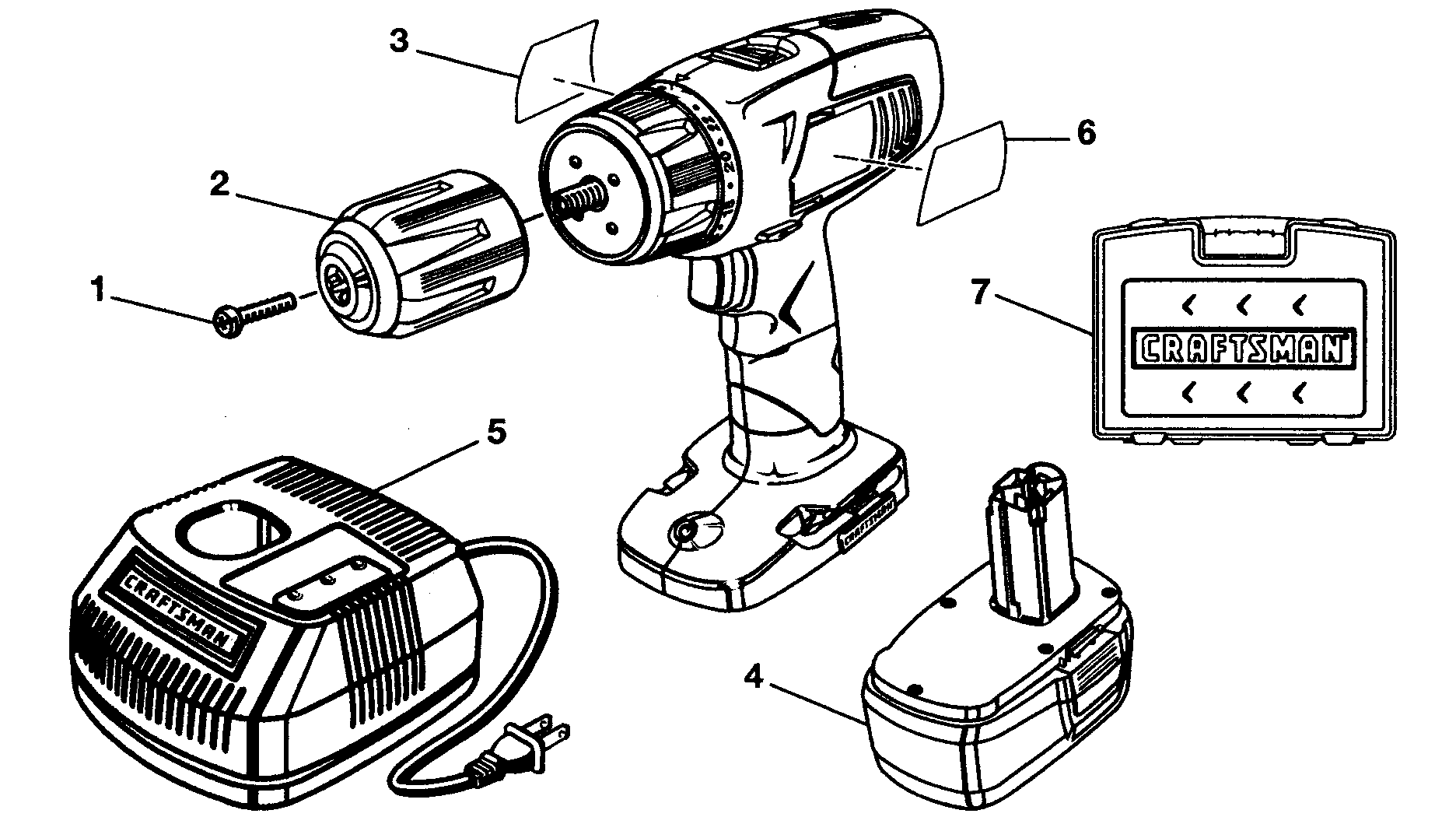

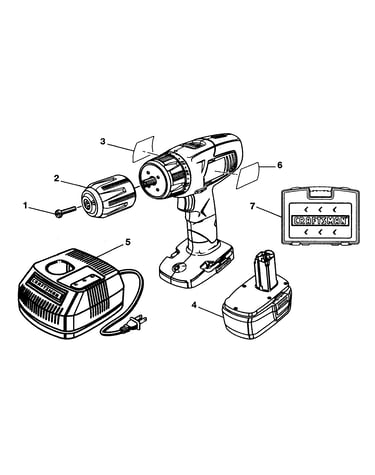

Drill diagram

Logo label

Part #940114128

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Steel Ball 6721901
#11

Motor assy diagram

Power tool steel ball

Part #6721901

The manufacturer no longer makes this part, and there's no substitute part

Battery 130279002
#4

Drill diagram

Battery

Part #130279002

The manufacturer no longer makes this part, and there's no substitute part
