LG
Countertop Microwave

Model # LTRM1240ST01 Official LG microwave

Here are the diagrams and repair parts for Official LG LTRM1240ST01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

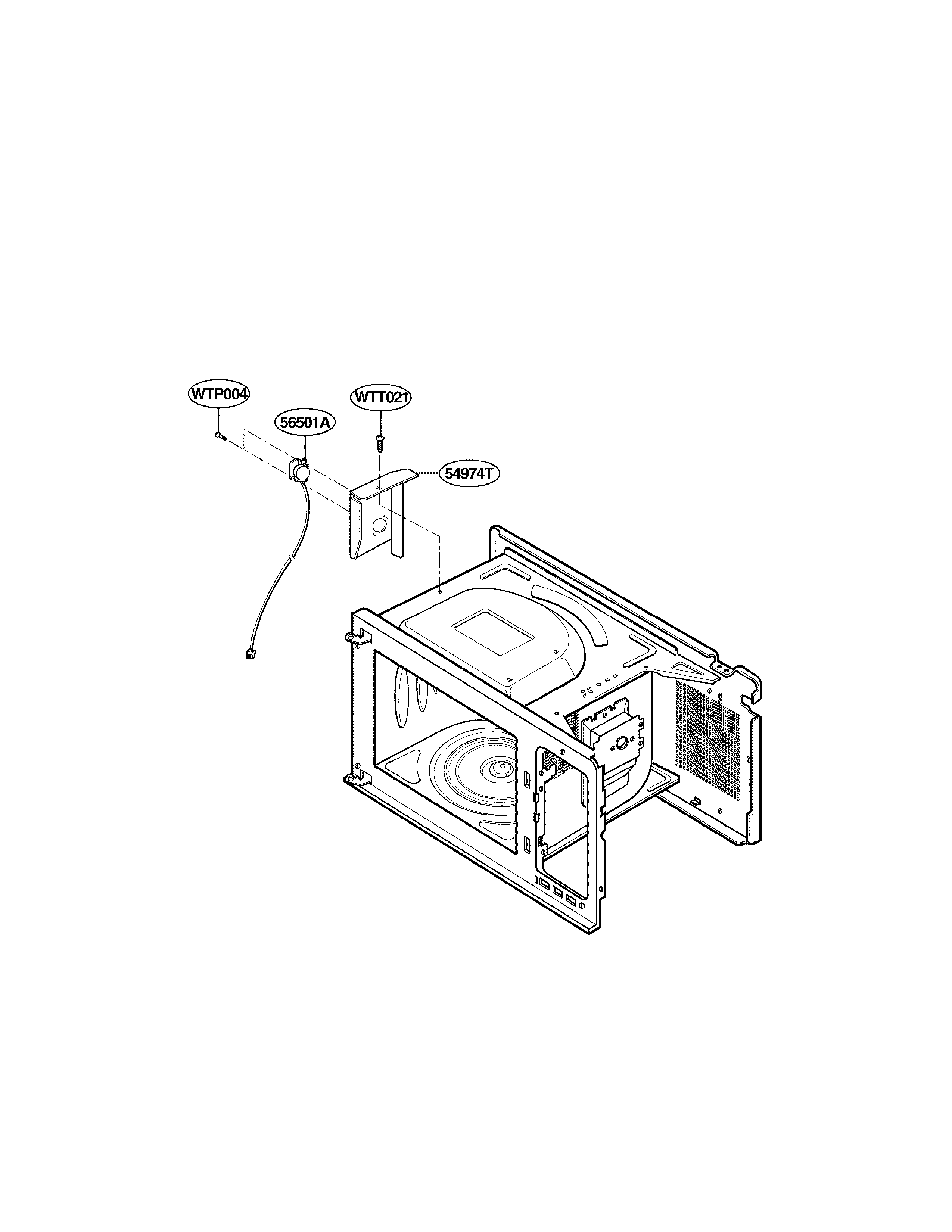

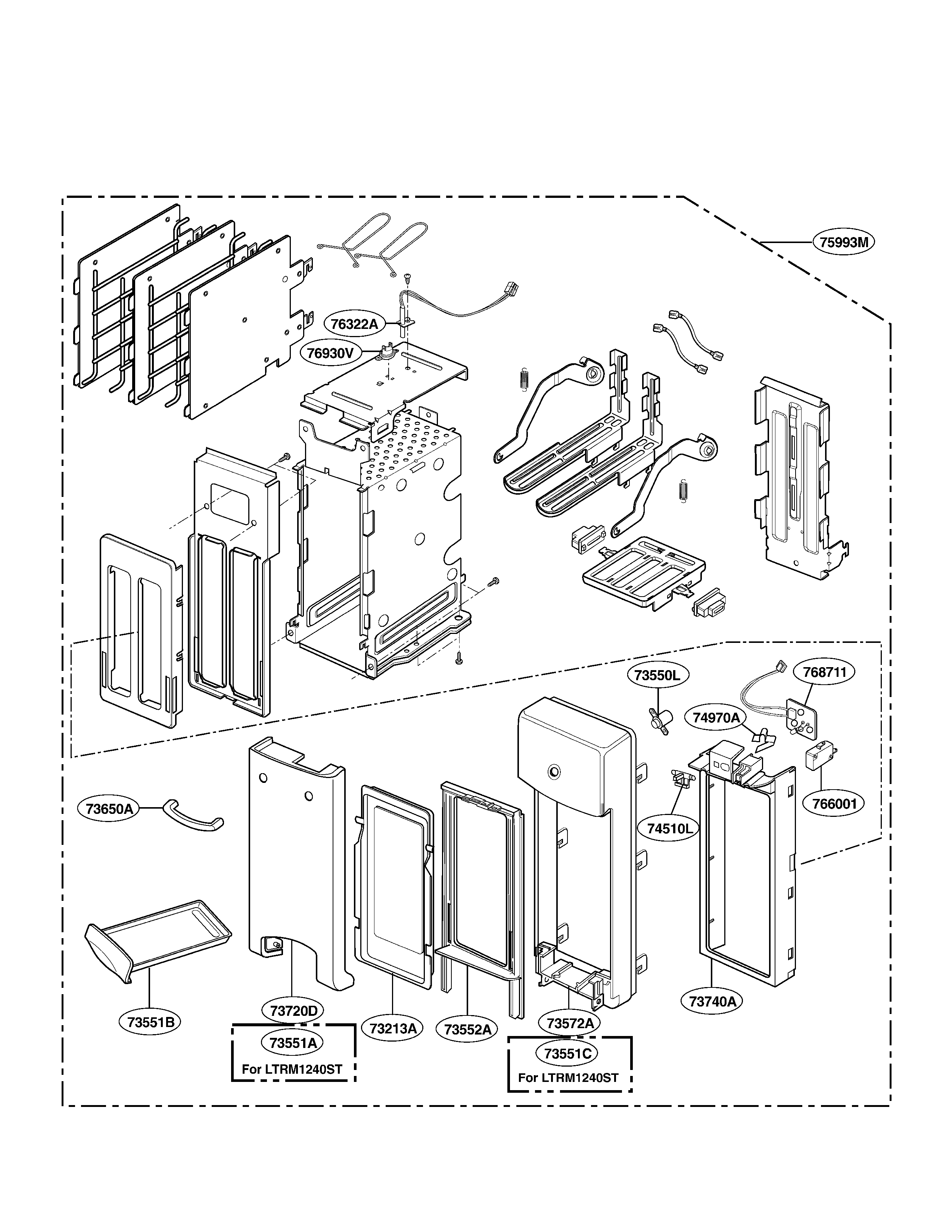

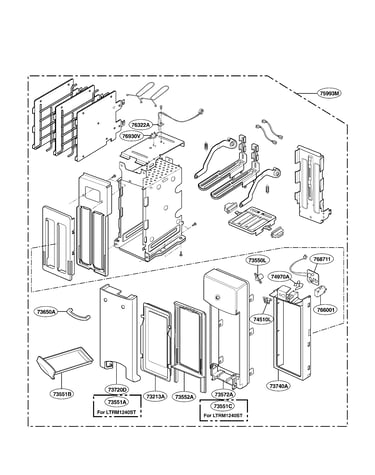

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |

Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4660

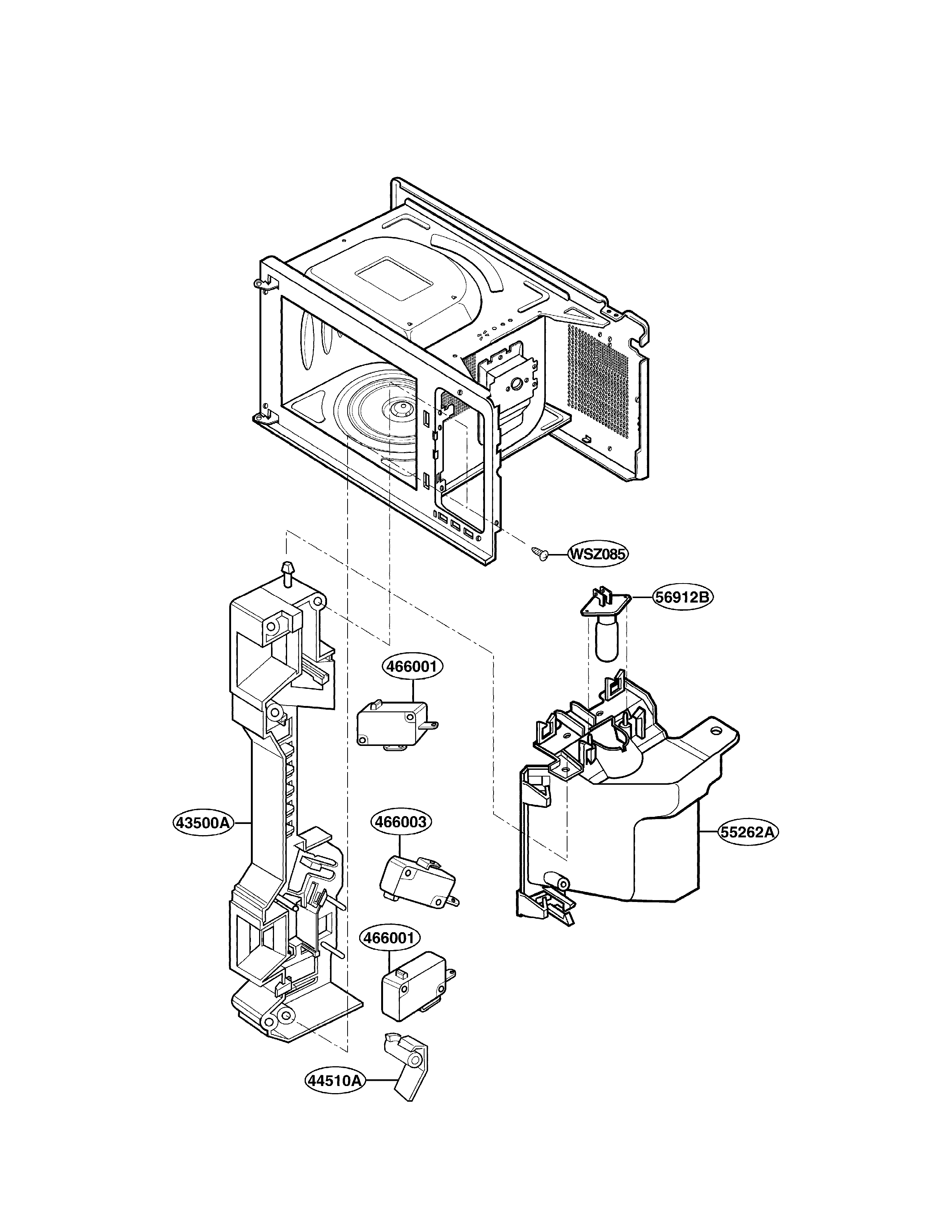

Latch board parts diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$9.76
9% OFF Phone Price : $10.76
In Stock
Microwave Door Latch 4026W2A019A
#1402

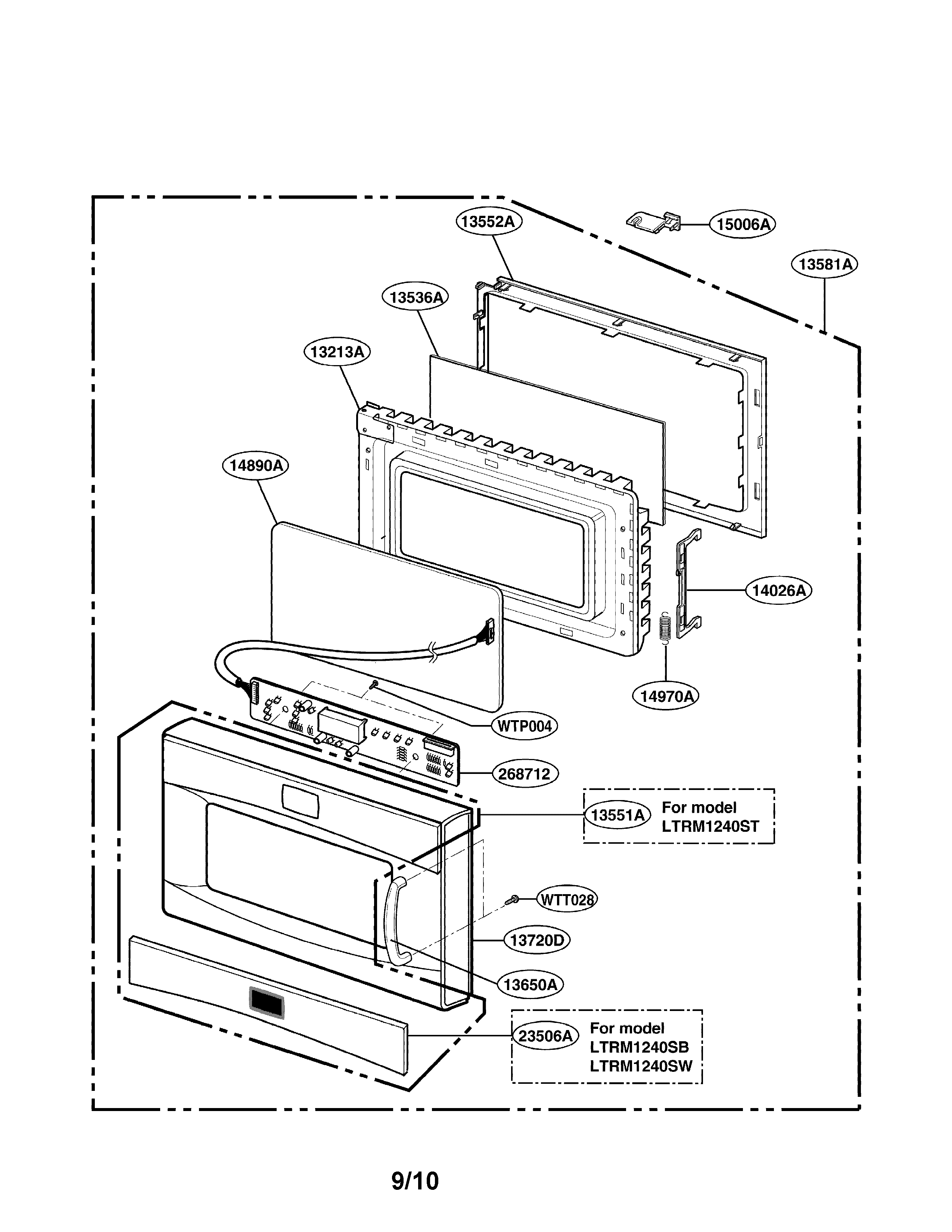

Door parts diagram

Microwave door latch

Part #4026W2A019A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A019A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.48
15% OFF Phone Price : $6.48
In Stock
Microwave Light Bulb (replaces 6912w3b002g) 6912W3B002L
#5691

Latch board parts diagram

Microwave light bulb (replaces 6912w3b002g)

Part #6912W3B002L

BEST SELLER
This item is not returnable
$9.62
9% OFF Phone Price : $10.62
In Stock

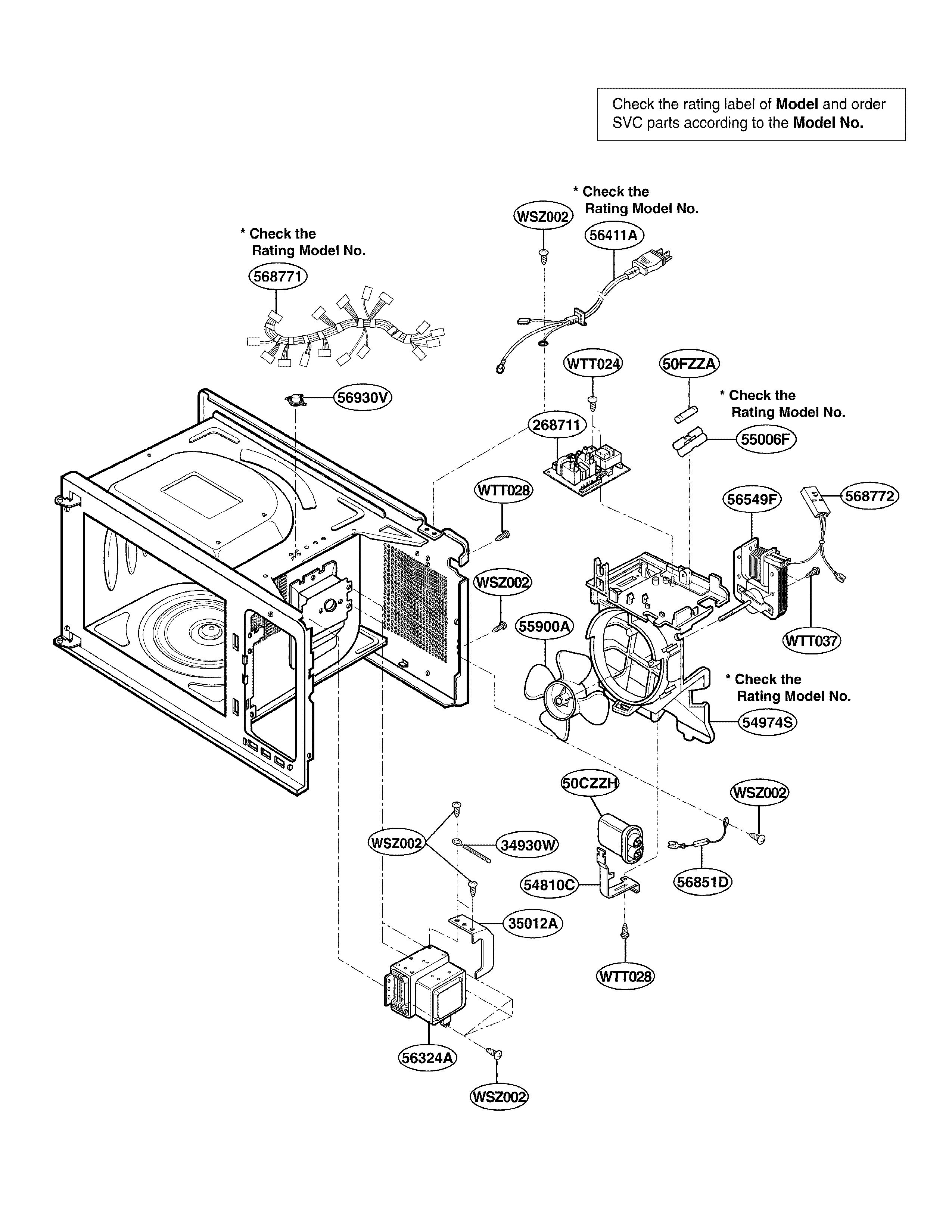

Microwave Magnetron (replaces 6324w1a001h) 6324W1A001L
Microwave magnetron (replaces 6324w1a001h)

Part #6324W1A001L

BEST SELLER
$91.94
5% OFF Phone Price : $96.94
In Stock

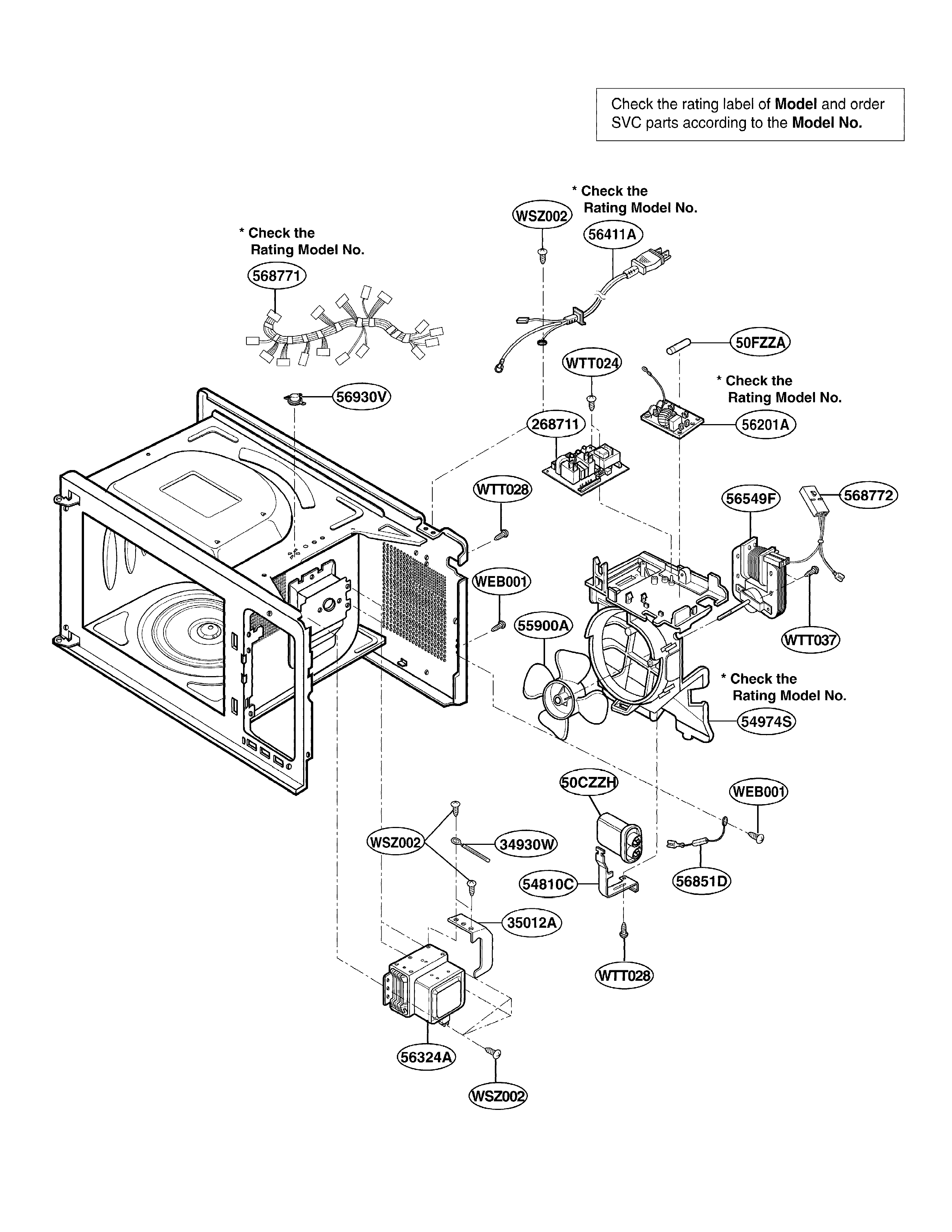

Microwave High-voltage Diode 6021W3B001R
Microwave high-voltage diode

Part #6021W3B001R

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.92
13% OFF Phone Price : $7.92
In Stock
Microwave Door Latch Spring 4970WRA001E
#1497

Door parts diagram

Microwave door latch spring

Part #4970WRA001E

This item is not returnable
$5.52
15% OFF Phone Price : $6.52
In Stock
Microwave High-voltage Capacitor (replaces 0czzw1h001q, 0czzw1h002h, 0czzw1h003h, 0czzw1h003j, 6120w3h003j, 6120wrh001h) 0CZZW1H004C
Microwave high-voltage capacitor (replaces 0czzw1h001q, 0czzw1h002h, 0czzw1h003h, 0czzw1h003j, 6120w3h003j, 6120wrh001h)

Part #0CZZW1H004C

$17.81
10% OFF Phone Price : $19.81
In Stock
Canopy 3052W1A004A
#3305

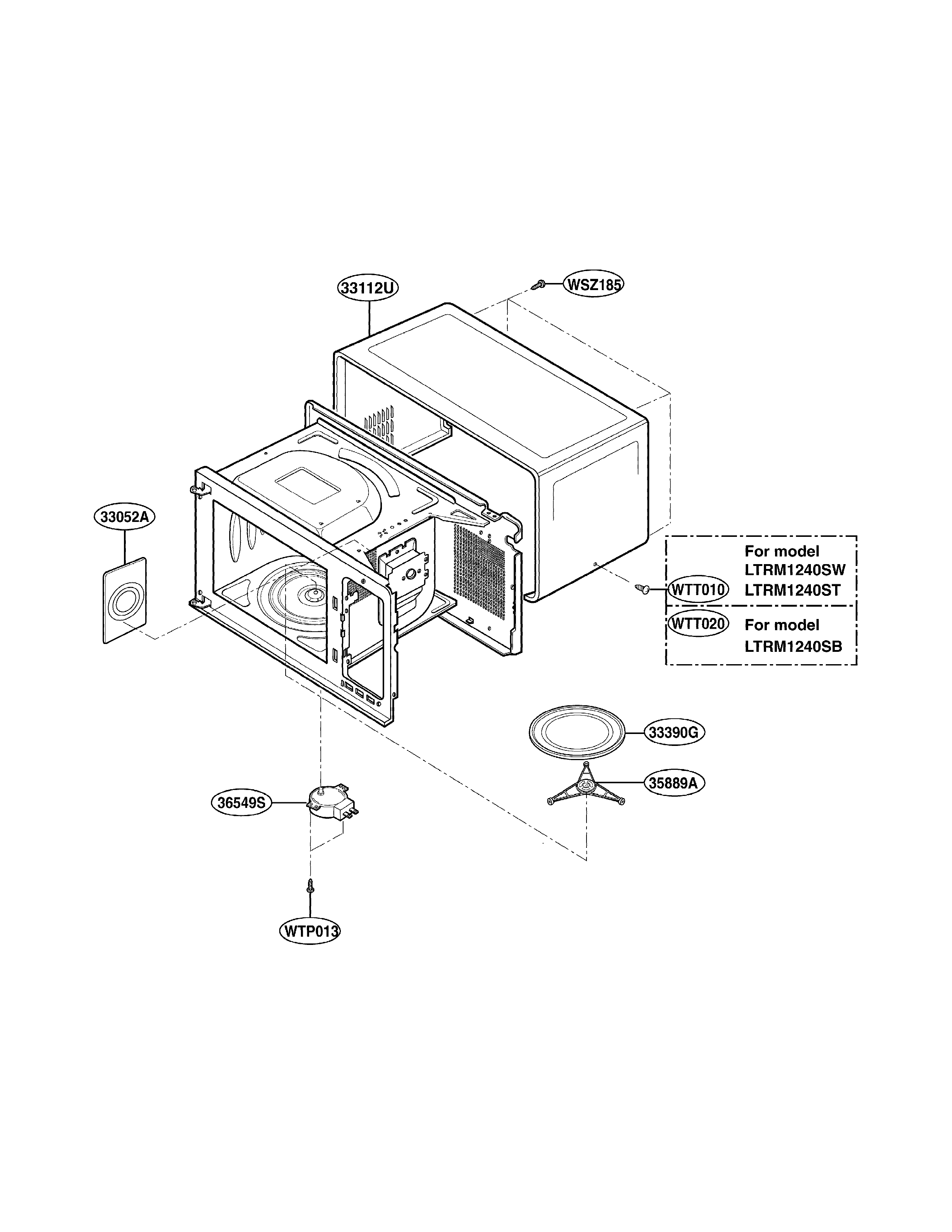

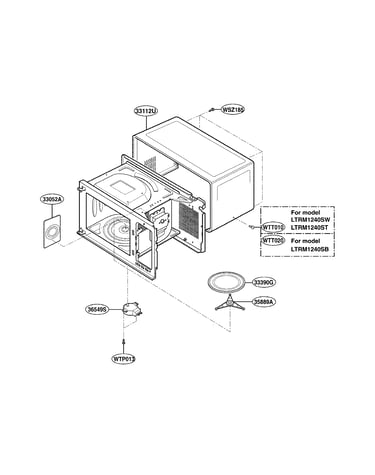

Oven cavity parts diagram

Canopy

Part #3052W1A004A

This item is not returnable
$6.06
14% OFF Phone Price : $7.06
In Stock
Microwave Latch Body (replaces 3500w1a005a) 3500W1A028B
#4350

Latch board parts diagram

Microwave latch body (replaces 3500w1a005a)

Part #3500W1A028B

Replaced by #3500W1A028A

?
Manufacturer substitution
This part replaces 3500W1A028B. Substitute parts can look different from the original.
$18.70
10% OFF Phone Price : $20.70
In Stock
Base Plate 3303W0A027D
#6330A

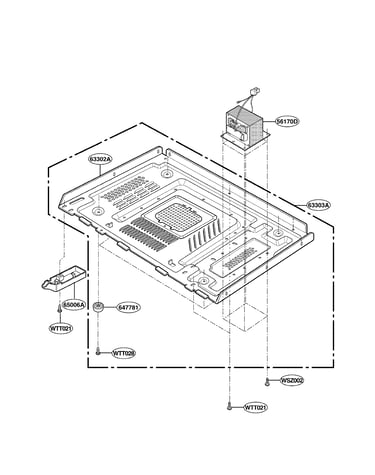

Base plate parts diagram

Base plate

Part #3303W0A027D

In Stock
