Whirlpool WEG515S0LZ0 gas range Parts

On the Whirlpool WEG515S0LZ0 gas range, we unlock the control lock by touching and holding START/ENTER for about 5 seconds until the lock indicator turns off. This restores normal keypad operation for Bake, Broil, Timer, and other functions.

Quick unlock checklist

• Make sure the oven is not in a clean cycle and the door is fully closed
• Touch and hold START/ENTER for 5 seconds
• Watch for LOC/Locked to disappear (or the lock light to turn off)
• Try a simple key press (for example, Bake) to confirm the panel responds
• If the panel beeps but stays locked, repeat the 5-second press with a steady hold

If it still will not unlock

Control lock issues are usually caused by a stuck key, a power glitch, or a control that is not reading the keypad correctly.

• Reset power: turn the range off at the breaker for 1 minute, then restore power and try the 5-second unlock again
• Check for stuck keys: gently press around START/ENTER and nearby keys to ensure none feel jammed
• Inspect the control area: if the control panel is loose or damaged, the keypad may not register correctly
• Door-related problems: if the oven thinks the door is locked, inspect the door latch system

Parts that are commonly involved

Symptom	What it often points to	Example part for WEG515S0LZ0
“LOC” stays on, oven acts like it is locked	Door lock mechanism issue	Range oven door lock assembly WPW10107820
Random clicking or repeated igniter sparking	Ignition control issue (not a control lock feature)	Spark module WPW10110491

Why it matters

Control lock prevents accidental keypad presses. If it will not turn off, you can lose access to temperature settings and timed cooking, and you may misdiagnose it as an ignition or oven heating failure.

Last updated: February 2026

A Whirlpool gas range like model WEG515S0LZ0 typically lasts about 15 years with normal household use and basic maintenance. Keeping burners clean, ensuring steady ignition, and maintaining a good oven door seal helps the range heat evenly and reduces wear on key components.

Typical lifespan and what affects it

Most gas ranges reach their full service life when they avoid chronic overheating, moisture intrusion, and repeated ignition problems.

• Cooking frequency: daily heavy use shortens life compared to light use
• Cleaning habits: spills and grease buildup accelerate corrosion and burner issues
• Ignition health: repeated clicking or delayed ignition strains ignition parts
• Door sealing: heat loss makes the oven work harder and can affect bake performance
• Leveling and stability: an unlevel range can affect door alignment and cooking results

Quick maintenance checklist (high impact)

• Wipe up boilovers quickly; keep burner ports clear
• Keep grates and caps seated correctly after cleaning
• If ignition is inconsistent, inspect wiring and ignition components
• Check for heat escaping around the oven door; replace worn seals
• Confirm the range sits level and does not rock

Parts that commonly extend usable life

If performance is otherwise good, replacing a few wear items can keep a Whirlpool range cooking reliably.

Symptom	Common wear item	Example part for WEG515S0LZ0
Heat leaking, longer preheat	Oven door gasket	Seal, door W11542153
Range rocks or door alignment feels off	Leveling leg	Range leveling leg WPW10058460
Door won’t latch/lock correctly (self-clean models)	Door lock assembly	Range oven door lock assembly WPW10107820

Why it matters

A gas range that is sealing properly and igniting consistently runs cooler at the controls, heats more evenly, and avoids unnecessary cycling. That reduces stress on components like the spark module, valves, and oven door hardware.

Last updated: February 2026

For the Whirlpool WEG515S0LZ0 gas range, we use a 3/4-inch rigid gas supply pipe to the range location for best flow. On LP (propane) systems, 1/2-inch minimum piping is commonly used; undersized pipe on long runs can cause weak burner flames.

Recommended gas line sizes (typical)

• Natural gas: 3/4-inch rigid pipe to the range location
• LP (propane): 1/2-inch minimum (often acceptable depending on run length)
• Use a manual shut-off valve in an accessible location
• Use an approved flexible connector only if allowed by local code
• If the run is long or has many elbows, size up to prevent pressure drop

Quick sizing guide

Gas type	Common supply pipe size to range area	When to consider larger
Natural gas	3/4-inch rigid	Long runs, multiple fittings, low inlet pressure
LP (propane)	1/2-inch minimum	Long runs, multiple appliances on same branch

Why it matters

Correct pipe sizing keeps gas pressure steady so the surface burners and oven burner ignite reliably and maintain proper flame size. A line that is too small can lead to slow preheat, weak flames, or ignition problems.

If you are also troubleshooting ignition issues

If burners click but do not light consistently, the issue is often ignition-related (spark, wiring, or module) rather than pipe size. For this model, a common ignition component is the spark module WPW10110491.

• Confirm other gas appliances in the home have normal flame strength
• Make sure the shut-off valve is fully open
• Check that burner caps are seated correctly and ports are clean
• Inspect for moisture after cleaning (let parts dry fully)
• If clicking is constant or erratic, test ignition components and wiring

Last updated: February 2026

On your Whirlpool WEG515S0LZ0 gas range, the model number is typically printed on a rating label around the oven frame or storage drawer area. The fastest check is usually the drawer opening or the frame behind the drawer.

Most common places to check

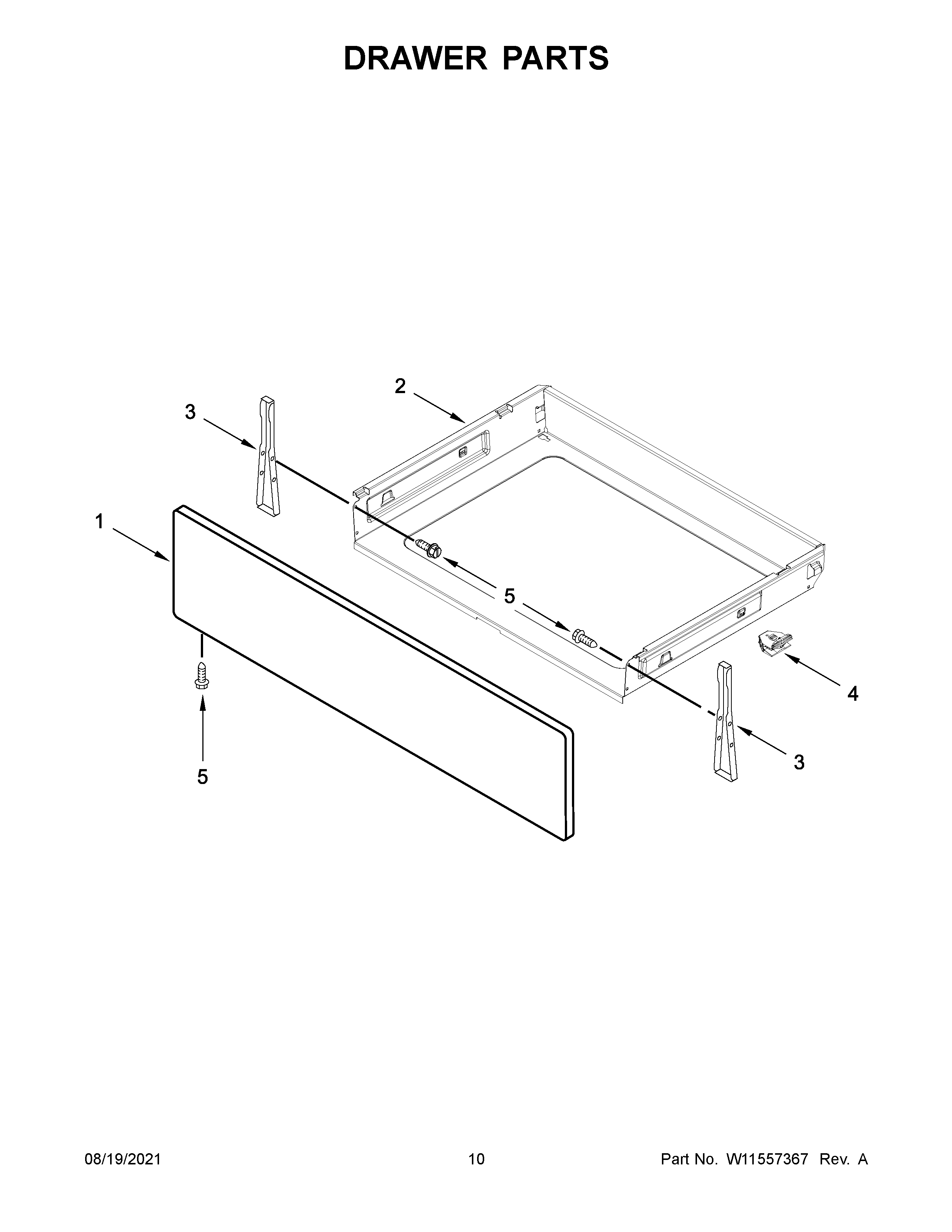

• Storage drawer: Pull the drawer out and look on the frame behind it.
• Oven door frame: Open the oven door and check the front frame (left or right side).
• Warming drawer (if equipped): Pull it out and look on the frame behind it.
• Broiler drawer area (if your range uses one): Check the frame just inside the opening.
• Back panel: If you can safely access the rear, look for a label on the back of the range.

What the label looks like

The rating label usually includes:

• Model number (for example, WEG515S0LZ0)
• Serial number
• Gas type and electrical rating

Quick ID tips (so you get the right parts)

• Copy the model number exactly, including the final 0 (zero) in WEG515S0LZ0.
• If the label is greasy or faded, wipe it gently with a damp cloth and a little dish soap, then dry.
• If you are replacing cosmetic door parts, match the finish and style to your range before ordering.

Common label locations by access level

Access level	Where to look first	Why it’s common
Easiest	Storage drawer opening	Label is protected and easy to see
Easy	Oven door frame	Visible without moving the range
Harder	Back panel	Sometimes used on certain builds

Why it matters

We use the model number to match the correct Whirlpool diagrams and parts list for your exact gas range configuration (burners, ignition system, door style). That prevents ordering the wrong control, trim, or hardware.

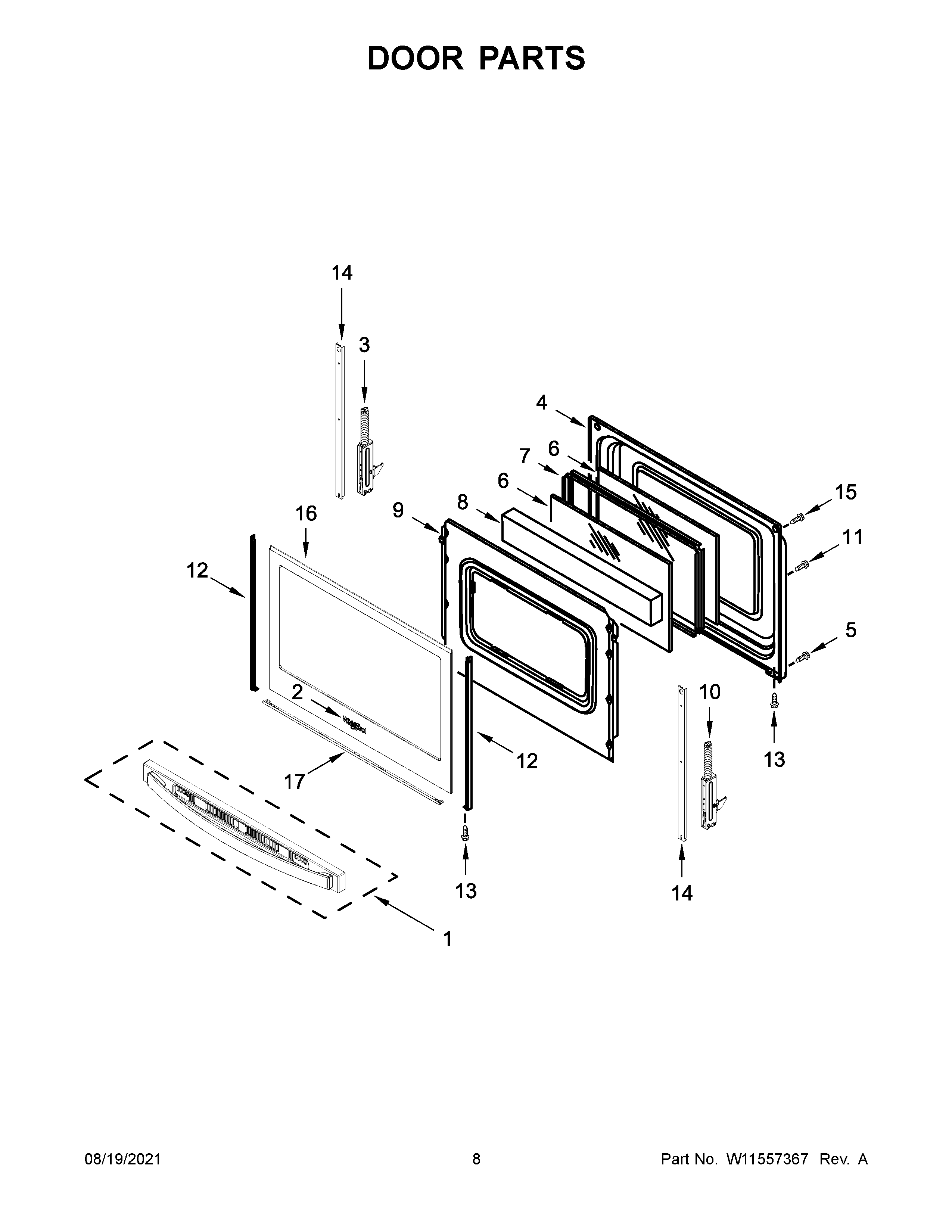

If you are already working on the oven door area, the door trim W10761018 is one example of a model-matched part you can cross-check once you confirm the model number.

Last updated: February 2026

If your Whirlpool WEG515S0LZ0 cooktop burners work but the oven will not heat, the most common causes are an oven ignition failure (gas not lighting), a control problem, or a door lock issue that prevents baking. We focus first on ignition, power, and safety interlocks.

Quick checks we recommend first

• Confirm the range has power (clock/display on, no tripped breaker).
• Make sure the gas supply valve is fully open.
• Try Bake and Broil; note whether you hear clicking or see a glow.
• Check whether the oven is stuck in a locked or self-clean related state.
• If the oven lights sometimes, clean and dry the burner area and retry.

What the symptoms usually mean

What you notice	Likely cause	What to do next
No heat on Bake or Broil; no sounds	Control not sending power, wiring issue	Reset power at breaker for 1 minute; if unchanged, test circuits safely
Clicking but no flame	Ignition not lighting gas (spark/ignition path issue)	Inspect for moisture, debris, or misalignment; check ignition components
Oven won’t start and shows “locked” behavior	Door lock system preventing operation	Inspect the lock mechanism and switch operation
Cooktop works; oven tries then stops	Weak ignition or control sensing issue	Check for consistent ignition and stable flame

Parts that commonly relate to this problem on WEG515S0LZ0

These parts are on the model’s parts list and can be involved when the oven will not start or is stuck in a locked state:

• Range oven door lock assembly WPW10107820 (can prevent Bake/Broil if the lock switch does not read correctly)
• Spark module WPW10110491 (can affect spark ignition behavior on some functions)
• Module-spk W10898291 (another spark module option listed for this model)
• Control components (console/control panel) if the oven never initiates a heat cycle

Why it matters

When the cooktop works but the oven does not, it usually points to an oven-specific ignition or safety interlock issue, not a whole-house gas problem. Fixing the root cause restores reliable preheat and helps prevent repeated failed ignition attempts.

Last updated: February 2026
