Kenmore 86773641 gas-fired direct vent wall furnace

Kenmore 86773641 gas-fired direct vent wall furnace Parts

Here are the diagrams and repair parts for Kenmore 86773641 gas-fired direct vent wall furnace, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 86773641 Gas-Fired Direct Vent Wall Furnace

  • Fan Motor for Kenmore 86773641 - Part 504177

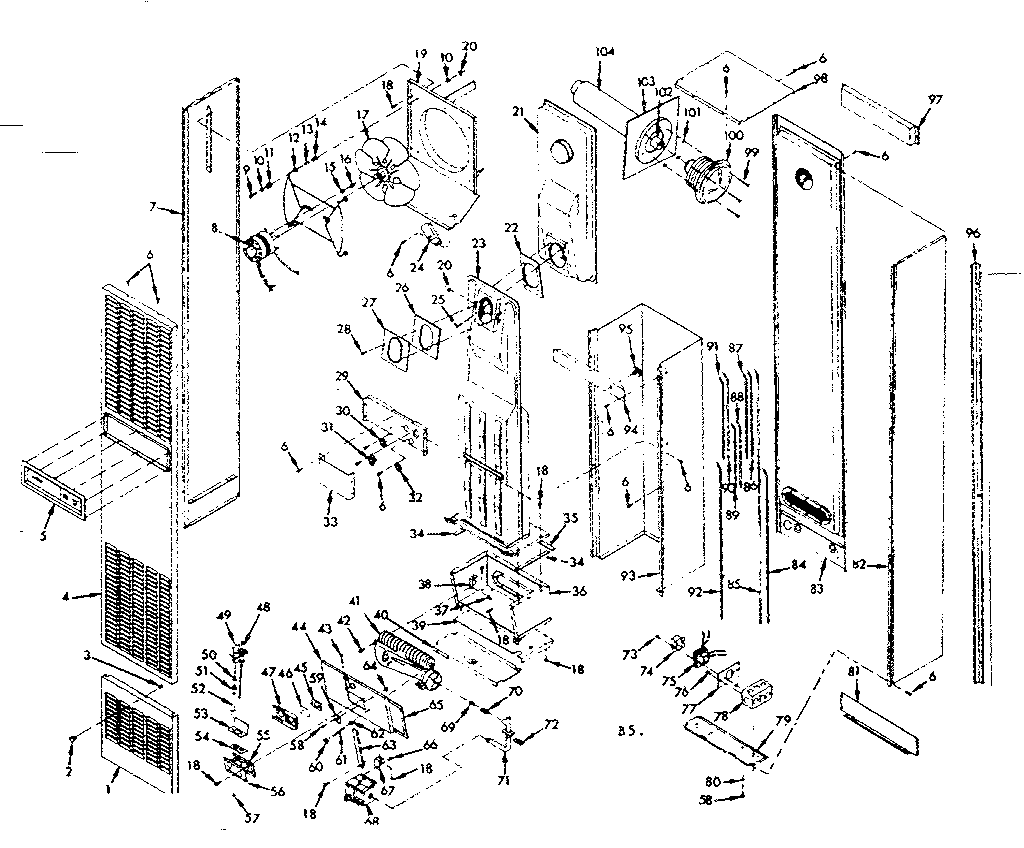

    Unit parts diagram

    Fan Motor

    Part #504177

    The manufacturer no longer makes this part, and there's no substitute part

  • Gasket for Kenmore 86773641 - Part 503874

    Unit parts diagram

    Gasket

    Part #503874

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Kenmore 86773641 - Part 121839

    Unit parts diagram

    Screw

    Part #121839

    The manufacturer no longer makes this part, and there's no substitute part

  • #burner Pilot Gas Incl Key 19 for Kenmore 86773641 - Part N/P

    #burner Pilot Gas Incl Key 19

    Part #N/P

    The manufacturer no longer makes this part, and there's no substitute part

  • Screw for Kenmore 86773641 - Part 111100

    Unit parts diagram

    Screw

    Part #111100

    The manufacturer no longer makes this part, and there's no substitute part

  • Rail for Kenmore 86773641 - Part 503898

    Unit parts diagram

    Rail

    Part #503898

    The manufacturer no longer makes this part, and there's no substitute part

  • Manifold for Kenmore 86773641 - Part 504071

    Unit parts diagram

    Manifold

    Part #504071

    The manufacturer no longer makes this part, and there's no substitute part

  • Panel for Kenmore 86773641 - Part 504402

    Unit parts diagram

    Panel

    Part #504402

    The manufacturer no longer makes this part, and there's no substitute part

  • Support for Kenmore 86773641 - Part 503917

    Unit parts diagram

    Support

    Part #503917

    The manufacturer no longer makes this part, and there's no substitute part

  • Pilot Orifice for Kenmore 86773641 - Part 503037

    Unit parts diagram

    Pilot Orifice

    Part #503037

    The manufacturer no longer makes this part, and there's no substitute part
