Craftsman
Lawn & Garden Engine

Model # 143995508 Official Craftsman engine

Here are the diagrams and repair parts for Official Craftsman 143995508 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |

Lawn & Garden Equipment Engine Air Filter 35066
#245

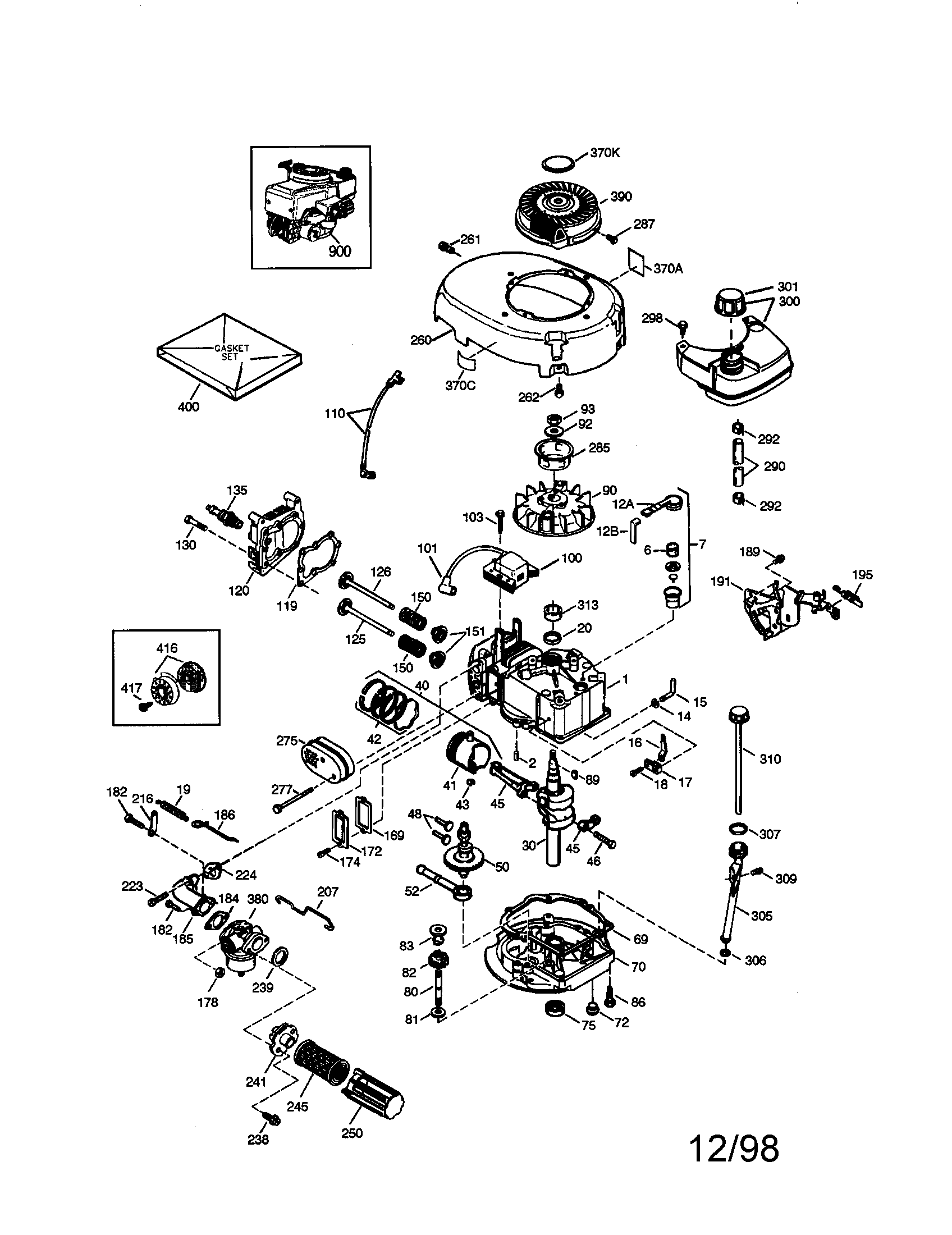

Craftsman 4-cycle engine diagram

Lawn & garden equipment engine air filter

Part #35066

BEST SELLER
This item is not returnable
$4.67
22% OFF MSRP : $6.00
In Stock
Lawn Mower O-ring 631028
#29

Carburetor 632747 (71/143) diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49
29% OFF Phone Price : $3.49
In Stock
Needle Seat 631021
#30

Carburetor 632747 (71/143) diagram

Needle seat

Part #631021

Replaced by #631021B

?
Manufacturer substitution
This part replaces 631021. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.43
16% OFF Phone Price : $12.43
In Stock
Ignition Module 34443B
#100

Craftsman 4-cycle engine diagram

Ignition module

Part #34443B

Replaced by #34443D

?
Manufacturer substitution
This part replaces 34443B. Substitute parts can look different from the original.
BEST SELLER
$46.33
10% OFF Phone Price : $51.33
In Stock
Lawn & Garden Equipment Engine Carburetor Gasket (replaces 27141) 26756
#184

Craftsman 4-cycle engine diagram

Lawn & garden equipment engine carburetor gasket (replaces 27141)

Part #26756

BEST SELLER
This item is not returnable
$3.03
36% OFF MSRP : $4.70
In Stock
Lawn & Garden Equipment Engine Recoil Starter Housing 590695A
#11

Starter 590694 (71/143) diagram

Lawn & garden equipment engine recoil starter housing

Part #590695A

Replaced by #590785

?
Manufacturer substitution
This part replaces 590695A. Substitute parts can look different from the original.
BEST SELLER
$29.58
14% OFF Phone Price : $34.58
In Stock
Starter 590737
Starter

Part #590737

Replaced by #590785

?
Manufacturer substitution
This part replaces 590737. Substitute parts can look different from the original.
BEST SELLER
$29.58
14% OFF Phone Price : $34.58
In Stock
Starter 590694
#0

Starter 590694 (71/143) diagram

Starter

Part #590694

Replaced by #590785

?
Manufacturer substitution
This part replaces 590694. Substitute parts can look different from the original.
BEST SELLER
$29.58
14% OFF Phone Price : $34.58
In Stock
Lawn & Garden Equipment Engine Fuel Line (replaces 14306, 34357) 29774
#290

Craftsman 4-cycle engine diagram

Lawn & garden equipment engine fuel line (replaces 14306, 34357)

Part #29774

BEST SELLER
This item is not returnable
$5.99
14% OFF Phone Price : $6.99
In Stock
Cap 36246
#301

Craftsman 4-cycle engine diagram

Cap

Part #36246

Replaced by #37844

?
Manufacturer substitution
This part replaces 36246. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.69
13% OFF Phone Price : $7.69
In Stock
