Model # DSC-HX400V Official Sony camera

Here are the diagrams and repair parts for Official Sony DSC-HX400V camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 102 parts |

#169

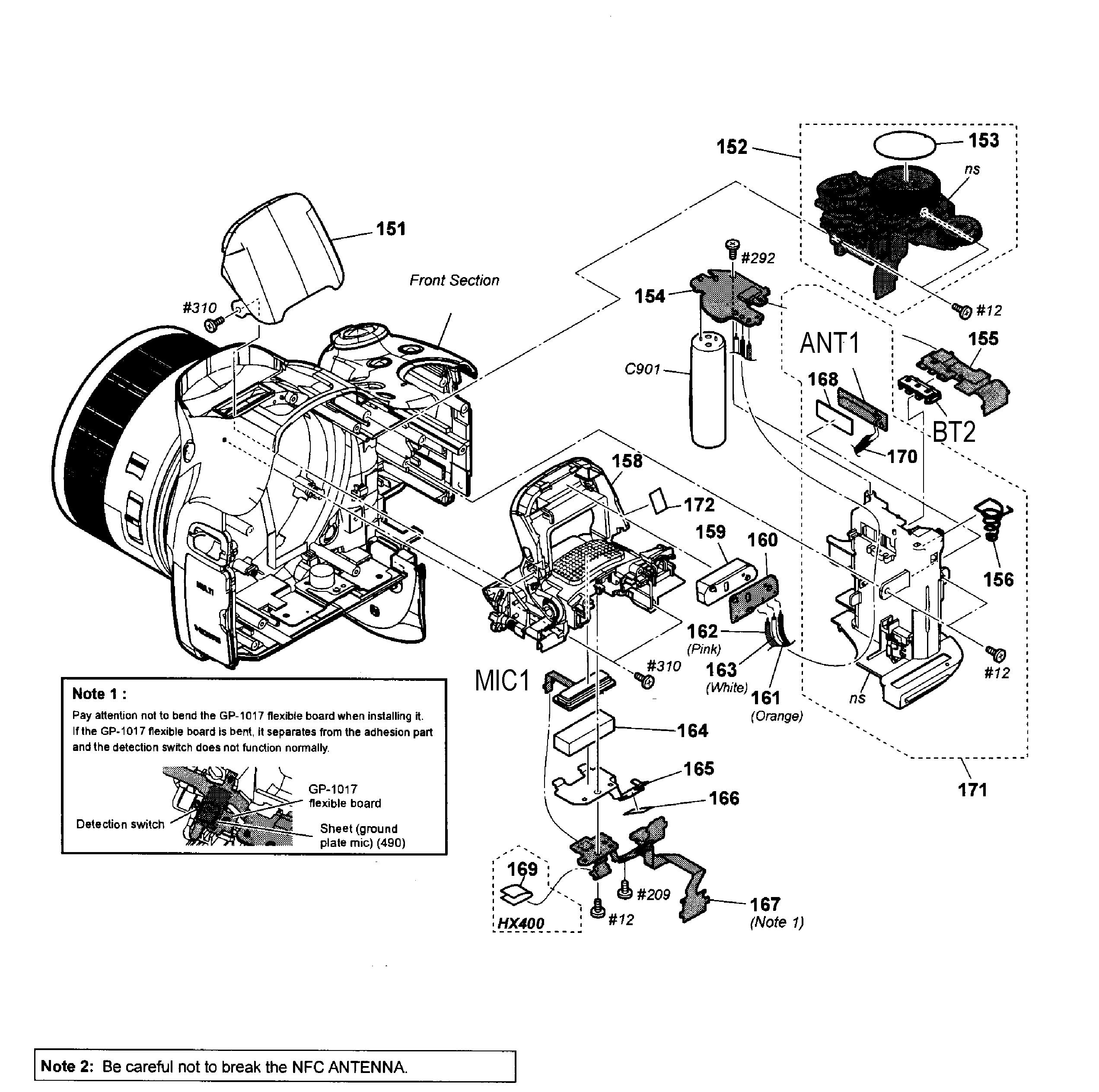

St/bt section diagram

Lcd sheet

Part #427979201

This item is not returnable

$2.25

In Stock

Qty

#LCD1

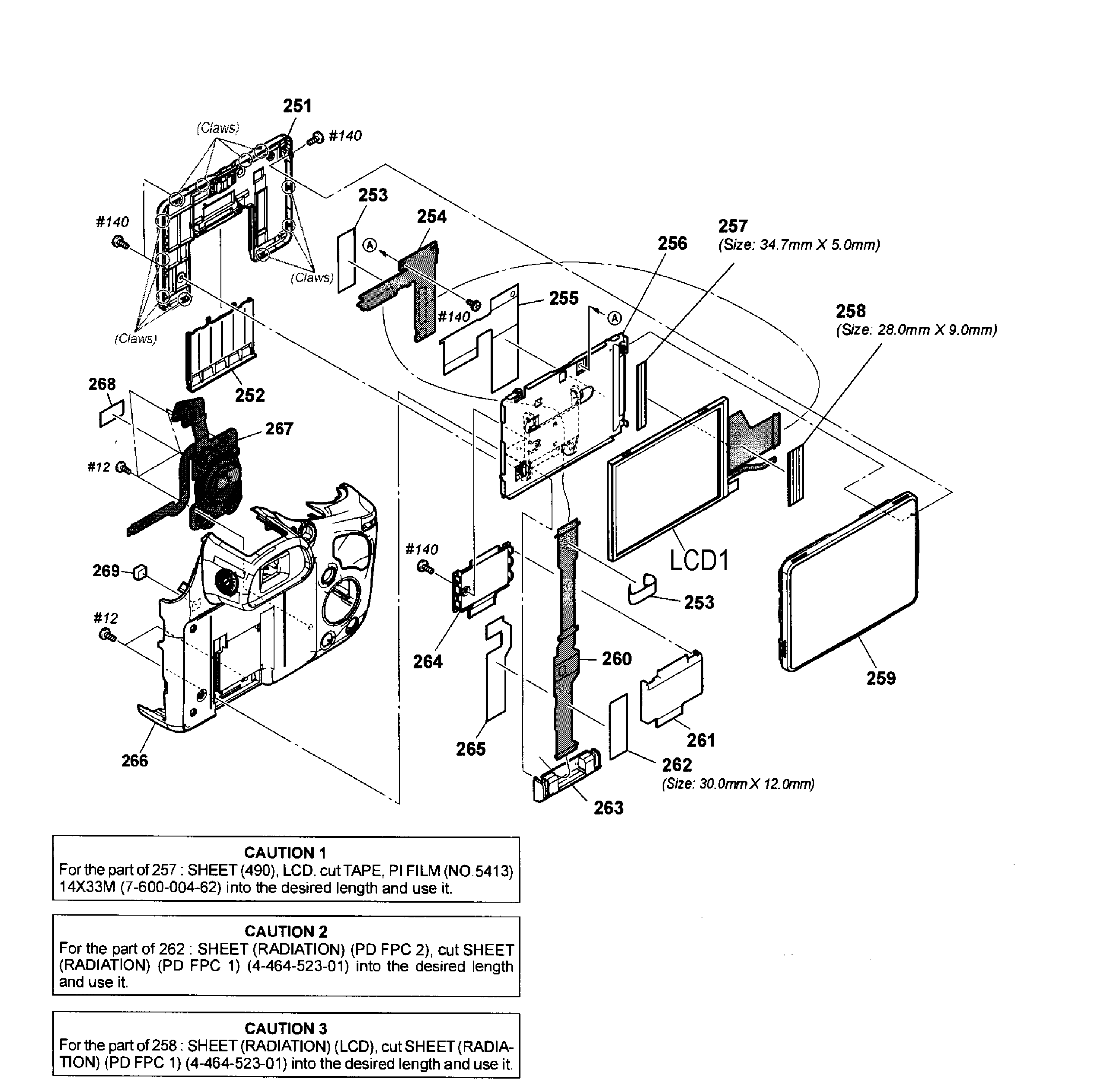

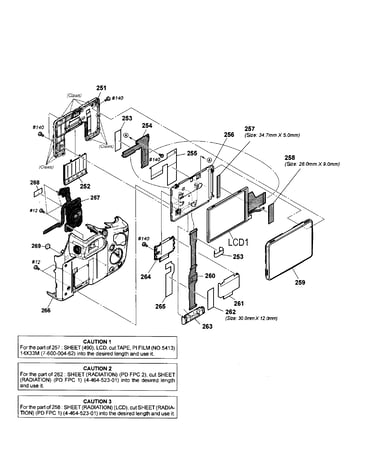

Rear assy diagram

Lcd panel

Part #181176211

$99.36

In Stock

Qty

#54

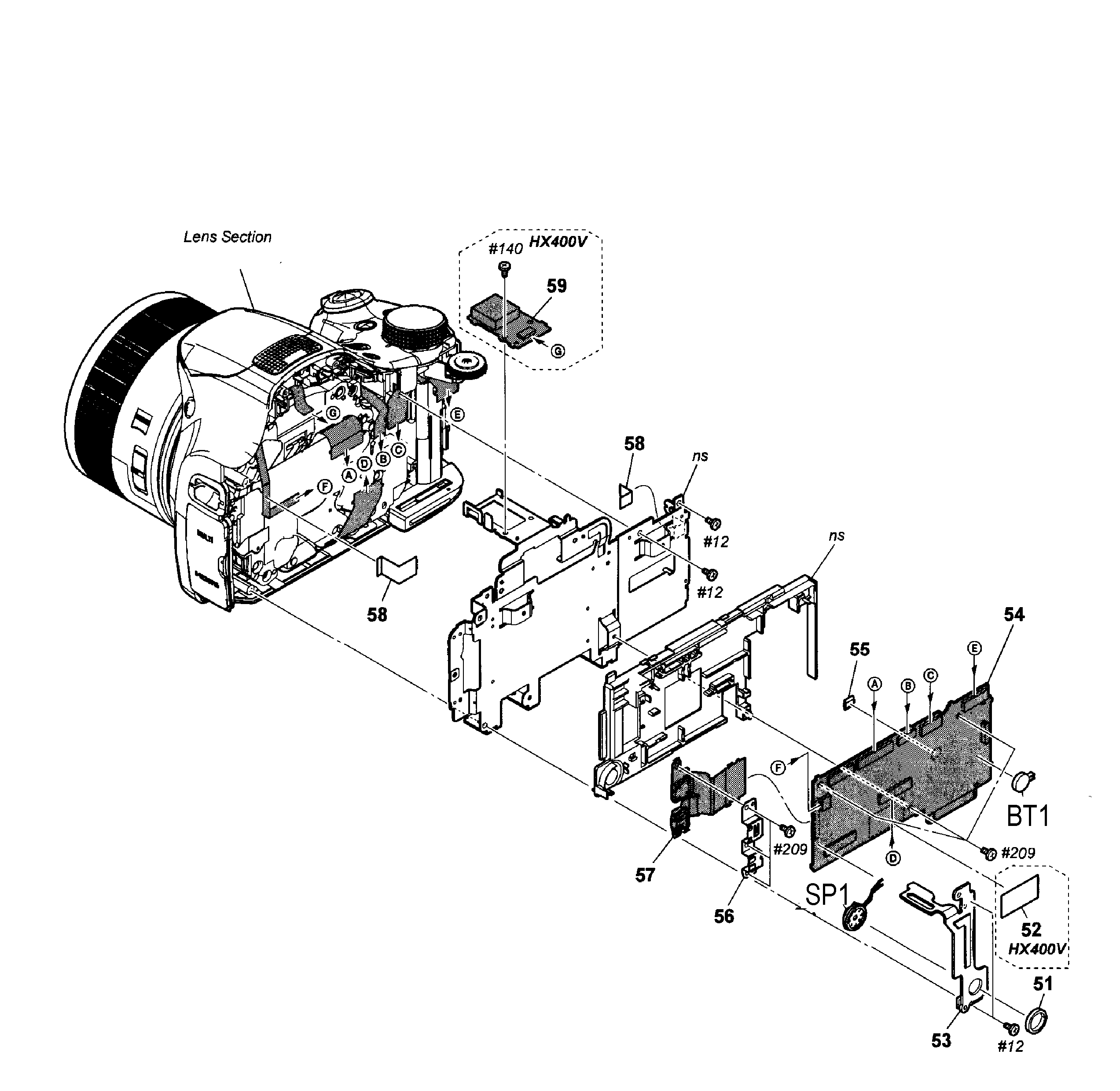

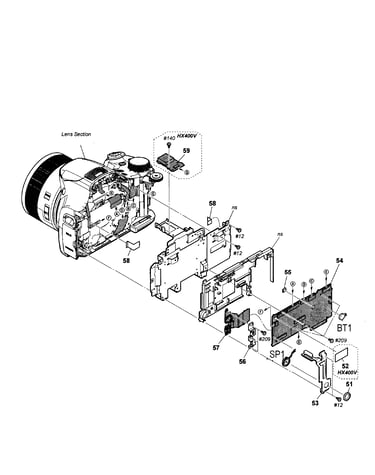

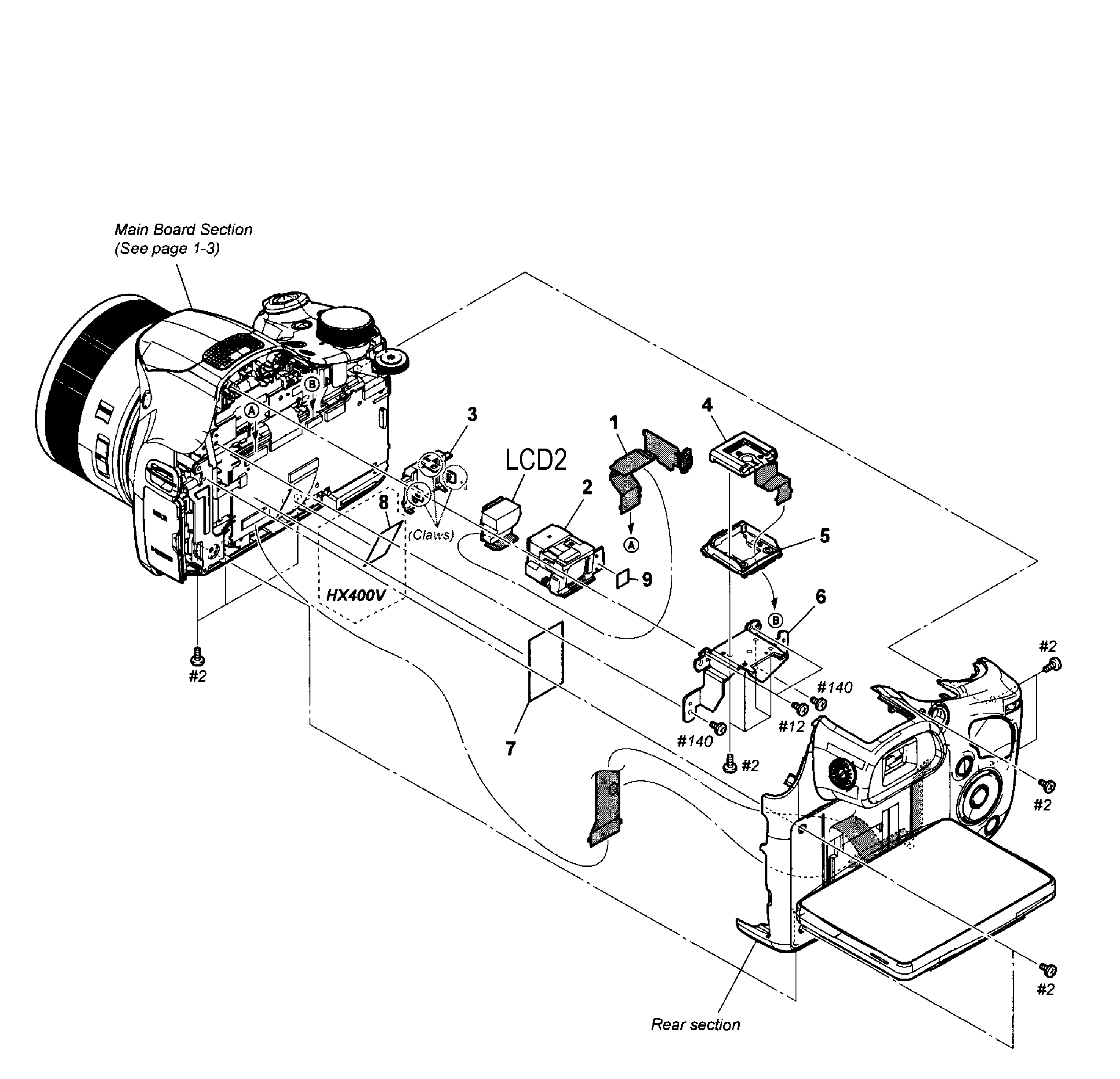

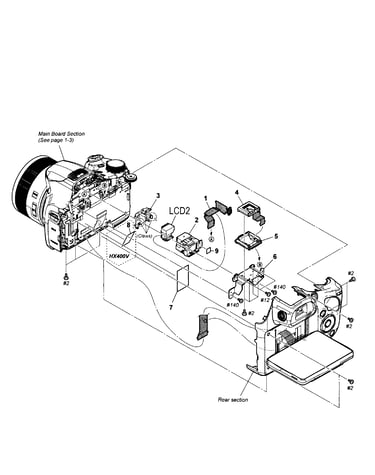

Main board assy diagram

Pcb sy1034

Part #A2033123A

$147.76

In Stock

Qty

#159

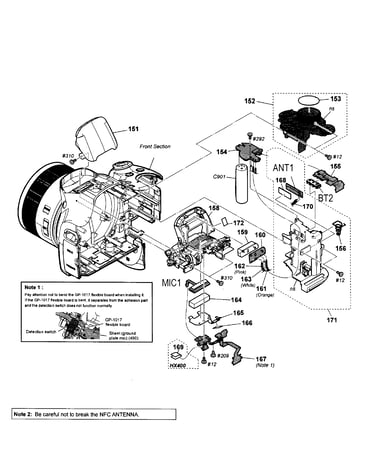

St/bt section diagram

Flash unit

Part #149008311

$38.70

In Stock

Qty

#162

St/bt section diagram

Harness

Part #196900211

$8.74

In Stock

Qty

#201

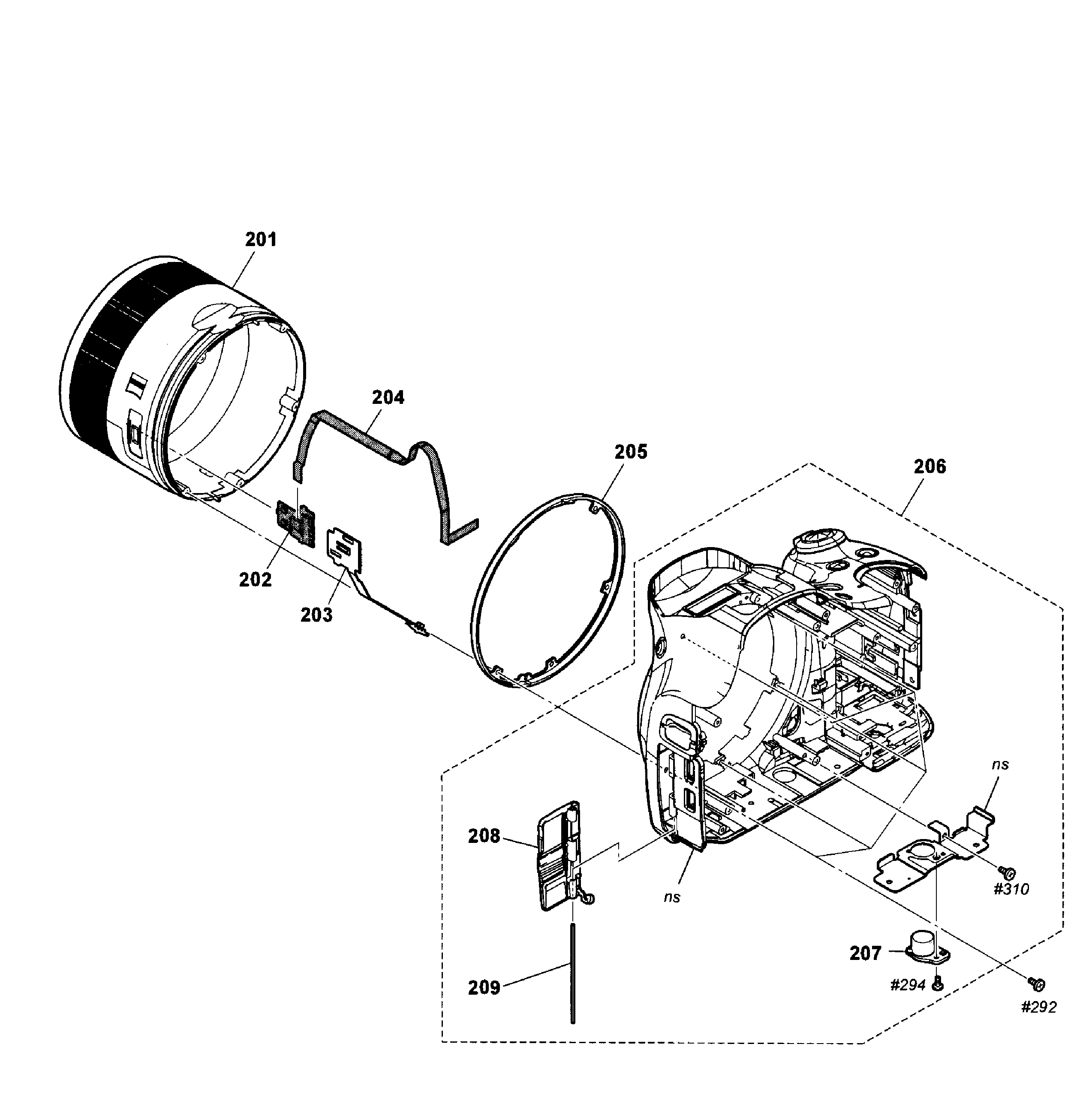

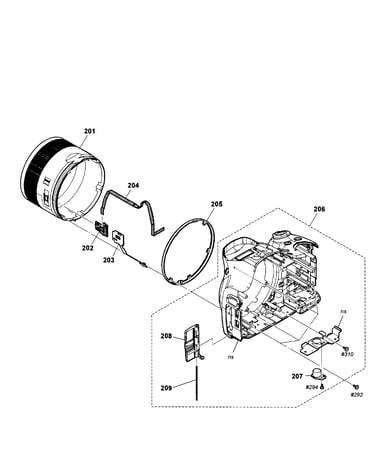

Front assy diagram

Ring block

Part #A2042226A

$116.25

In Stock

Qty

#C901

St/bt section diagram

Cap 134mf

Part #111858911

$22.31

In Stock

Qty

#57

Main board assy diagram

Pcb um1002

Part #A1926868A

$37.50

In Stock

Qty

#304

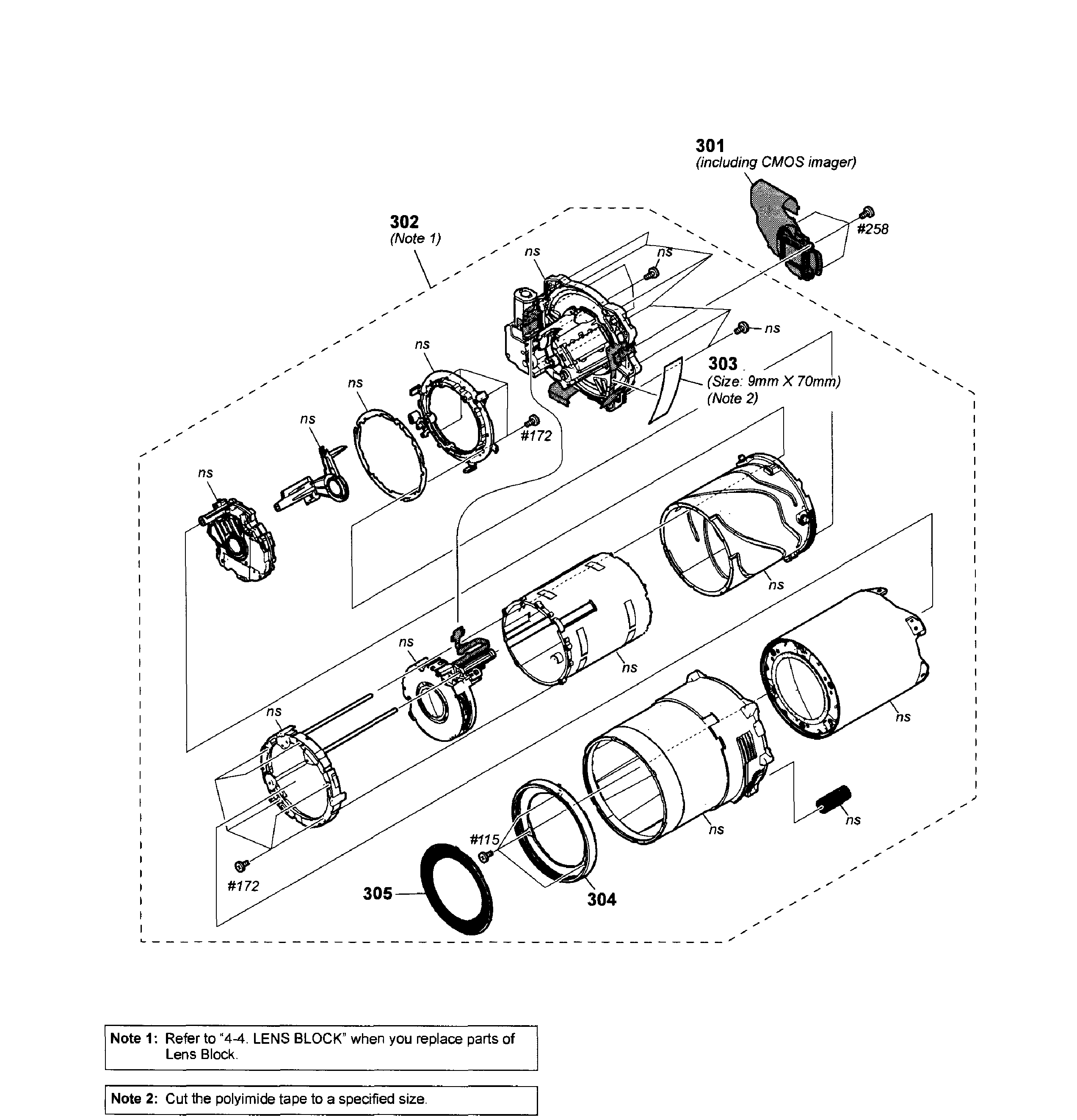

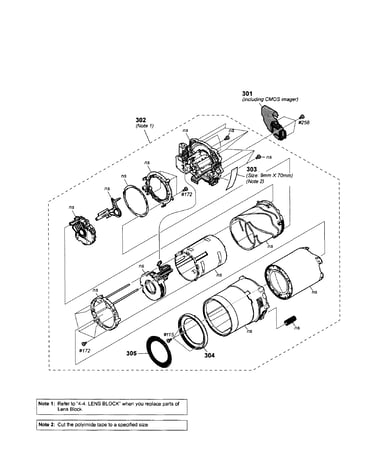

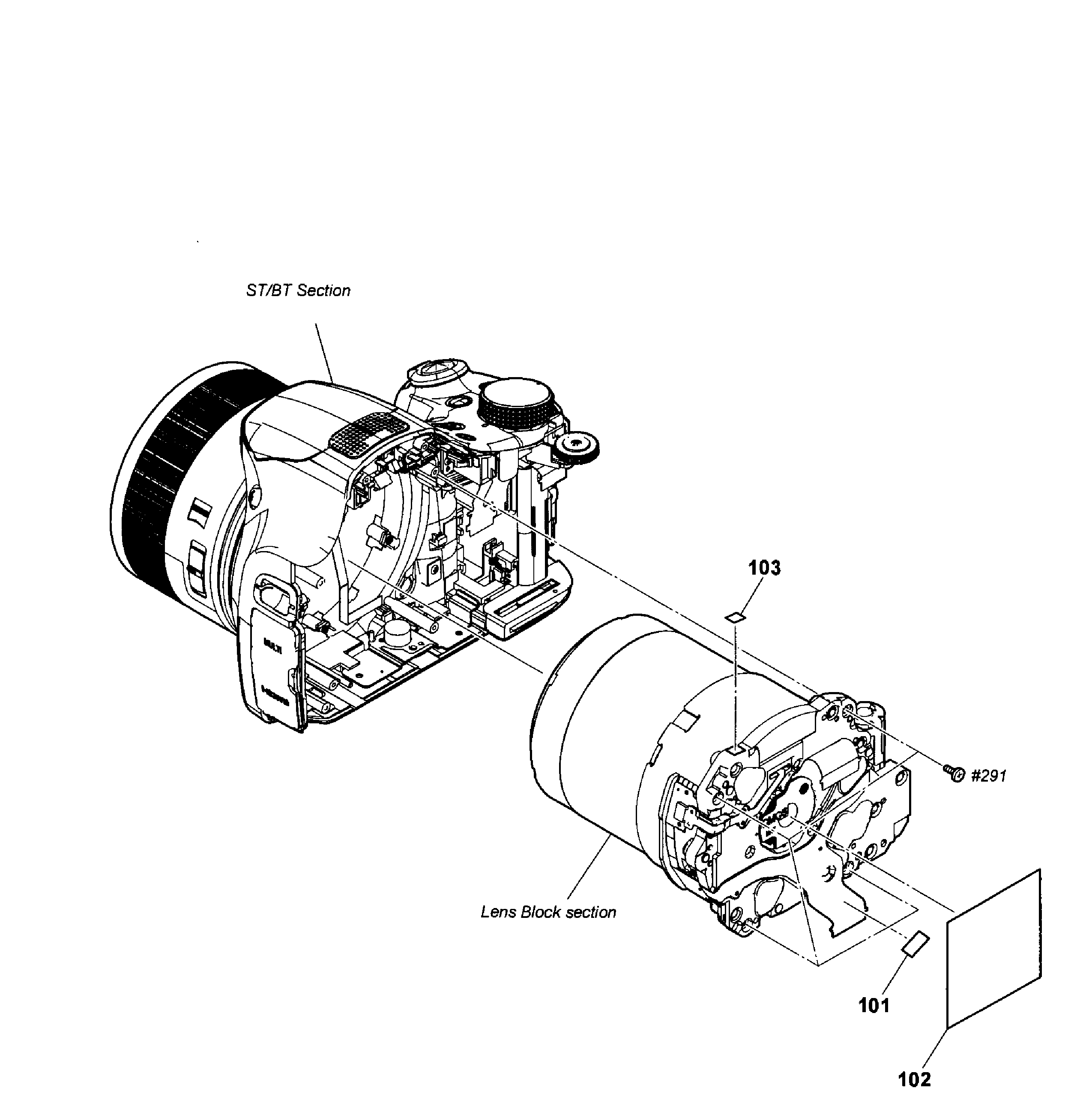

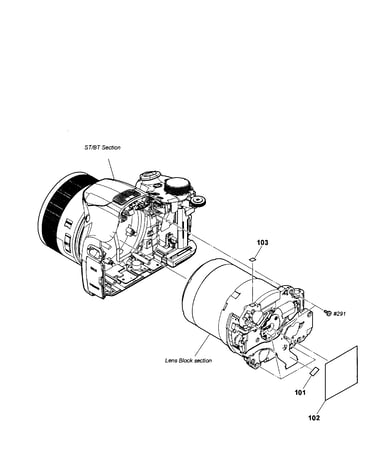

Lens block diagram

Frame assembly

Part #X25870621

This item is not returnable

$6.49

In Stock

Qty

#SP1

Main board assy diagram

Speaker

Part #185834371

$15.23

In Stock

Qty
