Model # KECT025YBL1 Official KitchenAid create-a-cooktop

Here are the diagrams and repair parts for Official KitchenAid KECT025YBL1 create-a-cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Screw 3148107
#15C

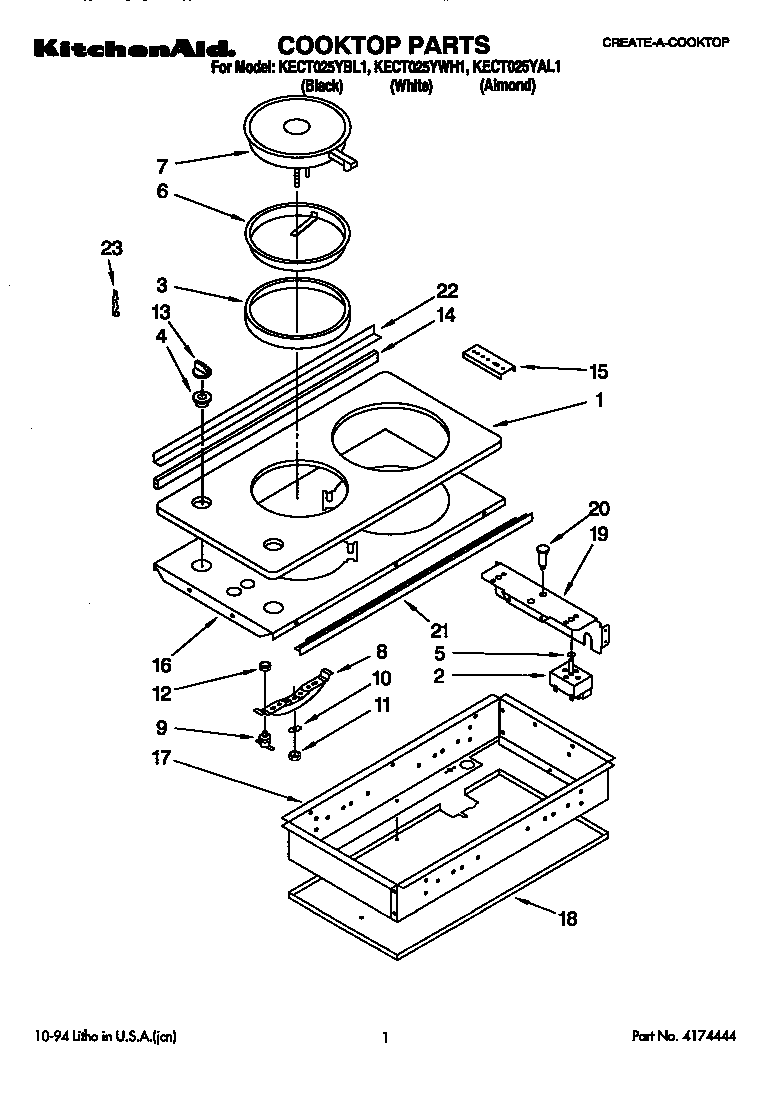

Cooktop diagram

Screw

Part #3148107

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 3148107. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Cooktop Bracket 3183401
#15

Cooktop diagram

Cooktop bracket

Part #3183401

Replaced by #8186533

?
Manufacturer substitution
This part replaces 3183401. Substitute parts can look different from the original.
$32.89 |
13% OFF Phone Price : $37.89
In Stock
Surface Element 3182761
#7A

Cooktop diagram

Surface element

Part #3182761

Replaced by #8203517

?
Manufacturer substitution
This part replaces 3182761. Substitute parts can look different from the original.
$152.16
In Stock
Cooktop Trim (black) 3182437
#21A

Cooktop diagram

Cooktop trim (black)

Part #3182437

The manufacturer no longer makes this part, and there's no substitute part

Surface Element 3182762
#7B

Cooktop diagram

Surface element

Part #3182762

The manufacturer no longer makes this part, and there's no substitute part

Screw 304234
#17A

Cooktop diagram

Screw

Part #304234

The manufacturer no longer makes this part, and there's no substitute part

Surface Knob (black) 3182570
#13A

Cooktop diagram

Surface knob (black)

Part #3182570

The manufacturer no longer makes this part, and there's no substitute part

Ring Gasket 3147188
#6B

Cooktop diagram

Ring gasket

Part #3147188

The manufacturer no longer makes this part, and there's no substitute part

Installation Instructions LIT3186523

#NI

All parts diagram

Installation instructions

Part #LIT3186523

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Main Top Seal 3179164
#14

Cooktop diagram

Cooktop main top seal

Part #3179164

The manufacturer no longer makes this part, and there's no substitute part
