MTD
Gas Walk-Behind Mower

Model #128-175R088 MTD lawn mower

Here are the diagrams and repair parts for MTD 128-175R088 lawn mower, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 266 parts

Lawn & Garden Equipment Engine Carburetor Gasket

#58

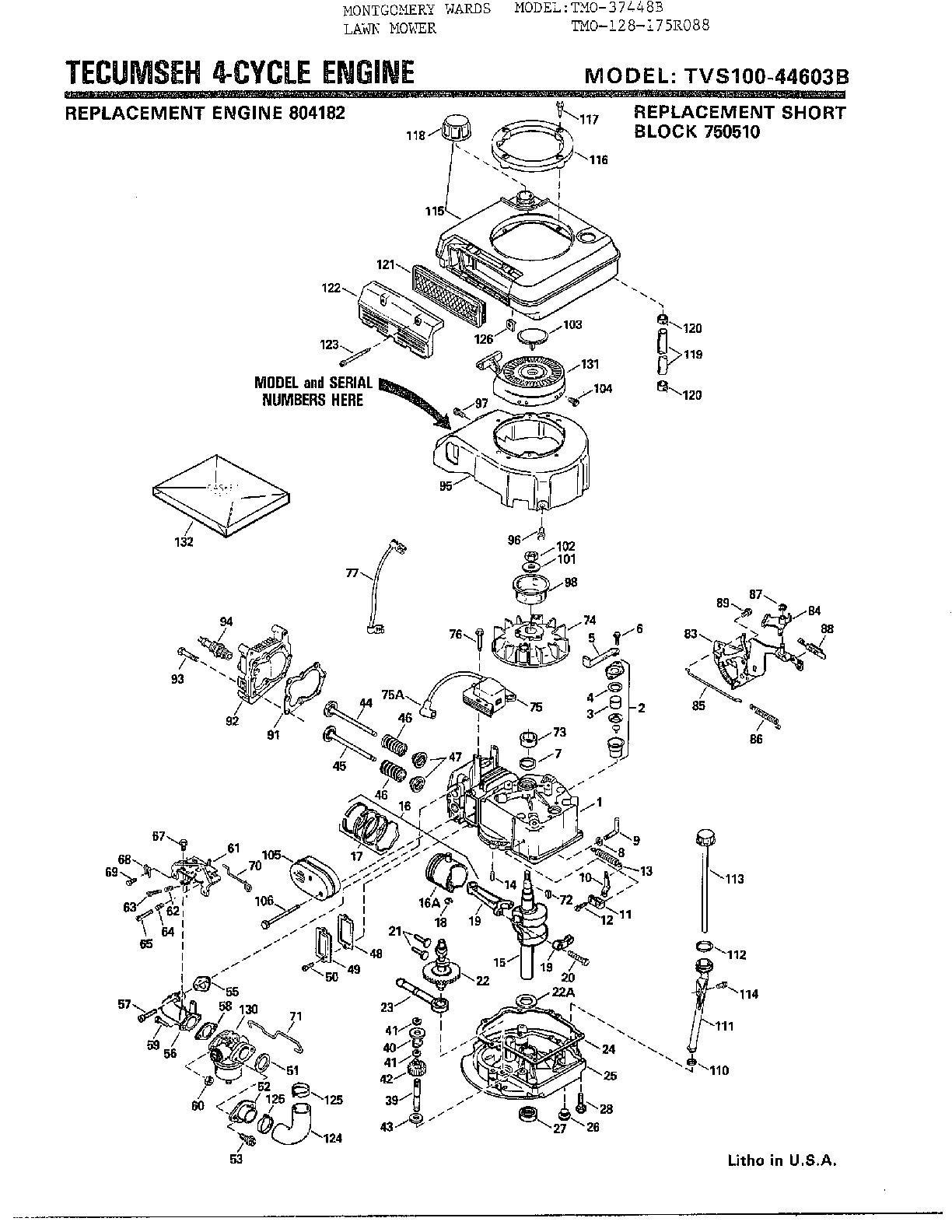

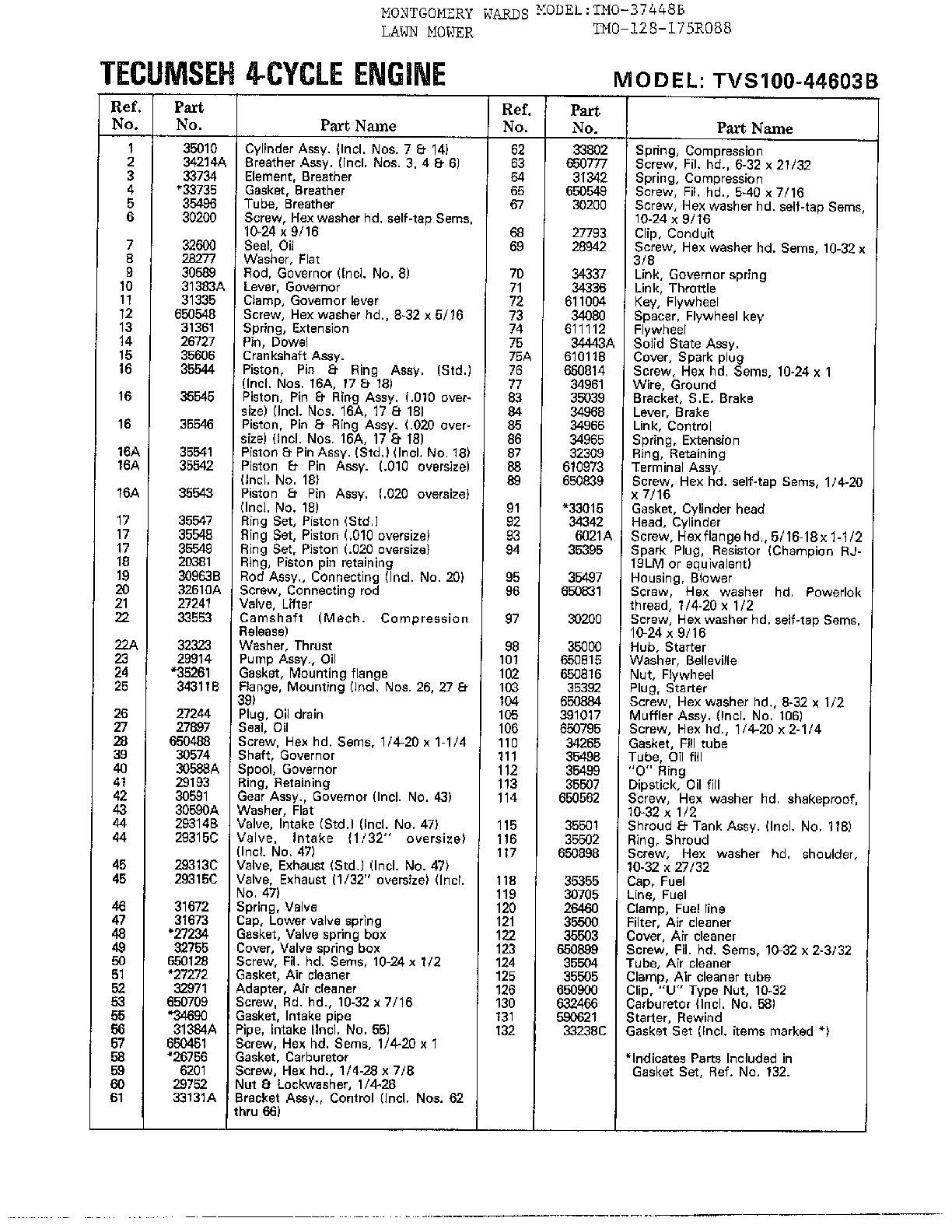

Tecumseh 4-cycle engine Diagram

Lawn & garden equipment engine carburetor gasket

Part #26756
This item is not returnable
$6.22

In Stock

Lawn & Garden Equipment Engine Fuel Line Clamp

#120

Tecumseh 4-cycle engine Diagram

Lawn & garden equipment engine fuel line clamp

Part #26460
This item is not returnable
$2.16

In Stock

Lawn & Garden Equipment Engine Oil Seal

#27

Tecumseh 4-cycle engine Diagram

Lawn & garden equipment engine oil seal

Part #27897
This item is not returnable
$4.49

In Stock

Lawn Tractor Screw

#21

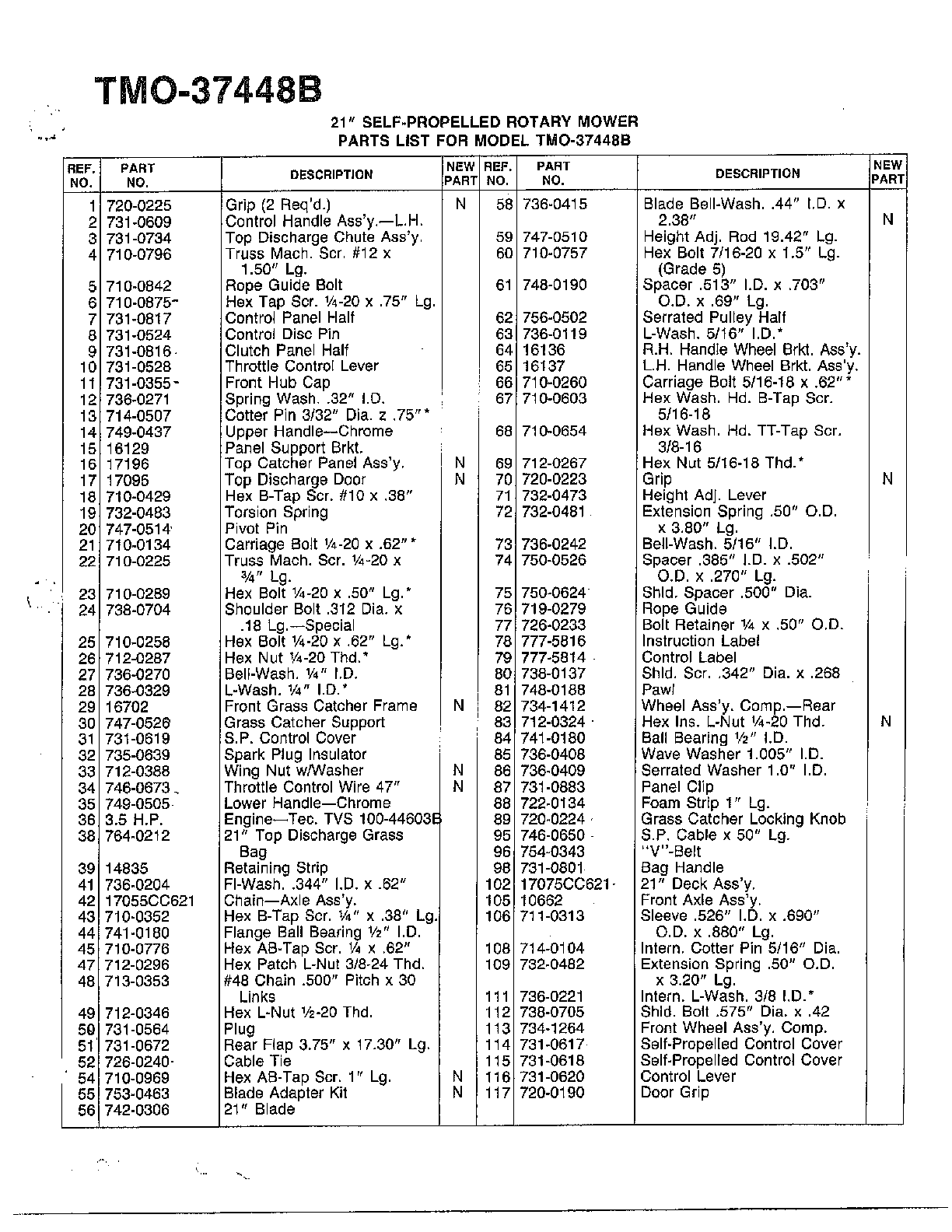

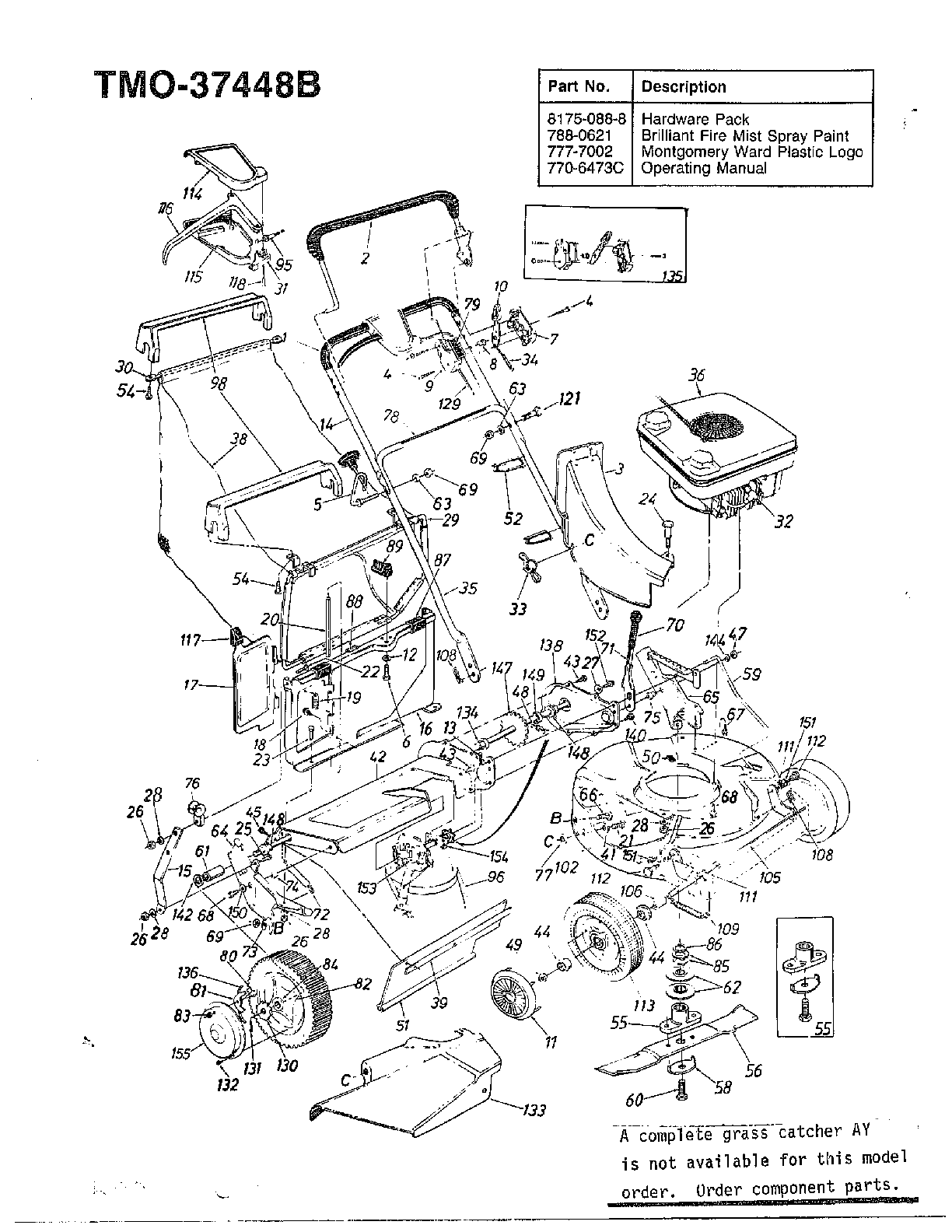

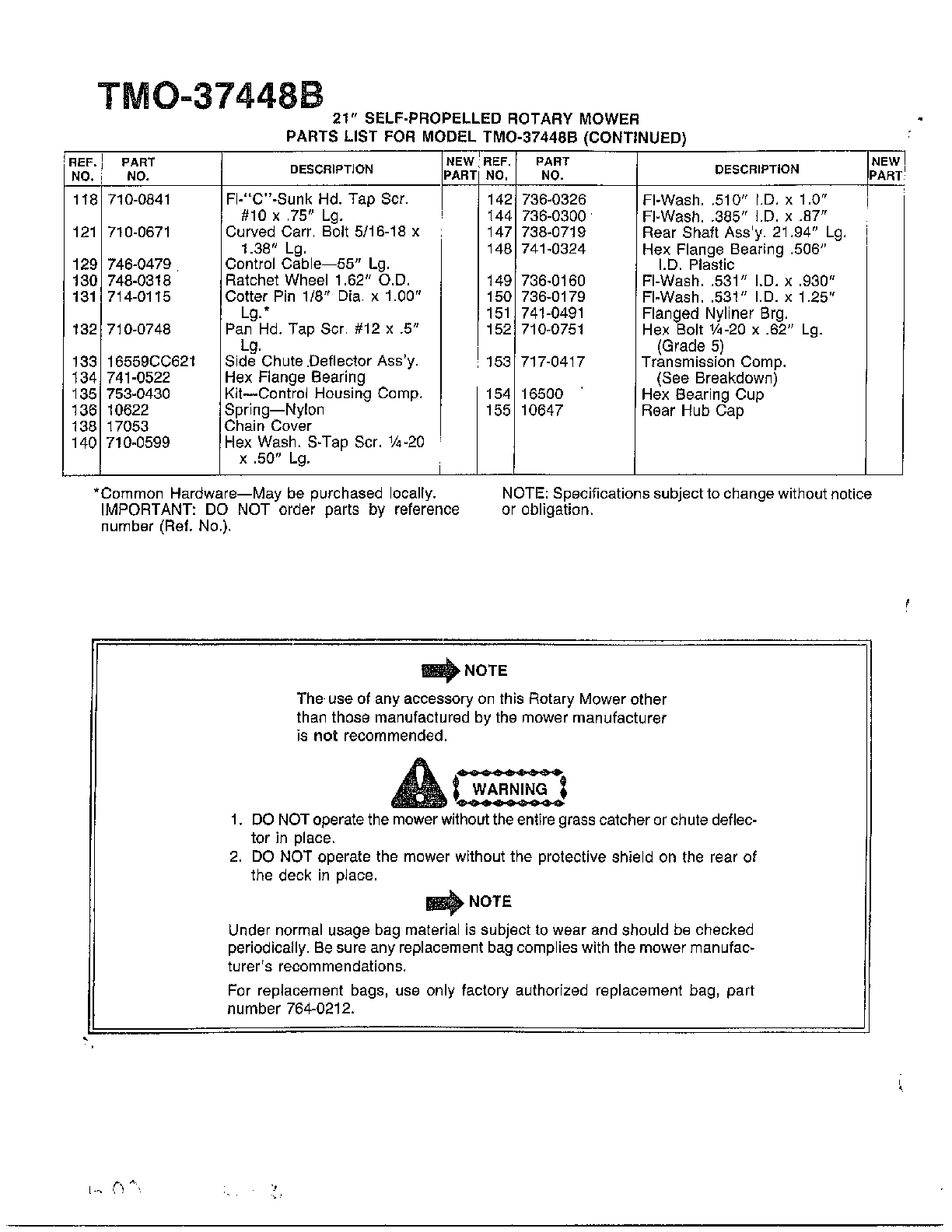

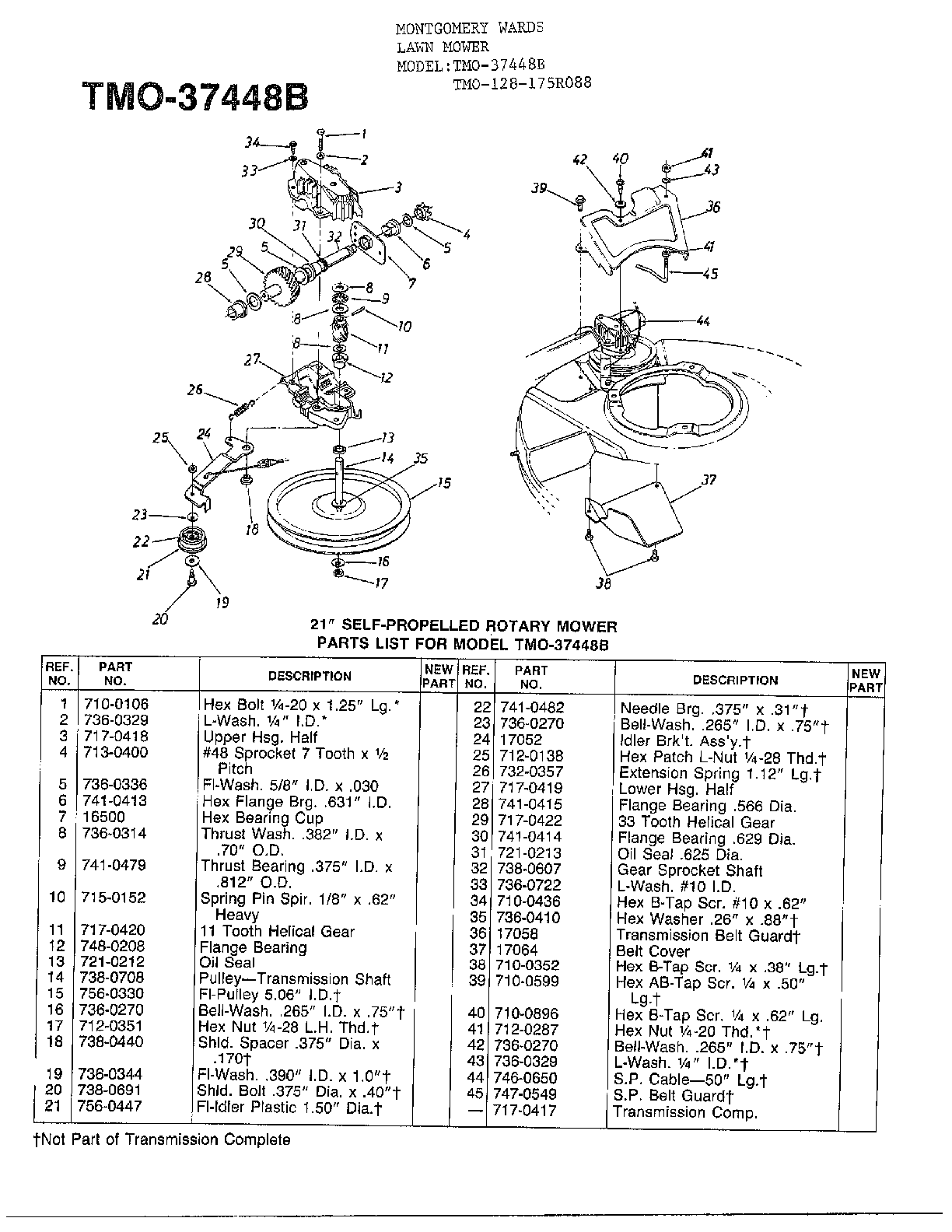

21" self-propelled mower page 2 Diagram
