GE
Washer

Model # GFAN1100L4WW Official GE washer

Here are the diagrams and repair parts for Official GE GFAN1100L4WW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 140 parts  |

Washer Door Boot Spring Clamp, Outer WH01X10279
#349

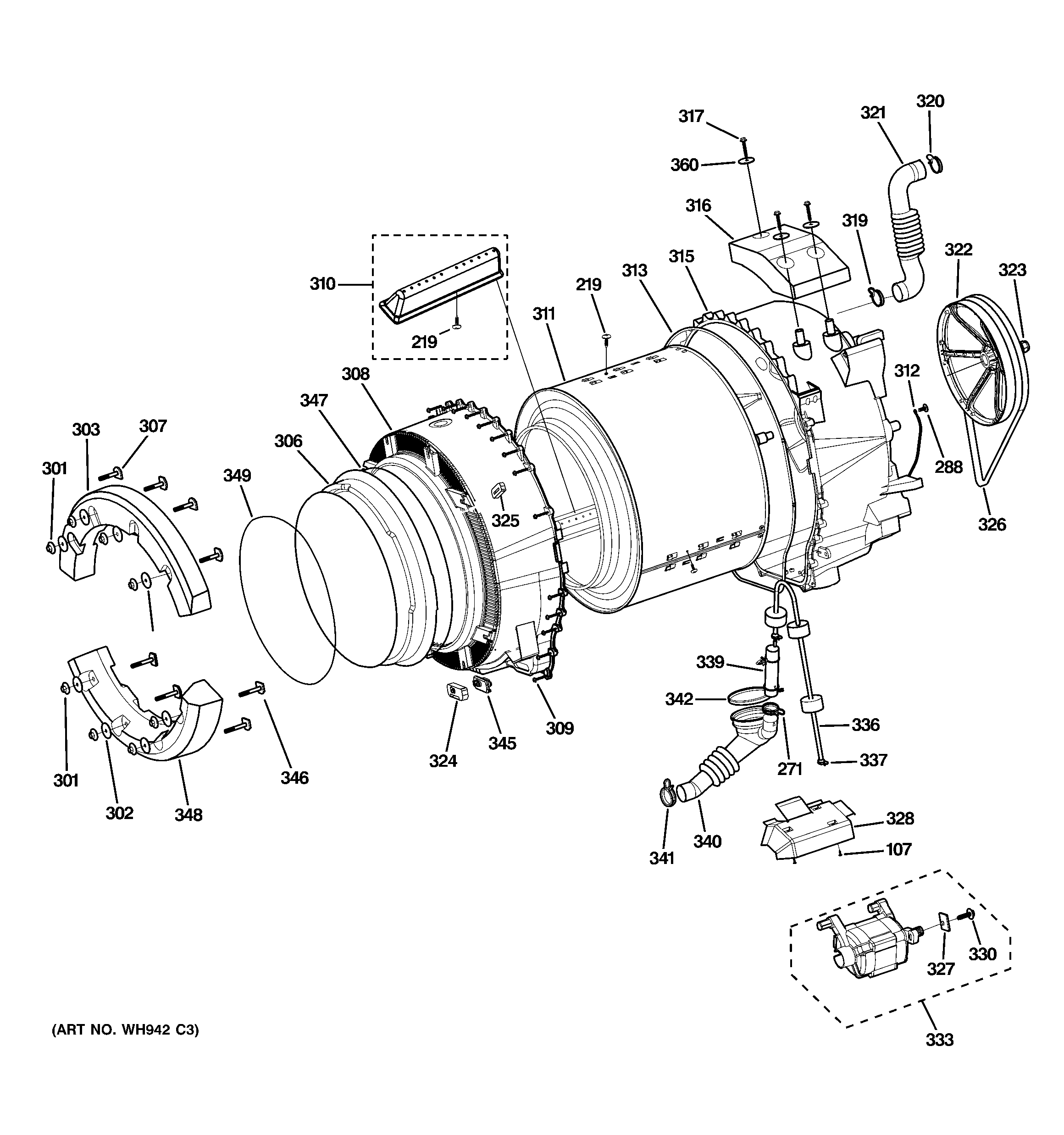

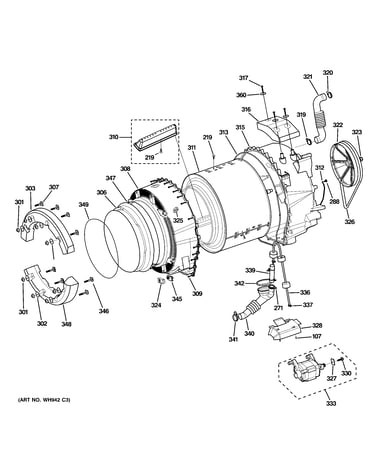

Tub & motor diagram

Washer door boot spring clamp, outer

Part #WH01X10279

This item is not returnable
$21.30
19% OFF Phone Price : $26.30
In Stock
Washer Shock Absorber Mounting Pin WH01X10261
#254

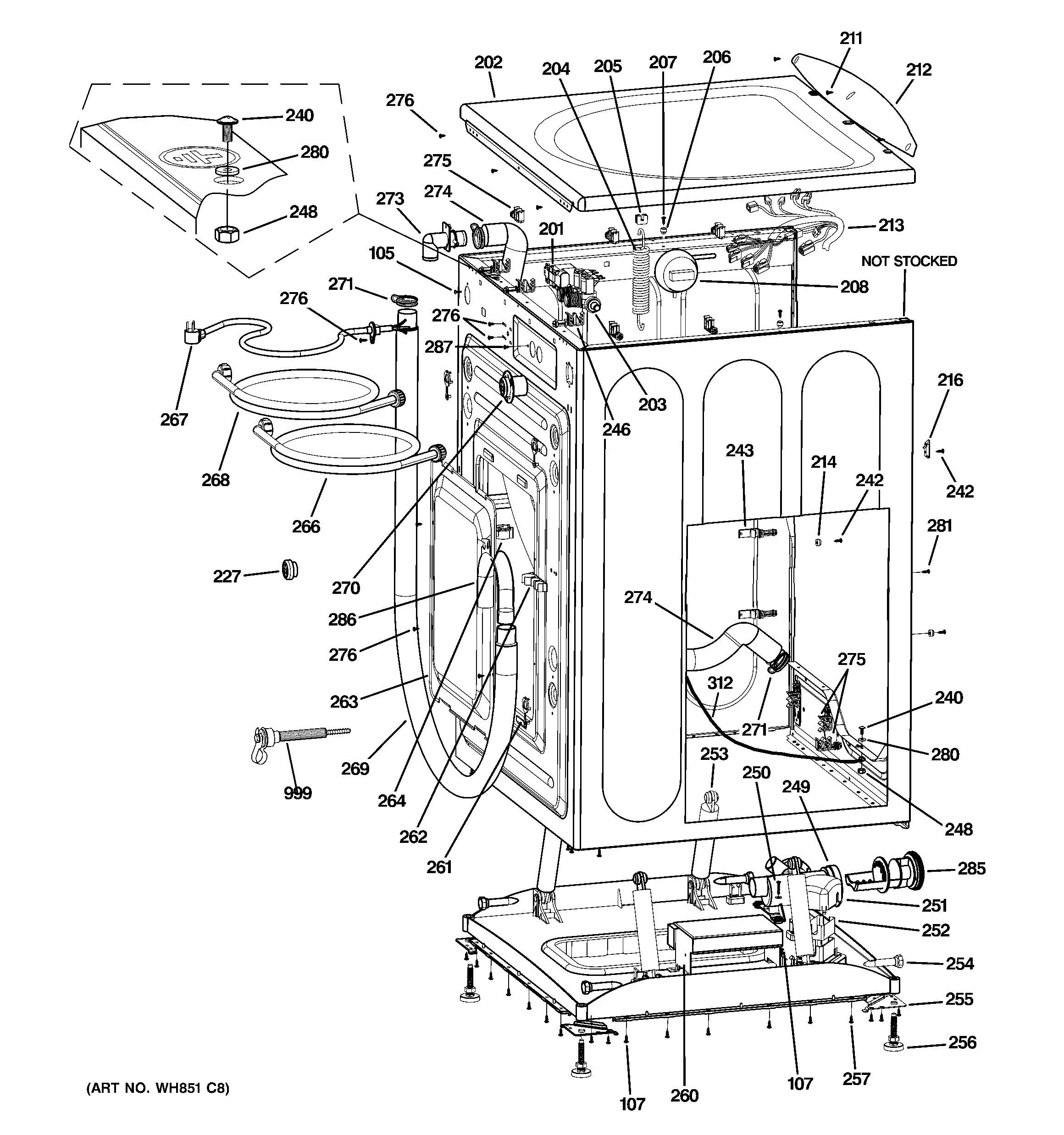

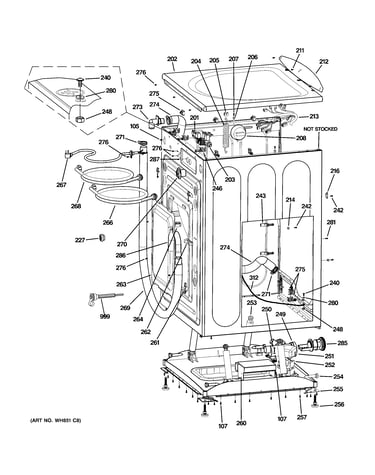

Cabinet & top panel diagram

Washer shock absorber mounting pin

Part #WH01X10261

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Washer Drive Motor (replaces Wh02x10214) WH20X10028
#333

Tub & motor diagram

Washer drive motor (replaces wh02x10214)

Part #WH20X10028

$333.79
$10.00 OFF Phone Price : $343.79
In Stock
Washer Drain Hose WH41X10127
#274

Cabinet & top panel diagram

Washer drain hose

Part #WH41X10127

$46.93
10% OFF Phone Price : $51.93
In Stock
Washer Drain Pump Filter (replaces Wh23x10027, Wh23x20840) WH23X10029
#285

Cabinet & top panel diagram

Washer drain pump filter (replaces wh23x10027, wh23x20840)

Part #WH23X10029

Replaced by #WH11X34741

?
Manufacturer substitution
This part replaces WH23X10029. Substitute parts can look different from the original.
In Stock
Washer Leveling Leg Bracket WH16X10077
#255

Cabinet & top panel diagram

Washer leveling leg bracket

Part #WH16X10077

In Stock
Pump Clamp WH01X10275
#341

Tub & motor diagram

Pump clamp

Part #WH01X10275

This item is not returnable
$6.31
14% OFF Phone Price : $7.31
In Stock
Laundry Appliance Stacking Kit (replaces Geflstack, We25x10018) WE25X10028
#9999

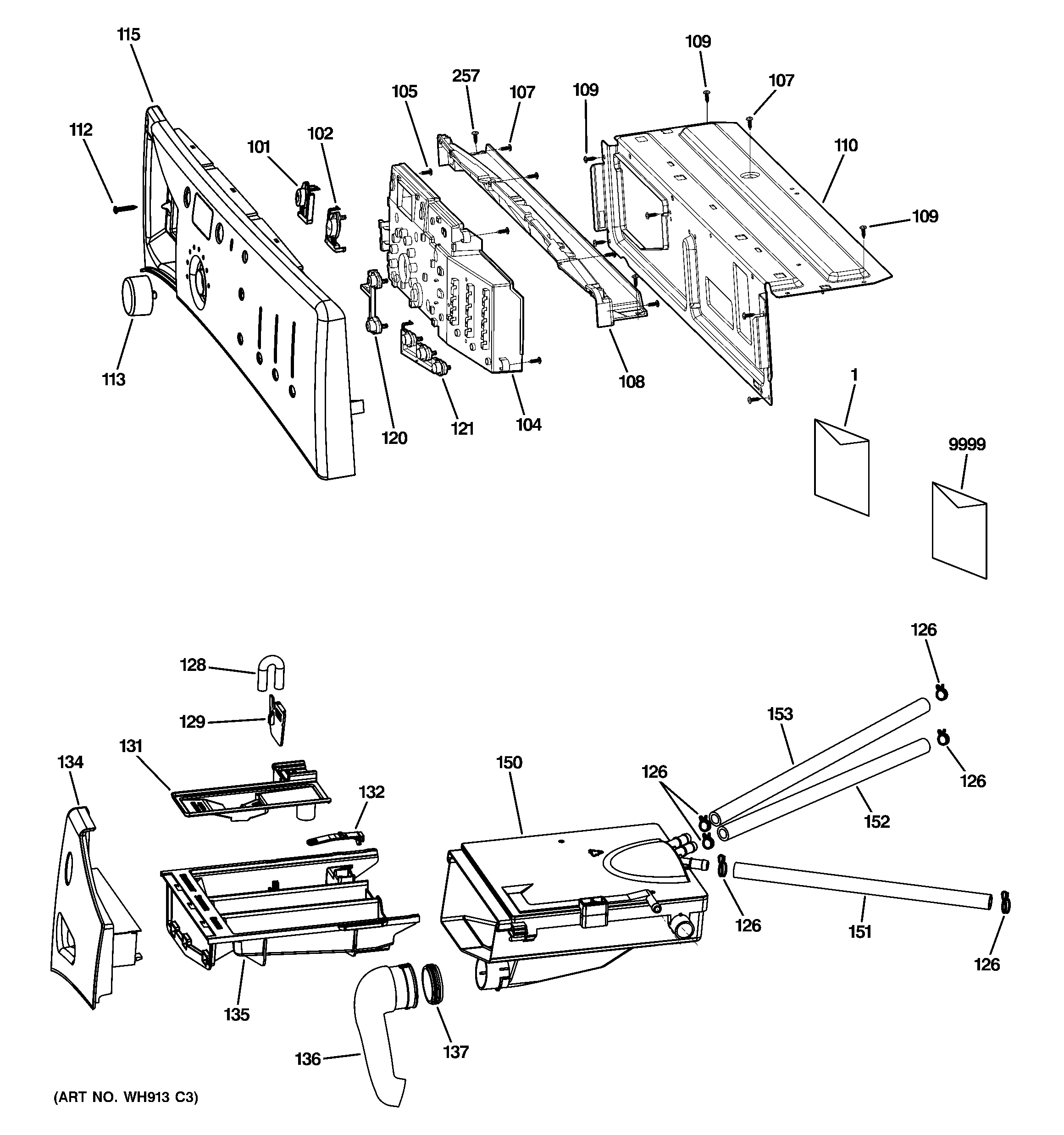

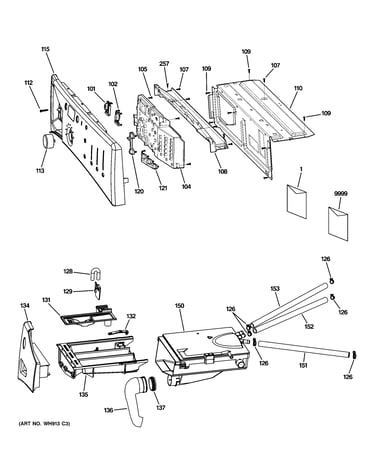

Controls & dispenser diagram

Laundry appliance stacking kit (replaces geflstack, we25x10018)

Part #WE25X10028

$81.23
6% OFF Phone Price : $86.23
In Stock
Hanger Spring WH01X10251
#205

Cabinet & top panel diagram

Hanger spring

Part #WH01X10251

This item is not returnable
$6.31
14% OFF Phone Price : $7.31
In Stock
Screw_st4*20 WH02X10191
#222

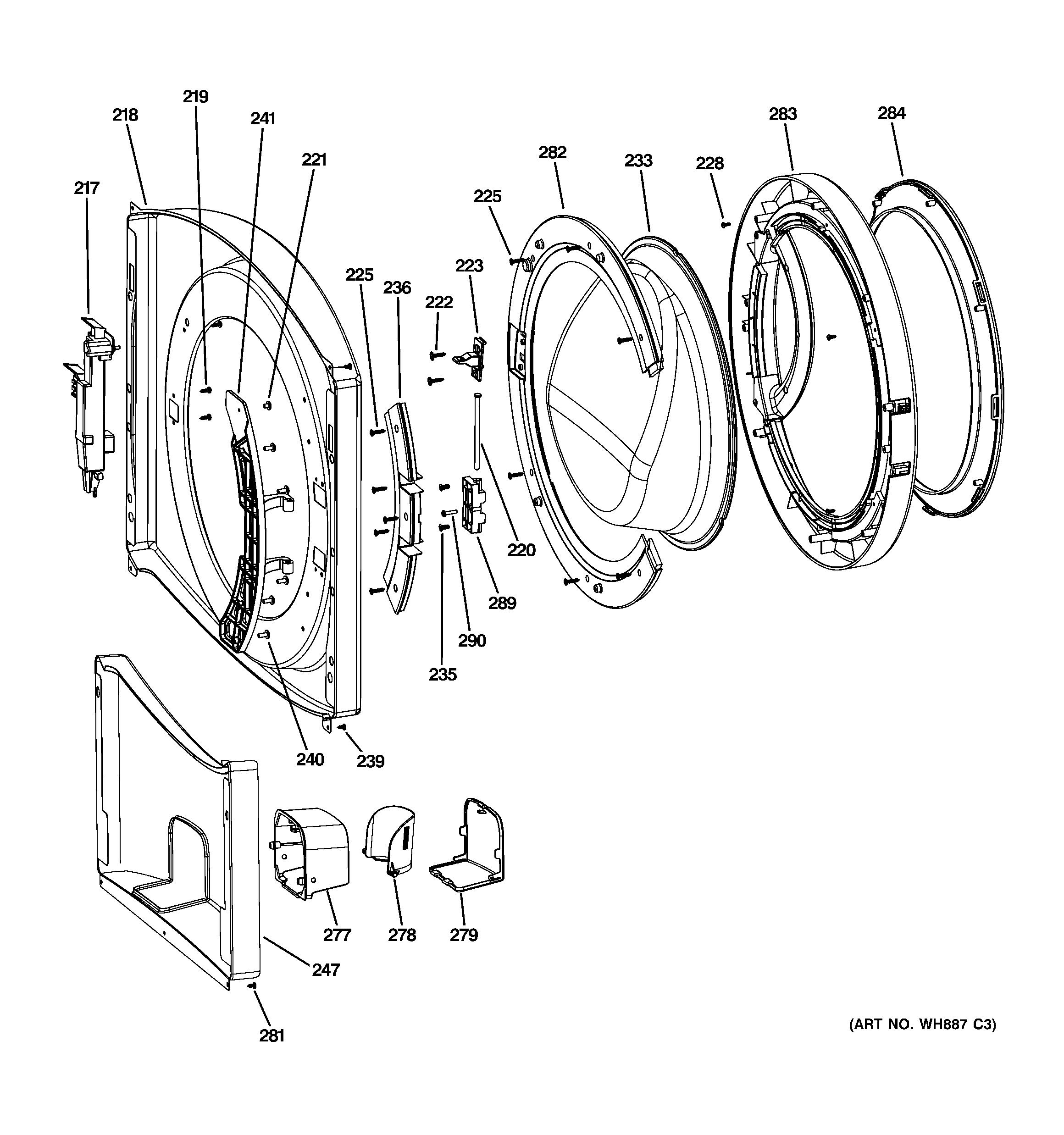

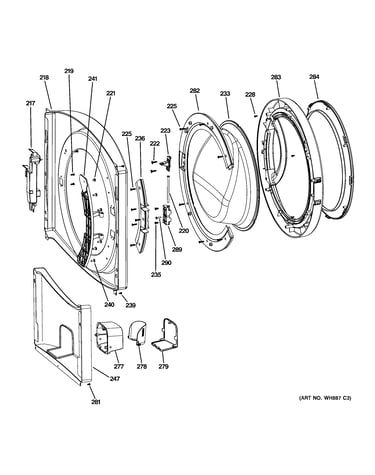

Door diagram

Screw_st4*20

Part #WH02X10191

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
