Maytag
Microwave/Hood Combo

Model # MMV5207BAQ17 Official Maytag microwave/hood combo

Here are the diagrams and repair parts for Official Maytag MMV5207BAQ17 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Microwave High-voltage Diode (replaces De91-70063a, De91-70063b, De91-70063e) DE91-70063D
#3

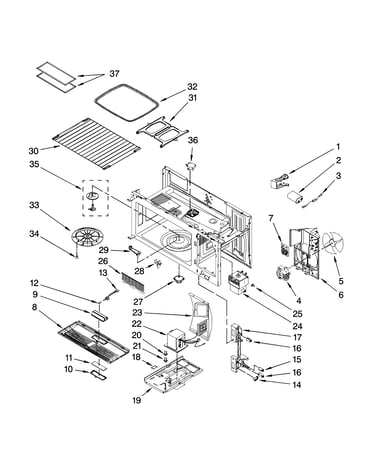

Interior and ventilation parts diagram

Microwave high-voltage diode (replaces de91-70063a, de91-70063b, de91-70063e)

Part #DE91-70063D

BEST SELLER
$17.40 |
10% OFF Phone Price : $19.40
In Stock
Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034
#16

Interior and ventilation parts diagram

Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

BEST SELLER
$16.93 |
11% OFF Phone Price : $18.93
In Stock
Thermostat DE47-20007A
#25

Interior and ventilation parts diagram

Thermostat

Part #DE47-20007A

Replaced by #DE47-20007B

?
Manufacturer substitution
This part replaces DE47-20007A. Substitute parts can look different from the original.
BEST SELLER
$14.09 |
12% OFF Phone Price : $16.09
In Stock
Filter W10187748
#37

Interior and ventilation parts diagram

Filter

Part #W10187748

Replaced by #6802A

?
Manufacturer substitution
This part replaces W10187748. Substitute parts can look different from the original.
This item is not returnable
$22.99 |
18% OFF Phone Price : $27.99
In Stock
Mounting DE70-00378A
#15

Cabinet and air flow parts diagram

Mounting

Part #DE70-00378A

Replaced by #DE70-00561A

?
Manufacturer substitution
This part replaces DE70-00378A. Substitute parts can look different from the original.
$44.78 |
10% OFF Phone Price : $49.78
In Stock
Microwave Glass Cooking Tray DE63-00383A
#32

Interior and ventilation parts diagram

Microwave glass cooking tray

Part #DE63-00383A

$114.52 |
8% OFF Phone Price : $124.52
In Stock
Microwave Light Socket And Harness Assembly DE47-00032B
Microwave light socket and harness assembly

Part #DE47-00032B

This item is not returnable
$23.53
In Stock
Microwave Stirrer Fan Cover Clip (white) DE66-20095B
#34

Interior and ventilation parts diagram

Microwave stirrer fan cover clip (white)

Part #DE66-20095B

This item is not returnable
$13.91
In Stock
Cover DE63-00137A
#10

Interior and ventilation parts diagram

Cover

Part #DE63-00137A

Replaced by #DE63-00137B

?
Manufacturer substitution
This part replaces DE63-00137A. Substitute parts can look different from the original.
This item is not returnable
$21.77
In Stock
Microwave Door Handle (stainless) W10187840
#6B

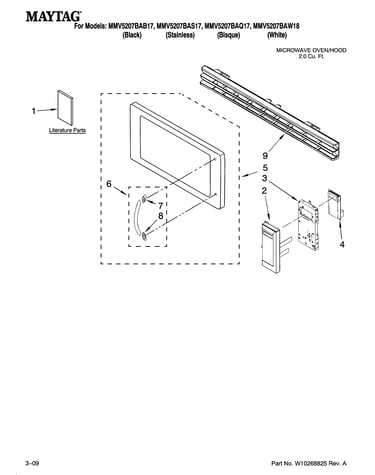

Control panel parts diagram

Microwave door handle (stainless)

Part #W10187840

Replaced by #WPW10187840

?
Manufacturer substitution
This part replaces W10187840. Substitute parts can look different from the original.
$71.16 |
7% OFF Phone Price : $76.16
In Stock
