Model #EH230FXTN00 Official Whirlpool freezer

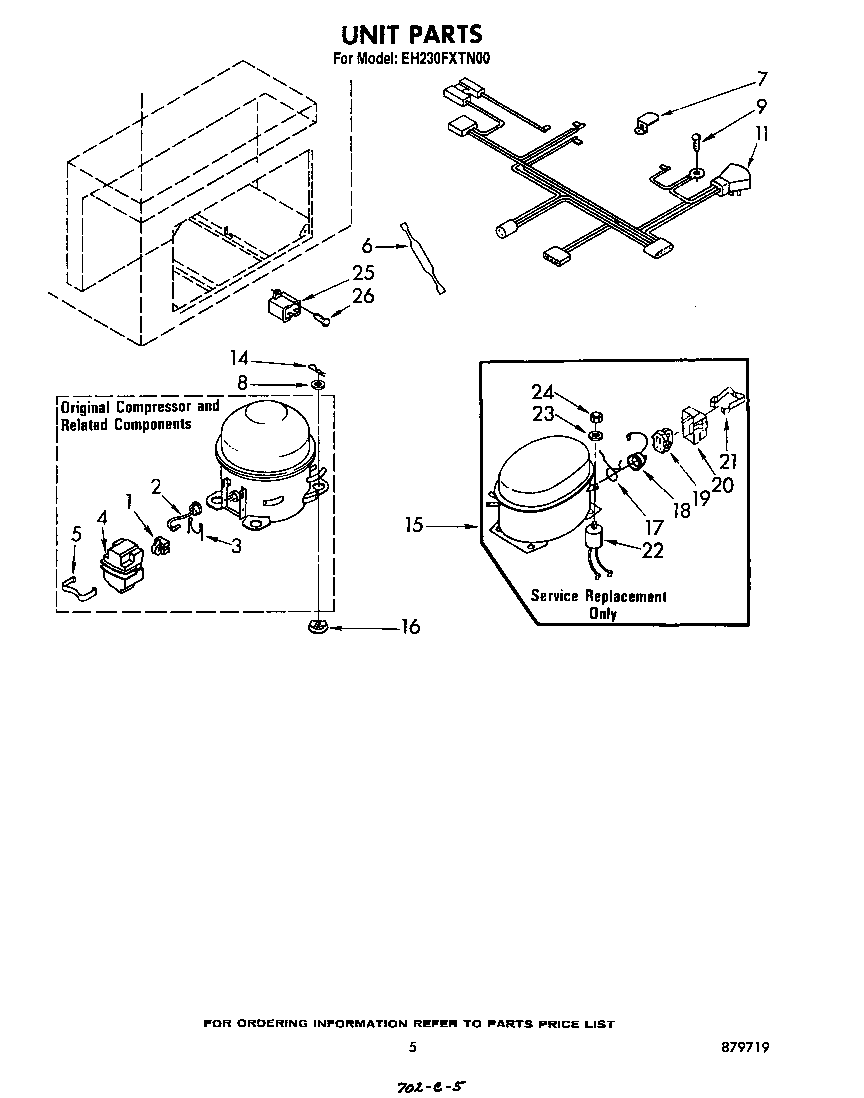

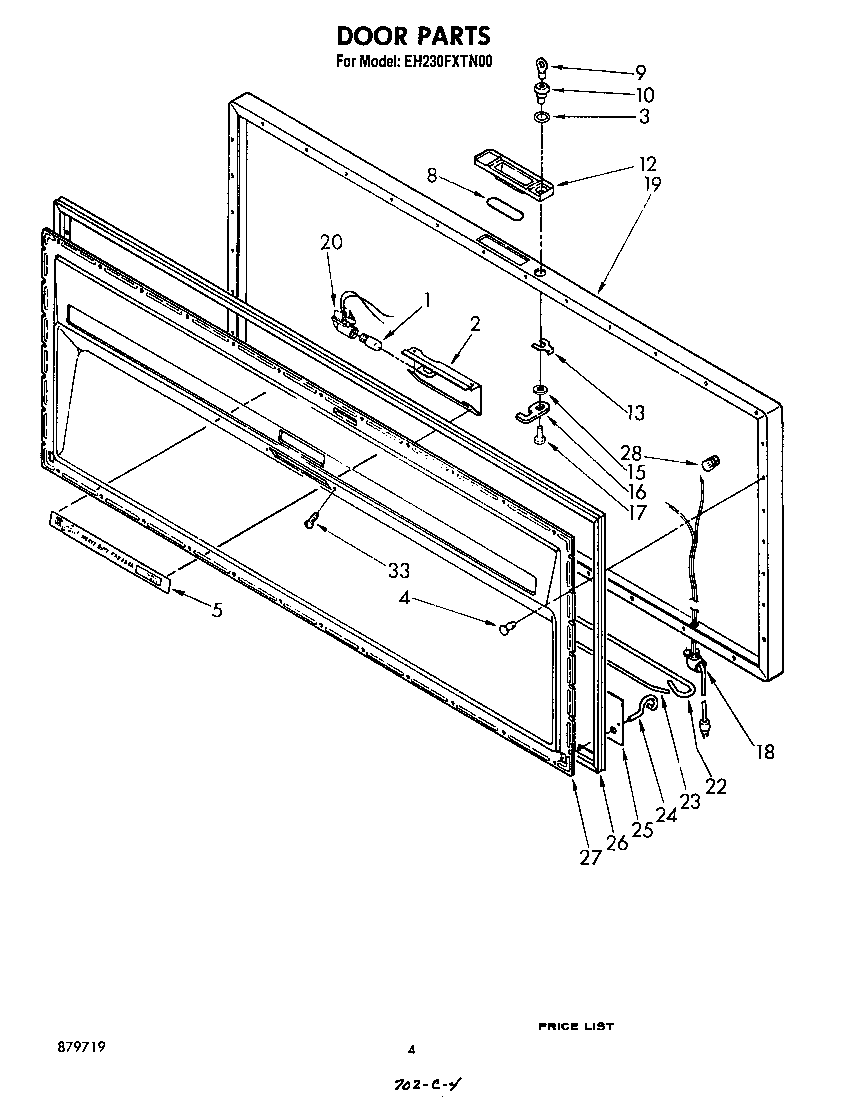

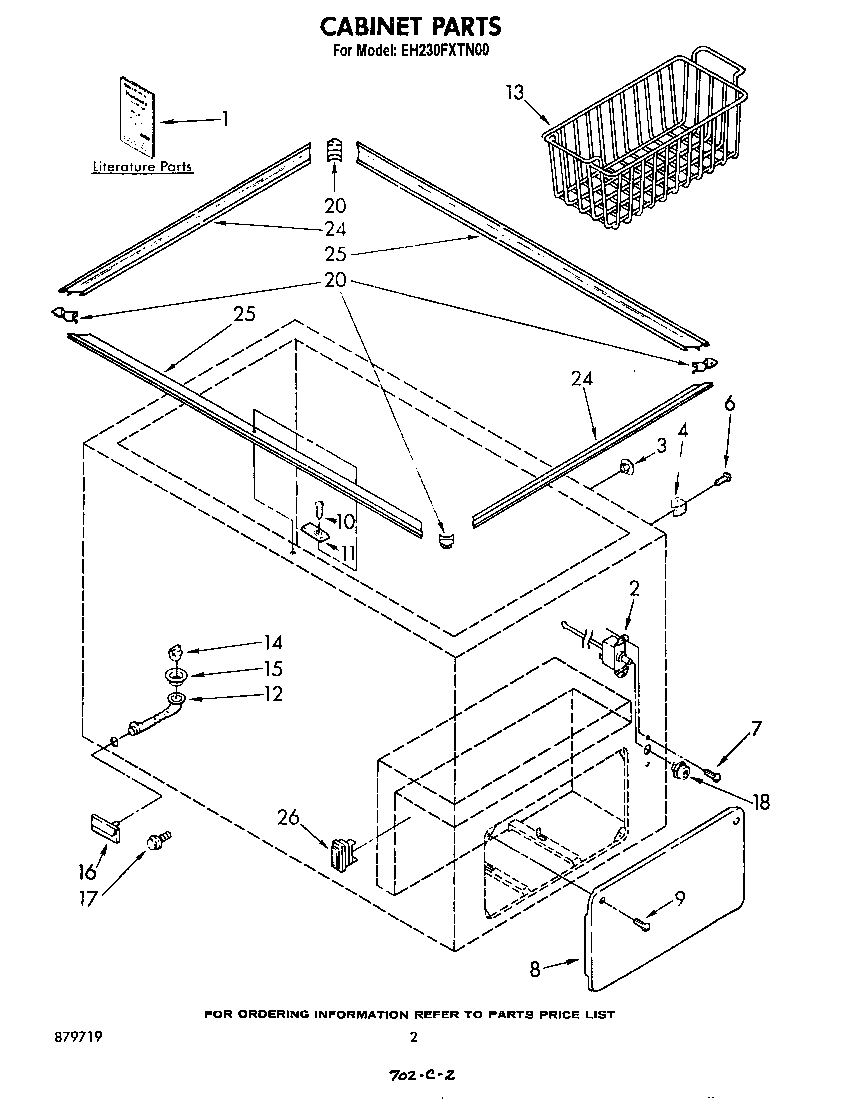

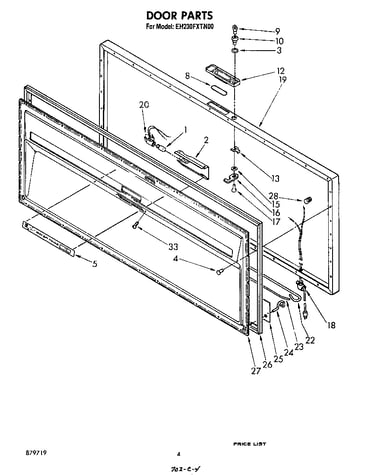

Here are the diagrams and repair parts for Whirlpool EH230FXTN00 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Recommended maintenance parts and accessories

Appliance Touch-Up Paint, 0.6-oz (White) (repla...

Part #72017

In Stock

$8.29 |

11% OFF

Phone Price: $9.29

Qty

Appliance Porcelain Touch-Up Paint, 1-qt (White)

Part #799344

In Stock

$98.79 |

10% OFF

MSRP: $110.00

Qty

Refrigerator Permagum Sealer

Part #212643

In Stock

$50.09 |

9% OFF

Phone Price: $55.09

Qty

Symptoms common to all freestanding freezers

Choose a symptom to see related freezer repairs.

Why don't the lights in my freezer work?

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failure

What should I do when my freezer's high-temperature alarm sounds?

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser coils, control failure

Why is my refrigerator so noisy?

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, faulty compressor

Why isn't my freezer cooling?

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-metal thermostat

Why is my freezer too warm?

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, compressor problems

Why does my freezer have a lot of frost inside?

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, bad defrost timer

Why isn't my freezer running?

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor motor failure

Why is my freezer hot on the outside?

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket
