Sharp R-530DW microwave

Sharp R-530DW microwave Parts

Here are the diagrams and repair parts for Sharp R-530DW microwave, as well as links to manuals and error code tables, if available.

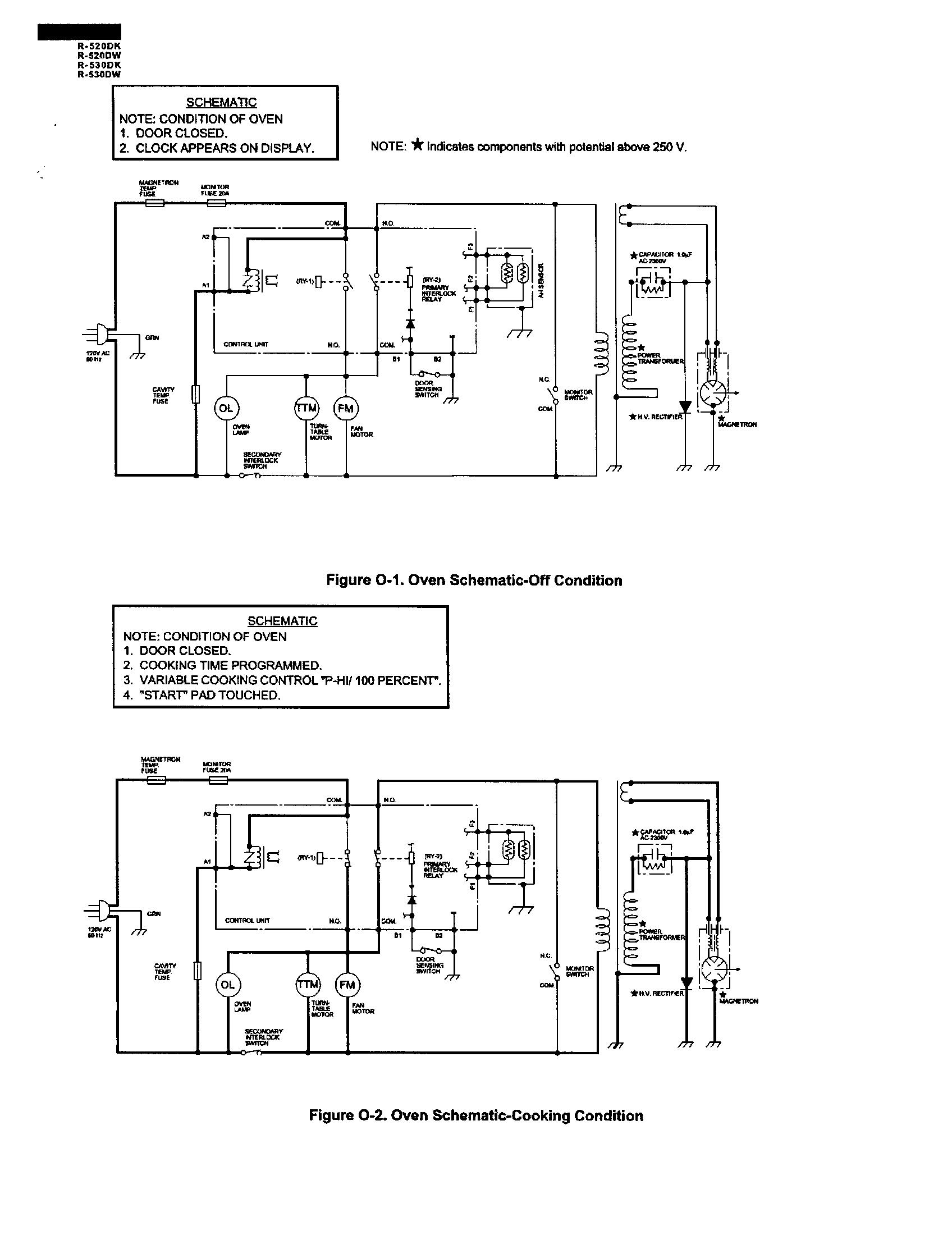

By Schematic

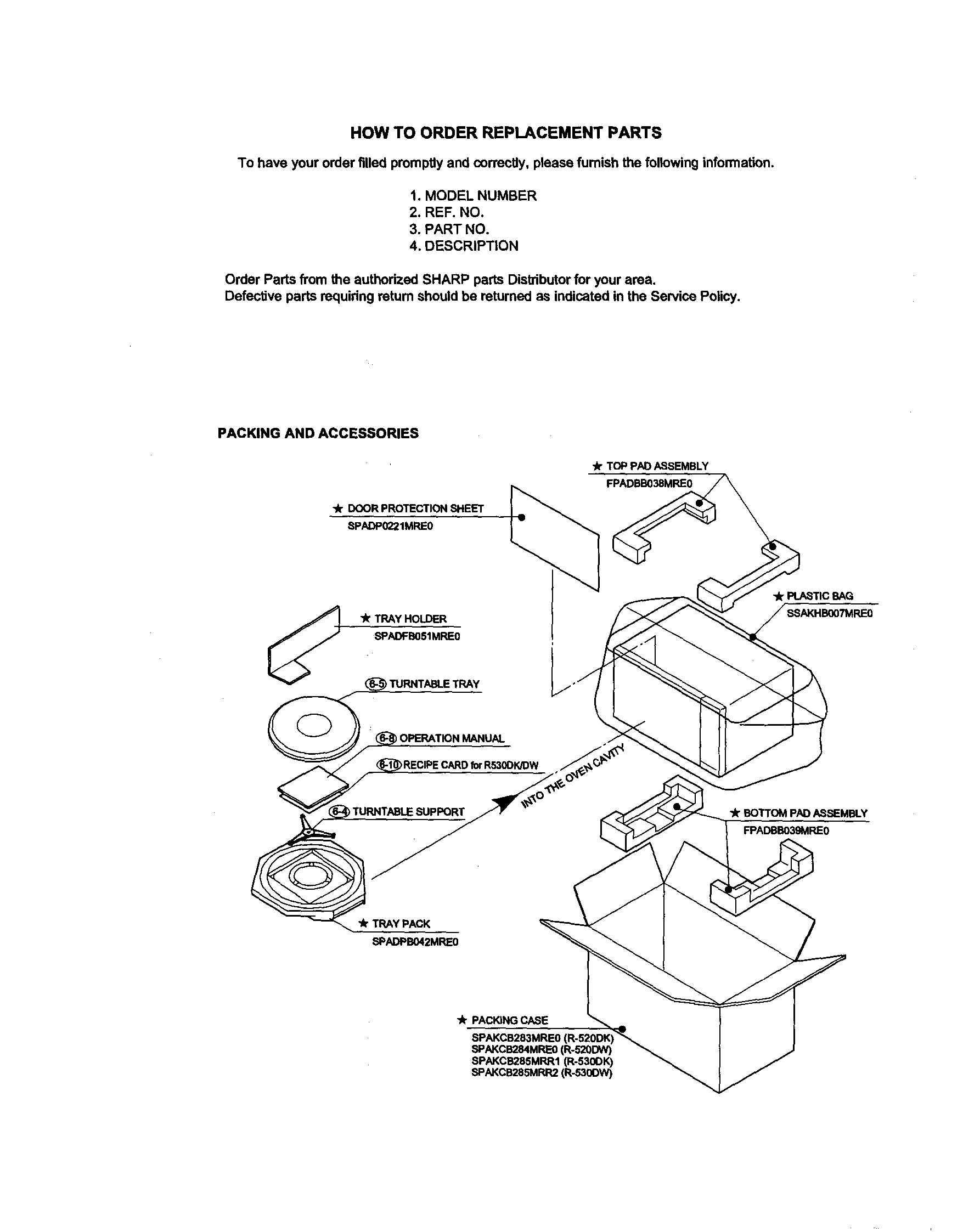

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for R-530DW Microwaves

  • Switch for Sharp R-530DW - Part FFS-BA016/KIT

    #1-07

    All parts diagram

    Switch

    Part #FFS-BA016/KIT

    The manufacturer no longer makes this part, and there's no substitute part

  • Diode for Sharp R-530DW - Part FH-DZB008MRY0

    #1-02

    All parts diagram

    Diode

    Part #FH-DZB008MRY0

    The manufacturer no longer makes this part, and there's no substitute part

  • Power Control Board Assembly for Sharp R-530DW - Part 46-356706-3

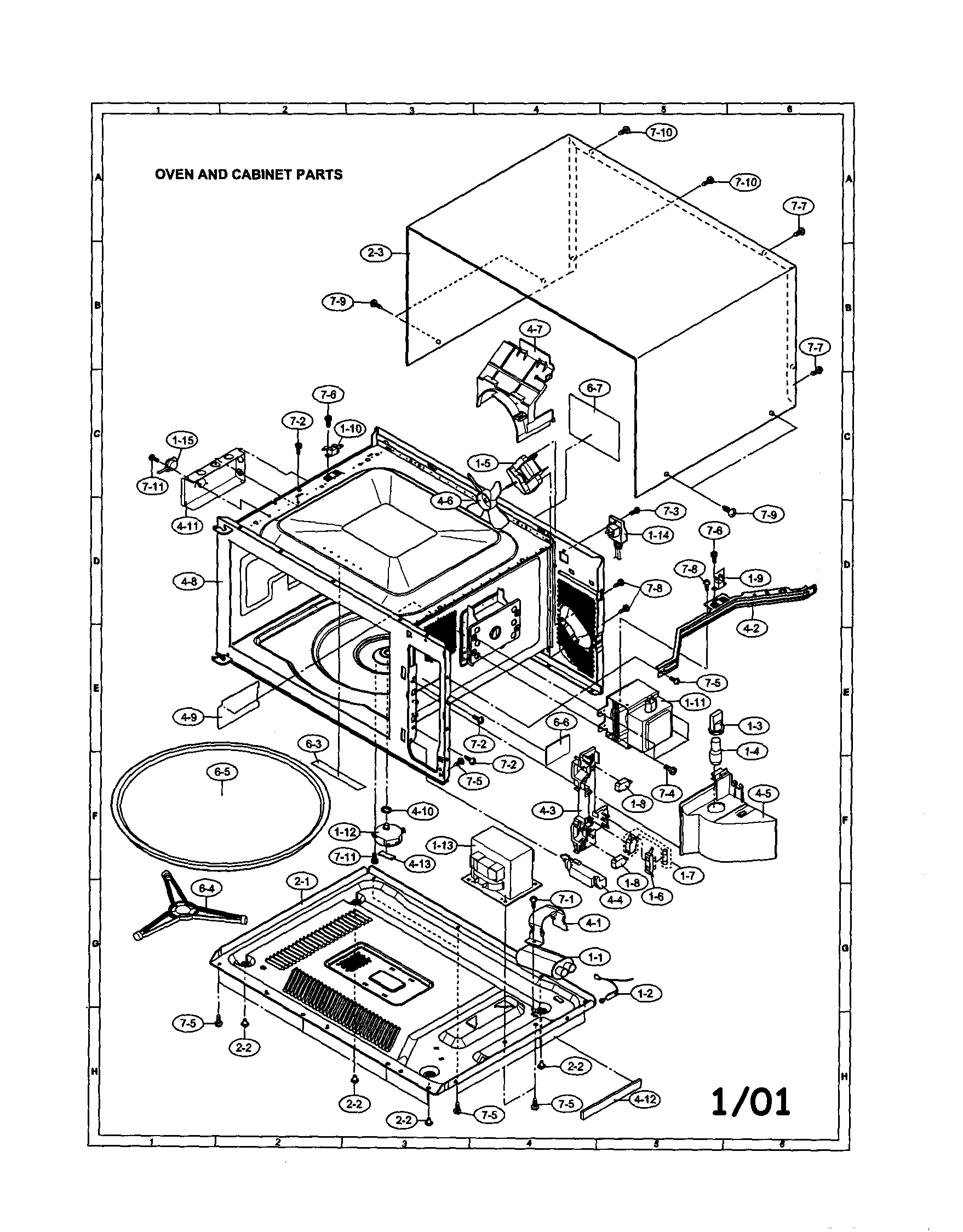

    Oven and cabinet diagram

    Power Control Board Assembly

    Part #46-356706-3

    The manufacturer no longer makes this part, and there's no substitute part

  • Resistor for Sharp R-530DW - Part VRD-B12EF472J

    #NI

    All parts diagram

    Resistor

    Part #VRD-B12EF472J

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor for Sharp R-530DW - Part RMOTDA229WRE0

    #1-12

    All parts diagram

    Motor

    Part #RMOTDA229WRE0

    The manufacturer no longer makes this part, and there's no substitute part

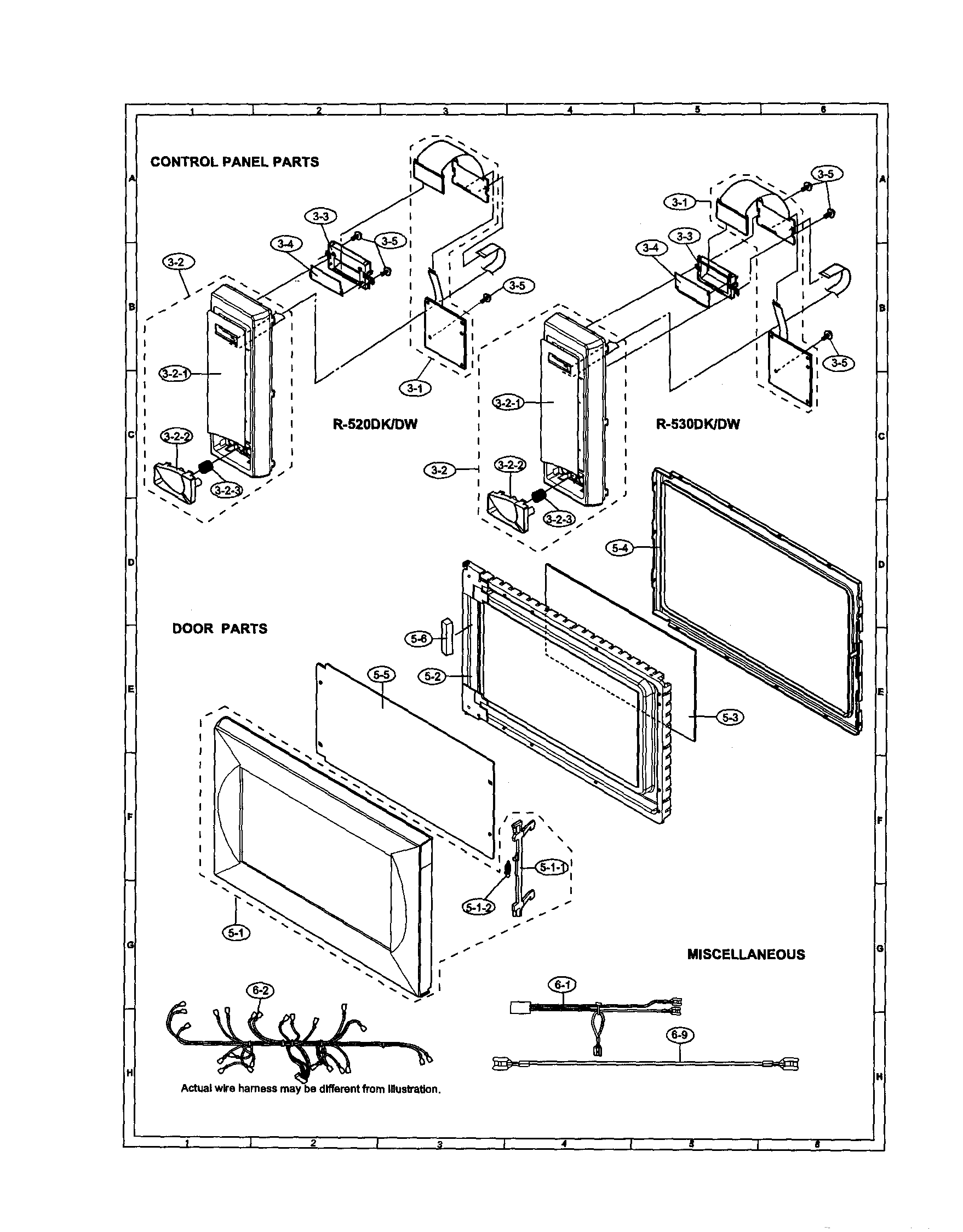

  • Cover for Sharp R-530DW - Part GCOVHB039MRF0

    #5-04

    All parts diagram

    Cover

    Part #GCOVHB039MRF0

    The manufacturer no longer makes this part, and there's no substitute part

  • Transformer for Sharp R-530DW - Part RTRNPB009MRE0

    #NI

    All parts diagram

    Transformer

    Part #RTRNPB009MRE0

    The manufacturer no longer makes this part, and there's no substitute part

  • Oven Cover for Sharp R-530DW - Part PCOVPB085MRP0

    #4-09

    All parts diagram

    Oven Cover

    Part #PCOVPB085MRP0

    The manufacturer no longer makes this part, and there's no substitute part

  • Hook for Sharp R-530DW - Part PHOK-B018MRF0

    #4-03

    All parts diagram

    Hook

    Part #PHOK-B018MRF0

    The manufacturer no longer makes this part, and there's no substitute part

  • Door Panel for Sharp R-530DW - Part FDORFB049MRT0

    #5-02

    All parts diagram

    Door Panel

    Part #FDORFB049MRT0

    The manufacturer no longer makes this part, and there's no substitute part
