Jenn-Air AC110S coil cartridge Parts

Here are the diagrams and repair parts for Jenn-Air AC110S coil cartridge, as well as links to manuals and error code tables, if available.

Jenn-Air AC110S coil cartridge

By Schematic

By Part

SELECT DIAGRAM

Browse Parts for AC110S Ranges

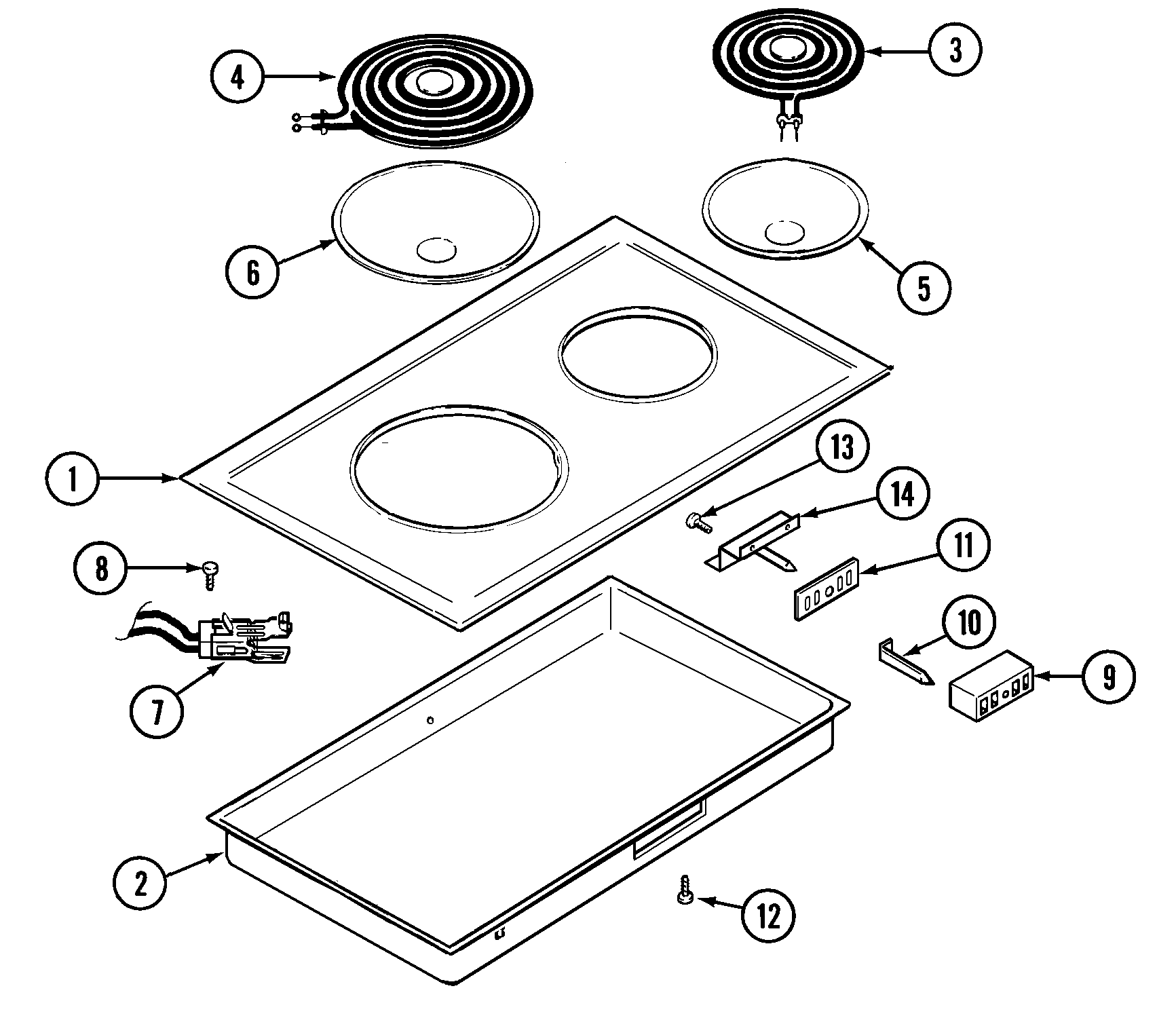

Conventional cartridge diagram
Range Drip Pan
Part #715877
This item is not returnable
In Stock
$8.86
10% OFF Phone Price : $9.86
Qty
Conventional cartridge diagram
Element (8")
Part #715928
The manufacturer no longer makes this part, and there's no substitute part
Conventional cartridge diagram
Terminal Block
Part #708730
Replaced by #WPY708730
Manufacturer substitution
This part replaces 708730. Substitute parts can look different from the original.
In Stock
$37.26
14% OFF Phone Price : $43.26
Qty
Conventional cartridge diagram
Screw
Part #708955
Replaced by #WP12990527
Manufacturer substitution
This part replaces 708955. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.80
17% OFF Phone Price : $5.80
Qty
Conventional cartridge diagram
Element, 6-in
Part #715927
The manufacturer no longer makes this part, and there's no substitute part
Conventional cartridge diagram
Screw
Part #708359
Replaced by #WP74004005
Manufacturer substitution
This part replaces 708359. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.91
17% OFF Phone Price : $5.91
Qty
Conventional cartridge diagram
Range Drip Pan
Part #715878
This item is not returnable
In Stock
$9.31
10% OFF Phone Price : $10.31
Qty
Conventional cartridge diagram
Insulator
Part #708834
In Stock
$40.16
Qty
Conventional cartridge diagram
Receptacle
Part #704146
Replaced by #WP74007474
Manufacturer substitution
This part replaces 704146. Substitute parts can look different from the original.
In Stock
$68.96
8% OFF Phone Price : $74.96
Qty
Conventional cartridge diagram
Kenmore Range Screw
Part #708861
Replaced by #WP488234
Manufacturer substitution
This part replaces 708861. Substitute parts can look different from the original.
In Stock
$28.95
Qty
