Frigidaire
Wall Oven/Microwave Combo

Model # FGMC2765PBG Official Frigidaire wall oven/microwave combo

Here are the diagrams and repair parts for Official Frigidaire FGMC2765PBG wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

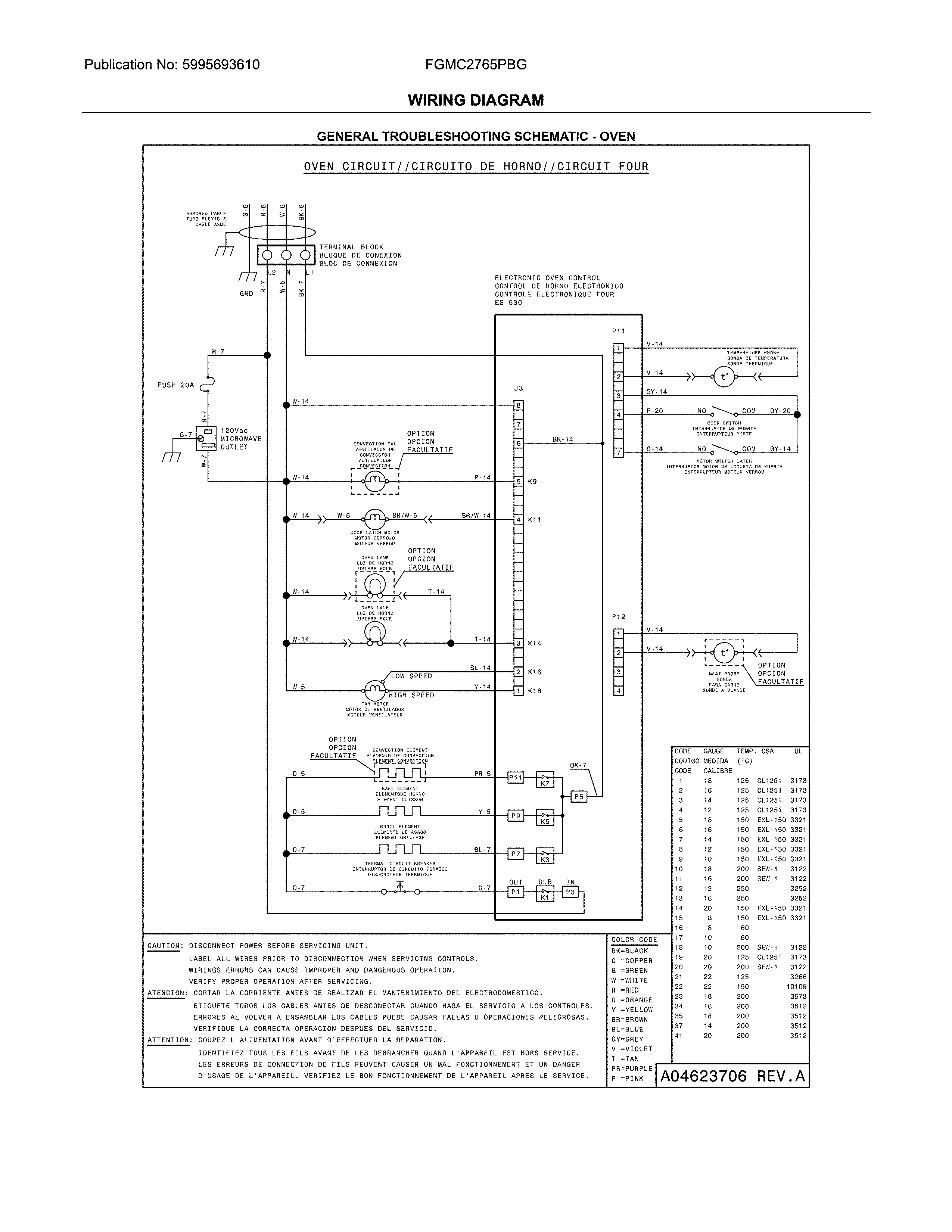

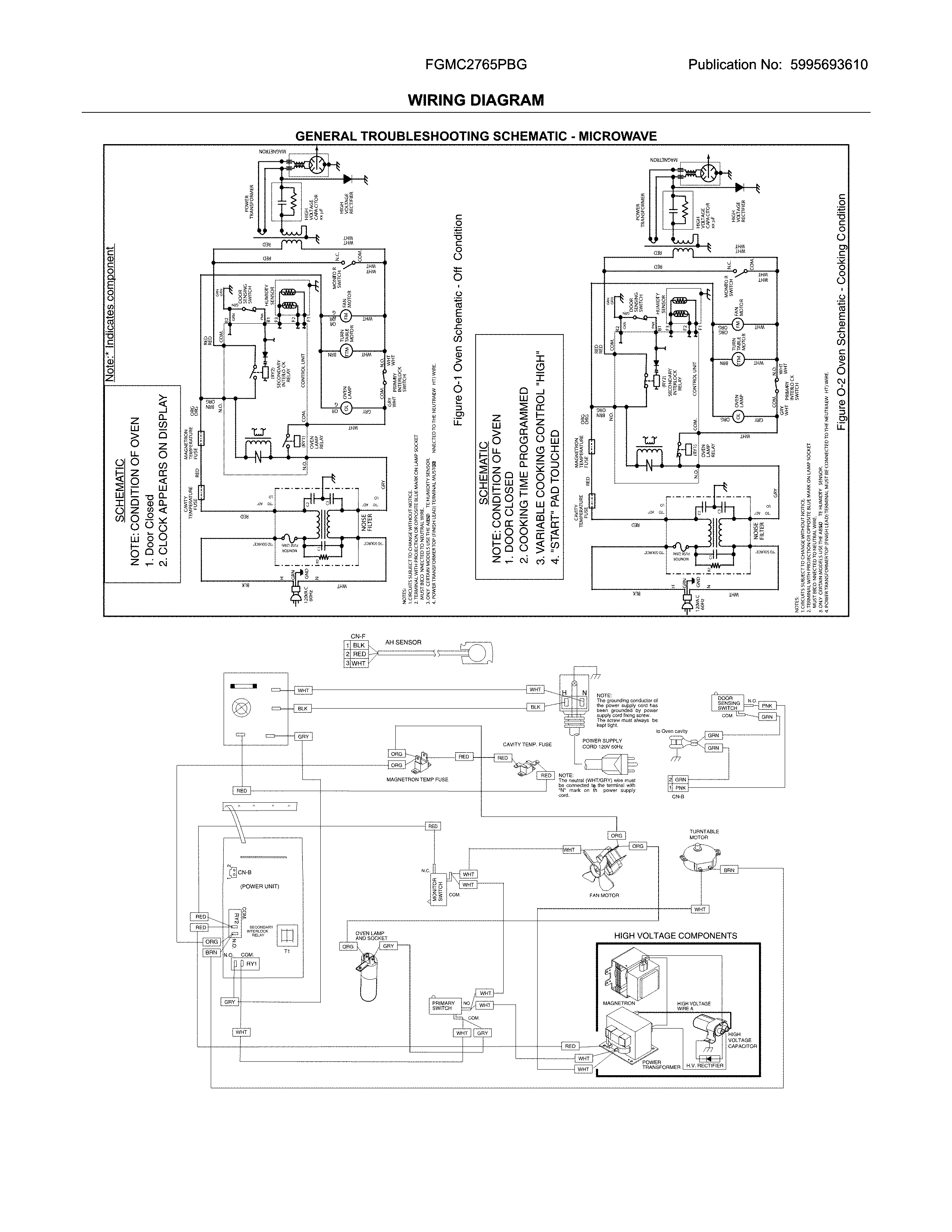

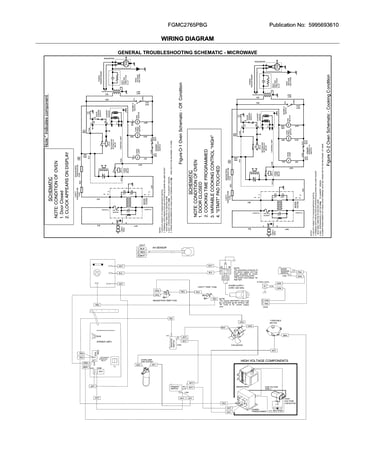

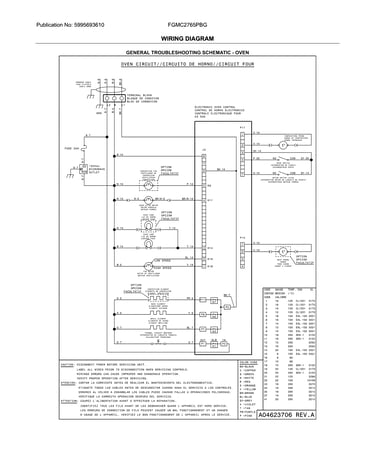

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 159 parts  |
Wall Oven Microwave Magnetron 5304472253
#8

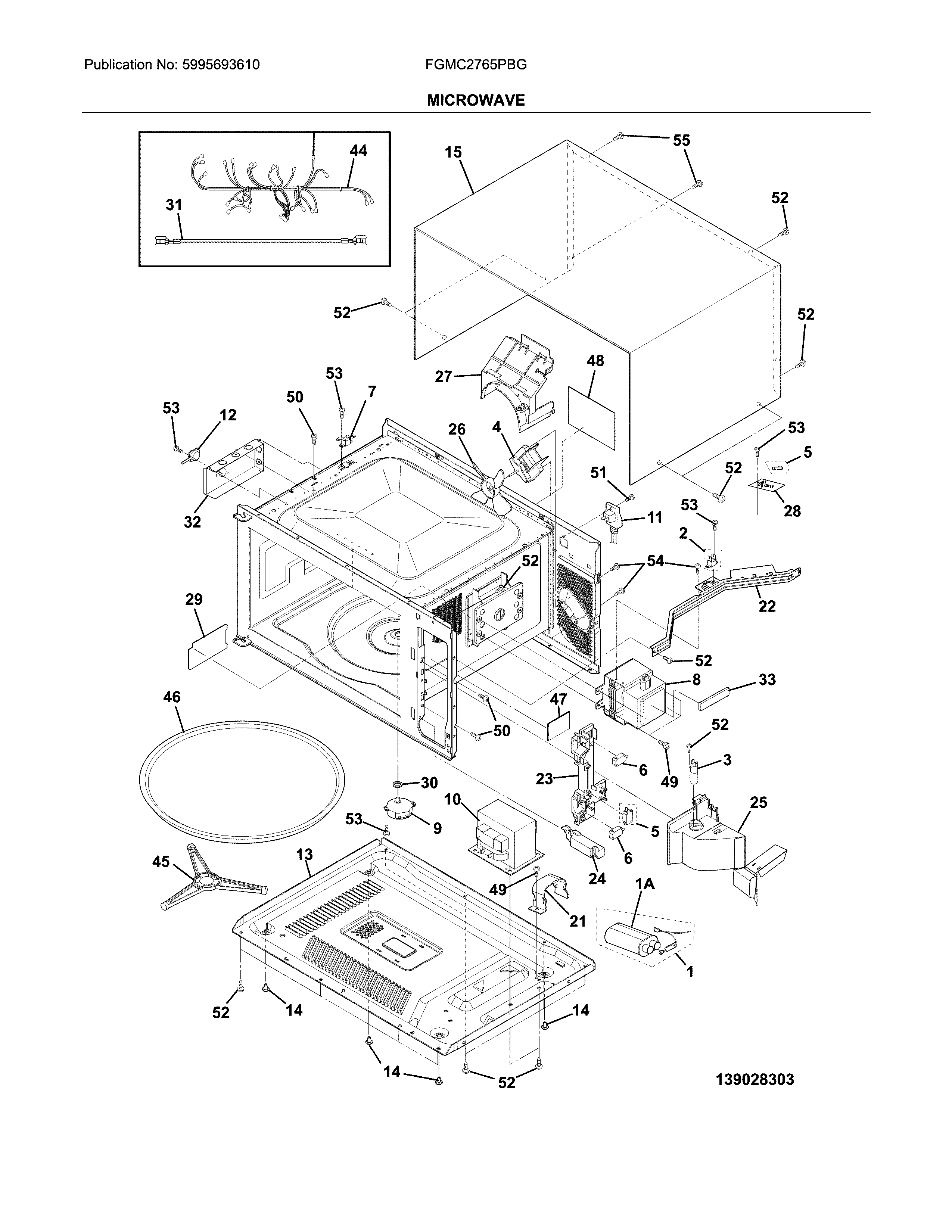

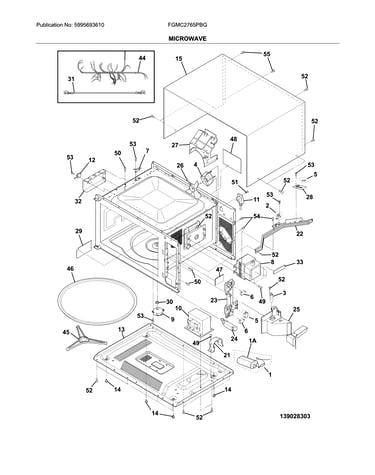

Microwave diagram

Wall oven microwave magnetron

Part #5304472253

Replaced by #5304521745

?
Manufacturer substitution
This part replaces 5304472253. Substitute parts can look different from the original.
BEST SELLER
$163.69 |
6% OFF Phone Price : $173.69
In Stock
Range Convection Fan Blade Nut (replaces 318399800, 5303311205, 7316136600) 316136600
#111

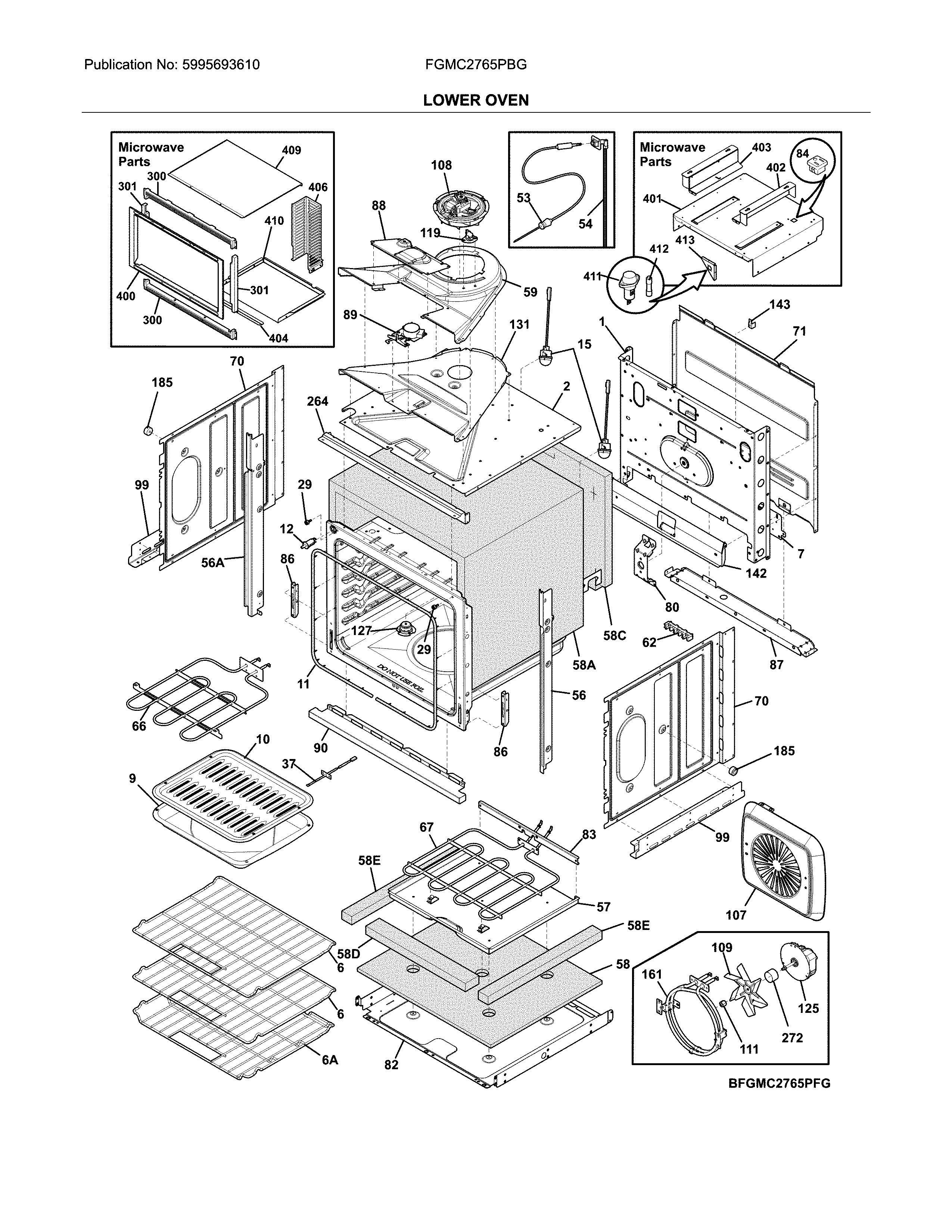

Lower oven diagram

Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)

Part #316136600

BEST SELLER
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Lever 5304464899
#24

Microwave diagram

Lever

Part #5304464899

Replaced by #5304485407

?
Manufacturer substitution
This part replaces 5304464899. Substitute parts can look different from the original.
$51.29 |
9% OFF Phone Price : $56.29
In Stock
Range Control Panel Cooling Fan 318575612
#108

Lower oven diagram

Range control panel cooling fan

Part #318575612

$167.94 |
6% OFF Phone Price : $177.94
In Stock
Cover 5304478947
#29

Microwave diagram

Cover

Part #5304478947

Replaced by #5304462314

?
Manufacturer substitution
This part replaces 5304478947. Substitute parts can look different from the original.
$49.09 |
9% OFF Phone Price : $54.09
In Stock
Microwave Door Interlock Switch And Fuse (replaces 75303319559) 5303319559
#5

Microwave diagram

Microwave door interlock switch and fuse (replaces 75303319559)

Part #5303319559

$77.69 |
6% OFF Phone Price : $82.69
In Stock
Range Oven Vent And Smoke Eliminator 139042600
#127

Lower oven diagram

Range oven vent and smoke eliminator

Part #139042600

$35.19 |
12% OFF Phone Price : $40.19
In Stock
Tube 139021700
#272

Lower oven diagram

Tube

Part #139021700

$17.49
In Stock
Range Screw (replaces 5304471237) 316418900
Range screw (replaces 5304471237)

Part #316418900

This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
Wall Oven Convection Fan Motor 139008502
#125

Lower oven diagram

Wall oven convection fan motor

Part #139008502

$110.79 |
8% OFF Phone Price : $120.79
In Stock
