Kenmore 5648668510 microwave/convection oven Parts

Here are the diagrams and repair parts for Kenmore 5648668510 microwave/convection oven, as well as links to manuals and error code tables, if available.

Kenmore 5648668510 microwave/convection oven
By Schematic
By Part

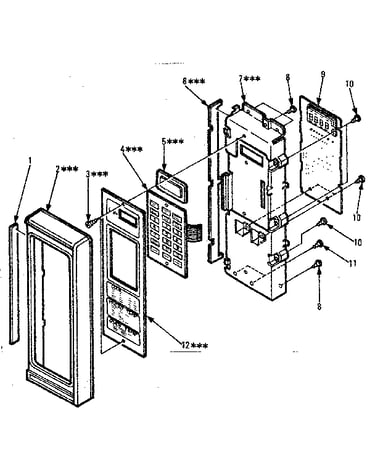

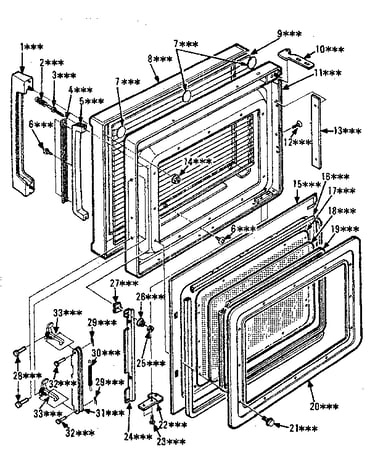

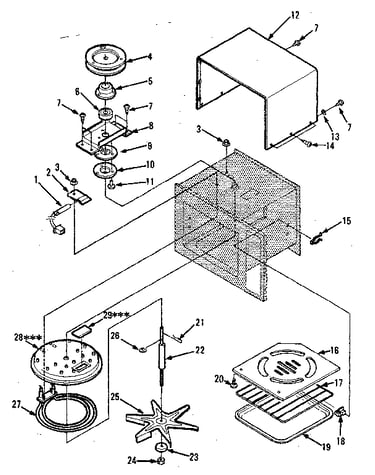

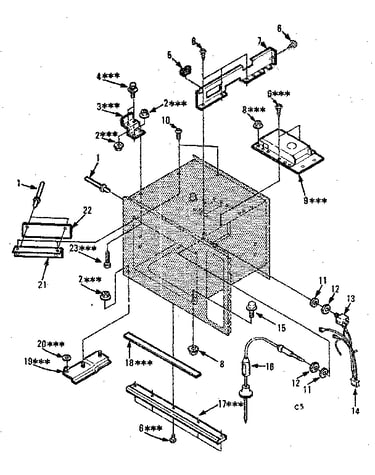

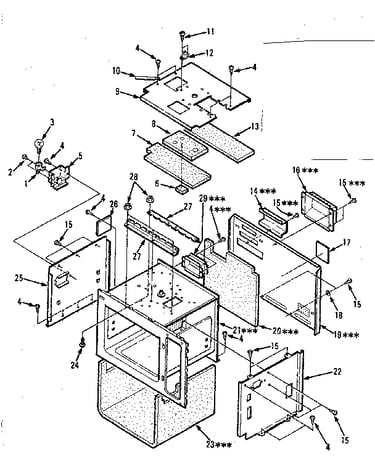

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 5648668510 Microwaves

  • Micro-switch for Kenmore 5648668510 - Part 11243

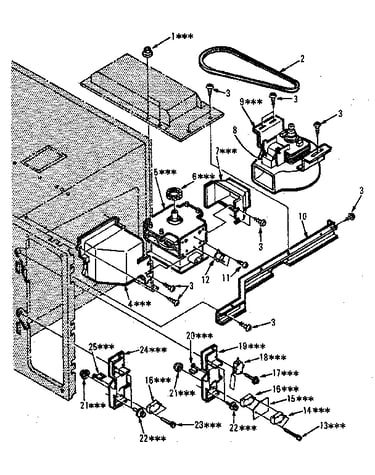

    Switches and microwave parts diagram

    Micro-switch

    Part #11243

    The manufacturer no longer makes this part, and there's no substitute part

  • Microwave Door Latch Lever for Kenmore 5648668510 - Part 11090

    Switches and microwave parts diagram

    Microwave Door Latch Lever

    Part #11090

    The manufacturer no longer makes this part, and there's no substitute part

  • Microwave Magnetron Thermostat for Kenmore 5648668510 - Part 11532

    Switches and microwave parts diagram

    Microwave Magnetron Thermostat

    Part #11532

    The manufacturer no longer makes this part, and there's no substitute part

  • Microwave Fuse, 15-amp for Kenmore 5648668510 - Part 11255

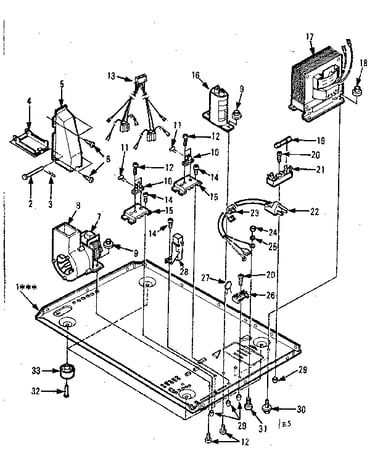

    Microwave parts diagram

    Microwave Fuse, 15-amp

    Part #11255

    The manufacturer no longer makes this part, and there's no substitute part

  • Intg Circuit for Kenmore 5648668510 - Part 11557

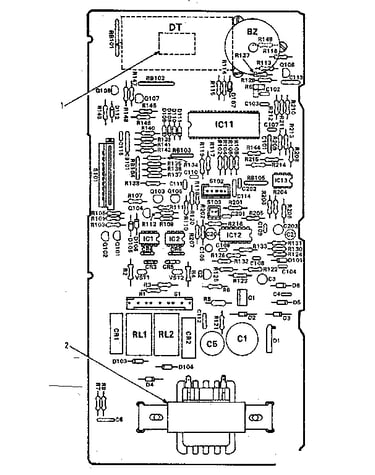

    Power and control circuit board (part no. 12676) diagram

    Intg Circuit

    Part #11557

    The manufacturer no longer makes this part, and there's no substitute part

  • Diode for Kenmore 5648668510 - Part 11181

    Power and control circuit board (part no. 12676) diagram

    Diode

    Part #11181

    The manufacturer no longer makes this part, and there's no substitute part

  • Resistor for Kenmore 5648668510 - Part 11730

    Resistor

    Part #11730

    The manufacturer no longer makes this part, and there's no substitute part

  • Fuse Holder for Kenmore 5648668510 - Part 11256

    Microwave parts diagram

    Fuse Holder

    Part #11256

    The manufacturer no longer makes this part, and there's no substitute part

  • Switch for Kenmore 5648668510 - Part 13000

    Switches and microwave parts diagram

    Switch

    Part #13000

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor for Kenmore 5648668510 - Part 11800

    Power and control circuit board (part no. 12676) diagram

    Capacitor

    Part #11800

    The manufacturer no longer makes this part, and there's no substitute part
