Whirlpool
Microwave/Hood Combo

Model # WMH1163XVQ1 Official Whirlpool 1.6 cubic foot microwave

Here are the diagrams and repair parts for Official Whirlpool WMH1163XVQ1 1.6 cubic foot microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

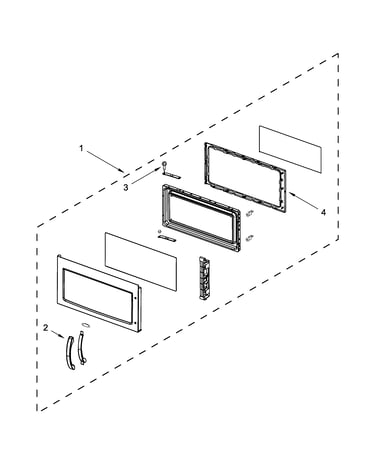

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |

Lamp Assembly 4393681
#3

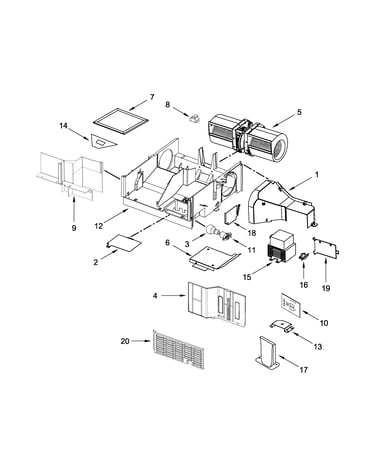

Air flow parts diagram

Lamp assembly

Part #4393681

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 4393681. Substitute parts can look different from the original.
BEST SELLER
$9.30
42% OFF MSRP : $16.00
Back Order
Microwave/hood Light Bulb 8206232
#2

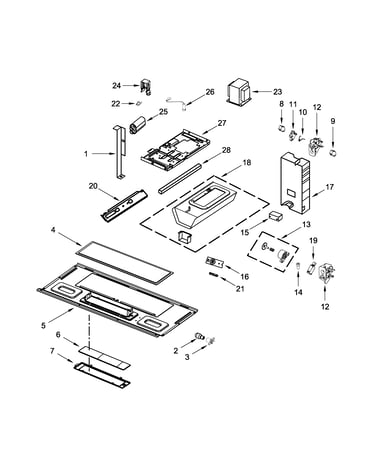

Interior and ventilation parts diagram

Microwave/hood light bulb

Part #8206232

Replaced by #8206232A

?
Manufacturer substitution
This part replaces 8206232. Substitute parts can look different from the original.
BEST SELLER
$9.30
42% OFF MSRP : $16.00
Back Order
Microwave Door Switch W10269457
#8

Interior and ventilation parts diagram

Microwave door switch

Part #W10269457

Replaced by #W10727360

?
Manufacturer substitution
This part replaces W10269457. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.36
71% OFF MSRP : $15.00
In Stock
Interlock W10156813
#12A

Interior and ventilation parts diagram

Interlock

Part #W10156813

Replaced by #WPW10156813

?
Manufacturer substitution
This part replaces W10156813. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.99
53% OFF MSRP : $15.00
In Stock
Microwave Door Interlock Support, Upper 8206419
#12

Interior and ventilation parts diagram

Microwave door interlock support, upper

Part #8206419

BEST SELLER
In Stock
Microwave Magnetron W10216360
#15

Air flow parts diagram

Microwave magnetron

Part #W10216360

Replaced by #W10754299

?
Manufacturer substitution
This part replaces W10216360. Substitute parts can look different from the original.
BEST SELLER
$183.60
5% OFF Phone Price : $193.60
In Stock
Microwave Door Interlock Spring W10156812
#10

Interior and ventilation parts diagram

Microwave door interlock spring

Part #W10156812

BEST SELLER
$7.73
59% OFF MSRP : $19.00
In Stock
Filter W10208631
#4

Interior and ventilation parts diagram

Filter

Part #W10208631

Replaced by #W10208631A

?
Manufacturer substitution
This part replaces W10208631. Substitute parts can look different from the original.
BEST SELLER
$35.32
12% OFF Phone Price : $40.32
In Stock
Filter 8206230
#7

Air flow parts diagram

Filter

Part #8206230

Replaced by #8206230A

?
Manufacturer substitution
This part replaces 8206230. Substitute parts can look different from the original.
BEST SELLER
$11.14
15% OFF Phone Price : $13.14
In Stock
Microwave Turntable Motor W10210848
#7

Turntable parts diagram

Microwave turntable motor

Part #W10210848

Replaced by #WPW10466420

?
Manufacturer substitution
This part replaces W10210848. Substitute parts can look different from the original.
$32.16
34% OFF MSRP : $49.00
In Stock
