Model # AD915DSZ1 Official GE room air conditioner - 1993

Here are the diagrams and repair parts for Official GE AD915DSZ1 room air conditioner - 1993, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

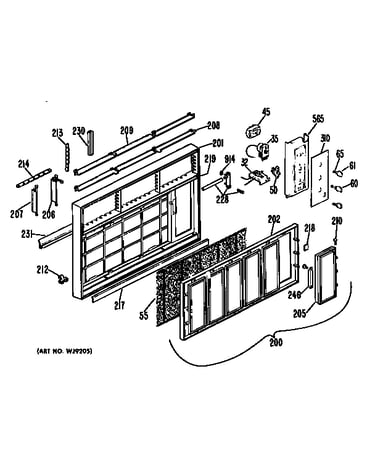

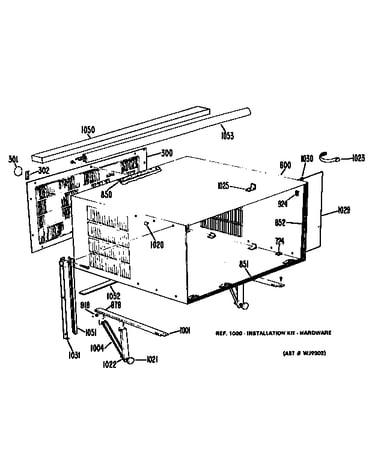

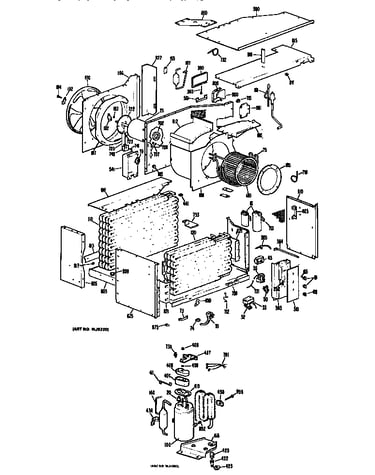

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Nut U Type WJ2X441

#911

All parts diagram

Nut u type

Part #WJ2X441

The manufacturer no longer makes this part, and there's no substitute part

Clip Compressor Mount WJ2X360

#423

All parts diagram

Clip compressor mount

Part #WJ2X360

The manufacturer no longer makes this part, and there's no substitute part

Link WJ71X515

#213

All parts diagram

Link

Part #WJ71X515

The manufacturer no longer makes this part, and there's no substitute part

Nut WJ1X208

#924

All parts diagram

Nut

Part #WJ1X208

The manufacturer no longer makes this part, and there's no substitute part

Adhesive - Kingco#15-165 WJ84X31

#5000

All parts diagram

Adhesive - kingco#15-165

Part #WJ84X31

The manufacturer no longer makes this part, and there's no substitute part

Louver Horizontal WJ71X916

#208

All parts diagram

Louver horizontal

Part #WJ71X916

The manufacturer no longer makes this part, and there's no substitute part

Vertical Louver W Tab WJ71X777

#206

All parts diagram

Vertical louver w tab

Part #WJ71X777

The manufacturer no longer makes this part, and there's no substitute part

Bracket WJ66X67

#NI

All parts diagram

Bracket

Part #WJ66X67

The manufacturer no longer makes this part, and there's no substitute part

Spring Damper Door WJ2X397

#363

All parts diagram

Spring damper door

Part #WJ2X397

The manufacturer no longer makes this part, and there's no substitute part

Nameplate (dirt Alert) WJ7X620

#218

All parts diagram

Nameplate (dirt alert)

Part #WJ7X620

The manufacturer no longer makes this part, and there's no substitute part
