Model # NAC236AKA1 Official ICP condensing unit

Here are the diagrams and repair parts for Official ICP NAC236AKA1 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Contactor 1050699
#4

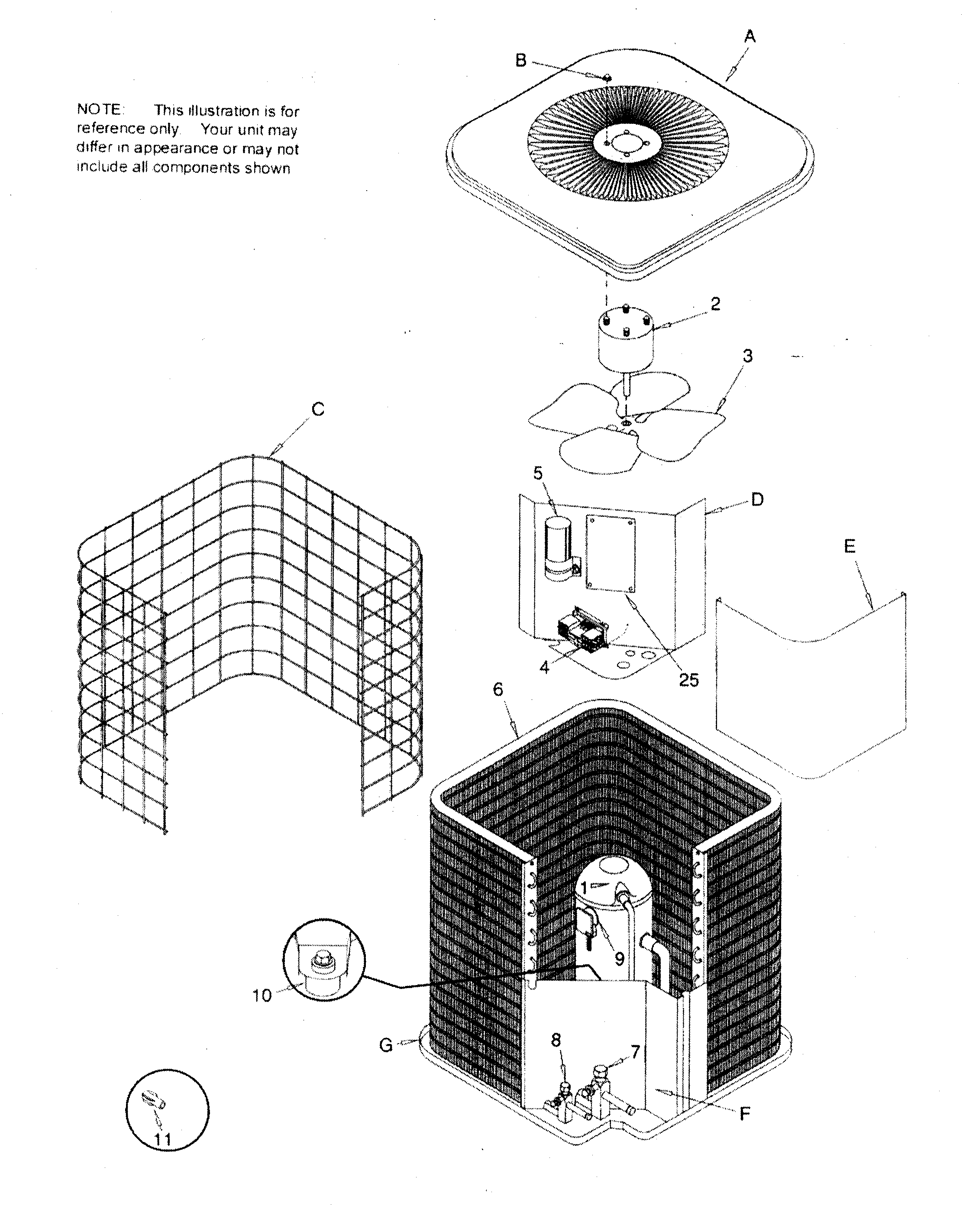

Condensing coil diagram

Contactor

Part #1050699

Replaced by #94-388

?
Manufacturer substitution
This part replaces 1050699. Substitute parts can look different from the original.
$33.20 |
13% OFF Phone Price : $38.20
In Stock
Fan Motor 1086696
#2

Condensing coil diagram

Fan motor

Part #1086696

$337.58
In Stock
Central Air Conditioner Refrigerant Suction Line Service Valve 1085991
#7

Condensing coil diagram

Central air conditioner refrigerant suction line service valve

Part #1085991

$107.04
In Stock
Valve 1085989
#8

Condensing coil diagram

Valve

Part #1085989

$73.29
In Stock
Plug Wire 1081939
#9

Condensing coil diagram

Plug wire

Part #1081939

Replaced by #1083654

?
Manufacturer substitution
This part replaces 1081939. Substitute parts can look different from the original.
$54.17 |
8% OFF Phone Price : $59.17
In Stock
Condens Coil 1086199
#6

Condensing coil diagram

Condens coil

Part #1086199

Replaced by #1087353

?
Manufacturer substitution
This part replaces 1086199. Substitute parts can look different from the original.
$1810.14
In Stock
See N File ZR32K3PFV130
#1

Condensing coil diagram

See n file

Part #ZR32K3PFV130

The manufacturer no longer makes this part, and there's no substitute part

Fan 1086029
#3

Condensing coil diagram

Fan

Part #1086029

The manufacturer no longer makes this part, and there's no substitute part

Box Cover 1086004
#E

Condensing coil diagram

Box cover

Part #1086004

The manufacturer no longer makes this part, and there's no substitute part

Grille 1086162
#C

Condensing coil diagram

Grille

Part #1086162

The manufacturer no longer makes this part, and there's no substitute part
