Model #217585511 Craftsman 5.0-hp outboard motor

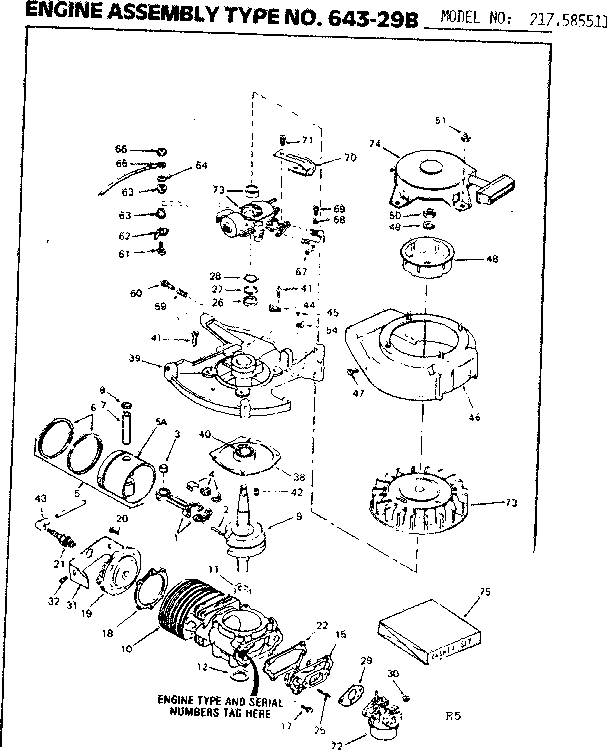

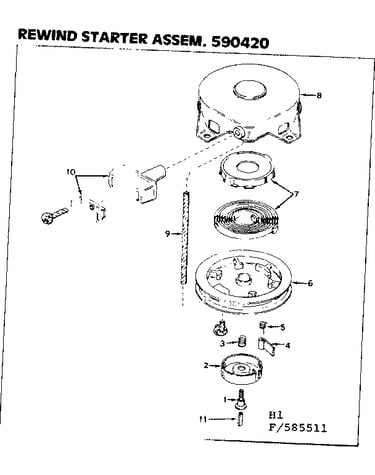

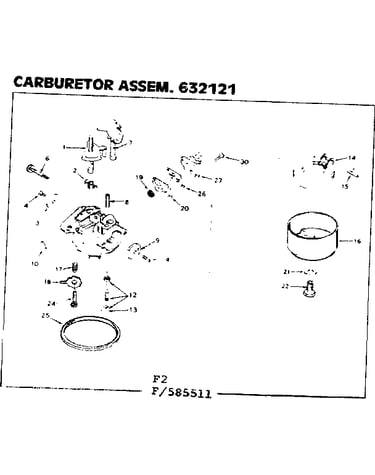

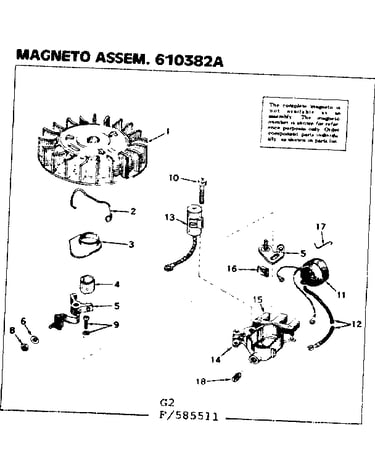

Here are the diagrams and repair parts for Craftsman 217585511 5.0-hp outboard motor, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 259 parts

Boat Motor Gear Housing Gasket

#33

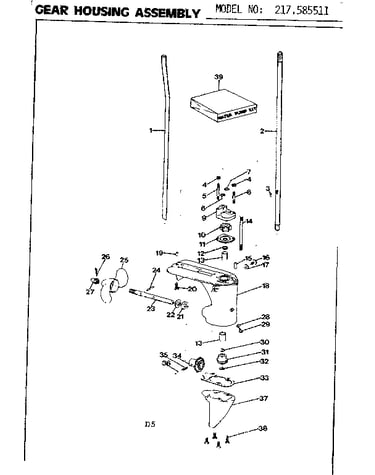

Gear housing assembly Diagram

Boat motor gear housing gasket

Part #26364

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Propeller Nut

#27

Gear housing assembly Diagram

Boat motor propeller nut

Part #26011

The manufacturer no longer makes this part, and there's no substitute part

Hood Latch Lever

#35

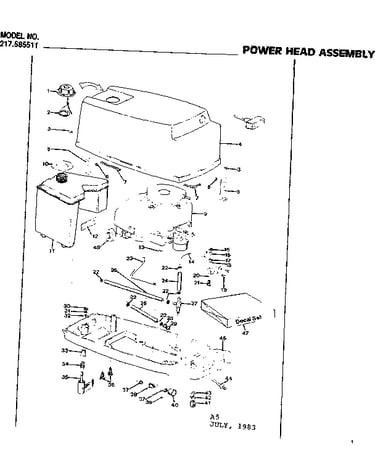

Power head Diagram

Hood latch lever

Part #56120

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Washer

#12

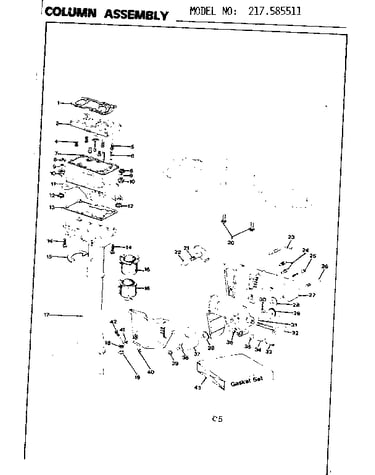

Column assembly Diagram

Boat motor washer

Part #5631

The manufacturer no longer makes this part, and there's no substitute part

Roll Pin

#15

Gear housing assembly Diagram

Roll pin

Part #7058

The manufacturer no longer makes this part, and there's no substitute part

Exercise Equipment Washer

#27

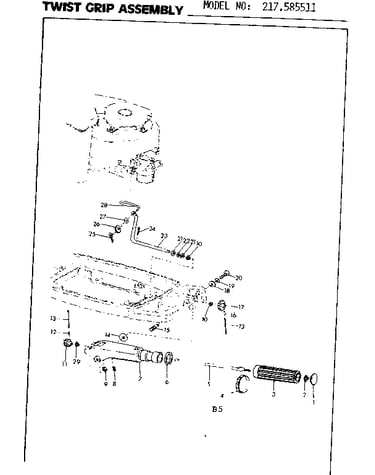

Twist grip Diagram

Exercise equipment washer

Part #4447

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Impeller Pin

#3

Gear housing assembly Diagram

Boat motor impeller pin

Part #36468

The manufacturer no longer makes this part, and there's no substitute part

Clamp

#22

Power head Diagram

Clamp

Part #91327

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Oil Seal

#7

Gear housing assembly Diagram

Boat motor oil seal

Part #96516

The manufacturer no longer makes this part, and there's no substitute part

Screw

#14

Column assembly Diagram

Screw

Part #579

The manufacturer no longer makes this part, and there's no substitute part
