Thermador PRD304EHC/01 gas range

Thermador PRD304EHC/01 gas range Parts

Here are the diagrams and repair parts for Thermador PRD304EHC/01 gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

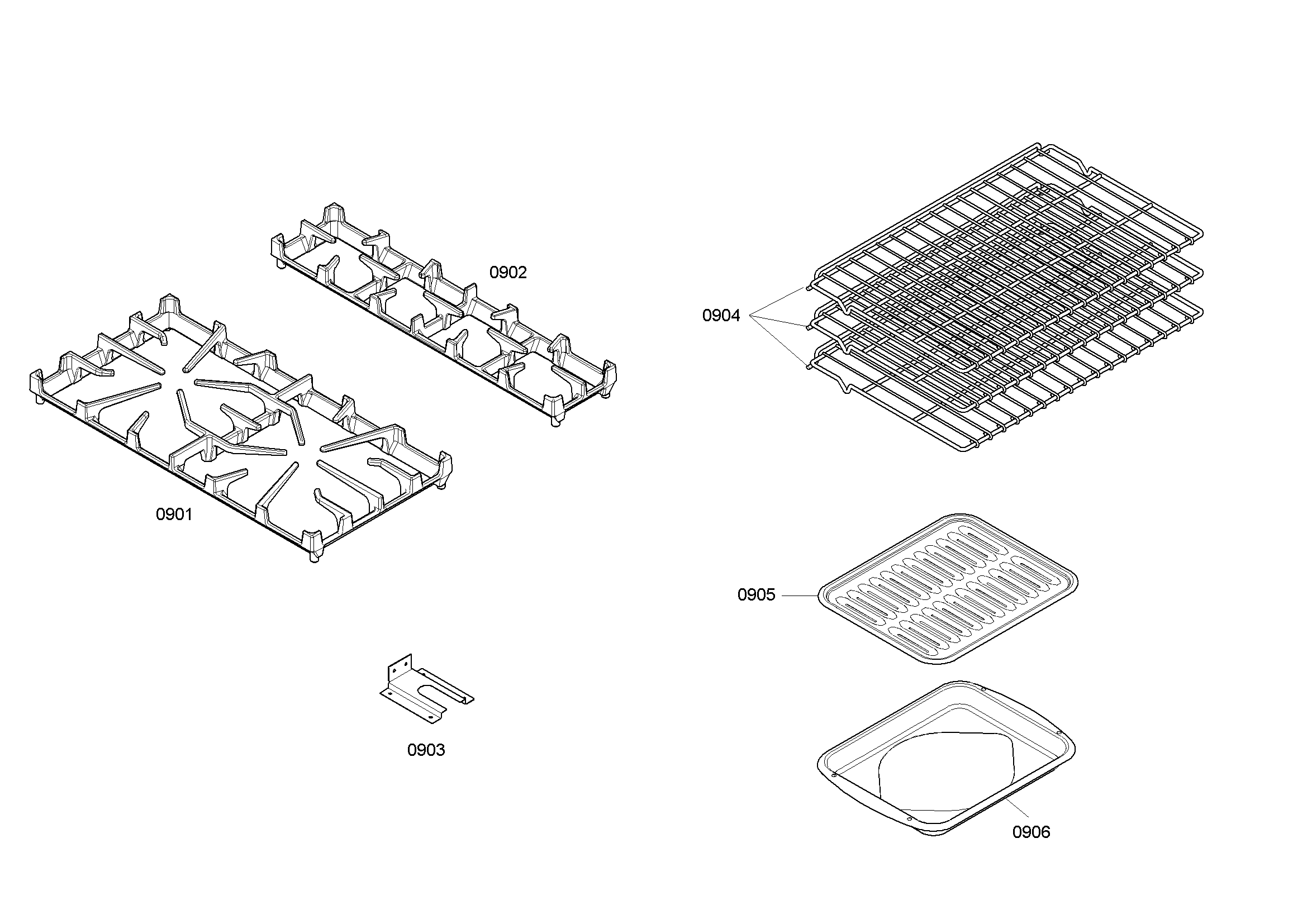

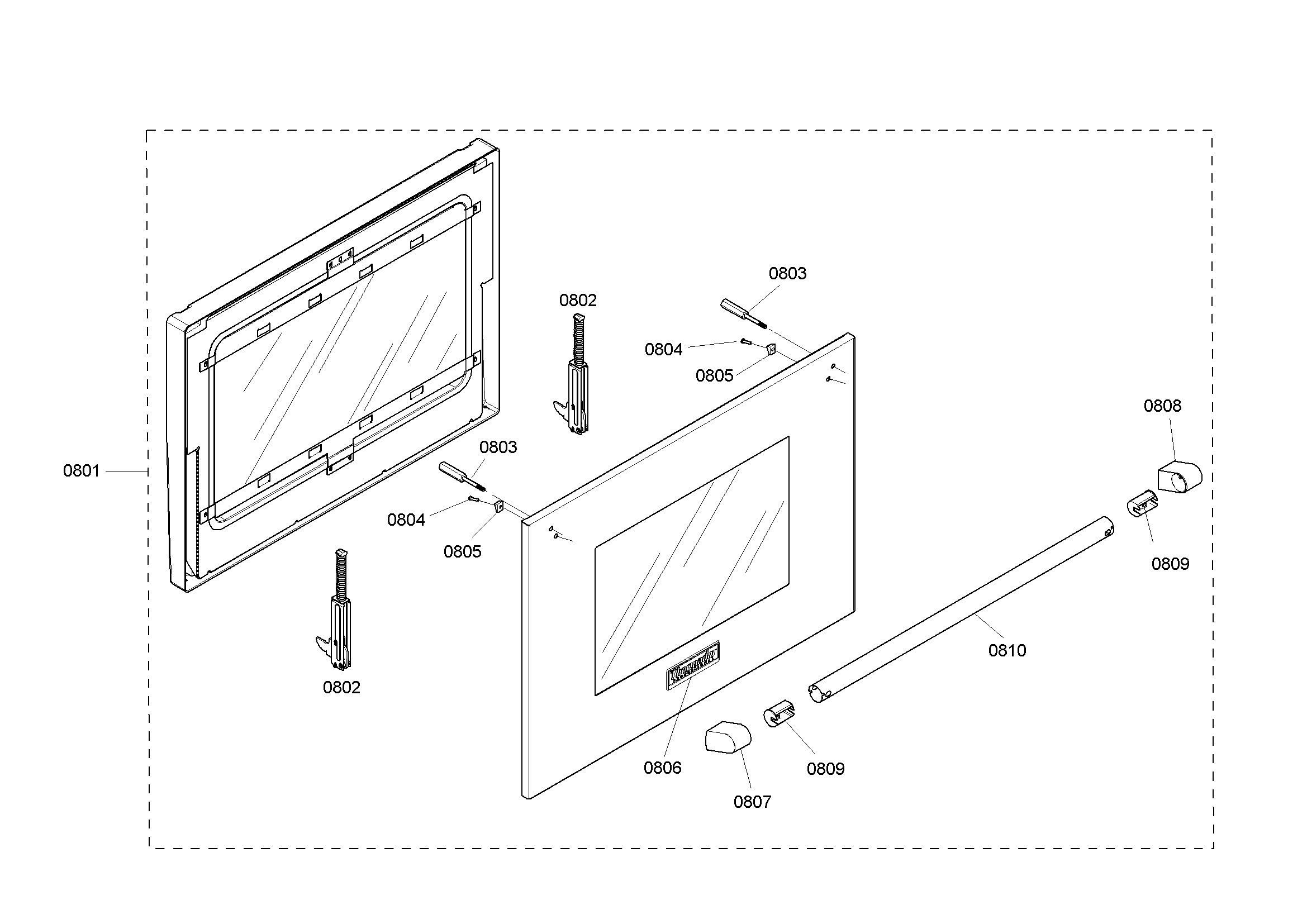

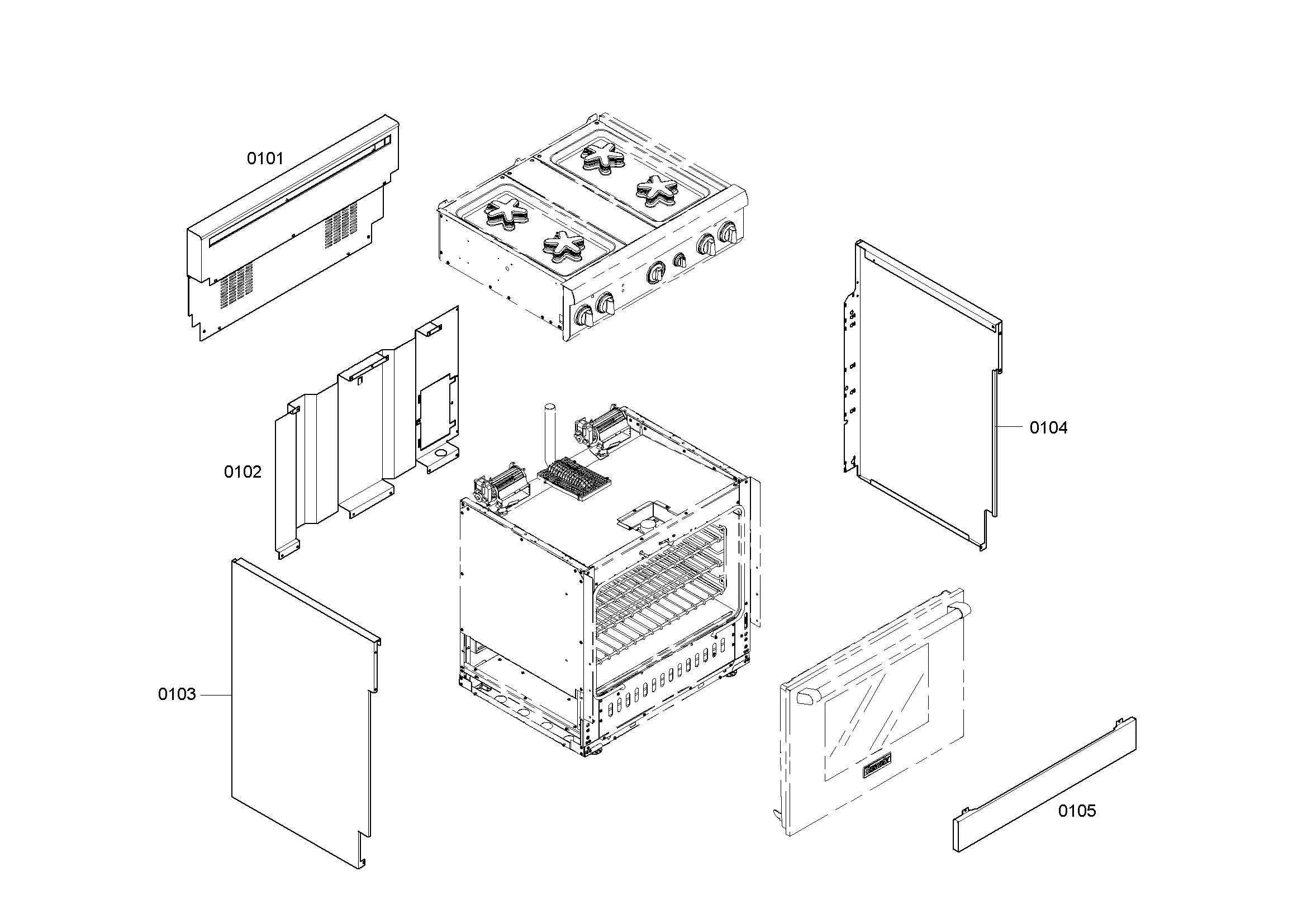

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for PRD304EHC/01 Gas Range

  • Range Extra Low Surface Burner Potentiometer for Thermador PRD304EHC/01 - Part 00422748

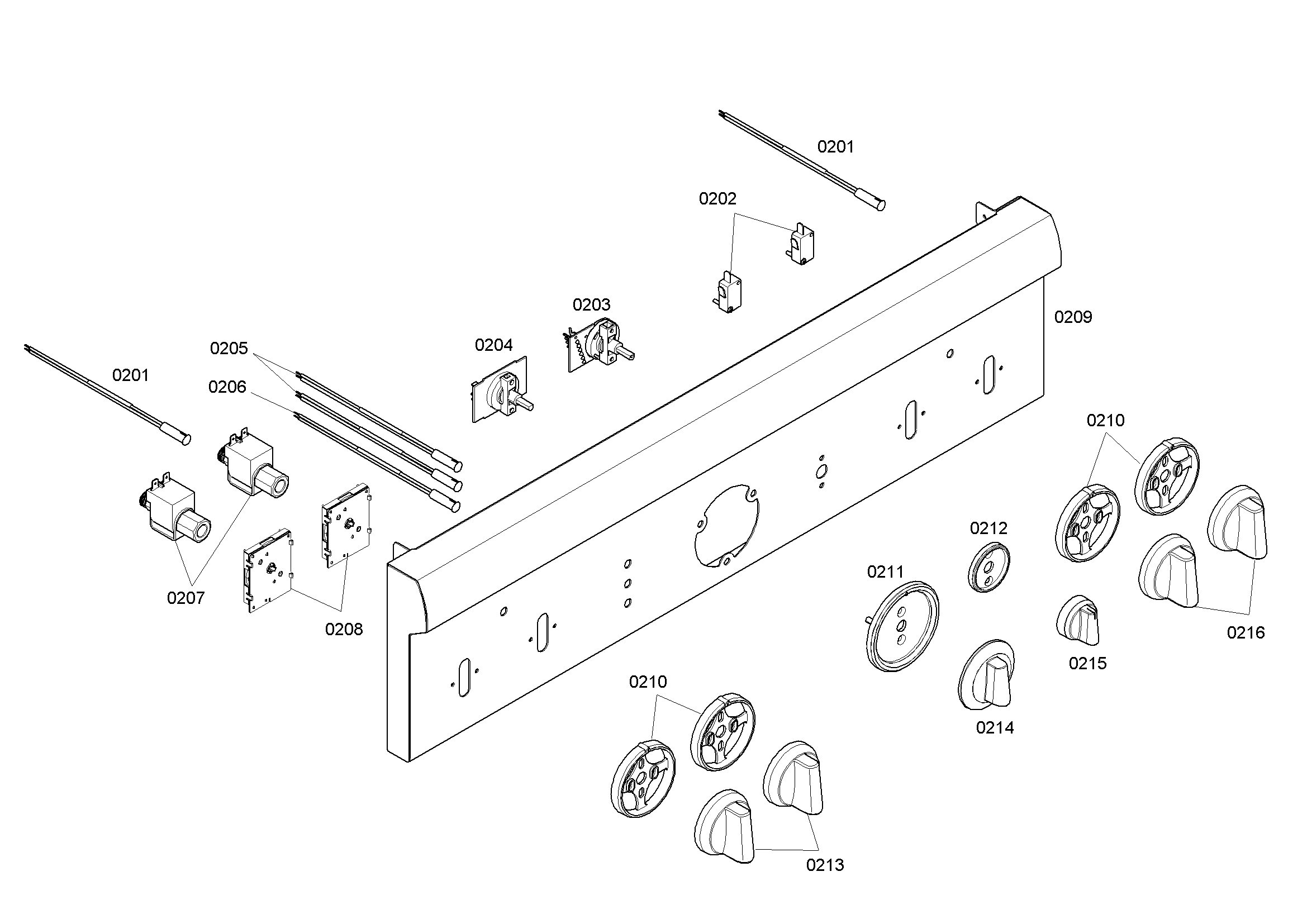

    Control panel diagram

    Pomentiometr

    Part #422748

    Replaced by #00422748

    Info Icon
    Manufacturer substitution
    This part replaces 422748. Substitute parts can look different from the original.
    In Stock
    $43.36
    43% OFF Was : $76.42Info Icon
    Minus Item
    Qty
    Plus Item
  • Transformer for Thermador PRD304EHC/01 - Part 00489194

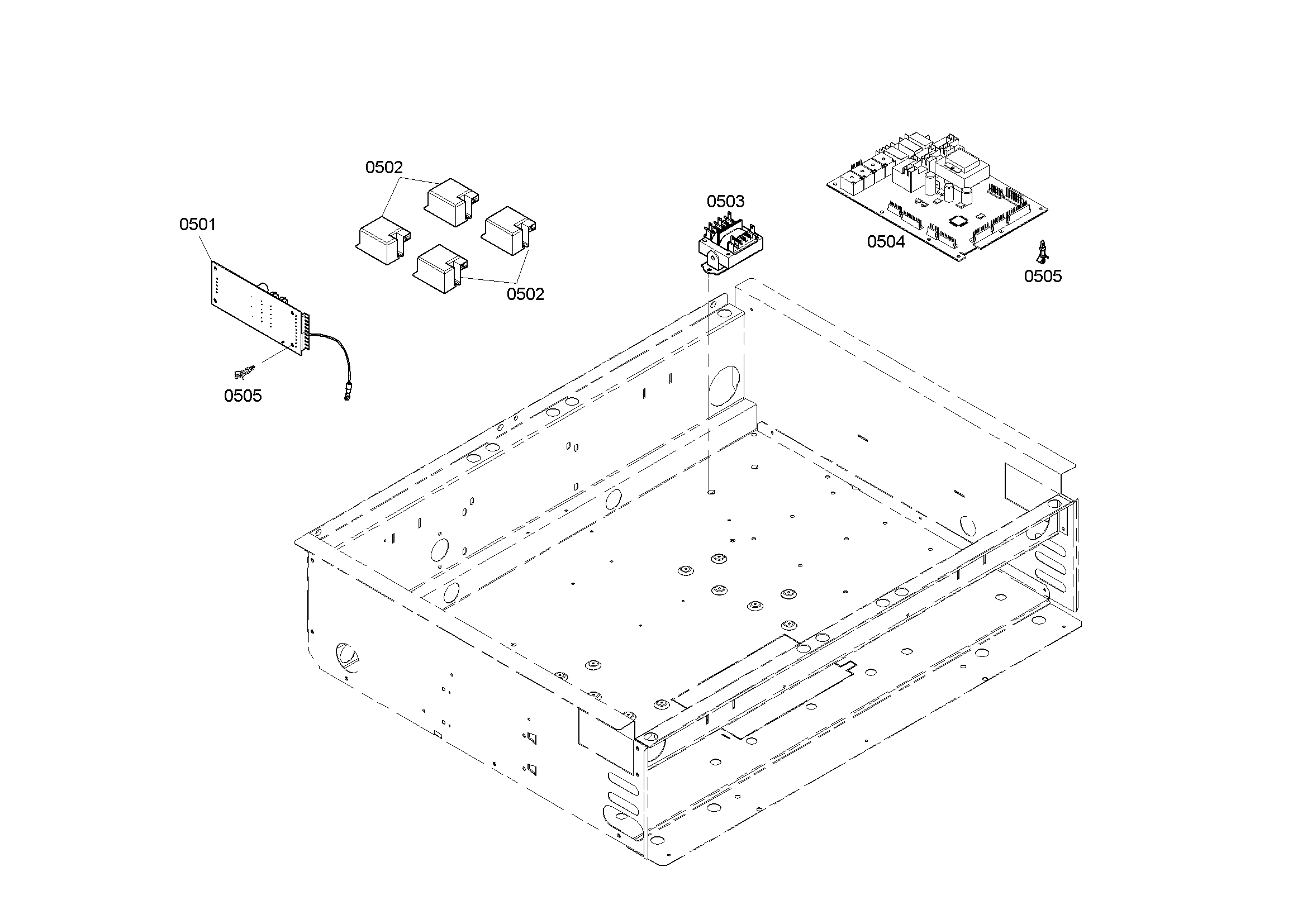

    Pcb's assy diagram

    Transformer

    Part #489194

    Replaced by #00489194

    Info Icon
    Manufacturer substitution
    This part replaces 489194. Substitute parts can look different from the original.
    In Stock
    $209.92
    Minus Item
    Qty
    Plus Item
  • Valve for Thermador PRD304EHC/01 - Part 00628629

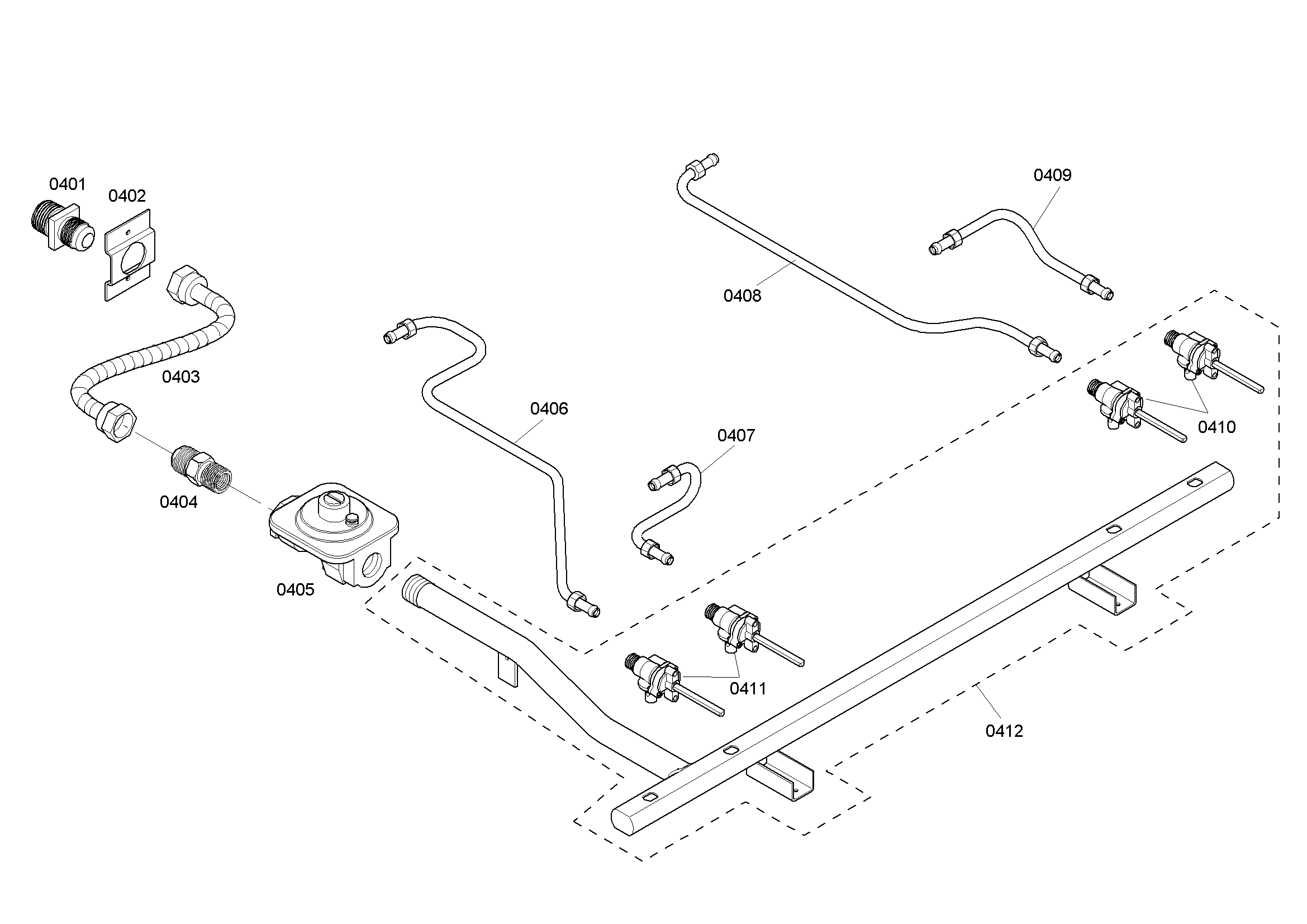

    Manifold diagram

    Valve Switch

    Part #492270

    Replaced by #00628629

    Info Icon
    Manufacturer substitution
    This part replaces 492270. Substitute parts can look different from the original.
    In Stock
    $193.96
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Valve for Thermador PRD304EHC/01 - Part 00423093

    Control panel diagram

    Solenoid Valve

    Part #423093

    Replaced by #00423093

    Info Icon
    Manufacturer substitution
    This part replaces 423093. Substitute parts can look different from the original.
    In Stock
    $186.91
    6% OFF Phone Price : $198.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Surface Burner Tube for Thermador PRD304EHC/01 - Part 00189023

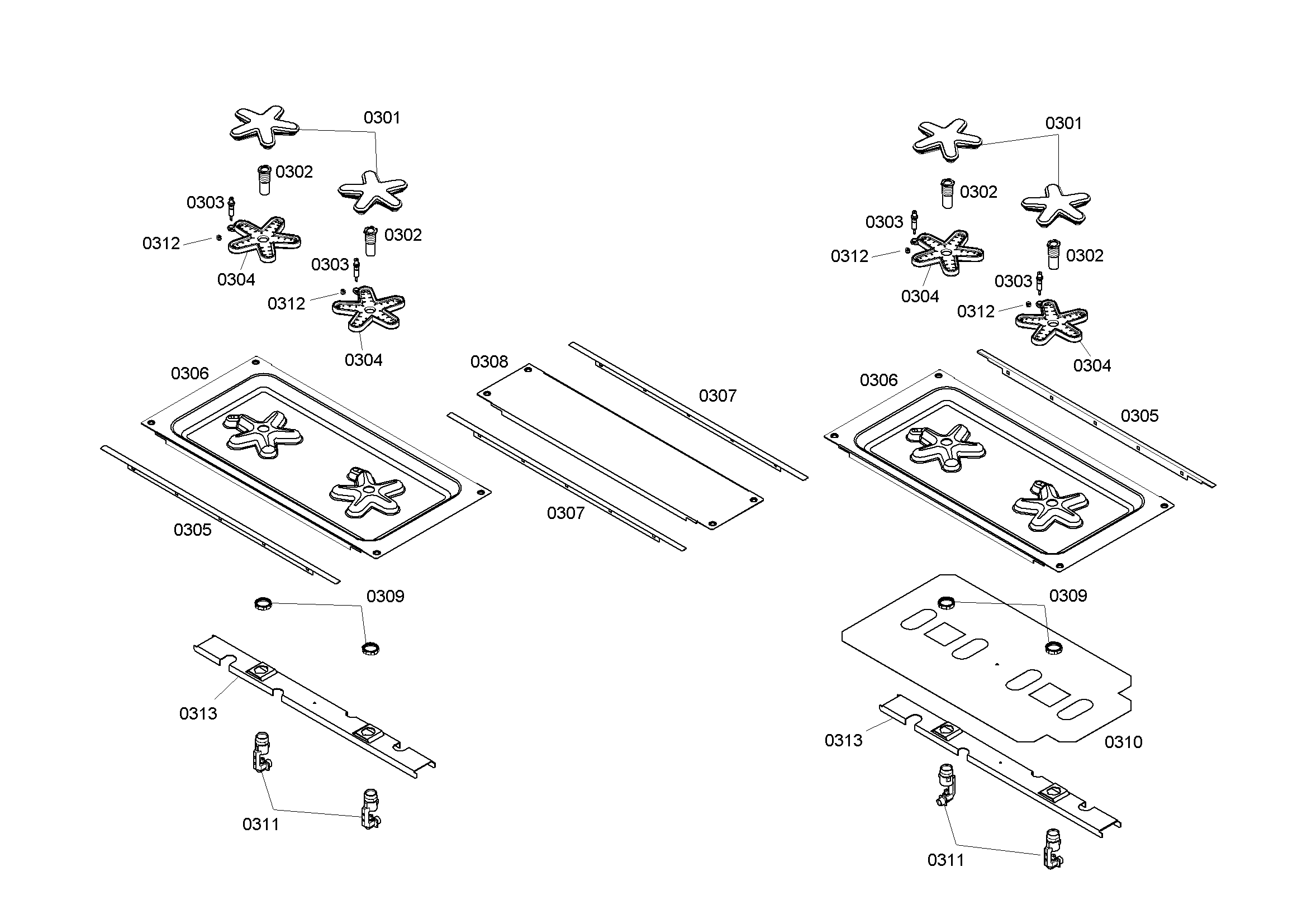

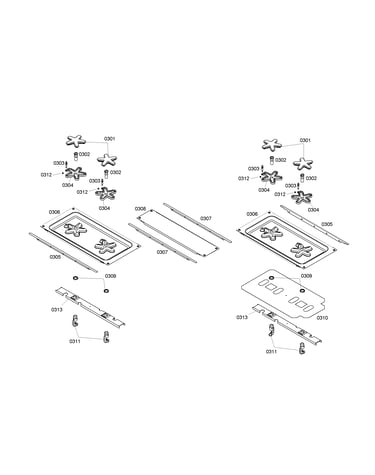

    Burners diagram

    Range Surface Burner Tube

    Part #189023

    Replaced by #00189023

    Info Icon
    Manufacturer substitution
    This part replaces 189023. Substitute parts can look different from the original.
    In Stock
    $43.64
    12% OFF Phone Price : $49.64Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Nut, 1-mm, 22-tpi for Thermador PRD304EHC/01 - Part 00188978

    Burners diagram

    Cooktop Burner Orifice Nut

    Part #188978

    Replaced by #00188978

    Info Icon
    Manufacturer substitution
    This part replaces 188978. Substitute parts can look different from the original.
    In Stock
    $22.92
    21% OFF Phone Price : $28.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Heater Element for Thermador PRD304EHC/01 - Part 00640401

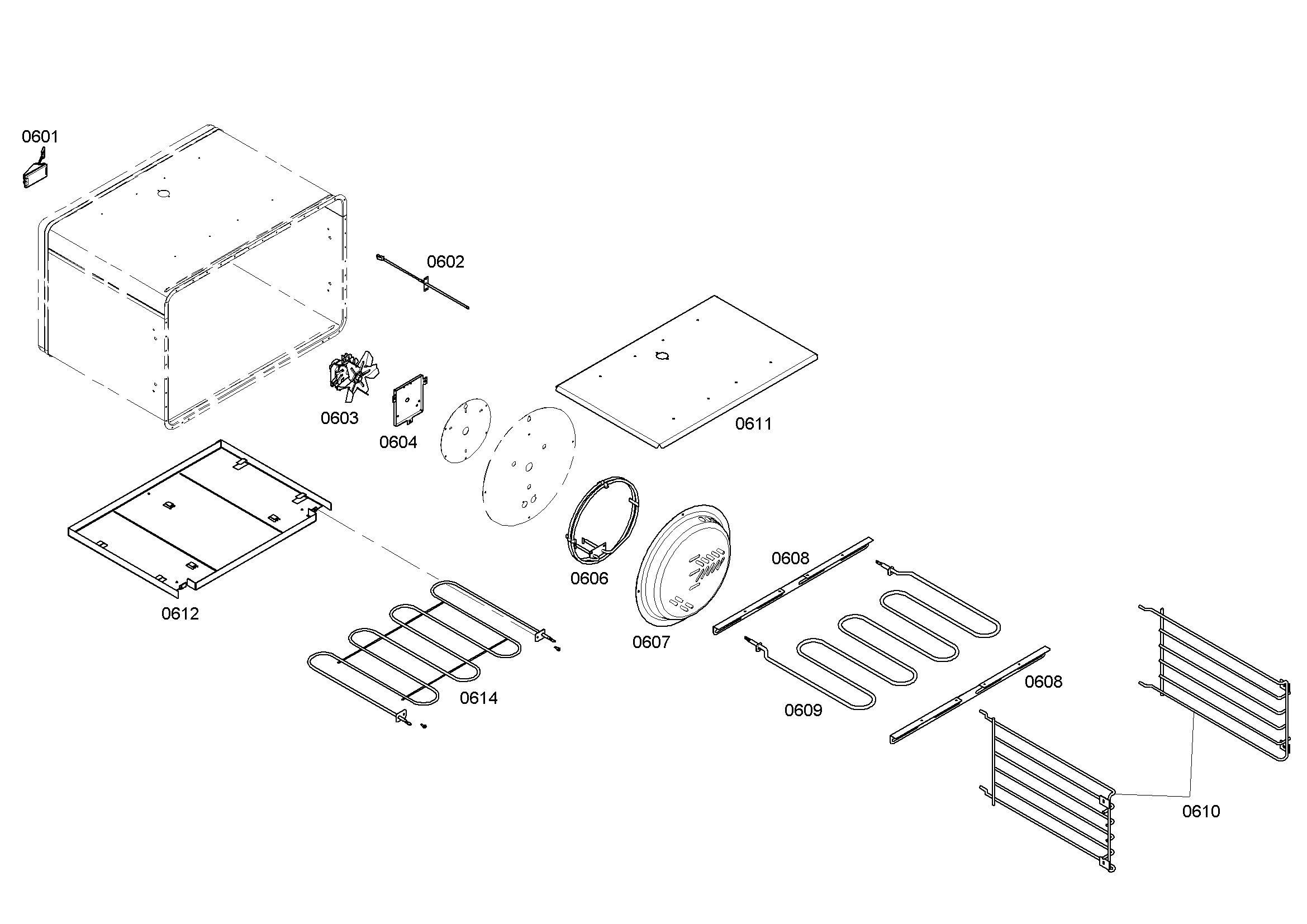

    Oven cell diagram

    Heater Element

    Part #640401

    Replaced by #00640401

    Info Icon
    Manufacturer substitution
    This part replaces 640401. Substitute parts can look different from the original.
    In Stock
    $183.44
    Minus Item
    Qty
    Plus Item
  • Thermador Range Surface Burner Supply Tube, Right Rear for Thermador PRD304EHC/01 - Part 00445582

    Manifold diagram

    Tube

    Part #445582

    Replaced by #00445582

    Info Icon
    Manufacturer substitution
    This part replaces 445582. Substitute parts can look different from the original.
    In Stock
    $142.12
    8% OFF Phone Price : $154.12Info Icon
    Minus Item
    Qty
    Plus Item
  • Oven Lamp for Thermador PRD304EHC/01 - Part 10007424

    Oven cell diagram

    Lamp Control

    Part #494242

    Replaced by #10007424

    Info Icon
    Manufacturer substitution
    This part replaces 494242. Substitute parts can look different from the original.
    In Stock
    $200.35
    Minus Item
    Qty
    Plus Item
  • Thermador Wall Oven Terminal Block for Thermador PRD304EHC/01 - Part 00436364

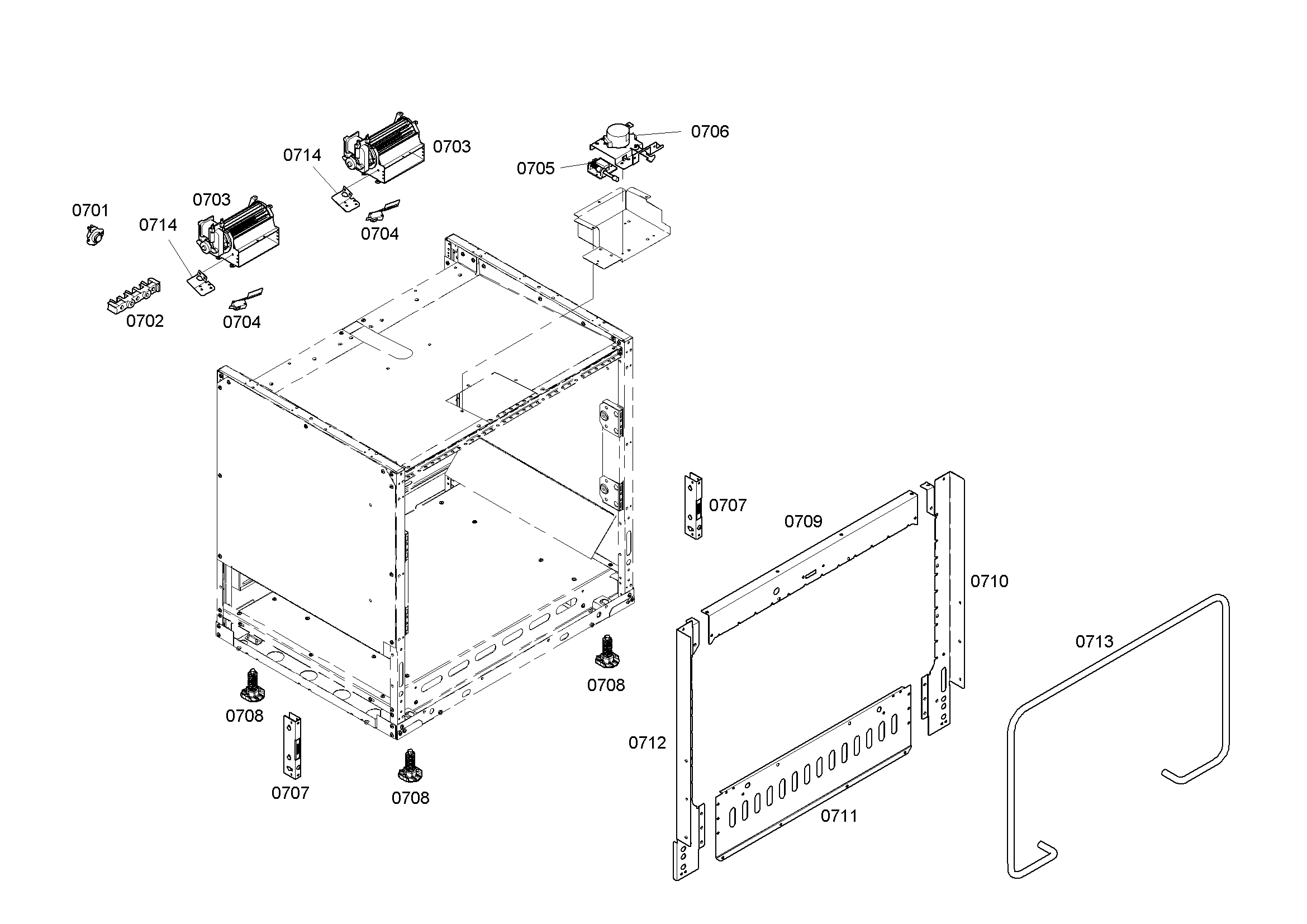

    Cabinet diagram

    Terminal Box

    Part #436364

    Replaced by #00436364

    Info Icon
    Manufacturer substitution
    This part replaces 436364. Substitute parts can look different from the original.
    In Stock
    $96.68
    Minus Item
    Qty
    Plus Item
