York
Central Air Conditioner

Model # B3CH060A25 Official York heat pump

Here are the diagrams and repair parts for Official York B3CH060A25 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Cap Run 024-20045-000
#14

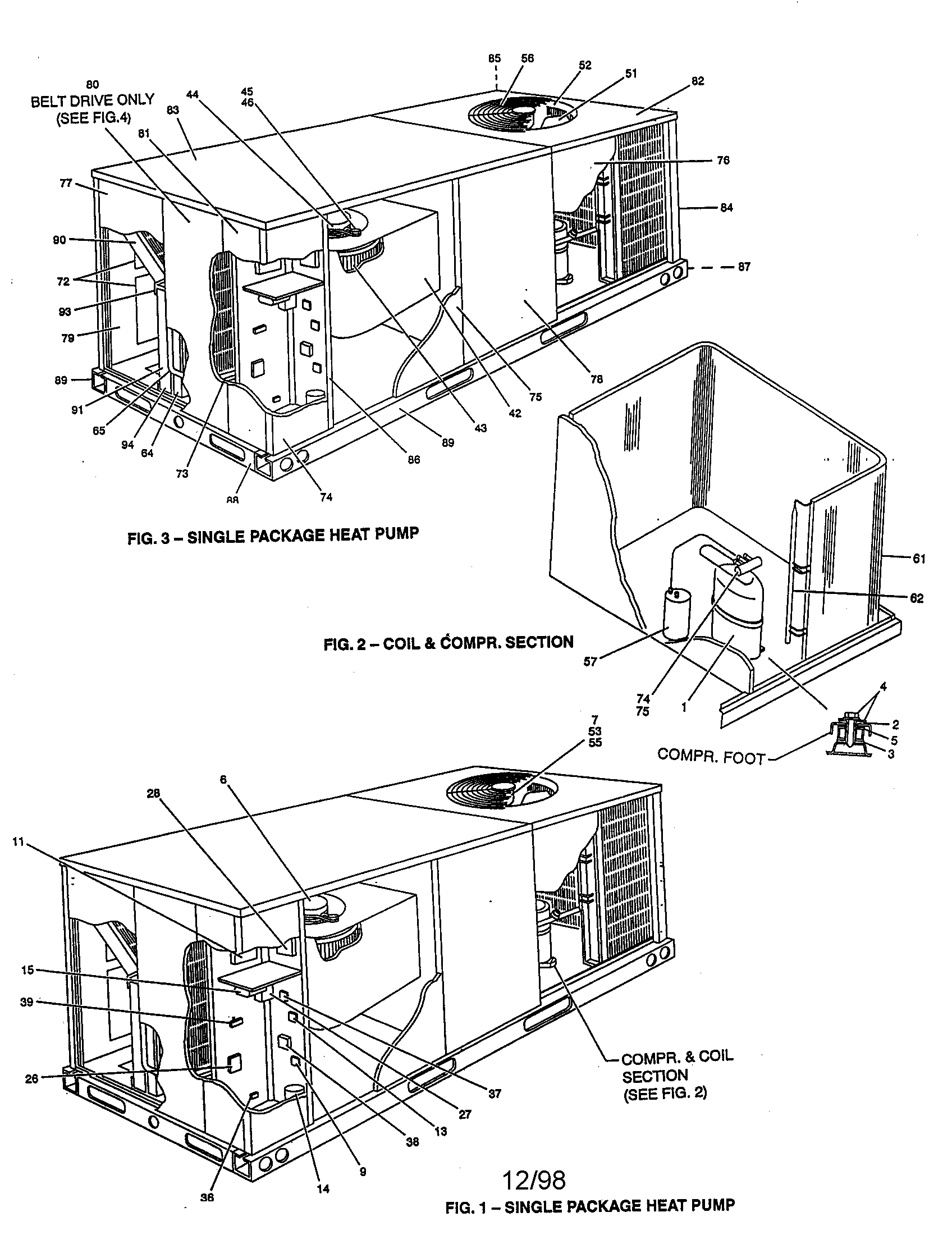

Replacement parts diagram

Cap run

Part #024-20045-000

Replaced by #12907

?
Manufacturer substitution
This part replaces 024-20045-000. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Capacitor 024-21060-000
#15

Replacement parts diagram

Capacitor

Part #024-21060-000

Replaced by #12910

?
Manufacturer substitution
This part replaces 024-21060-000. Substitute parts can look different from the original.
$8.37 |
11% OFF Phone Price : $9.37
In Stock
Belt 028-09573-000
#7

Belt drive option diagram

Belt

Part #028-09573-000

The manufacturer no longer makes this part, and there's no substitute part

Coil, Evaporator (includes Header And Distributor Assembly) 373-07684-001
#64

Replacement parts diagram

Coil, evaporator (includes header and distributor assembly)

Part #373-07684-001

The manufacturer no longer makes this part, and there's no substitute part

Sem, Valve (1/4 Od Tube) 022-08017-000
#60

Replacement parts diagram

Sem, valve (1/4 od tube)

Part #022-08017-000

The manufacturer no longer makes this part, and there's no substitute part

Label, Wiring (reference) (style A,b) 035-10312-000
#35

Replacement parts diagram

Label, wiring (reference) (style a,b)

Part #035-10312-000

The manufacturer no longer makes this part, and there's no substitute part

Side Panel 373-02027-000
#81A

Replacement parts diagram

Side panel

Part #373-02027-000

The manufacturer no longer makes this part, and there's no substitute part

Cont Elec 024-18056-002
#26

Replacement parts diagram

Cont elec

Part #024-18056-002

The manufacturer no longer makes this part, and there's no substitute part

Label, Wiring (reference) (style C) 035-14731-000
#35A

Replacement parts diagram

Label, wiring (reference) (style c)

Part #035-14731-000

The manufacturer no longer makes this part, and there's no substitute part

Accessories - Electrical Electric Heater (240v) 21.2kw (208/230-1-60) 2CE04502006

#NI

All parts diagram

Accessories - electrical electric heater (240v) 21.2kw (208/230-1-60)

Part #2CE04502006

The manufacturer no longer makes this part, and there's no substitute part
