JVC GZ-HM50SKUS camcorder Parts

Here are the diagrams and repair parts for JVC GZ-HM50SKUS camcorder, as well as links to manuals and error code tables, if available.

JVC GZ-HM50SKUS camcorder
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GZ-HM50SKUS Camcorders

  • Left Case for JVC GZ-HM50SKUS - Part LY37597-001B

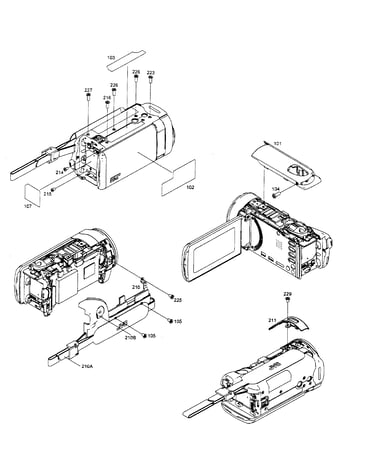

    Main assy 1 diagram

    Left Case

    Part #LY37597-001B

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC GZ-HM50SKUS - Part HGDESN031A-X

    Main assy 1 diagram

    Integrated Circuit

    Part #HGDESN031A-X

    The manufacturer no longer makes this part, and there's no substitute part

  • Cmos Frame for JVC GZ-HM50SKUS - Part LYA20082-01A

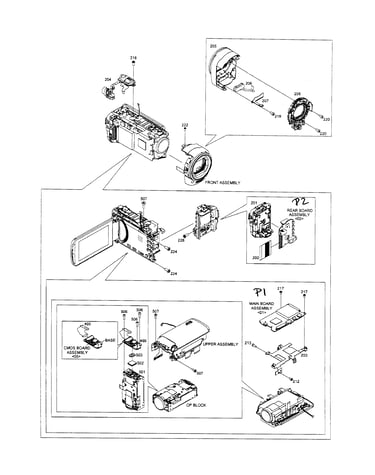

    Main assy 2 diagram

    Cmos Frame

    Part #LYA20082-01A

    The manufacturer no longer makes this part, and there's no substitute part

  • Pcb Rear for JVC GZ-HM50SKUS - Part LYA20080-07B1

    Main assy 2 diagram

    Pcb Rear

    Part #LYA20080-07B1

    The manufacturer no longer makes this part, and there's no substitute part

  • A/v Cable for JVC GZ-HM50SKUS - Part QAM1293-001

    Main assy 1 diagram

    A/v Cable

    Part #QAM1293-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Integrated Circuit for JVC GZ-HM50SKUS - Part XC6215B282NG-X

    Main assy 1 diagram

    Integrated Circuit

    Part #XC6215B282NG-X

    The manufacturer no longer makes this part, and there's no substitute part

  • Sheet Sub for JVC GZ-HM50SKUS - Part LY37620-001A

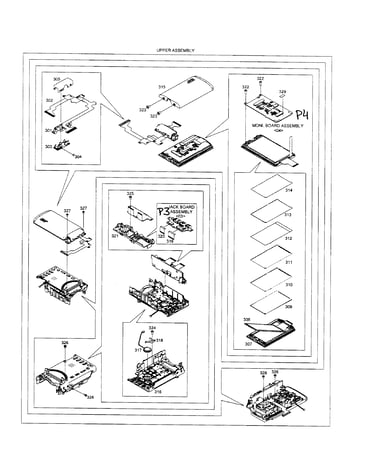

    Lcd assy diagram

    Sheet Sub

    Part #LY37620-001A

    The manufacturer no longer makes this part, and there's no substitute part

  • Usb Cable for JVC GZ-HM50SKUS - Part QAM1313-001

    Main assy 1 diagram

    Usb Cable

    Part #QAM1313-001

    The manufacturer no longer makes this part, and there's no substitute part

  • Cover for JVC GZ-HM50SKUS - Part LY37584-001A

    Main assy 2 diagram

    Cover

    Part #LY37584-001A

    The manufacturer no longer makes this part, and there's no substitute part

  • Pcb Monito for JVC GZ-HM50SKUS - Part LYA20080-07B2

    Lcd assy diagram

    Pcb Monito

    Part #LYA20080-07B2

    The manufacturer no longer makes this part, and there's no substitute part
