Amana ERCQ30-001A/P55420-4C remote condensing section - ercq series Parts

Name: Amana ERCQ30-001A/P55420-4C Parts | Diagrams | Sears PartsDirect
Brand: Amana
SKU: ERCQ30-001A/P55420-4C
Availability: InStock

Here are the diagrams and repair parts for Amana ERCQ30-001A/P55420-4C remote condensing section - ercq series, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

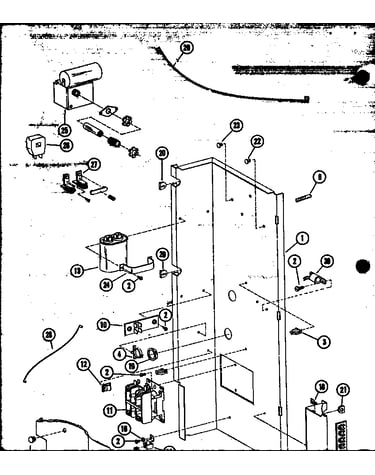

Browse Parts for ERCQ30-001A/P55420-4C Remote Condensing Section - ERCQ Series

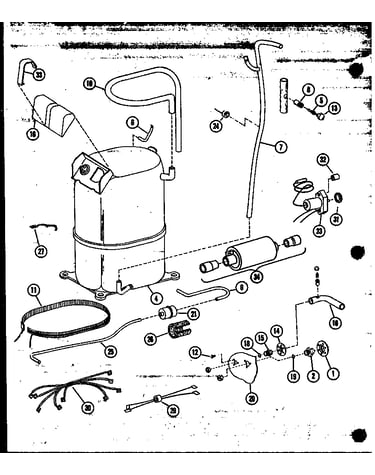

Compressor and tubing parts (ercq24-001a/p55420-3c) (ercq30-001a/p55420-4c) (ercq36-001a/p55420-5c) (ercq42-001a/p55420-6c) diagram
Process Tube
Part #A3339101
The manufacturer no longer makes this part, and there's no substitute part
Compressor and tubing parts (ercq24-001a/p55420-3c) (ercq30-001a/p55420-4c) (ercq36-001a/p55420-5c) (ercq42-001a/p55420-6c) diagram
Tube, Suction, Q.c. To Compressor
Part #C6145001
The manufacturer no longer makes this part, and there's no substitute part

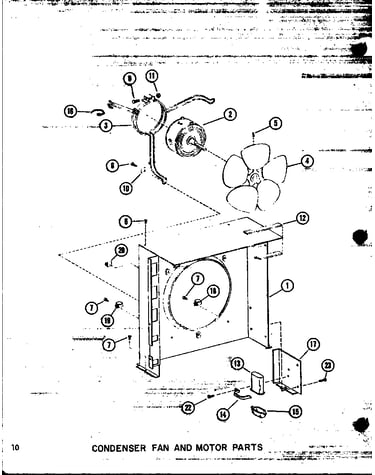

Condenser fan and motor parts (ercq24-001a/p55420-3c) (ercq30-001a/p55420-4c) (ercq36-001a/p55420-5c) (ercq42-001a/p55420-6c) diagram
Boot Capacitor
Part #A3375801
The manufacturer no longer makes this part, and there's no substitute part

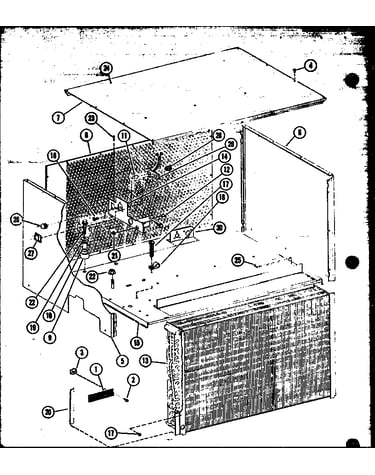

Condenser and cabinet parts (ercq24-001a/p55420-3c) (ercq30-001a/p55420-4c) (ercq36-001a/p55420-5c) (ercq42-001a/p55420-6c) diagram
Screw Mach. #8-32 X 1-1/2"
Part #M0201537
The manufacturer no longer makes this part, and there's no substitute part
Condenser and cabinet parts (ercq24-001a/p55420-3c) (ercq30-001a/p55420-4c) (ercq36-001a/p55420-5c) (ercq42-001a/p55420-6c) diagram
Grommet
Part #A4603801
The manufacturer no longer makes this part, and there's no substitute part
Condenser and cabinet parts (ercq24-001a/p55420-3c) (ercq30-001a/p55420-4c) (ercq36-001a/p55420-5c) (ercq42-001a/p55420-6c) diagram
Condenser
Part #C6144701
The manufacturer no longer makes this part, and there's no substitute part
Compressor and tubing parts (ercq24-001a/p55420-3c) (ercq30-001a/p55420-4c) (ercq36-001a/p55420-5c) (ercq42-001a/p55420-6c) diagram
Compressor, 10, 60 Hz, 2 H.p., 208/230 V., Copeland #seb
Part #D5517402
The manufacturer no longer makes this part, and there's no substitute part
Condenser fan and motor parts (ercq24-001a/p55420-3c) (ercq30-001a/p55420-4c) (ercq36-001a/p55420-5c) (ercq42-001a/p55420-6c) diagram
Ground Screw, #8-32 X 7/16"
Part #M0233103
The manufacturer no longer makes this part, and there's no substitute part
Compressor and tubing parts (ercq24-001a/p55420-3c) (ercq30-001a/p55420-4c) (ercq36-001a/p55420-5c) (ercq42-001a/p55420-6c) diagram
Compressor Wiring Harness
Part #C6145201
The manufacturer no longer makes this part, and there's no substitute part
Compressor and tubing parts (ercq24-001a/p55420-3c) (ercq30-001a/p55420-4c) (ercq36-001a/p55420-5c) (ercq42-001a/p55420-6c) diagram
Control, Crankcase Heater, Open 150 Degrees, Close 110 D
Part #B1189001
The manufacturer no longer makes this part, and there's no substitute part
