Model #25323082101 Official Kenmore freezer

Here are the diagrams and repair parts for Kenmore 25323082101 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual Error Codes

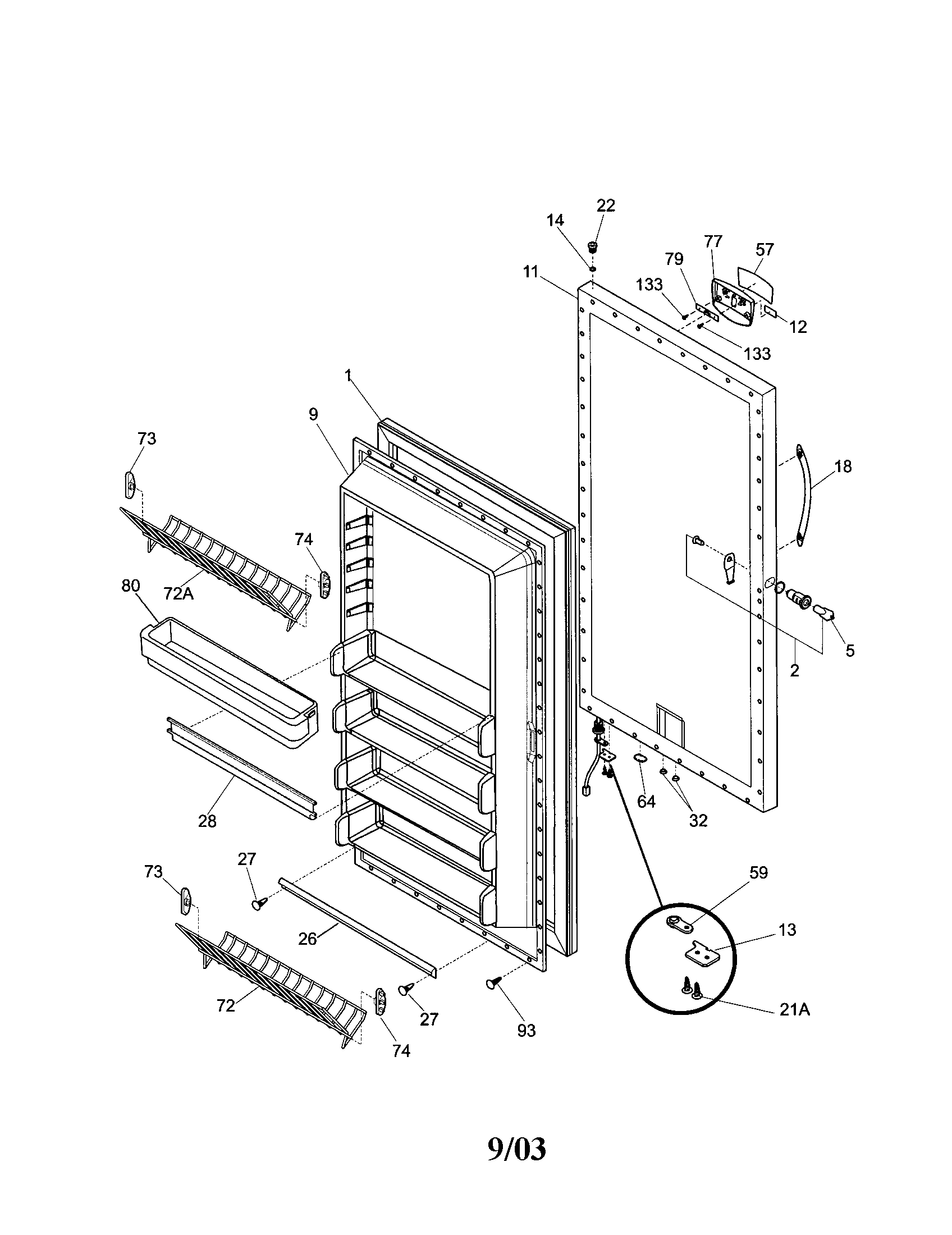

Door Diagram

Freezer door gasket

Part #216522312

Replaced by #5304507199

In Stock

$91.91 |

29% OFF

MSRP: $130.00

Qty

Refrigerator Door Handle Screw (replaces 218755503, 241531502, 7218755504)

#18A

Door Diagram

Shoulder screw

Part #218755503

Replaced by #218755504

In Stock

$9.11 |

20% OFF

Was: $11.39

Qty

Freezer Door Secondary Gasket (replaces 216524200, 7216524200, 7216524201)

#26

Door Diagram

Sec, gasket

Part #216524200

Replaced by #216524201

This item is not returnable

In Stock

$32.32 |

13% OFF

Phone Price: $37.32

Qty

Freezer Light Bulb (replaces 216222700, 240588001)

#15

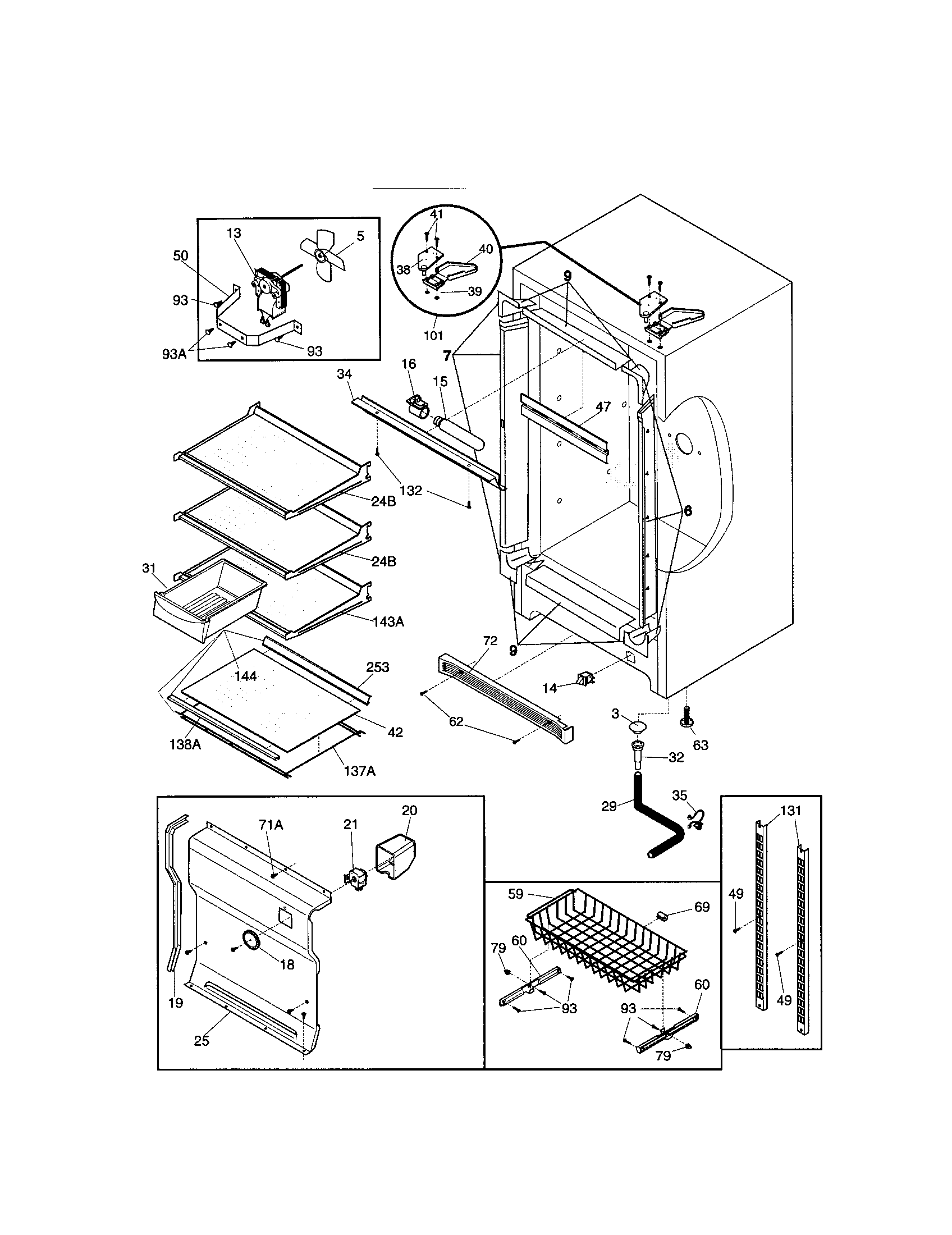

Cabinet Diagram

Freezer light bulb (replaces 216222700, 240588001)

Part #216846400

In Stock

$34.03 |

13% OFF

Phone Price: $39.03

Qty

Freezer Evaporator Fan Motor (replaces 216787000, 216822500)

#13

Cabinet Diagram

Fan motor

Part #216822500

Replaced by #5304436055

In Stock

$98.00 |

9% OFF

Phone Price: $108.00

Qty

Freezer Defrost Heater (replaces 297216100, 297216101, 7216730700, 7297216100)

#14

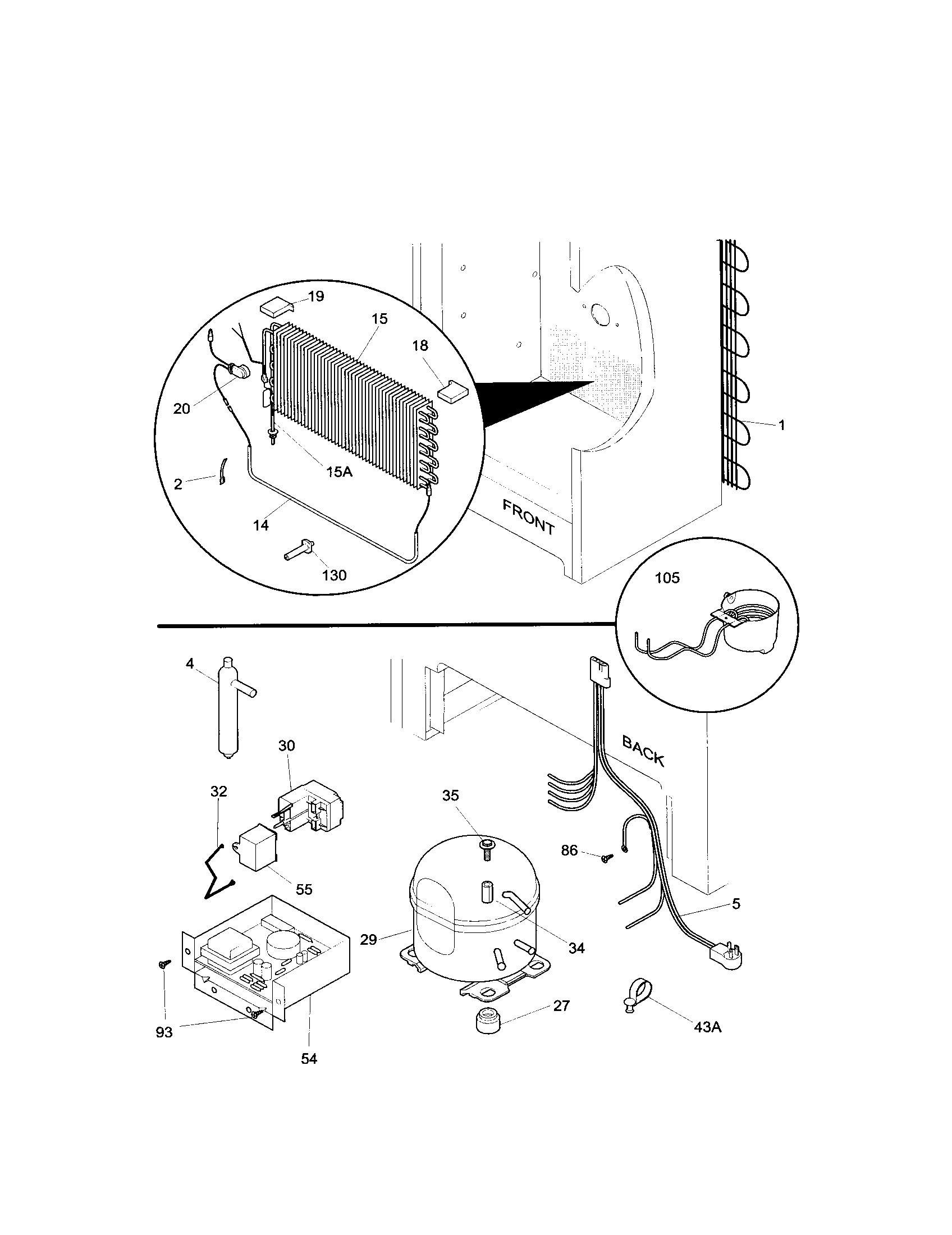

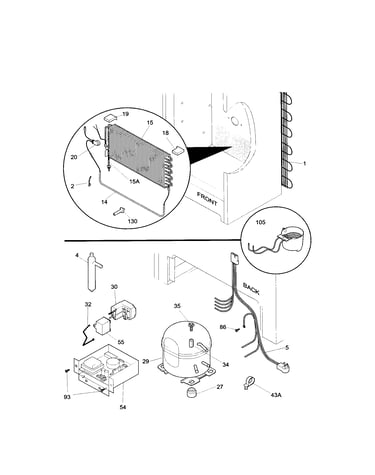

System Diagram

Freezer defrost heater (replaces 297216100, 297216101, 7216730700, 7297216100)

Part #216730700

In Stock

$79.49 |

6% OFF

Phone Price: $84.49

Qty

#15

System Diagram

Evaporator

Part #216737300

Replaced by #297414901

In Stock

$110.45 |

8% OFF

Phone Price: $120.45

Qty

Refrigerator Screw (replaces 216850900, 241951701, 5303001479, 7241710601)

#41

Cabinet Diagram

Screw

Part #216850900

Replaced by #241710601

This item is not returnable

In Stock

$14.19 |

12% OFF

Phone Price: $16.19

Qty

Freezer Drain Hose Adapter (replaces 5304512977, 5308005500)

#32

Cabinet Diagram

Freezer drain hose adapter

Part #5308005500

Replaced by #5304511843

This item is not returnable

In Stock

$14.91 |

12% OFF

Phone Price: $16.91

Qty

Refrigerator Compressor Kit (replaces 216470600, 216788600, 240330305, 297068201, 297223400, 297270420, 297270422, 297352102, 5304425593, 5304452709, 5304463417, 7297237400, 75304463220)

#29

System Diagram

Compressor

Part #216788600

Replaced by #5304478809

In Stock

$269.65 |

$10.00 OFF

Phone Price: $279.65

Qty

Recommended maintenance parts and accessories

Freezer Door Tilt-Out Shelf Rail End Cap, Left

Part #216513900

In Stock

$49.69 |

9% OFF

Phone Price: $54.69

Qty

Freezer Door Tilt-Out Shelf Rail End Cap, Right...

Part #216514000

In Stock

$46.49 |

10% OFF

Phone Price: $51.49

Qty

Appliance Leveling Leg (replaces 134158000, 721...

Part #216396900

In Stock

$18.89 |

10% OFF

Phone Price: $20.89

Qty

Freezer Drain Tube Insulation

Part #09948773

In Stock

$12.54 |

14% OFF

Phone Price: $14.54

Qty

Symptoms common to all freestanding freezers

Choose a symptom to see related freezer repairs.

Why don't the lights in my freezer work?

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failure

What should I do when my freezer's high-temperature alarm sounds?

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser coils, control failure

Why is my refrigerator so noisy?

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, faulty compressor

Why isn't my freezer cooling?

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-metal thermostat

Why is my freezer too warm?

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, compressor problems

Why does my freezer have a lot of frost inside?

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, bad defrost timer

Why isn't my freezer running?

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor motor failure

Why is my freezer hot on the outside?

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket
